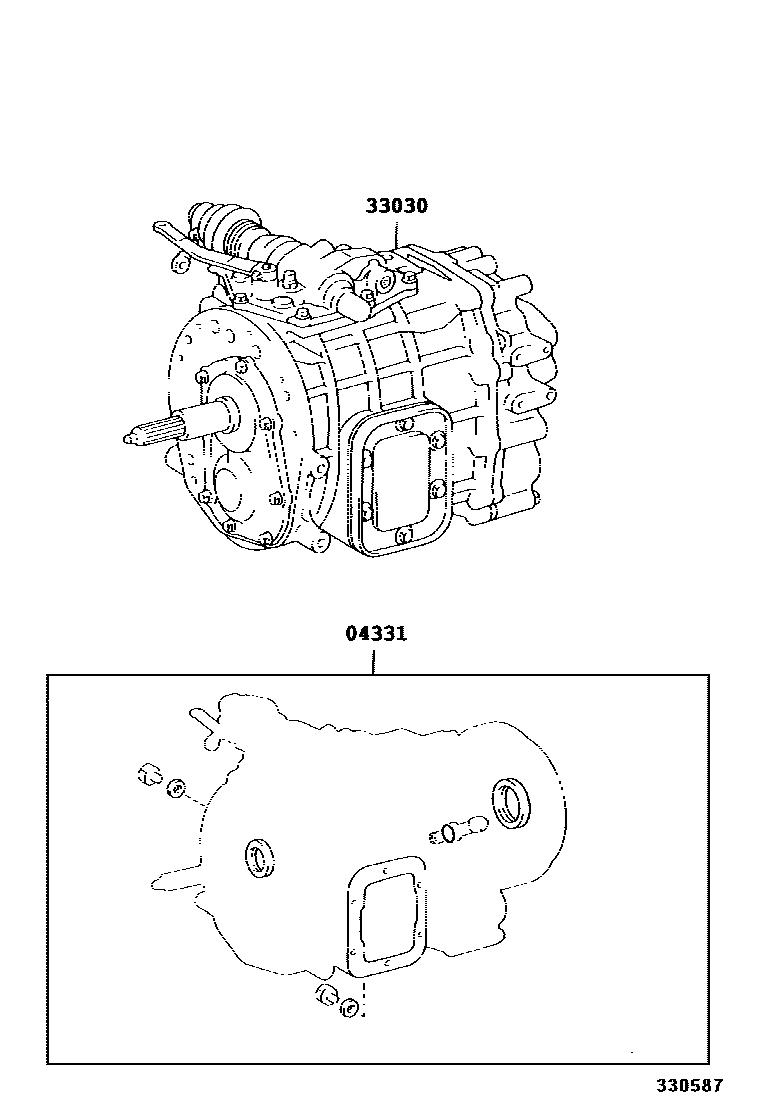

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1M150,M153,M155 0002 1H260

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36071iBU102,212,222..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,11#,14#,211,221,RZU100,YU210..(DM1,DM6,T1,T2,T3,T4,TW1,TW2)..(CBR,DSL,EFI)199505

main04331-36090iBU102,142..GEN;BU212,222..ARL,GEN,SA199505-200110

main04331-36100iBU213,223199908

33030TRANSMISSION UNIT ASSY, MANUAL

main33110-37190iBU141,211..30T..GEN199505-199610

HEAVY LOAD SPEC

main33110-37191iBU100,101,140,141..WT..(20T,25T)..GEN199610

HEAVY LOAD SPEC

main33110-37200iBU141,211..30T..GEN199505-199610

HEAVY LOAD SPEC & W(EXHAUST BRAKE)

main33110-37200iBU141,211..30T..GEN199505-199610

W(EXHAUST BRAKE)

main33110-37200iBU211..40T..GEN;BU140,211..(25T,30T)..(EUR,SA);BU101,212,22#..WT..DSL..(GEN,TAIW)..TB199505-199610

main33110-37201iBU211..40T..GEN;BU101,221..WT..GEN..TB199610

HEAVY LOAD SPEC & W(EXHAUST BRAKE)

main33110-37201iBU100,101,140,141..WT..(20T,25T)..GEN199610

W(EXHAUST BRAKE)

main33110-37210iBU140..LHD..GEN199505-199610

HEAVY LOAD SPEC & CHINA SPEC

main33110-37211iBU140..LHD199610-199905

HEAVY LOAD SPEC & CHINA SPEC

main33110-37220iBU140..LHD..GEN;BU211,221..40T..GEN199505-199610

*AXC=B09A

main33110-37221iBU140..LHD;BU211,221..40T..GEN199610

*AXC=B09A

main33110-37230iBU111,112..20T199505

main33110-37250iBU222199505-199610

*AXC=B05A

main33110-37270iRZU100..15T199908

main33110-37280iRZU100..RHD199703-200009

main33110-37290iYU210199505

main33110-37300iBU101..20T;BU100..ST..GEN199505-199610

main33110-37301iBU141..SA;BU100..ST..GEN;BU101..20T..(GEN,SA)199610

main33110-37310iBU102..20T;BU100..ARL..CBU199505-199610

main33110-37310iBU101..20T;BU100..ST..GEN199505-199610

W(EXHAUST BRAKE)

main33110-37311iBU141..SA;BU100..ST..GEN;BU101..(175T,20T)..GEN199610

W(EXHAUST BRAKE)

main33110-37330iBU100,140,141..WT..(20T,25T)..GEN199505-199610

main33110-37331iBU100,140,141..WT..(20T,25T)..GEN199610

main33110-37340iBU102..30T;BU100..ARL..IV3199505-199610

W(EXHAUST BRAKE)

main33110-37341iBU100..ARL..IV3;BU102..30T..TAIW199610-199908

main33110-37341iBU100,140,141..WT..(20T,25T)..GEN199610

W(EXHAUST BRAKE)

main33110-37351iBU102..30T199703-199908

main33110-37360iBU211,221..40T..SA199505-200008

main33110-37430iBU142..EUR199605-199708

W(SEPARATE TYPE VACUUM P.T.O)

main33110-37440iBU102..TD;BU142..EUR199605-200108

main33110-37470iBU110199505-199905

main33110-37480iBU142..ARL199505-199610

main33110-37481iBU142..ARL199610

main33110-37490iBU212..ARL199505-199610

W(SEPARATE TYPE VACUUM P.T.O)

main33110-37491iBU212..LHD..40T..TD199610

W(SEPARATE TYPE VACUUM P.T.O)

main33110-37500iBU212..GEN199505-199610

main33110-37501iBU212..LHD..40T..TD199610

main33110-37540iBU102..ST..20T;BU102..WT..(15T,20T)199703-199908

main33110-37560iBU112199703-199908

main33110-37580iBU222..EUR;BU212,222..RHD..TD199703-200110

main33110-37590iBU222..LHD..GEN;BU212..30T..TD..IV3199610-199908

main33110-37590iBU212..RHD..GEN..IV3199808

THAILAND SPEC

main33110-37590iBU212..RHD..GEN..IV3199808

CHILE SPEC

main33110-37680iBU102..ST199705-199707

TAIWAN SPEC

main33110-37680iBU102..ST..15T199712-199908

main33110-37730iBU212..LHD..40T..TD199808

CHILE SPEC & W(SEPARATE TYPE VACUUM P.T.O)

main33110-37740iBU142..25T..GEN199808

main33110-37800iBU212,222..DSL..SA200005

main33120-37180iBU101..175T199905-200212

2 parts on this diagram · 2 diagrams in section
