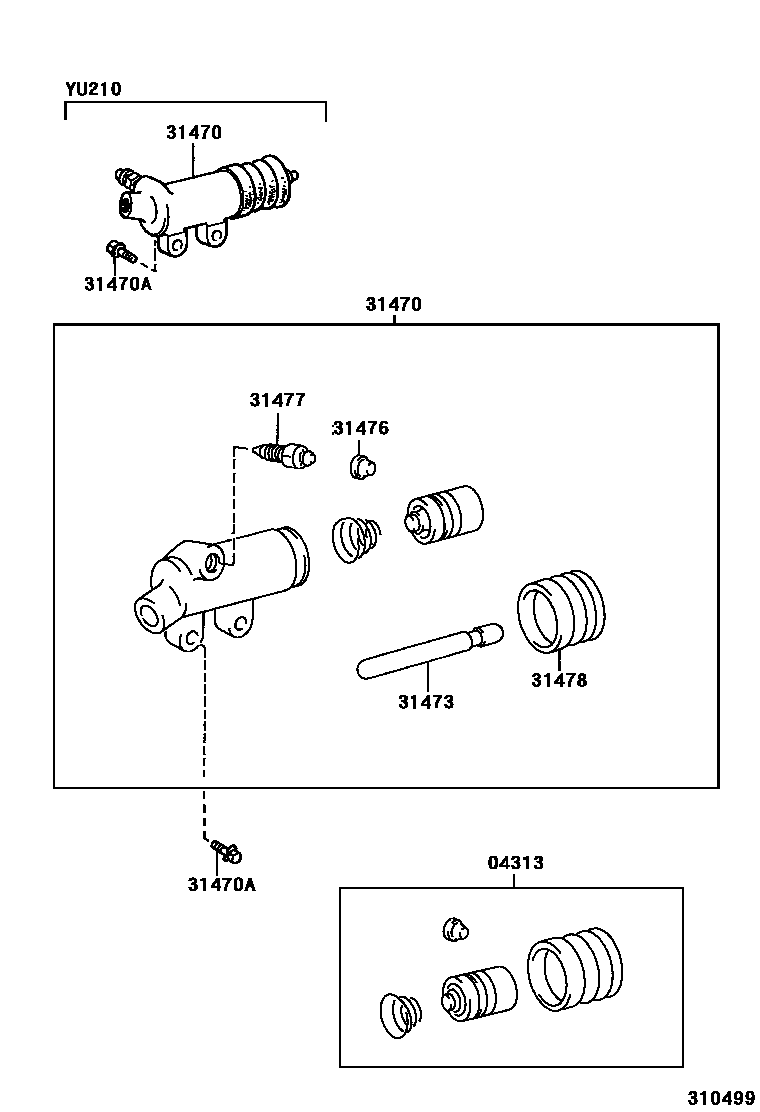

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iYU210199505

main04313-30130iRZU100199703

main04313-36150iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505

main04313-36170iBU211,221..40T..SA199505-200008

main04313-37030iBU102..TD;BU102,112,142,212,213,222,223..(25T,30T,40T)..(ARL,EUR,GEN,SA)199505

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36213iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505

main31470-36271iBU211,221..40T..SA199505-200008

main31470-36300iYU210199505

main31470-36310iRZU100199703

sub31470-36311

main31470-37040iBU102..TD;BU102,112,142,212,222..(25T,30T,40T)..(ARL,EUR,GEN,SA)199505

main31470-37050iBU213,223199908

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iBU102,RZU100..EFI,TD;BU102,112,142,212,213,222,223..(25T,30T,40T)..(ARL,EUR,GEN,SA)199605

*8-1.25PX25-25

main91611-G0820iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#,YU210..(DM1,DM6,T1,T2,T3,TW2)..(CBR,DSL)199505

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iBU102..TD;BU102,112,142,212,222..(25T,30T,40T)..(ARL,EUR,GEN,SA)199505

main31473-22010iBU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL199505

main31473-32010iRZU100199703

main31473-35050iYU210199505

main31473-36090iBU211,221..40T..SA199505-200008

main31473-37030iBU213,223199908

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBU211,221..GEN;BU211..30T..SA;BU10#,11#,14#,212,213,222,223,RZU100,YU210199505

main31476-36010iBU211,221..40T..SA199505-200008

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBU10#,11#,14#,21#,22#,RZU100,YU210199505

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBU10#,11#,14#,21#,22#,RZU100,YU210199505

7 parts on this diagram · 1 diagram in section
