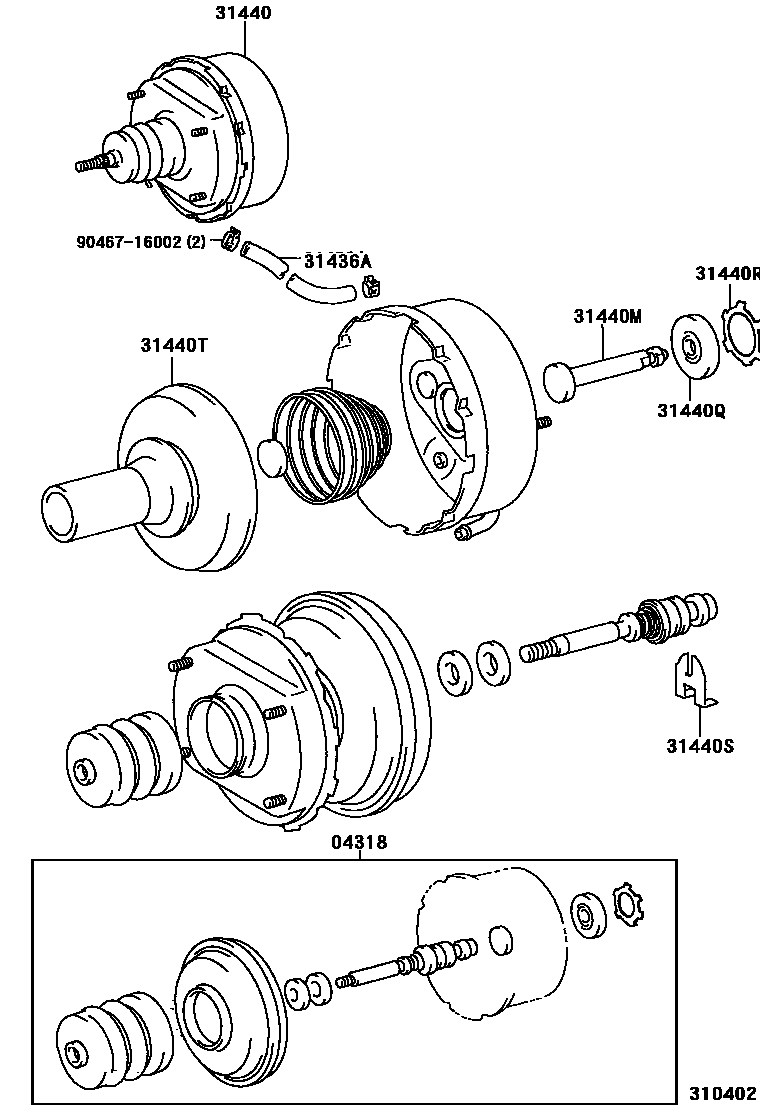

CLUTCH BOOSTER

04318BOOSTER KIT, CLUTCH

main04318-36040iBU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN)199505

31436AHOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)

main31436-37010iBU211..TW1;BU212..30T..GEN;BU142,222..ARL,GEN;BU21#,221..RHD..(ARL,GEN)199505-199612

main31436-37020iBU212..40T..GEN;BU21#,22#..LHD..T3..DSL199505-199612

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-37020iBU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN)199505

31440MROD SUB-ASSY, CLUTCH BOOSTER PISTON

main44606-12520iBU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN)199505

31440QGASKET, BRAKE BOOSTER BRACKET

main44621-28120iBU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN)199505

31440RRING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)

main44628-28120iBU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN)199505

31440SKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-36010iBU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN)199505

31440TPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-10070iBU212,222;BU142,211,213,221,223..(DSL,TDEFI)..(ARL,GEN)199505

9046716002

main90467-16002

9 parts on this diagram · 1 diagram in section
