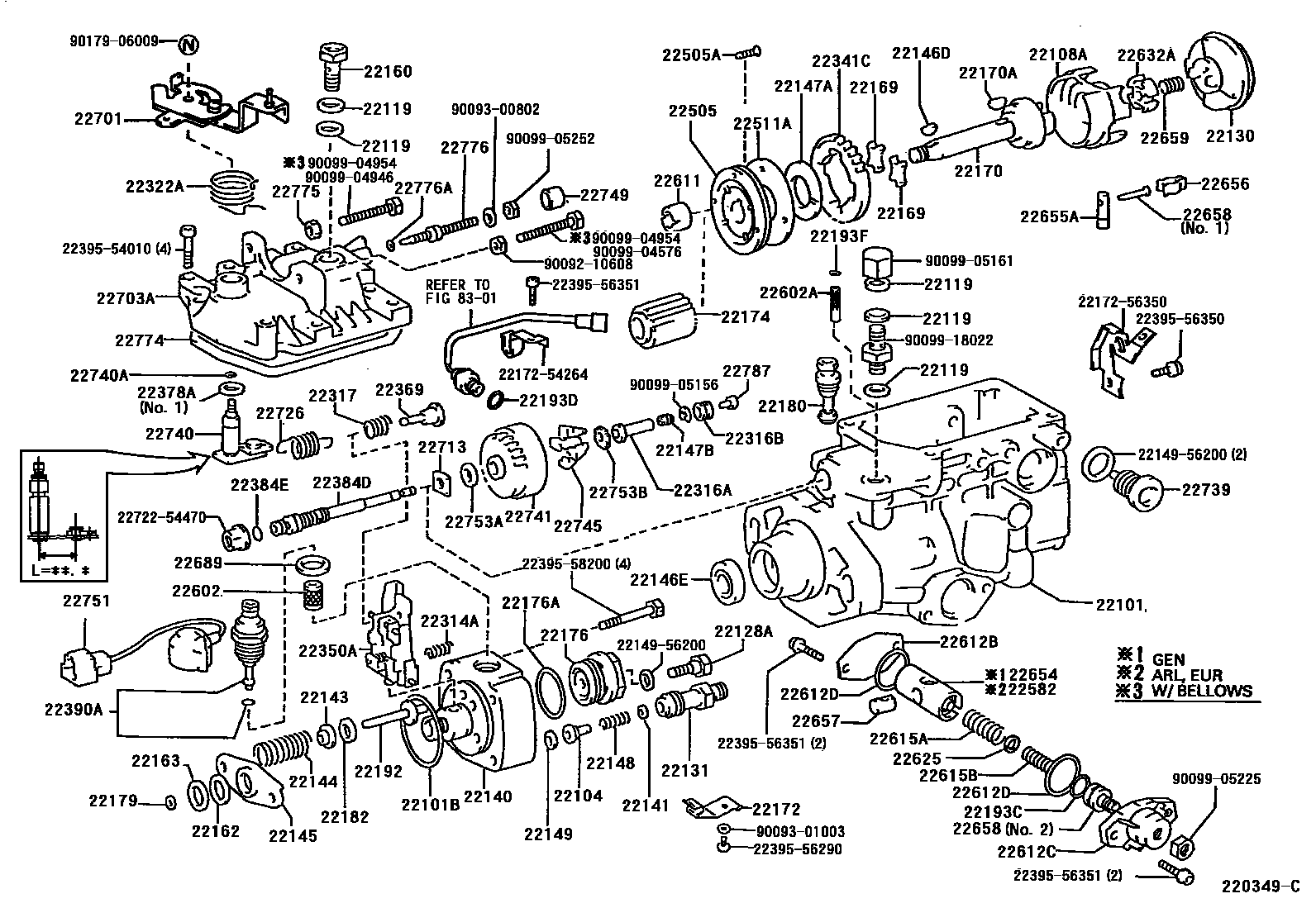

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0015 1 0016 1

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-17840i15BF,15BFT..BU212,222..SA;15BFT..BU212,222..LHD..GEN199505-200212

main22101-54200i14B,3B..BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)199505

*HAC & W(TACHO METER)

main22101-54250i14B..BU211,221;14B,3B..BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN199505-200212

*HAC

main22101-54250i14B..BU101,141..SA199802-200212

main22101-54260i14B..BU111,141..LHD..(DM1,T3)199703-199708

CHINA SPEC & *HAC

main22101-54260i14B..BU101..175T..GEN199905-200212

RUSSIA SPEC & *HAC

main22101-54260i14B..BU211..LHD..T3199905

RUSSIA SPEC & W(TACHO METER) & *HAC

main22101-54260i14B..BU211..LHD..T3199505-199905

CHINA SPEC & W(TACHO METER) & *HAC

main22101-54770i14B,3B..BU100,101,111,140,141,211,221..GEN..(CBU,IV3)199505-200212

main22101-5C120i15BF..BU102,112,142,212,222..ARL,GEN199505-200212

main22101-5C350i15BFT..BU142..25T..GEN;15BFT..BU212,222..RHD..GEN199703

sub22101-5C351

main22101-5C350i15BFT..BU212..LHD..40T199808-200212

CHILE SPEC

sub22101-5C351

main22101-5C360i15BFT..BU102,142..RHD;15BFT..BU142,222..EUR199605

main22101-5C360i15BFT..BU212..RHD..IV3199808

THAILAND SPEC

main22101-64250i14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,102,11#,140,141,211,212,221,222..(DM1,T2,T3,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200212

W(TACHO METER)

main22101-64250i14B..BU101..LHD..ST..TS199905-200212

W(TACHOMETER)

main22101-64260i14B..BU101..ARL199908-200212

main22101-64260i14B..BU211..LHD..T3199505-199704

CHINA SPEC & W(TACHO METER)

main22101-64270i14B..BU111,141..LHD..(DM1,T3)199505-199704

CHINA SPEC

main22101-6A440i14B..BU111,141..LHD..(DM1,T3)199505-199703

CHINA SPEC & *HAC

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14015i15BFT..BU212..LHD..40T199808

CHILE SPEC

main90099-14015i15BFT..BU142..25T..GEN;15BFT..BU212,222..RHD..GEN199703

main90099-14053i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-17010i3B..BU100,110,140199505-199908

main22104-17840i15BFT..BU222..SA;15BF..BU142,212,222;14B,15BF,15BFT..BU102,111,112,141,211,212,221,222..LHD..(DM1,DM7,T2,T3,T4,TW1)..GEN199505-200212

main22104-17840i14B..BU101..LHD..TS199905-200212

SAUDI ARABIA,GULF SPEC

main22104-56330i14B..BU141..30T;14B..BU101..ST..TS199505-199703

HONG KONG SPEC & W(TACHO METER)

main22104-56330i14B..BU101..ARL199908-200212

main22104-56330i14B..BU111,221..RHD..GEN199606-199706

THAILAND SPEC,MARK"35"

main22104-56330i14B..BU111,221..RHD..GEN199606-199703

THAILAND SPEC OR W(TACHO METER) & HONG KONG SPEC,MARK"35"

main22104-56330i14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199706-200009

THAILAND SPEC

main22104-56350i14B..BU101,102,111,112,141,21#,22#199505-200008

MARK"29"

main22104-56350i14B..BU111..IV3;14B..BU211..IV2;14B..BU101,141..SA;14B..BU101..LHD..ST..TS199708-200212

main22104-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main22104-5C350i15BFT..BU212..LHD..40T199808-200212

CHILE SPEC

22108ARING SUB-ASSY, ROLLER

main22108-54010i3B..BU100,110,140199505-199908

main22108-56330i14B..BU101,111,141,211,221199505-199509

main22108-56350i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main22108-56350i14B..BU101..175T..GEN199905

RUSSIA SPEC & *HAC

main22108-56350i14B..BU101..ARL199908

main22108-56350i14B..BU101..175T..GEN199905

RUSSIA SPEC

main22108-5C090i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main22108-96300i14B..BU101,102,111,112,141,211,212,221,222..GEN,SA,TAIW199509

main22108-96300i14B..BU141..LHD199505-199509

ALGERIA SPEC

22119WASHER, AIR BLEEDER NIPPLE

main22119-58770i14B..BU211..LHD..T3199505-199905

CHINA SPEC & W(TACHO METER) & *HAC,T=3.7

main22119-58770i14B..BU111,141..LHD..(DM1,T3)199505-199708

CHINA SPEC & *HAC,T=3.7

main22119-58770i14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199606-200212

T=3.7

main22119-58770i14B..BU101..175T..GEN199905-200212

RUSSIA SPEC & *HAC,T=3.7

main22119-58770i14B..BU211..LHD..T3199905

RUSSIA SPEC & W(TACHO METER) & *HAC,T=3.7

main22119-6A210i14B..BU111..IV3199505-200212

T=3.1

main22119-6A210i14B..BU111,141..LHD..(DM1,T3)199505-199708

CHINA SPEC & *HAC,T=3.1

main22119-6A210i14B..BU211..LHD..T3199905

RUSSIA SPEC & W(TACHO METER) & *HAC,T=3.1

main22119-6A210i14B..BU101..175T..GEN199905-200212

RUSSIA SPEC & *HAC,T=3.1

main22119-6A210i14B..BU111..LHD..CBU199505-199704

CHINA SPEC,T=3.1

main22119-6A210i14B..BU211..LHD..T3199505-199905

CHINA SPEC & W(TACHO METER) & *HAC,T=3.1

main22119-6A210i14B..BU141..LHD199505-200212

CHINA OR ALGERIA SPEC,T=3.1

main22149-54800i15BFT..BU222..SA;3B..BU100,140..GEN;15BFT..BU212,222..LHD..GEN199505-200212

main22149-54800i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708-200212

*HAC

main90099-01533i14B..BU211..LHD..T3199905

RUSSIA SPEC & W(TACHO METER) & *HAC,T=1.0

main90099-01533i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708-200212

T=1.0

main90099-01533i14B..BU211..LHD..T3199505-199905

CHINA SPEC & W(TACHO METER) & *HAC,T=1.0

main90099-01533i14B..BU101..175T..GEN199905-200212

RUSSIA SPEC & *HAC,T=1.0

main90099-01533i14B..BU111,141..LHD..(DM1,T3)199505-199708

CHINA SPEC & *HAC,T=1.0

main90201-12109i14B..BU101..GEN;14B..BU111,141,211,221..RHD..GEN..(CBU,IV3)199505-200212

T=1.6

main90201-12109i14B..BU211..RHD..GEN;14B,15BFT..BU101,102,111,112,141,212,22#..GEN,TAIW199505-199703

*HAC,T=1.6

main90201-12109i14B..BU111..LHD..CBU199505-199704

CHINA SPEC,T=1.6

main90201-12109i14B..BU111..LHD..CBU199505-199704

CHINA OR ALGERIA SPEC,T=1.6

main90201-12109i14B..BU141..RHD;14B..BU101,111,211,221..GEN199509-200212

main90201-12109i15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140199505-200212

ALGERIA SPEC,T=1.6

main90201-12109i15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140199505-199708

CHINA SPEC & *HAC,T=1.6

main90201-12109i14B..BU211..TW1;14B..BU221..LHD199705-200212

SAUDI ARABIA,GULF SPEC,T=1.6

main90201-12109i14B..BU211..TW1;14B..BU221..LHD199705-200212

SAUDI ARABIA,GULF SPEC

main90201-12109i14B..BU101..LHD..ST..TS199905-200212

W(TACHOMETER) & SAUDI ARABIA,GULF SPEC

main90201-12109i14B..BU211..TW1;14B..BU111,141,221..LHD..(DM1,T3)199708-200212

W(TACHOMETER);*HAC;*HAC & W(TACHO METER)

main90201-12109i15BFT..BU222..SA;15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU102,11#,142,212,222..(DM6,DM7,T2,T3,T4,TW1)..(ARL,GEN)199905-200212

W(TACHOMETER);*HAC

main90201-12109i14B..BU211..LHD..T3199505

W(TACHOMETER)

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010i3B..BU100,110,140199505-199908

main22128-56330i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2199505-200008

22130CAMPLATE SUB-ASSY, FACE

main22130-56350i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main22130-58200i3B..BU100,140..GEN199505-199905

main22130-5C090i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505-200212

main22130-5C150i3B..BU100,110,140..ARL,EUR199505-199908

main22130-5C470i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

22131HOLDER, DELIVERY VALVE

main22131-17420i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main22131-54010i14B..BU101,111,141,211,221199505-200008

main22131-54730i3B..BU100,110,140199505-199908

main22131-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

sub22131-5C351

main22131-5C350i15BFT..BU212..LHD..40T199808

CHILE SPEC

sub22131-5C351

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-56350i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main22140-58690i3B..BU100,140..GEN199505-199905

main22140-5C090i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505-200212

main22140-5C090i14B..BU101..LHD..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

main22140-5C150i3B..BU100,110,140..ARL,EUR199505-199908

22141SEAT, DELIVERY VALVE SPRING

main22141-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,102,110,112,140,142,212,222199505-200212

main22141-5C470i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

main22565-56350i14B..BU101,102,111,112,141,211,212,221,222199505-200008

22143SEAT, SPRING UPPER

main22143-54010i3B..BU100,110,140199505-199908

main22143-56350i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222199505-200008

main22143-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main22143-5C350i15BFT..BU212..LHD..40T199808

CHILE SPEC

22144SPRING, PUMP PLUNGER

main22144-17840i15BFT..BU212,222..LHD;15BF..BU102,112,142,212,222199505-199809

main22144-17840i14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-199809

SAUDI ARABIA,GULF SPEC

main22144-54180i3B..BU100,140..GEN199505-199905

main22144-54190i3B..BU100,110,140..ARL,EUR199505-199908

main22144-56350i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main22144-5C090i14B..BU101..LHD..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199809-200212

SAUDI ARABIA,GULF SPEC

main22144-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main22144-5C350i15BFT..BU212..LHD..40T199808-200212

CHILE SPEC

22145SEAT, SPRING, LOWER

main22145-54010i3B..BU100,110,140199505-199908

main22145-56350i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222199505-200008

main22145-5C350i15BFT..BU212..LHD..40T199808

CHILE SPEC

main22145-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

22146CAMSHAFT, INJECTION PUMP

main22146-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

22146DKEY(FOR DRIVE GEAR)

main90099-13018i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22147RING, CAMSHAFT ADJUST

main22147-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

FRONT

main22147-78030i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

REAR

22147AWASHER, DRIVE SHAFT

main22161-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22147BRING, GOVERNOR SLEEVE

main22147-54290i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22148SPRING, DELIVERY VALVE

main22148-54010i3B..BU100,110,140199505-199908

main22148-56350i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main22148-5B250i14B..BU101..LHD..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

main22148-5B250i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505-200212

main22148-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main22148-5C350i15BFT..BU212..LHD..40T199808-200212

CHILE SPEC

22149GASKET, DELIVERY VALVE

main22149-56351i14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA199505-200008

main90099-01584i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main90099-01584i15BFT..BU212..LHD..40T199808

CHILE SPEC

22160SCREW SUB-ASSY, OVERFLOW

main22160-1C170i15BFTE..BU213,223199908

main22160-56350i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

main22160-5C350i15BFT..BU212..LHD..40T199808

CHILE SPEC

main22160-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main22160-64010i3B..BU100,110,140199505-199908

22162PLATE, PLUNGER UPPER

main22162-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22163PLATE, PLUNGER LOWER

main22163-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22169JOINT, RUBBER

main22169-54180i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22170SHAFT SUB-ASSY, DRIVE

main22170-17840i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505-200008

main22170-17840i14B..BU101..LHD..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200008

SAUDI ARABIA,GULF SPEC

main22170-54180i3B..BU100,110,140199505-199908

main22170-56350i14B..BU101,102,111,112,141,211,212,221,222199505

main22170-5C120i15BFT..BU222..SA;15BFT..BU212..LHD;15BF..BU142,212,222200008-200212

SAUDI ARABIA,GULF SPEC

22170AKEY(FOR DRIVE SHAFT)

main90099-13017i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-56291i14B,3B..BU10#,11#,140,141,21#,22#199505-200111

TYPE B:REFER TO ILLUSTRATION

main22172-56291i14B..BU101..175T..GEN199905

TYPE B:REFER TO ILLUSTRATION,RUSSIA SPEC & *HAC

main22172-56291i14B..BU111..LHD..CBU199509-199704

TYPE B:REFER TO ILLUSTRATION, CHINA SPEC

main22172-56291i3B..BU100,110,140199708-199908

main22172-5C090i15BFT..BU212,222..LHD;14B..BU111,141,211,221..RHD;14B,15BF..BU101,102,111,112,142,212..DM6,DM7,T1,T2,T3,TW1199505-200008

TYPE A:REFER TO ILLUSTRATION

main22172-5C090i14B..BU111..RHD;14B..BU101..RHD..WT..IV3199506-199703

TYPE A:REFER TO ILLUSTRATION,*HAC

main22172-5C090i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199708

22174SHAFT, SPLINE

main22174-58201i3B..BU100,110,140199505-199908

main22174-58270i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222199505-200008

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i15BFT..BU222..SA;14B,15BFT..BU212,222..LHD..(GEN,TAIW);14B,15BF,3B..BU10#,11#,140,141,211,221;14B,15BF..BU212,222..(GEN,SA,TAIW)..IV3199505-200008

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i14B..BU211..RHD;14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,212,221,222199703-200008

main22193-54772i14B..BU211..RHD;14B..BU211..TW1;15BFT..BU212,222;14B,15BF,3B..BU100,101,110,111,14#,212,221..ARL,EUR,GEN,SA199608-199905

CHINA SPEC & *HAC

main90099-14052i14B..BU111..LHD..CBU;14B..BU101..RHD..WT..IV3199608-199703

HONG KONG SPEC

sub22193-54772

main90099-14052i15BFT..BU212;14B,15BF,3B..BU10#,11#,14#,21#,22#199505-199608

sub22193-54772

main90099-14052i14B..BU102,112,212,222199608-199703

CHINA SPEC

sub22193-54772

22179SHIM, PLUNGER ADJUSTING

main22179-17010i14B..BU111..LHD..CBU199505-199704

T=1.92,CHINA SPEC

main22179-17010i14B..BU111..LHD..CBU199505-199704

T=1.92,CHINA OR ALGERIA SPEC

main22179-17011i14B..BU111..LHD..CBU199505-199704

T=1.94,CHINA SPEC

main22179-17011i14B..BU111..LHD..CBU199505-199704

T=1.94,CHINA OR ALGERIA SPEC

main22179-17012i14B..BU111..LHD..CBU199505-199704

T=1.96,CHINA SPEC

main22179-17012i14B..BU111..LHD..CBU199505-199704

T=1.96,CHINA OR ALGERIA SPEC

main22179-17013i14B..BU111..LHD..CBU199505-199704

T=1.98,CHINA SPEC

main22179-17013i14B..BU111..LHD..CBU199505-199704

T=1.98,CHINA OR ALGERIA SPEC

main22179-17014i14B..BU111..LHD..CBU199505-199704

T=2.02,CHINA SPEC

main22179-17014i14B..BU111..LHD..CBU199505-199704

T=2.02,CHINA OR ALGERIA SPEC

main22179-17015i14B..BU141..LHD199505-199704

T=2.04,CHINA OR ALGERIA SPEC

main22179-17015i14B..BU111..LHD..CBU199505-199704

T=2.04,CHINA SPEC

main22179-17016i14B..BU111..LHD..CBU199505-199704

T=2.06,CHINA OR ALGERIA SPEC

main22179-17016i14B..BU111..LHD..CBU199505-199704

T=2.06,CHINA SPEC

main22179-17017i14B..BU111..LHD..CBU199505-199704

T=2.08,CHINA SPEC

main22179-17017i14B..BU111..LHD..CBU199505-199704

T=2.08,CHINA OR ALGERIA SPEC

main22179-17018i14B..BU111..LHD..CBU199505-199704

T=2.12,CHINA SPEC

main22179-17018i14B..BU111..LHD..CBU199505-199704

T=2.12,CHINA OR ALGERIA SPEC

main22179-17019i14B..BU101..175T..GEN;14B..BU101..LHD..WT..IV3..TS;14B..BU111,221..LHD..(DM6,T3)199708-200111

T=2.14

main22179-17019i14B..BU141..LHD199505

T=2.14,CHINA OR ALGERIA SPEC

main22179-17019i14B..BU211..LHD..T3199905

T=2.14,RUSSIA SPEC & W(TACHO METER) & *HAC

main22179-17019i14B..BU111..LHD..CBU199505-199704

T=2.14,CHINA SPEC

main22179-17019i14B..BU211..LHD..T3199505-199905

T=2.14,CHINA SPEC & W(TACHO METER) & *HAC

main22179-17020i14B..BU111..LHD..CBU199505-199704

T=2.16,CHINA OR ALGERIA SPEC

main22179-17020i14B..BU141..LHD199505-199704

T=2.16,CHINA SPEC

main22179-17021i14B..BU111..LHD..CBU199505-199704

T=2.18,CHINA SPEC

main22179-17021i14B..BU141..LHD199505-199704

T=2.18,CHINA OR ALGERIA SPEC

main22179-17022i14B..BU111,141..LHD..(DM1,T3)199505-199704

T=2.22,CHINA SPEC

main22179-17023i14B..BU111..LHD..CBU199505-199704

T=2.24,CHINA OR ALGERIA SPEC

main22179-17023i14B..BU111..LHD..CBU199505-199704

T=2.24,CHINA SPEC

main22179-17024i14B..BU111..LHD..CBU199505-199704

T=2.26,CHINA OR ALGERIA SPEC

main22179-17024i14B..BU141..LHD199505-199704

T=2.26,CHINA SPEC

main22179-17025i14B..BU111..LHD..CBU199505-199704

T=2.28,CHINA OR ALGERIA SPEC

main22179-17025i14B..BU141..LHD199505-199704

T=2.28,CHINA SPEC

main22179-17026i14B..BU111..LHD..CBU199505-199704

T=2.32,CHINA OR ALGERIA SPEC

main22179-17026i14B..BU141..LHD199505-199704

T=2.32,CHINA SPEC

main22179-17027i14B..BU111..LHD..CBU199505-199704

T=2.34,CHINA OR ALGERIA SPEC

main22179-17027i14B..BU141..LHD199505-199704

T=2.34,CHINA SPEC

main22179-17028i14B..BU111..LHD..CBU199505-199704

T=2.36,CHINA OR ALGERIA SPEC

main22179-17028i14B..BU141..LHD199505-199704

T=2.36,CHINA SPEC

main22179-17029i14B..BU141..LHD199505-199704

T=2.38,CHINA SPEC

main22179-17029i14B..BU111..LHD..CBU199505-199704

T=2.38,CHINA OR ALGERIA SPEC

main22179-17030i14B..BU111,141..LHD..(DM1,T3)199505-199704

T=2.42,CHINA SPEC

main22179-17031i14B..BU141..LHD199505-199704

T=2.44,CHINA OR ALGERIA SPEC

main22179-17031i14B..BU141..LHD199505-199704

T=2.44,CHINA SPEC

main22179-17032i14B..BU111..LHD..CBU199505-199704

T=2.46,CHINA OR ALGERIA SPEC

main22179-17032i14B..BU111..LHD..CBU199505-199704

T=2.46,CHINA SPEC

main22179-17033i14B..BU111..LHD..CBU199505-199704

T=2.48,CHINA OR ALGERIA SPEC

main22179-17033i14B..BU141..LHD199505-199704

T=2.48,CHINA SPEC

main22179-17034i14B..BU111..LHD..CBU199505-199704

T=2.52,CHINA SPEC

main22179-17034i14B..BU111..LHD..CBU199505-199704

T=2.52,CHINA OR ALGERIA SPEC

main22179-17035i14B..BU111..LHD..CBU199505-199704

T=2.54,CHINA OR ALGERIA SPEC

main22179-17035i14B..BU141..LHD199505-199704

T=2.54,CHINA SPEC

main22179-17036i14B..BU111..LHD..CBU199505-199704

T=2.56,CHINA OR ALGERIA SPEC

main22179-17036i14B..BU141..LHD199505-199704

T=2.56,CHINA SPEC

main22179-17037i14B..BU111..LHD..CBU199505-199704

T=2.58,CHINA SPEC

main22179-17037i14B..BU111..LHD..CBU199505-199704

T=2.58,CHINA OR ALGERIA SPEC

main22179-17038i14B..BU111..LHD..CBU199505-199704

T=2.62,CHINA OR ALGERIA SPEC

main22179-17038i14B..BU141..LHD199505-199704

T=2.62,CHINA SPEC

main22179-17039i14B..BU111..LHD..CBU199505-199704

T=2.64,CHINA OR ALGERIA SPEC

main22179-17039i14B..BU141..LHD199505-199704

T=2.64,CHINA SPEC

main22179-17040i14B..BU111..LHD..CBU199505-199704

T=2.66,CHINA OR ALGERIA SPEC

main22179-17040i14B..BU141..LHD199505-199704

T=2.66,CHINA SPEC

main22179-17041i14B..BU111..LHD..CBU199505-199704

T=2.68,CHINA OR ALGERIA SPEC

main22179-17041i14B..BU141..LHD199505-199704

T=2.68,CHINA SPEC

main22179-17042i14B..BU141..LHD199505-199704

T=2.72,CHINA SPEC

main22179-17042i14B..BU111..LHD..CBU199505-199704

T=2.72,CHINA OR ALGERIA SPEC

main22179-17043i14B..BU111..LHD..CBU199505-199704

T=2.74,CHINA SPEC

main22179-17043i14B..BU111..LHD..CBU199505-199704

T=2.74,CHINA OR ALGERIA SPEC

main22179-17044i14B..BU141..LHD199505-199704

T=2.76,CHINA SPEC

main22179-17044i14B..BU141..LHD199505-199704

T=2.76,CHINA OR ALGERIA SPEC

main22179-17045i14B..BU111..LHD..CBU199505-199704

T=2.78,CHINA OR ALGERIA SPEC

main22179-17045i14B..BU141..LHD199505-199704

T=2.78,CHINA SPEC

main22179-17046i14B..BU111..LHD..CBU199505-199704

T=2.82,CHINA OR ALGERIA SPEC

main22179-17046i14B..BU141..LHD199505-199704

T=2.82,CHINA SPEC

main22179-17047i14B..BU111..LHD..CBU199505-199704

T=2.84,CHINA OR ALGERIA SPEC

main22179-17047i14B..BU141..LHD199505-199704

T=2.84,CHINA SPEC

main22179-17048i14B..BU111..LHD..CBU199505-199704

T=2.86,CHINA SPEC

main22179-17048i14B..BU111..LHD..CBU199505-199704

T=2.86,CHINA OR ALGERIA SPEC

main22179-17049i14B..BU111..LHD..CBU199505-199704

T=2.88,CHINA OR ALGERIA SPEC

main22179-17049i14B..BU141..LHD199505-199704

T=2.88,CHINA SPEC

main22179-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

T=1.9

main22179-54011i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=2.0

main22179-54012i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=2.1

main22179-54013i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

T=2.2

main22179-54014i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=2.3

main22179-54015i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

T=2.4

main22179-54016i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=2.5

main22179-54017i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=2.6

main22179-54018i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=2.7

main22179-54019i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

T=2.8

main22179-54020i15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22#199505-200008

T=2.9

22180VALVE SUB-ASSY, REGULATOR

main22180-17540i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN199610-199908

NO.1

main22180-56351i15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,102,111,112,141,142,211,212,221,222199505-200008

NO.1

main22180-58200i3B..BU100,110,140199505-199908

main22180-58650i14B..BU101,111,141,211,221199505-200008

NO.2

main22180-5C090i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

NO.2

22182PLATE, TAPPET ADJUSTING SHIM

main22182-17010i14B..BU211..LHD..T3199905

T=0.9,RUSSIA SPEC & *HAC

main22182-17010i14B..BU211..LHD..T3199905

T=0.9,RUSSIA SPEC & W(TACHO METER) & *HAC

main22182-17010i14B..BU141..LHD199505

T=0.9,CHINA OR ALGERIA SPEC

main22182-17010i15BFT..BU212,222..LHD..GEN;14B,15BF..BU102,111,112,142,212,222..(DM6,DM7,T2,T3,T4,TW1)..(ARL,GEN)199505-200111

T=0.9

main22182-17010i14B..BU111..LHD..CBU199505-199704

T=0.9,CHINA SPEC

main22182-17010i14B..BU211..LHD..T3199505-199905

T=0.9,CHINA SPEC & W(TACHO METER) & *HAC

main22182-17011i14B..BU211..LHD..T3199905

T=1.1,RUSSIA SPEC & *HAC

main22182-17011i14B..BU101..175T..GEN199905

T=1.1,RUSSIA SPEC & W(TACHO METER) & *HAC

main22182-17011i15BFT..BU212,222..LHD..GEN;14B,15BF..BU102,111,112,142,212,222..(DM6,DM7,T2,T3,T4,TW1)..(ARL,GEN)199505-200111

T=1.1

main22182-17011i14B..BU141..LHD199505

T=1.1,CHINA OR ALGERIA SPEC

main22182-17011i14B..BU211..LHD..T3199505-199905

T=1.1,CHINA SPEC & W(TACHO METER) & *HAC

main22182-17011i14B..BU111..LHD..CBU199505-199704

T=1.1,CHINA SPEC

main22182-17012i14B..BU101..175T..GEN199905

T=1.3,RUSSIA SPEC & *HAC

main22182-17012i14B..BU111..LHD..CBU199505-199704

T=1.3,CHINA SPEC

main22182-17012i14B,15BFT..BU212,221..LHD;14B..BU101..LHD..WT..IV3..TS;14B,15BF..BU111,142,212,222..(DM6,T3,TW1)..(ARL,GEN)199505-200111

T=1.3

main22182-17012i14B..BU211..LHD..T3199505-199905

T=1.3,CHINA SPEC & W(TACHO METER) & *HAC

main22182-17012i14B..BU141..LHD199505

T=1.3,CHINA OR ALGERIA SPEC

main22182-17012i14B..BU101..175T..GEN199905

T=1.3,RUSSIA SPEC & W(TACHO METER) & *HAC

main22182-17013i14B..BU211..LHD..T3199905

T=1.4,RUSSIA SPEC & W(TACHO METER) & *HAC

main22182-17013i14B..BU101..175T..GEN199905

T=1.4,RUSSIA SPEC & *HAC

main22182-17013i15BFT..BU212,222..LHD;15BF..BU102,112,142,212199505-200111

T=1.4

main22182-17013i14B..BU211..LHD..T3199505-199905

T=1.4,CHINA SPEC & W(TACHO METER) & *HAC

main22182-17013i14B..BU111..LHD..CBU199505-199704

T=1.4,CHINA SPEC

main22182-17013i14B..BU141..LHD199505

T=1.4,CHINA OR ALGERIA SPEC

main22182-54010i14B..BU111..LHD..CBU199505-199704

T=0.5,CHINA SPEC

main22182-54010i14B..BU141..RHD;14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;14B..BU211..RHD..CBU;14B..BU211..RHD..30T..IV3;14B,15BF..BU101,111,142,212,221,222199505-200008

T=0.5

main22182-54010i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

T=0.5,SHIM X2

main22182-54010i14B..BU211..LHD..T3199505-199905

T=0.5,CHINA SPEC & W(TACHO METER) & *HAC

main22182-54010i14B..BU211..LHD..T3199905

T=0.5,RUSSIA SPEC & W(TACHO METER) & *HAC

main22182-54010i14B..BU141..LHD199505

T=0.5,CHINA OR ALGERIA SPEC

main22182-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

T=1.8

main22182-5C350i15BFT..BU212..LHD..40T199808

T=1.8,CHILE SPEC

main22183-54010i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

T=0.8,SHIM X2

main22183-54010i14B..BU211..LHD..T3199505-199905

T=0.8,CHINA SPEC & W(TACHO METER) & *HAC

main22183-54010i14B..BU141..LHD199505

T=0.8,CHINA OR ALGERIA SPEC

main22183-54010i14B..BU111..LHD..CBU199505-199704

T=0.8,CHINA SPEC

main22183-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3199505-200008

T=0.8

main22183-54010i14B..BU211..LHD..T3199905

T=0.8,RUSSIA SPEC & W(TACHO METER) & *HAC

main22183-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=1.9

main22184-54010i14B..BU211..LHD..T3199505-199905

T=1.0,CHINA SPEC & W(TACHO METER) & *HAC

main22184-54010i14B..BU111..LHD..CBU199505-199704

T=1.0,CHINA SPEC

main22184-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3199505-200008

T=1.0

main22184-54010i14B..BU141..LHD199505

T=1.0,CHINA OR ALGERIA SPEC

main22184-54010i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

T=1.0,SHIM X2

main22184-54010i14B..BU211..LHD..T3199905

T=1.0,RUSSIA SPEC & W(TACHO METER) & *HAC

main22184-5C350i15BFT..BU212..LHD..40T199808

T=2.0,CHILE SPEC

main22184-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

T=2.0

main22185-54010i14B..BU111..LHD..CBU199505-199704

T=1.2,CHINA SPEC

main22185-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3199505-200008

T=1.2

main22185-54010i14B..BU141..LHD199505

T=1.2,CHINA OR ALGERIA SPEC

main22185-54010i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

T=1.2,SHIM X2

main22185-54010i14B..BU211..LHD..T3199905

T=1.2,RUSSIA SPEC & W(TACHO METER) & *HAC

main22185-54010i14B..BU211..LHD..T3199505-199905

T=1.2,CHINA SPEC & W(TACHO METER) & *HAC

main22185-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=2.1

main22186-54010i14B..BU211..LHD..T3199505-199905

T=1.5,CHINA SPEC & W(TACHO METER) & *HAC

main22186-54010i14B..BU111..LHD..CBU199505-199704

T=1.5,CHINA SPEC

main22186-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3199505-200008

T=1.5

main22186-54010i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

T=1.5,SHIM X2

main22186-54010i14B..BU211..LHD..T3199905

T=1.5,RUSSIA SPEC & W(TACHO METER) & *HAC

main22186-54010i14B..BU141..LHD199505

T=1.5,CHINA OR ALGERIA SPEC

main22186-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=2.2

main22187-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3199505-200008

T=1.8

main22187-54010i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

T=1.8,SHIM X2

main22187-54010i14B..BU141..LHD199505

T=1.8,CHINA OR ALGERIA SPEC

main22187-54010i14B..BU211..LHD..T3199505-199905

T=1.8,CHINA SPEC & W(TACHO METER) & *HAC

main22187-54010i14B..BU211..LHD..T3199905

T=1.8,RUSSIA SPEC & W(TACHO METER) & *HAC

main22187-54010i14B..BU111..LHD..CBU199505-199704

T=1.8,CHINA SPEC

main22187-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=2.25

main22188-54010i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

T=2.0,SHIM X2

main22188-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3199505-200008

T=2.0

main22188-54010i14B..BU111..LHD..CBU199505-199704

T=2.0,CHINA SPEC

main22188-54010i14B..BU141..LHD199505

T=2.0,CHINA OR ALGERIA SPEC

main22188-54010i14B..BU211..LHD..T3199905

T=2.0,RUSSIA SPEC & W(TACHO METER) & *HAC

main22188-54010i14B..BU211..LHD..T3199505-199905

T=2.0,CHINA SPEC & W(TACHO METER) & *HAC

main22188-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=2.3

main22189-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=2.4

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010i3B..BU100,110,140199505-199908

main22192-56350i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222199505-200008

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-55031i14B..BU211..TW1;3B..BU100..ST..20T;15BF,15BFT..BU212,222..SA;15BFT..BU212,222..LHD..GEN;14B,3B..BU111,140,141,211..RHD;14B,15BF..BU101,221,222..GEN,SA199505-200008

main22193-55031i3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN199505

*HAC

22193CRING, O(FOR TIMER COVER STOPPER)

main22193-17020i15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA199505-200212

main22193-64750i3B..BU100,140..GEN;14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199505-200212

main22193-64750i14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199606-200009

THAILAND SPEC

22193DRING, O(FOR REVOLUTION DETECTOR)

main22193-64750i15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22#..(DM1,DM7,T1,T2,T3,TW1,TW2)..(ARL,EUR,GEN,TAIW)199505-199708

22193FRING, O(FOR FUEL INJECTION PUMP FILTER)

main22193-5B320i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2199606-200008

22314ASPRING, LEVER SUPPORT

main22314-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22316ASLEEVE, GOVERNOR

main22316-55030i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

MARK 45

main22316-55150i15BF..BU102,112,212..GEN..IV3199703-199908

ID=0.70

main22316-55230i15BF..BU102,112,212..GEN..IV3199703-199908

ID=0.75

main22316-56440i14B..BU102,112,212,222;15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN199505-199908

ID=0.45

main22316-56441i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU102,112,212,222..LHD199505-199908

ID=0.5

main22316-58470i14B..BU102,112,212,222199505-199703

ID=0.40

main22316-58480i14B..BU102,112,212,222199505-199703

ID=0.425

main22316-58780i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN199610-199908

ID=0.55

main22316-58781i15BF..BU102,112,212..GEN..IV3199703-199908

ID=0.60

main22316-58782i15BF..BU102,112,212..GEN..IV3199703-199908

ID=0.65

main22316-64640i3B..BU100,110,140199505-199908

MARK 23

22316BBEARING, BALL(FOR GOVERNOR SLEEVE)

main90099-10148i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22317SPRING, GOVERNOR DOMPER

main22317-54010i3B..BU100,110,140199505-199908

K=0.2,L=6.5

main22317-56350i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

K=0.1,L=8.2

22322ASPRING, RETURN

main22322-54020i14B,15BF..BU101,102,111,112,141,142,211,212,221,222199505-200008

main22322-54450i3B..BU100,110,140199505-199908

main22322-5C131i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505

22341CGEAR, GOVERNOR DRIVE

main22341-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-58200i3B..BU100,110,140199505-199908

main22350-58541i14B..BU102,112,212,222199505-200008

main22350-58550i14B..BU101,111,141,211,221199505-199509

main22350-58710i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199509

HONG KONG SPEC & W(TACHO METER)

main22350-5C050i14B..BU141..LHD199505-199509

ALGERIA SPEC

main22350-5C100i15BF..BU142,212,222..RHD199505-200212

main22350-5C140i15BFT..BU212..LHD..40T199505-200212

main22350-5C380i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN199610-199908

main22350-5C430i15BF..BU102,112199703-199908

main22350-5C460i15BFT..BU222..SA199902-200212

main22350-5C470i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

main22350-5C560i15BF..BU212..GEN..IV3199708-199908

22369SEAT, GOVERNOR SPRING

main22369-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22378AWASHER, GOVERNOR THRUST

main22113-77090i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

NO.2

main22113-77090i15BFT..BU212..30T..CBU;15BFT..BU222..RHD..GEN;15BFT..BU142,212..(25T,40T)..GEN199703-199808

main22113-77090i14B..BU101..175T..GEN199905

RUSSIA SPEC & *HAC

main22149-6D450i14B..BU101..LHD..ST..TS199905

*HAC;*HAC & W(TACHO METER)

main22149-6D450i14B..BU141..SA;3B..BU100,140..GEN199505

NO.2

main22149-6D450i14B..BU211,221;14B..BU101..LHD..WT;14B..BU101..20T..GEN..TB;14B..BU101..RHD..(GEN,SA);14B..BU111,141..(DM1,T3)..GEN199505-200008

*HAC,NO.2

main22378-64010i14B..BU101;14B,3B..BU100,110,111,141,211,221..RHD199505-200008

NO.1

main22378-64010i14B..BU101;14B,3B..BU100,110,111,141,211,221..RHD199505-199905

*HAC,NO.1

main22378-64010i15BFT..BU222..SA;15BF..BU212..(GEN,SA)..IV3;15BF..BU102,222..(15T,40T)..(GEN,SA)199505-199708

main22378-64010i3B..BU100..ST..20T;14B..BU101,211,221..GEN;14B,3B..BU111,140,141..RHD199505-199905

*HAC

22384DSHAFT, GOVERNOR

main22380-54020i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU102,112,212,222..LHD199505-199908

main22384-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22390ASOLENOID ASSY, FUEL CUT

main22390-56290i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

CHINA SPEC

sub22390-56291

main22390-56290i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONG KONG SPEC & W(TACHO METER)

sub22390-56291

main22390-56290i15BFT..BU222;15BFT..BU212..30T199610-200111

sub22390-56291

main22390-56290i14B..BU111,221..LHD..(DM6,T3);14B..BU101,211..LHD..WT..(20T,40T)..IV3200111

ALGERIA SPEC

sub22390-56291

main22390-56290i14B..BU141..LHD199505

CHINA OR ALGERIA SPEC

sub22390-56291

main22390-56291i3B..BU100..175T..GEN;3B..BU100,140..LHD..WT199703-199905

CHINA SPEC

main22390-56291i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708

24V

main22390-56291i14B..BU101..175T..GEN199905

RUSSIA SPEC & *HAC

main22390-56291i14B,15BFT..BU211,222..LHD..T3;14B,15B#..BU102,111,112,141,212..LHD..(DM1,DM7,T2,T3)..(20T,25T,30T)199703-199708

main22390-6A510i15BFT..BU212..40T;14B,15BF,3B..BU10#,11#,14#,21#,22#199505-199703

12V

sub22390-6A511

main22390-6A511i15BFT..BU222..SA;3B..BU100,140..GEN;15BFT..BU212..LHD..40T;14B,15BF..BU101,142,222;14B,15BF..BU111,141,211,212,221..RHD..(CBU,IV3)199703-200008

main22390-6A511i14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199703

SAUDI ARABIA,GULF SPEC

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22511ACOVER, FEED PUMP

main22511-54020i3B..BU100,110,140..ARL,EUR199505-199908

main22511-58650i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,142,212,222;14B,15BF,3B..BU100,102,111,112,140,141,211,212,221,222..GEN,SA,TAIW199505-200008

22582PISTON ASSY, TIMER

main22582-5C150i3B..BU100,110,140..ARL,EUR199505-199908

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2

main22602-5B320i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2199505-200008

22611NUT, TIMER ROUND

main22611-58200i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

main22611-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main22611-5C350i15BFT..BU212..LHD..40T199808

CHILE SPEC

22612BCOVER, TIMER

main22612-17840i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main22612-56350i14B,3B..BU10#,11#,140,141,211,212,221,222199505-200008

22612CCOVER, TIMER

main22612-17020i15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA199505

main22612-54450i3B..BU100,140..GEN199505-199905

main22790-56351i14B..BU101,111,141,211,221199505-200008

22612DRING, O(FOR TIMER COVER)

main22193-17840i15BFT..BU222..SA199505-199908

main22193-17840i14B..BU101..ST..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..IV3199606-199706

THAILAND SPEC

main90099-14105i14B..BU102,112,222199505-199510

sub22193-17840

22615ASPRING, TIMER OUTER

main22615-17030i15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA199505-200212

K=1.7,L=27.9

main22615-54290i3B..BU100,140..GEN199505-199905

K=2.30,L=37.9

main22615-54291i3B..BU100,140..GEN199505-199905

K=2.50,L=35.6

main22615-56330i14B..BU101,111,141,211,221199505-199509

L=57.8

main22615-56331i14B..BU101,111,141,211,221199505-199509

L=57.1

main22615-56332i14B..BU101,111,141,211,221199505-199509

L=56.5

main22615-58200i3B..BU100,140..GEN199505-199905

K=2.10

main22615-58541i14B..BU101,111,141,211,221..DM1,T1,T2,T3,TW1,TW2199509-200008

K=2.5,L=52.2

main22615-58542i14B..BU101,111,141,211,221..DM1,T1,T2,T3,TW1,TW2199509-200008

K=2.7,L=51.7

main22615-58740i14B..BU102,112,212,222199505-199703

L=71.8

main22615-58780i14B..BU102,112,212,222199505-199703

L=69.9

main22615-58781i14B..BU102,112,212,222199505-199703

L=68.25

main22615-5C120i15BF..BU212..GEN..IV3199708-199908

K=0.13,L=35.1

main22615-5C121i15BF..BU212..GEN..IV3199708-199908

K=0.15,L=34.6

main22615-5C122i15BF..BU212..GEN..IV3199708-199908

K=0.16,L=34.6

main22615-5C123i15BF..BU212..GEN..IV3199708-199908

K=0.17,L=34.4

main22615-5C154i15BF..BU212..GEN..IV3199708-199908

K=0.14,L=35.0

main22615-5C300i14B..BU111..IV3199708-200212

K=1.90,L=54.5

main22615-5C300i14B..BU141..LHD199505-200212

K=1.90,L=54.5,ALGERIA SPEC

main22615-5C301i14B..BU141..LHD199505-199509

K=2.10,L=53.6,ALGERIA SPEC

main22615-5C301i14B..BU101,111,141,211,221199509-200008

K=2.10,L=53.6

main22615-5C302i14B..BU101,111,141,211,221199509-200008

K=2.30,L=52.9

main22615-5C302i14B..BU141..LHD199505-199509

K=2.30,L=52.9,ALGERIA SPEC

main22615-5C470i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

K=4.4,L=53.1

main22615-5C471i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

K=4.0,L=53.6

main22615-5C472i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

K=3.6,L=54.1

22615BSPRING, TIMER INNER

main22615-17020i3B..BU100,110,140..ARL,EUR199505-199908

K=0.16,L=32.3

main22615-17021i3B..BU100,110,140..ARL,EUR199505-199908

K=0.18,L=32.0

main22615-17022i3B..BU100,110,140..ARL,EUR199505-199908

K=0.20,L=31.8

main22615-5B374i3B..BU100,110,140..ARL,EUR199505-199908

K=0.14,L=34.3

main22615-5C120i15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU102,112,142,222199505

K=0.13,L=35.1

main22615-5C121i15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN199505

K=0.15,L=34.6

main22615-5C122i15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN199505

K=0.16,L=34.6

main22615-5C123i15BF..BU212..RHD;15BF..BU102,112,142,222199505

K=0.17,L=34.4

main22615-5C153i15BFT..BU222..SA;15BFT..BU212..LHD..40T199505

K=0.12,L=35.9

main22615-5C154i15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN199505

K=0.14,L=35.0

22625WASHER, TIMER SENSOR ADJUSTING

main22625-17020i3B..BU100,110,140..ARL,EUR199505-199908

22632ACOUPLING, INJECTION PUMP

main22632-17840i14B..BU101..LHD..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

main22632-17840i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505-200212

main22632-54010i3B..BU100,110,140199505-199908

main22632-56350i14B..BU101,102,111,112,141,211,212,221,222199505-200008

22654PISTON, TIMER

main22654-56330i14B..BU101,111,141,211,221199505-199509

main22654-56340i14B..BU101,111,141,211,221199509-200008

main22654-56340i14B..BU141..LHD199505-199509

ALGERIA SPEC

main22654-58200i3B..BU100,140..GEN199505-199905

main22654-58740i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

main22654-58740i14B..BU102,112,212,222199505-199703

22655APIN, TIMER SLIDE

main22655-17840i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main22655-54010i14B..BU111..IV3;14B,3B..BU100,101,110,140;14B..BU111,141,211,221..RHD199505-200008

22656CLIP, TIMER

main22656-17840i14B,3B..BU110,111;14B..BU211..30T..IV3;14B..BU211..LHD..40T..IV3;14B..BU101,211..WT..(CBU,IV2);14B,15BF..BU101,212..LHD..GEN..IV3;14B,15BF..BU102,141,221..15T,25T,4199505-199905

T=0.3

main22656-17840i3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN199505-199905

CHINA SPEC OR *HAC OR W(TACHO METER),T=0.3

main22656-17840i14B..BU101..LHD..IV3;14B..BU211..30T..IV3;14B..BU211..LHD..40T..IV3;15BF..BU212..(GEN,SA)..IV3;15BF..BU102,222..(15T,40T)..(GEN,SA);14B,3B..BU100,111,141,221..175T,199905-200008

main22656-17840i14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199606

THAILAND SPEC,T=0.3

main22656-17840i14B..BU101..ST..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..IV3199505-199606

THAILAND SPEC

main22656-17840i3B..BU140..RHD;3B..BU100..ST..20T199703-199905

*HAC OR W(TACHO METER)

main22656-17840i3B..BU140..RHD;3B..BU100..ST..20T199505-199703

*HAC OR W(TACHO METER),T=0.3

main22656-54010i3B..BU100,140..GEN199505-199905

sub22656-17840

main22656-54010i14B..BU102,111,112,141,212,222..LHD..(DM1,T2,T3)199505-199704

T=0.6

sub22656-17840

22657CLIP, TIMER

main22657-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22658STOPPER, TIMER

main22658-17020i15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA199505-200212

NO.2

main22658-17840i14B..BU211..TW1;14B..BU211..40T..SA;14B..BU101..WT..CBU;14B..BU101..LHD..IV3;14B..BU211..RHD..CBU;14B..BU211..RHD..30T..IV3;14B..BU111,141,221..20T,25T,40T199505-199705

main22658-17840i14B..BU101..ST..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..IV3199505-199606

HEAD=ROUND TYPE

main22658-17840i14B..BU101..ST..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..IV3199505-200212

HEAD=ROUND TYPE,NO.1

main22658-17840i14B..BU101..LHD..ST..TS199905-200212

SAUDI ARABIA,GULF SPEC,NO.1

main22658-17840i14B..BU101..LHD..IV3;14B..BU211..30T..IV3;14B..BU211..LHD..40T..IV3;15BF..BU212..(GEN,SA)..IV3;14B..BU101,211..(T3,TW1,TW2)..GEN..CBU;14B,15BFT..BU101,211,222..(175199705-200212

NO.1

main22658-54010i14B..BU102,111,112,141,212,222..LHD..(DM1,T2,T3)199505-199704

HEAD=PLANE TYPE,NO.1

sub22658-17840

main22658-54450i14B..BU211..IV2;3B..BU100,140..GEN;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199505-200212

NO.2

main22658-54450i14B..BU101..LHD..TS199905-200212

SAUDI ARABIA,GULF SPEC,NO.2

main22658-54450i14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199606-200212

THAILAND SPEC,NO.2

22659SPRING, COUPLING

main22659-17840i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505-200008

main22659-17840i14B..BU101..LHD..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200008

SAUDI ARABIA,GULF SPEC

main22659-58650i14B..BU101,102,111,112,141,211,212,221,222199505

main22659-64150i3B..BU100,110,140199505-199908

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22701LEVER SUB-ASSY, ADJUSTING

main22701-17010i14B,15BF..BU102,112,142,212,222199505-199509

CHINA SPEC,MARK"383"

main22701-17010i14B,15BF..BU102,112,142,212,222199505-200008

MARK"383"

main22701-17010i14B,15BF..BU102,112,142,212,222199505-199509

CHINA OR ALGERIA SPEC,MARK"383"

main22701-17010i14B,15BF..BU102,112,142,212,222199505-199509

CHINA SPEC & W(TACHO METER) & *HAC,MARK"383"

main22701-17011i14B..BU211..LHD199505-200008

MARK"384"

main22701-17011i14B,15BF..BU102,112,142,212,222199505-199509

CHINA SPEC & W(TACHO METER) & *HAC,MARK"384"

main22701-17011i14B..BU111..LHD..CBU199505-199509

CHINA SPEC,MARK"384"

main22701-17011i14B..BU111..LHD..CBU199505-199509

CHINA OR ALGERIA SPEC,MARK"384"

main22701-56350i14B..BU111,141..LHD..(DM1,T3)199505

CHINA SPEC,MARK"247"

main22701-56350i14B..BU141..LHD199505

ALGERIA SPEC,MARK"247"

main22701-56350i14B..BU211..LHD..T3199505-199905

CHINA SPEC & W(TACHO METER) & *HAC,MARK"247"

main22701-56350i14B,15BF..BU101,111,14#,211,212,221,222199505-200008

MARK"247"

main22701-56350i14B..BU211..LHD..T3199905

RUSSIA SPEC & W(TACHO METER) & *HAC,MARK"247"

main22701-56351i14B..BU211..RHD;14B..BU101,111,141,221199505-199509

MARK"248"

sub22701-17010

main22701-56351i14B..BU211..RHD;14B..BU101,111,141,221199505-199509

CHINA SPEC & W(TACHO METER),MARK"248"

sub22701-17010

main22701-58202i3B..BU100,110,140199505-199908

TYPE A=ANGLE OF 22

main22701-58203i3B..BU100,110,140199505-199908

TYPE B=ANGLE OF 29.5

main22701-58780i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505

MARK"337"

main22701-58781i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505

MARK"338"

main22701-5C130i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505

MARK"567"

main22701-5C430i15BF..BU102,112199703-199908

MARK"652"

main22701-5C431i15BF..BU102,112199703-199908

MARK"653"

main22701-5C432i15BF..BU102,112199703-199908

MARK"654"

22703ACOVER SUB-ASSY, GOVERNOR

main22703-54132i3B..BU100,110,140199505-199908

main22703-54351i3B..BU100,140..GEN199505-199905

*HAC

main22703-55051i15BF..BU142,212,222..ARL,GEN199505-200212

main22703-58540i14B..BU141..GEN;14B..BU101,111,211,221..(DM1,T1,T3,TW1,TW2)..(GEN,SA)199505-200008

*HAC

main22703-58540i14B,15BF..BU141,212,222..SA199902-200212

main22703-5C090i15BF..BU102,112199703-199908

main22703-64850i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505-200212

main22703-6A210i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-200212

HONG KONG SPEC & W(TACHO METER)

main22703-6A210i14B..BU141;14B..BU101..CBU;14B..BU101..ST..IV3;14B..BU211..RHD..CBU;14B..BU101..LHD..WT..IV3;14B..BU211..RHD..30T..GEN..IV3;14B..BU102,111,112,212,22#..LHD199505-200212

main22703-6A210i14B..BU211..LHD..T3199505-200212

CHINA SPEC & W(TACHO METER)

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=1.05

main22714-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

T=1.25

main22715-54010i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

T=1.45

main22716-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=1.65

main22717-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

T=1.85

22726SPRING, SPEED CONTROL

main22726-56350i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505

main22726-58200i3B..BU100,110,140199505-199908

main22726-58470i14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING

main22740-21910i14B..BU141..LHD199505-200212

L=20

main22740-21910i14B..BU141..LHD199505-199509

CHINA SPEC,L=20

main22740-21910i14B..BU141..LHD199505-199509

CHINA OR ALGERIA SPEC,L=20

main22740-21910i14B..BU141..LHD199505-199509

CHINA SPEC & W(TACHO METER) & *HAC,L=20

main22740-21910i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3199509-200212

HONG KONG SPEC & W(TACHO METER),L=20

main22740-21910i14B..BU141..SA;14B..BU111..IV3;14B..BU211..IV2;14B..BU101..LHD..ST..TS199708-200212

main22740-54010i15BF..BU142,212199505-200212

L=15.5

main22740-58210i3B..BU100,110,140199505-199908

L=20

main22740-58210i3B..BU140..RHD;3B..BU100..ST..20T199703-199905

main22740-58480i14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3199606-199703

THAILAND SPEC OR W(TACHO METER) & HONG KONG SPEC,L=17.5

main22740-58480i14B..BU111,221..RHD..GEN;14B,15BF..BU102,112,142,212,222199505-200212

L=17.5

main22740-58480i14B..BU111,221..RHD..GEN;14B,15BF..BU102,112,142,212,222199606-200009

THAILAND SPEC,L=17.5

main22740-58480i14B..BU101..LHD..ST..TS199905-200212

SAUDI ARABIA,GULF SPEC

main22740-58480i14B..BU211..LHD199505-199509

CHINA SPEC & W(TACHO METER),L=17.5

main22740-58650i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505-200212

L=23.4

main22740-58780i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505-200212

L=26.0

main22740-5C090i15BF..BU142,212199505-200212

L=16.3

main22740-5C150i3B..BU100,110,140..ARL,EUR199505-199908

L=17.5

22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)

main22193-54770i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010i3B..BU100,110,140199505-199804

main22745-56350i14B..BU211..LHD..40T..IV3199509-199703

HONG KONG SPEC

main22745-56350i14B..BU211..IV2;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199703-199809

SAUDI ARABIA,GULF SPEC

main22745-56350i14B..BU211..RHD..40T..GEN..IV3199708

KENYA SPEC

main22745-56350i14B..BU211..IV2199505-199509

main22745-56350i14B..BU102,112,212,222199509-199703

CHINA SPEC

main22745-56350i14B..BU102,112,212,222199509-199703

CHINA SPEC & W(TACHOMETER)

main22745-5B640i3B..BU100,110,140199804-199908

main22745-5C090i15B#..BU142,212199505-200008

main22745-5C090i14B..BU211..LHD..40T..IV3199509

*HAC & W(TACHO METER)

22749COLLAR, SMOKE SET ADJUSTING

main22749-56350i3B..BU100,110,140199505-199802

main22749-5C390i14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199706-200009

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-54311i14B..BU101,111,141,211,221199505-199509

main22751-56201i14B..BU111..LHD..CBU199505-199509

CHINA SPEC

main22751-56201i14B..BU111..LHD..CBU199505-199509

CHINA OR ALGERIA SPEC

main22751-56201i14B..BU111..LHD..CBU199505-199509

CHINA SPEC & W(TACHO METER)

main22751-56201i14B..BU111..LHD..CBU199505-199509

HONG KONG SPEC & W(TACHO METER)

main22751-58880i14B,3B..BU100,212;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;15BF..BU212..RHD..(ARL,GEN);14B,15BFT..BU101,212,222..LHD..WT..GEN;14B,15BF,3B..BU102,11#,14#,211,22199505-199509

W(TACHOMETER)

main22751-58880i14B..BU101..LHD..ST..TS199905-200212

W(TACHOMETER);RUSSIA SPEC & *HAC

main22751-58880i14B..BU101..ARL;15BFT..BU222..SA;14B,15BF..BU111,212..(GEN,SA)..IV3;15BF..BU102,222..(15T,40T)..(GEN,SA)199708-200212

main22751-58890i3B..BU100,140..GEN199505-200212

W/O(TACHOMETER)

main22751-58890i14B..BU141..SA;14B..BU101..LHD..ST..TS199902-200212

main22751-5C020i3B..BU100..175T..GEN;3B..BU100,140..LHD..WT199505-199905

CHINA SPEC

main22751-5C020i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708-200212

main22751-5C020i3B..BU100..175T..GEN;14B,3B..BU100,111,140..LHD..(DM1,T3)..WT..GEN199509-199704

CHINA OR ALGERIA SPEC

main22751-6A220i14B..BU211..LHD199505-199509

CHINA SPEC & W(TACHO METER) & *HAC

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22774GASKET, GOVERNOR COVER

main22774-54270i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22775NUT, LOCK(FOR INJECTION PUMP)

main22775-77121i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

22776SCREW, SMOKE SET ADJUSTING

main22776-54110i3B..BU100,110,140199505-199908

main22776-55030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222..ARL,GEN,SA199505-200008

main22776-78034i15BFT..BU212..LHD..40T199808

CHILE SPEC

main22776-78034i15BFT..BU142..25T..GEN;15BFT..BU212,222..RHD..GEN199703

22776ARING, O(FOR SMOKE SET SCREW)

main22193-54771i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199608-200008

main90099-14047i15BFT..BU212;14B,15BF,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA199505-199804

sub22193-54771

22787PLUG, GOVERNOR SLEEVE

main22787-17140i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=4.4

main22787-17141i14B..BU211..LHD..T3199905

L=4.6,RUSSIA SPEC & W(TACHO METER) & *HAC

main22787-17141i14B..BU211..LHD..T3199505-199905

L=4.6,CHINA SPEC & W(TACHO METER) & *HAC

main22787-17141i15B#..BU142,212199505-200212

L=4.6

main22787-17141i14B..BU111..LHD..CBU199505-199704

L=4.6,CHINA SPEC

main22787-17141i14B..BU141..LHD199505-200212

L=4.6,CHINA OR ALGERIA SPEC

main22787-17142i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=4.8

main22787-17143i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD..(ARL,GEN)199505-200212

L=4.9

main22787-17144i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=5.0

main22787-17145i14B..BU111..LHD..CBU199505-199704

L=5.1,CHINA SPEC

main22787-17145i14B..BU211..LHD..T3199905

L=5.1,RUSSIA SPEC & W(TACHO METER) & *HAC

main22787-17145i14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;15BF..BU212,222..ARL,GEN;14B,15BF..BU101,111,142,221;14B..BU141,211..RHD..(CBU,IV3)199505-200212

L=5.1

main22787-17145i14B..BU141..LHD199505-200212

L=5.1,CHINA OR ALGERIA SPEC

main22787-17145i14B..BU211..LHD..T3199505-199905

L=5.1,CHINA SPEC & W(TACHO METER) & *HAC

main22787-17146i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=5.2

main22787-17147i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD..(ARL,GEN)199505-200212

L=5.3

main22787-17148i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=5.4

main22787-17149i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD..(ARL,GEN)199505-200212

L=5.5

main22787-17150i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=5.6

main22787-17151i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD..(ARL,GEN)199505-200212

L=5.7

main22787-17152i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=5.8

main22787-17842i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;15BF..BU102,112,212..GEN..IV3199610-199908

L=2.1

main22787-17843i15BF..BU102,112,212..GEN..IV3199703-199908

L=2.5

main22787-17844i15BF..BU102,112,212..GEN..IV3199703-199908

L=2.9

main22787-17845i15BF..BU102,112,212..GEN..IV3199703-199908

L=3.3

main22787-17846i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;15BF..BU102,112,212..GEN..IV3199610-199908

L=3.7

main22787-17847i15BF..BU102,112,212..GEN..IV3199703-199908

L=4.1

main22787-17848i15BF..BU102,112,212..GEN..IV3199703-199908

L=4.5

main22787-17849i15BF..BU102,112,212..GEN..IV3199703-199908

L=4.9

main22787-17850i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;15BF..BU102,112,212..GEN..IV3199610-199908

L=2.8

main22787-54026i14B..BU111,221..RHD..GEN;14B..BU101..RHD..WT..IV3;14B..BU211..LHD..T3..30T;14B..BU211..LHD..40T..CBU;14B,15BFT..BU21#..40T..GEN..IV3;14B,15BF,3B..BU100,102,110,112,199505-200212

L=3.3

main22787-54027i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200212

L=3.4

main22787-54028i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU212..RHD..(ARL,GEN);14B,15BF..BU142,211,222..RHD..(20T,40T)..(ARL,GEN)..(IV2,IV3)199505-200212

L=3.5

main22787-54029i14B..BU111,221..RHD..GEN;14B..BU101..RHD..WT..IV3;14B..BU211..LHD..T3..30T;14B..BU211..LHD..40T..CBU;14B,15BFT..BU21#..40T..GEN..IV3;14B,15BF..BU102,112,142,212,222199505-200212

L=3.6

main22787-54030i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU212..RHD..(ARL,GEN);14B,15BF..BU142,211,222..RHD..(20T,40T)..(ARL,GEN)..(IV2,IV3)199505-200212

L=3.7

main22787-54031i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD;14B..BU101,102,111,112,141,211,212,221,222199505-200008

L=3.8

main22787-54032i14B,15B#..BU101,102,111,112,141,142,21#,22#199505-200212

L=3.9

main22787-54033i15BFT..BU222..SA;15BF..BU142,212,222;14B..BU101..LHD..TS;14B..BU211..LHD..30T;14B..BU211..LHD..40T..CBU;14B..BU211..40T..GEN..(IV2,IV3);14B,15BFT..BU111,141,212,221199505-200212

L=4.0

main22787-54034i15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T199505-200212

L=4.3

main22787-54035i14B..BU101..RHD..WT..IV3;14B..BU211..LHD..T3..30T;14B..BU211..LHD..40T..CBU;14B,15BFT..BU21#..40T..GEN..IV3;14B..BU102,112,141,212,222..LHD;14B,15BF..BU111,142,212,199505-200212

L=4.5

main22787-54036i15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T199505-200212

L=4.7

main22787-56350i14B..BU211..LHD..T3199505-199905

L=5.9,CHINA SPEC & W(TACHO METER) & *HAC

main22787-56350i14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;15BF..BU212,222..ARL,GEN;14B,15BF..BU101,111,142,221;14B..BU141,211..RHD..(CBU,IV3)199505-200212

L=5.9

main22787-56350i14B..BU211..LHD..T3199905

L=5.9,RUSSIA SPEC & W(TACHO METER) & *HAC

main22787-56350i14B..BU111..LHD..CBU199505-199704

L=5.9,CHINA SPEC

main22787-56350i14B..BU141..LHD199505-200212

L=5.9,CHINA OR ALGERIA SPEC

main22787-56351i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=6.0

main22787-56352i14B..BU111..LHD..CBU199505-199704

L=6.1,CHINA SPEC

main22787-56352i14B..BU211..TW1;15BFT..BU212..LHD..40T;14B..BU111,141,211..RHD;14B,15BF..BU101,111,142,212,221..(DM6,T1,T3,TW1)..(ARL,GEN,SA)199505-200212

L=6.1

main22787-56352i14B..BU211..LHD..T3199505-199905

L=6.1,CHINA SPEC & W(TACHO METER) & *HAC

main22787-56352i14B..BU211..LHD..T3199905

L=6.1,RUSSIA SPEC & W(TACHO METER) & *HAC

main22787-56352i14B..BU141..LHD199505-200212

L=6.1,CHINA OR ALGERIA SPEC

main22787-56353i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=6.2

main22787-56354i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD..(ARL,GEN)199505-200212

L=6.3

main22787-56355i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=6.4

main22787-56356i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD..(ARL,GEN)199505-200212

L=6.5

main22787-56357i15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD199505-200212

L=6.6

main22787-5C380i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN199610-199908

L=12.45(4.7)

main22787-5C381i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN199610-199908

L=12.95(5.2)

main22787-64640i14B..BU111,221..RHD..GEN;14B..BU101..RHD..WT..IV3;14B..BU211..LHD..T3..30T;14B..BU211..LHD..40T..CBU;14B,15BFT..BU21#..40T..GEN..IV3;14B,15BF..BU102,112,142,212,222199505-200212

L=4.1

main22787-64641i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200008

L=3.0

main22787-64642i15BF..BU142,212;15BFT..BU212..LHD..40T199505-200212

L=3.1

main22787-64643i14B..BU111,221..RHD..GEN;14B..BU101..RHD..WT..IV3;14B..BU211..LHD..T3..30T;14B..BU211..LHD..40T..CBU;14B,15BFT..BU21#..40T..GEN..IV3;14B,15BF..BU102,112,142,212,222199505-200212

L=3.2

main22787-64660i3B..BU100,110,140199505-199908

L=2.2

main22787-64661i3B..BU100,110,140199505-199908

L=2.3

main22787-64662i3B..BU100,110,140199505-199908

L=2.4

main22787-64663i3B..BU100,110,140199505-199908

L=2.5

main22787-64664i3B..BU100,110,140199505-199908

L=2.6

main22787-64665i3B..BU100,110,140199505-199908

L=2.7

main22787-64666i3B..BU100,110,140..ARL,EUR199505-199908

L=2.8

main22787-64667i3B..BU100,110,140..ARL,EUR199505-199908

L=2.9

main22787-64680i15BFT..BU222..SA;15BF..BU142,212,222;14B..BU101..LHD..TS;14B..BU211..LHD..30T;14B..BU211..LHD..40T..CBU;14B..BU211..40T..GEN..(IV2,IV3);14B,15BFT..BU111,141,212,221199505-200212

L=4.2

8301

2214956200GASKET, DELIVERY VALVE

main22149-56200

2217254264CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54264

2217256350CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-56350

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

2239556290BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56290

2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56350

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

2272254470NUT, GOVERNOR SHAFT ROCK

main22722-54470

9009210608

main90092-10608

9009300802

main90093-00802

9009301003

main90093-01003

9009904576

main90099-04576

9009904946

main90099-04946

9009904954

main90099-04954

9009905156

main90099-05156

9009905161

main90099-05161

9009905225

main90099-05225

9009905252

main90099-05252

9009918022

main90099-18022

9017906009

main90179-06009

112 parts on this diagram · 12 diagrams in section
