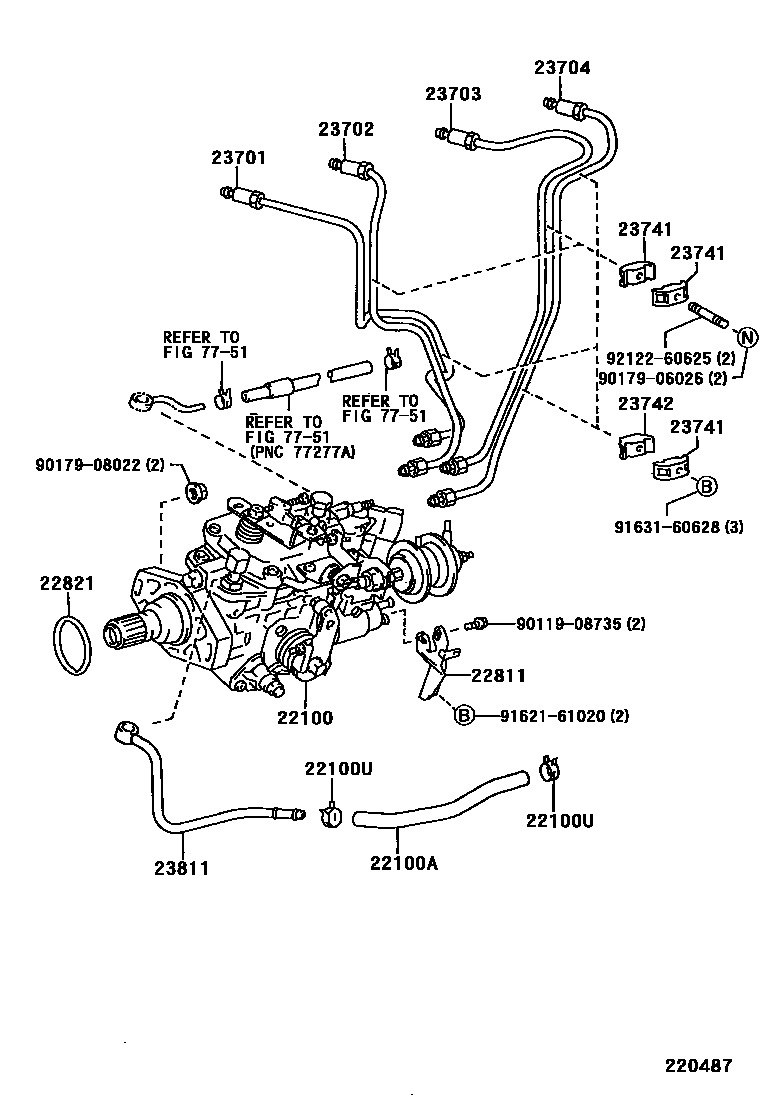

INJECTION PUMP ASSEMBLY

0001 1 0003 1 0004 1 0005 1 0009 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-58540i14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN199505-199509

*HAC

sub22100-58640

main22100-58541i14B..BU101,111,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)199509-200212

*HAC

main22100-58541i14B..BU101,141,211..SA199509-200212

main22100-58550i14B..BU101,111,141,211,221..GEN199505-199509

sub22100-58630

main22100-58551i14B..BU101,111,141,211,221..GEN199509-200212

main22100-58630i14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN199505-199509

W(TACHO METER)

main22100-58631i14B..BU101..LHD..ST..TS199905-200212

W(TACHOMETER)

main22100-58631i14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B..BU111,141,211,221..(DM1,T3,TW1)..GEN..(CBU,IV3)199509-200212

W(TACHO METER)

main22100-58640i14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN199505-199509

*HAC & W(TACHO METER)

main22100-58641i14B..BU101,111,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)199509

*HAC & W(TACHO METER)

main22100-58720i14B..BU211..LHD199505-199509

CHINA SPEC & W(TACHO METER)

main22100-58721i14B..BU211..LHD..T3199509-199704

CHINA SPEC & W(TACHO METER)

main22100-58742i14B..BU102,112,212,222199505-199602

sub22100-58743

sub11298-58013

main22100-58743i14B..BU102,112,212,222199602-199703

main22100-58861i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONGKONG SPEC & W(TACHO METER)

main22100-5C120i15BF..BU142,212,222..RHD..(ARL,GEN)199505-200212

main22100-5C140i15BFT..BU212..LHD..40T199505-200212

main22100-5C160i3B..BU100,110,140..ARL,EUR199505-199908

main22100-5C170i3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN199505-199704

CHINA SPEC

main22100-5C180i3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN199505-199905

CHINA SPEC & *HAC

main22100-5C190i3B..BU100,140..GEN199505-199905

sub22100-5C200

main22100-5C200i3B..BU100,140..GEN199505-199905

W(TACHO METER)

main22100-5C210i3B..BU100,140..GEN199505-199905

*HAC

sub22100-5C220

main22100-5C220i3B..BU100,140..GEN199505-199905

*HAC & W(TACHO METER)

main22100-5C240i14B..BU101..175T..GEN199905-200212

RUSSIA SPEC & W(TACHO METER)

main22100-5C240i14B..BU111,141..LHD..(DM1,T3)199703-199708

CHINA SPEC & *HAC

main22100-5C240i14B..BU211..LHD..T3199505-199905

CHINA SPEC & *HAC & W(TACHO METER)

main22100-5C240i14B..BU211..LHD..T3199905

RUSSIA SPEC & W(TACHO METER) & *HAC

main22100-5C250i14B..BU111,141..LHD..(DM1,T3)199505-199704

CHINA SPEC

main22100-5C260i14B..BU111,141..LHD..(DM1,T3)199505-199703

CHINA SPEC & *HAC

sub22100-5C240

main22100-5C330i14B..BU141..LHD199505-200212

ALGERIA SPEC

main22100-5C330i14B..BU111..IV3199708-200212

main22100-5C360i15BFT..BU102,142..RHD;15BFT..BU142,222..EUR199605

main22100-5C360i15BFT..BU212..RHD..IV3199808

THAILAND SPEC

main22100-5C380i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN199610-199908

main22100-5C390i14B..BU101..ST..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..IV3199606-199706

THAILAND SPEC

sub22100-5C540

main22100-5C430i15BF..BU102,112199703-199908

main22100-5C440i15BFT..BU212..LHD..40T199808-200212

CHILE SPEC

main22100-5C440i15BFT..BU142..25T..GEN;15BFT..BU212,222..RHD..GEN199703

main22100-5C460i15BFT..BU222..SA199902-200212

main22100-5C490i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

main22100-5C500i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

W(TACHOMETER) & SAUDI ARABIA,GULF SPEC

main22100-5C520i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708-200212

KENYA SPEC

main22100-5C540i14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199706-200009

THAILAND SPEC

main22100-5C560i15BF..BU212..GEN..IV3199708-199908

main22100-5C590i15BFTE..BU213,223199908-200106

sub22100-5C591

sub82989-36010

sub82999-12020

main22100-5C591i15BFTE..BU213,223200106

main22100-5C640i14B..BU101..ARL199908-200011

sub22100-5C641

main22100-5C641i14B..BU101..ARL200011-200212

main22100-5C670i15BF..BU212,222..SA200005-200212

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-58030i15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,212,222199505

main23271-58050i15BFT..BU102,142199605

main23271-58070i15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199703

main23271-58070i15BFT..BU212..LHD..40T199808

CHILE SPEC

main23271-58120i15BFTE..BU213,223199908

main95333-08060i14B..BU211,221..40T..SA199505-200008

L=600

main95333-08080i14B..BU211,221..40T..SA199505-200008

L=1000(*H,L=800)

sub95333-08100

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-18002i15BFTE..BU213,223199908-200204

sub90467-18008

main90467-18008i15BFTE..BU213,223200204

main96132-41500i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222199505

22811STAY, INJECTION PUMP, NO.1

main22811-58030i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222199505-200109

sub22811-58031

main22811-58031i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222200109

main22811-58040i15BFT..BU212..LHD..40T199808

CHILE SPEC

main22811-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main22811-58060i15BFTE..BU213,223199908

22821GASKET, INJECTION PUMP

main90301-49003i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF,15BFTE..BU101,111,14#,21#,22#199505-200008

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56080i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main23701-58011i3B..BU100,110,140199505-199908

main23701-58030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main23701-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main23701-58040i15BFT..BU212..LHD..40T199808

CHILE SPEC

main23701-58050i15BFTE..BU213,223199908

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56080i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main23702-58011i3B..BU100,110,140199505-199908

main23702-58030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main23702-58040i15BFT..BU212..LHD..40T199808

CHILE SPEC

main23702-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main23702-58050i15BFTE..BU213,223199908

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56080i14B..BU101,111,141,211,221199505-200008

main23703-58011i3B..BU100,110,140199505-199908

main23703-58030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main23703-58040i15BFT..BU212..LHD..40T199808

CHILE SPEC

main23703-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main23703-58050i15BFTE..BU213,223199908

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56080i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main23704-58011i3B..BU100,110,140199505-199908

main23704-58030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main23704-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main23704-58040i15BFT..BU212..LHD..40T199808

CHILE SPEC

main23704-58050i15BFTE..BU213,223199908

23741CLAMP, INJECTION PIPE, NO.1

main23741-58010i14B,3B..BU10#,11#,140,141,211,212,221,222199505-200008

main23741-58010i15BFT..BU212..LHD..40T199808

CHILE SPEC

23742CLAMP, INJECTION PIPE, NO.2

main23741-56020i3B..BU100,110,140199505-199605

sub23741-56021

main23741-56021i3B..BU100,110,140199605-199908

main23741-58020i15BFTE..BU213,223200105

NO.2

main23742-27010i15BFTE..BU213,223199908-200105

NO.2

main23742-58010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505-200008

main23742-58010i15BFT..BU212..LHD..40T199808

CHILE SPEC

main23742-58020i15BFTE..BU213,223199908-200105

NO.1

main23742-58030i15BFTE..BU213,223200105

NO.1

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-58010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

7751

9011908735

main90119-08735

9017906026

main90179-06026

9017908022

main90179-08022

9162161020

main91621-61020

9163160628

main91631-60628

9212260625

main92122-60625

19 parts on this diagram · 5 diagrams in section
