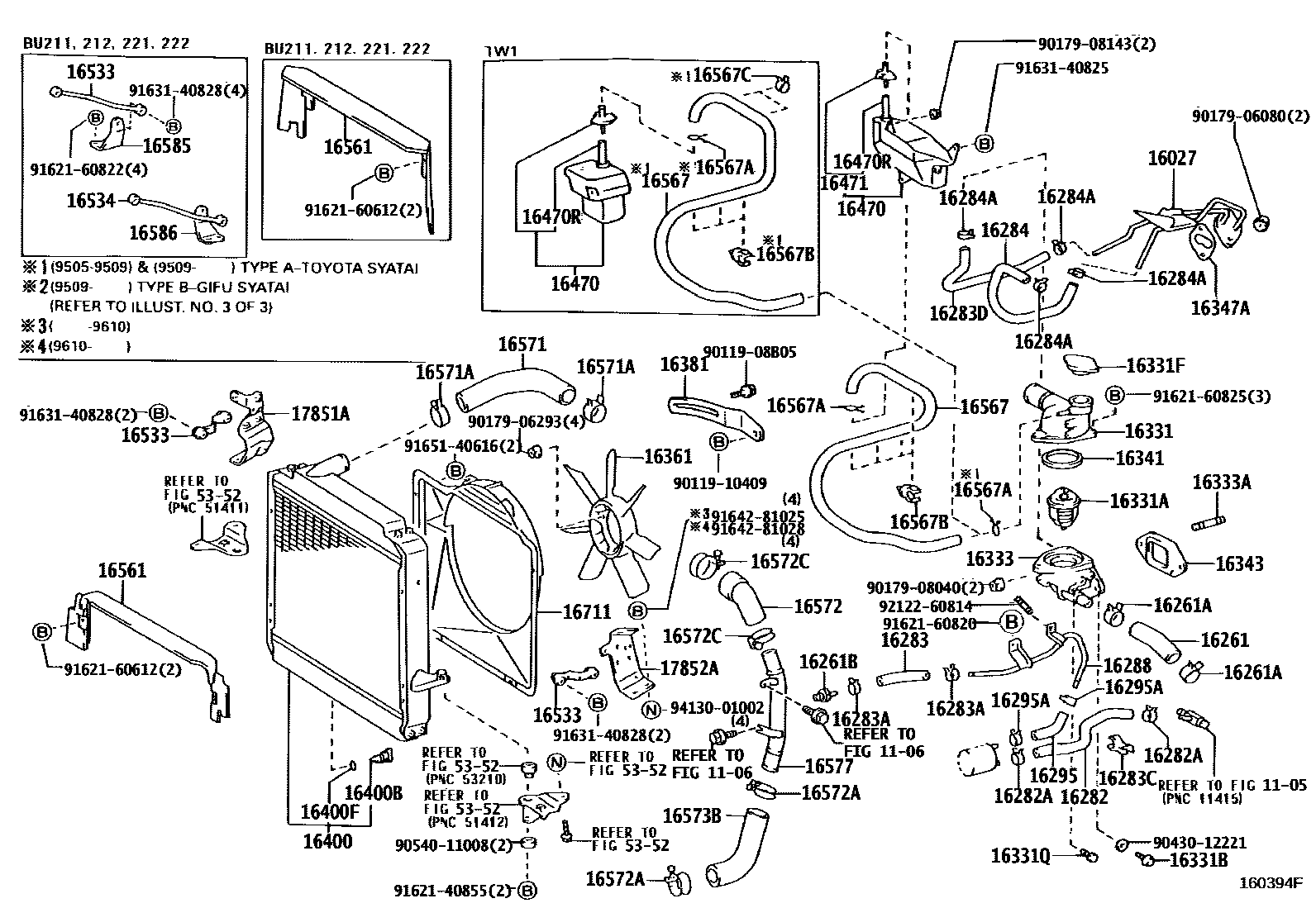

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1105

1106

16027PIPE SUB-ASSY, TURBO WATER, NO.1

main16027-58030i15BFT..BU102,142,212,222199505

main16027-58040i15BFTE..BU213,223199908-200212

main16027-58041i15BFTE..BU213,223200212

16261HOSE, WATER BY-PASS

main16261-56012i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199505-200008

main16261-58020i15BFTE..BU213,223199908

main16261-75040i3RZFE..RZU100199703

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-28004i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199708

sub90467-28007

main90467-28005i14B,15B#,3B..BU10#,11#,14#,21#,22#199708-200008

main96135-41300i3RZFE..RZU100199703-200204

sub96135-51300

main96135-51300i3RZFE..RZU100200204

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-52028i14B..BU211..LHD..T3199505-199905

CHINA SPEC

main90404-52028i15BFT..BU222..SA;15BF..BU102,112,212,222;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN199505-200212

main90404-52028i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

16282HOSE, WATER BY-PASS, NO.5

main16282-58010i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main16282-58010i15BFT..BU222..SA;15BF..BU102,112,212,222;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN199505-200212

main16282-58010i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

main90467-15022i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main90467-15022i15BFT..BU222..SA;15BF..BU102,112,212,222;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN199505-200212

main90467-15022i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

16283HOSE, WATER BY-PASS, NO.6

main16283-56010i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main16283-56010i15BFT..BU222..SA;15BF..BU102,112,212,222;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN199505-200212

main16283-56010i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

main16285-58040i15BFTE..BU213,223199908

16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

main90467-15022i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main90467-15022i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

main90467-15022i15BFT..BU222..SA;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN;15BF,15BFTE..BU102,112,212,213,222,223199505

16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main90464-00518i15BFT..BU222..SA;15BF..BU102,112,212,222;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN199505-200212

main90464-00518i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main90464-00518i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

main90464-00769i15BFTE..BU213,223199908

16283DHOSE, WATER BY-PASS, NO.6

main16285-58030i15BFT..BU102,142,212,222199505

16284HOSE, TURBO WATER, NO.1

main16284-58050i15BFT..BU102,142,212,222199505

main16284-58060i15BFTE..BU213,223199908

16284ACLIP(FOR TURBO WATER HOSE NO.1)

main90467-15022i15BFTE..BU213,223199505

16288PIPE, WATER BY-PASS, NO.4

main16288-56010i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main16288-56010i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

main16288-56010i14B..BU101..ARL199908-200212

main16288-58020i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505-200212

16295HOSE, WATER BY-PASS, NO.7

main16295-56010i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main16295-56010i15BFT..BU222..SA;15BF..BU102,112,212,222;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN199505-200212

main16295-56010i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

16295ACLIP(FOR WATER BY-PASS HOSE NO.7)

main90467-15022i14B..BU211..LHD..T3199505-199905

CHINA SPEC

main90467-15022i15BFT..BU222..SA;15BF..BU102,112,212,222;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN199505-200212

main90467-15022i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

16331OUTLET, WATER

main16331-0W010i3RZFE..RZU100199703

main16331-58080i15BFTE..BU213,223199908

main16331-58090i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199505-200008

main16331-71010i4Y..YU210199505

16331ATHERMOSTAT

main90916-03046i4Y..YU210199505

*WAX 82-95

main90916-03101i3RZFE..RZU100199703-199709

*WAX 82-95

sub90916-03120

main90916-03102i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

main90916-03120i3RZFE..RZU100199709

*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90341-12006i14B..BU211,221..GEN;15BFT..BU142,222..EUR,SA;14B,15BF..BU101,111,141,212,222..GEN,SA199505-200008

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-54750i14B,15B#,3B..BU10#,11#,14#,21#,22#199609-200310

main16401-54750i14B..BU101..ST..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199708-200310

THAILAND SPEC

main16401-67150i15BFT..BU142..25T..GEN;15BF,15BFT..BU212,222..ARL,GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,211,213,221,223199708-200312

main16401-71010i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199609

sub16401-54750

16331QPLUG(FOR WATER OUTLET)

main90345-54005i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

16333HOUSING, WATER OUTLET

main16333-58050i14B,15BF,3B..BU10#,11#,14#,21#,22#199505-199703

sub16333-58080

sub90341-12006

sub90430-12221

main16333-58060i15BFT..BU142,212,222199505-199703

sub16333-58090

sub90341-12006

sub90430-12221

main16333-58080i14B..BU111,141,211..RHD;14B..BU111,211..DM6,TW1;14B,15BF,3B..BU10#,110,112,140,142,212,221,222199703-200008

main16333-58080i14B..BU111,141,211..LHD..(DM1,T3)199703

CHINA SPEC

main16333-58090i15BFT..BU102,142,212,222199703

main16333-58110i15BFTE..BU213,223199908

16333ABOLT, STUD(FOR WATER OUTLET HOUSING)

main92112-60832i14B,15B#..BU10#,111,14#,21#,22#199505-200008

16341GASKET, WATER OUTLET

main16341-56030i14B,15B#..BU10#,111,14#,21#,22#199505-200008

main16341-71011i4Y..YU210199505

main16341-75020i3RZFE..RZU100199703

16343GASKET, WATER OUTLET HOUSING

main16343-56023i14B,15B#..BU10#,111,14#,21#,22#199505-200008

16347AGASKET(FOR TURBO WATER PIPE)

main16347-67010i15BFT..BU102,142,212,222199505

16361FAN

main16361-38010i4Y..YU210199505

main16361-41070i3RZFE..RZU100199703

sub16361-41071

main16361-56070i14B..BU101..175T..GEN199905

RUSSIA SPEC

main16361-56070i14B..BU111,221..RHD..GEN;14B..BU101..RHD..WT..IV3199505-199708

HONGKONG SPEC

main16361-56070i14B..BU111,141,211..LHD..(DM1,T3)199505-199708

CHINA SPEC

main16361-56070i14B..BU111,141,211..LHD..(DM1,T3)199505-199708

THAILAND OR HONG KONG SPEC

main16361-56070i15BF,15BFT..BU102,112,142,212,222;14B,15BF,3B..BU10#,110,112,140,142,212,222..ARL,EUR,TAIW199505

main16361-58020i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,3B..BU100,101,111,140,141..GEN,SA199505

main16361-58030i15BFTE..BU213,223199908

main16361-60090i14B..BU211..40T..SA199505-200006

16381BAR, FAN BELT ADJUSTING

main16381-58110i14B..BU101..ARL;14B..BU101..LHD..ST..TS;14B,15BFT..BU141,222..EUR,SA199902-200212

ALTERNATOR 24V 50A

main16381-58110i14B..BU211..CBU,IV3;14B..BU101..LHD..WT;15BFT..BU212..LHD..40T;15BF..BU212,222..RHD..(ARL,GEN);14B,15BFT..BU101,212..RHD..(20T,25T,30T)..(GEN,SA);14B,15BF,15BFT..BU199505-200008

ALTERNATOR 12V 50A

main16381-58110i15BF..BU212,222..SA200005-200212

main16381-58120i14B..BU211..40T..GEN..IV3;14B..BU211..LHD..40T..CBU;14B,3B..BU100,111..WT..GEN;14B..BU101,221..RHD..WT..GEN..IV3;14B,3B..BU100,140,141,211..LHD..(T3,TW2)..(175T,25T199505-200212

ALTERNATOR 24V 30A

main16381-58120i15BFT..BU102,142..RHD200007

main16381-58130i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;15BF..BU102,112,212..GEN..IV3199610-199908

ALTERNATOR 24V 50A

main16381-71010i4Y..YU210199505

main16381-75030i3RZFE..RZU100199703-199704

main16381-75040i3RZFE..RZU100199704-199908

sub16381-75050

main16381-75050i3RZFE..RZU100199908

16400RADIATOR ASSY

main16400-58410i14B..BU111,141..LHD..(DM1,T3)199505-199708

CHINA OR SAUDI ARABIA OR GULF SPEC

main16400-58410i15BFT..BU142..EUR199708-199905

main16400-58411i14B..BU101..LHD..TS;14B..BU111,141..LHD..(DM1,T3);15BFT,3B..BU100,142..175T,20T,25T199708-200212

CORE THICKNESS=48

main16400-58411i15BFT..BU102,142..RHD200007

main16400-58420i14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199708-200009

CORE THICKNESS=32

main16400-58420i14B,15BF..BU101,102,111,112,141,142199505-199708

main16400-58460i14B..BU211..RHD..40T..GEN..IV3199708-200009

CORE THICKNESS=32

main16400-58460i14B..BU211..30T..SA;14B,15BF..BU21#,22#..ARL,GEN,TAIW199505-199708

main16400-58490i15BFT..BU212,222199505-199708

main16400-58491i15BF..BU212..40T..GEN;15BFT,15BFTE..BU212,213,222,223199708-200208

sub16400-58492

main16400-58492i15BFT,15BFTE..BU212,213,222,223200208

main16400-58510i14B..BU211,221..40T..SA199505-200008

main16400-58600i14B..BU101..ARL199908-200212

main16400-58600i15BF..BU142;14B,15BF..BU101,102,111,112,141..GEN,SA199708-200212

CORE THICKNESS=36

main16400-58610i15BF..BU212,222..SA200005-200212

main16400-58610i14B..BU211..30T..SA;15BF..BU212..30T..GEN..IV3;15BF..BU212..RHD..(ARL,GEN);14B,15BF..BU211,221,222..ARL,GEN199708

CORE THICKNESS=36

main16400-73450i4Y..YU210199505

main16400-75130i3RZFE..RZU100199703-199708

main16400-75131i3RZFE..RZU100199708

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

main16417-24051i4Y..YU210199505-200008

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

main16418-24051i4Y..YU210199505-200008

16470TANK ASSY, RADIATOR RESERVE

main16470-58070i4Y..YU210199505-200008

main16470-58080i14B,15BF,15BFT,3B..BU100,101,142,211,212..TW1,TW2199505

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i15BF,3B..BU100,212..TW1,TW2199505-199511

L=600(*H,L=135)

main90445-12078i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

16471CAP SUB-ASSY, RESERVE TANK

main16405-58050i14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,DM6,T1,T2,T3199505-200008

main16405-58060i15BF,3B..BU100,212..TW1,TW2199505-199511

sub16405-58050

16533SUPPORT, RADIATOR, UPPER

main16505-58010i14B,15BF,15BFT,3B..BU10#,11#,14#199505

main16505-58020i14B,15B#..BU21#,22#199505-200008

16534SUPPORT, RADIATOR, NO.2

main16506-58010i14B,15B#..BU21#,22#199505-200008

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-58010i14B,15BF,15BFT,3B..BU10#,11#,14#199505

main16561-58020i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#..BU212,213,222,223199505

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-58010i14B..BU211..30T..SA;14B,15BFT,3B..BU100,101,142..TW1,TW2;14B,15BFT..BU212,222..(GEN,TAIW)..IV3;14B,15BF..BU211,212,221,222..T3..(ARL,GEN)199505

TYPE A:REFER TO ILLUSTRATION

main16567-58010i15BFT..BU212..CBU;15BFTE..BU213,223;15BF,15BFT..BU212,222..EUR,SA199808

main16567-58020i14B,15BF,15BFT,3B..BU10#,11#,14#..DM1,DM6,DM7,T1,T2,T3,T4199505

main16567-58040i15BF..BU212..TW1199505-199509

main16567-58041i14B,15BF..BU211,212..TW1199509

main16567-58060i14B,15BFT,3B..BU100,101,142..TW1,TW2199509

TYPE B:REFER TO ILLUSTRATION

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i14B..BU211..30T..SA;14B..BU211,221..T3..GEN;14B,15BF,15BFT..BU212..T3;14B,15B#,3B..BU10#,11#,14#,213,222,223199505-199509

16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)

main90469-12009i14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,21#,22#..(DM1,DM6,T1,T2,T3)..(ARL,EUR,GEN,TAIW)199505-199509

16567CCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)

main90469-12010i15BF,3B..BU100,212..TW1,TW2199505-199509

16571HOSE, RADIATOR, INLET

main16571-58080i14B,15BF,15BFT,3B..BU10#,11#,14#199505

main16571-58100i14B,15BF,15BFT..BU211,212,221,222199505-200008

main16571-58210i15BFTE..BU213,223199908

main16571-73040i4Y..YU210199505

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i4Y..YU210199505-200204

sub90467-37003

main90467-37003i4Y..YU210200204

main90467-42001i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-35040i4Y..YU210199505

main16572-56091i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199505-200008

main16572-58110i15BFTE..BU213,223199908

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i4Y..YU210199505-200204

RADIATOR SIDE

sub90467-37003

main90467-37002i4Y..YU210199505-200204

ENGINE SIDE

sub90467-37005

main90467-37003i4Y..YU210200204

RADIATOR SIDE

main90467-37005i4Y..YU210200204

ENGINE SIDE

main90467-41004i15BFTE..BU213,223199908

NO.1

sub90466-41003

main90467-41005i14B,15B#,3B..BU10#,11#,14#,21#,22#199708-199806

main90467-48003i15BFTE..BU213,223199908

NO.2

main96111-10510i15BFTE..BU213,223199908

NO.3

main96111-10510i14B,15BF,15BFT..BU10#,111,14#,211,212,221,222199505-200008

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90467-41004i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199712-200008

RADIATOR PIPE SIDE

sub90466-41003

main90467-41007i14B,15B#,3B..BU10#,11#,14#,21#,22#199708-199712

RADIATOR PIPE SIDE

sub90467-41002

main90467-48003i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199708-200008

WATER PUMP SIDE

main96111-10490i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199708

RADIATOR PIPE SIDE

main96111-10570i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199708

WATER PUMP SIDE

16573BHOSE, RADIATOR, NO.3

main16573-58040i14B,15BF,15BFT,3B..BU10#,11#,14#199505

main16573-58070i14B,15BF,15BFT..BU211,212,221,222199505-200008

main16573-58150i15BFTE..BU213,223199908

16577PIPE, RADIATOR, NO.7

main16577-58040i14B,15BF,15BFT..BU10#,111,14#,211,212,221,222199505-200008

main16577-58070i15BFTE..BU213,223199908

16585BRACKET, RADIATOR, NO.3

main16585-58010i14B,15B#..BU21#,22#199505-200008

16586BRACKET, RADIATOR, NO.4

main16586-58010i14B,15B#..BU21#,22#199505-200008

16711SHROUD, FAN

main16701-58040i14B..BU211,221..40T..SA199505-200008

main16711-58120i14B,15BF,15BFT,3B..BU10#,11#,14#199505

main16711-58130i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT..BU212,222199505

main16711-58250i15BFTE..BU213,223199908

main16711-75030i3RZFE..RZU100199703

17851ABRACKET, RADIATOR SUPPORT, NO.1

main17851-58011i14B,15BF,15BFT,3B..BU10#,11#,14#199505

17852ABRACKET, RADIATOR SUPPORT, NO.2

main17852-58011i14B,15BF,15BFT,3B..BU10#,11#,14#199505

5352

9011908B05

main90119-08B05

9011910409

main90119-10409

9017906080

main90179-06080

9017906293

main90179-06293

9017908040

main90179-08040

9017908143

main90179-08143

9043012221

main90430-12221

9054011008

main90540-11008

9162140855

main91621-40855

9162160612

main91621-60612

9162160820

main91621-60820

9162160822

main91621-60822

9162160825

main91621-60825

9163140825

main91631-40825

9163140828

main91631-40828

9164281025

main91642-81025

9164281028

main91642-81028

9165140616

main91651-40616

9212260814

main92122-60814

9413001002

main94130-01002

75 parts on this diagram · 9 diagrams in section
