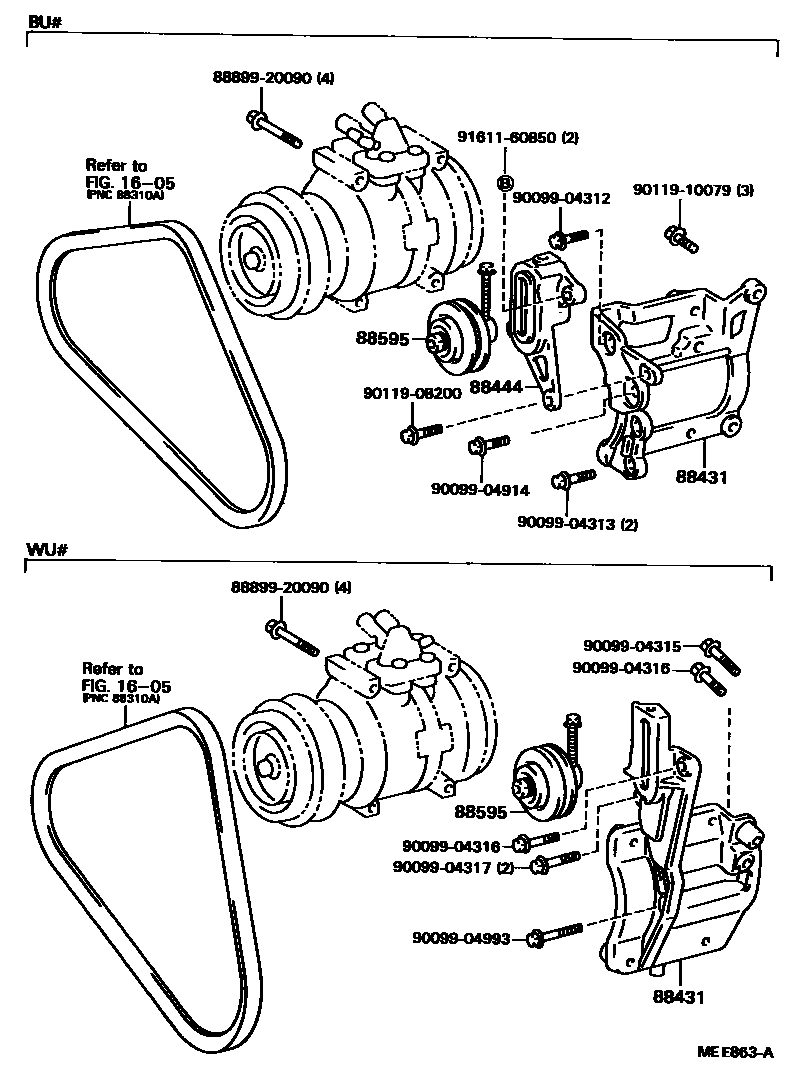

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0005 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36190iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA198409-198708

88444BRACKET, IDLE PULLEY

main88444-36110iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA198409-198708

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12160iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA198409-198708

8889920090COVER, EVAPORATOR

main88899-20090

9009904312

main90099-04312

9009904313

main90099-04313

9009904315

main90099-04315

9009904316

main90099-04316

9009904317

main90099-04317

9009904914

main90099-04914

9009904993

main90099-04993

9011908200

main90119-08200

9011910079

main90119-10079

9161160850

main91611-60850

15 parts on this diagram · 4 diagrams in section
