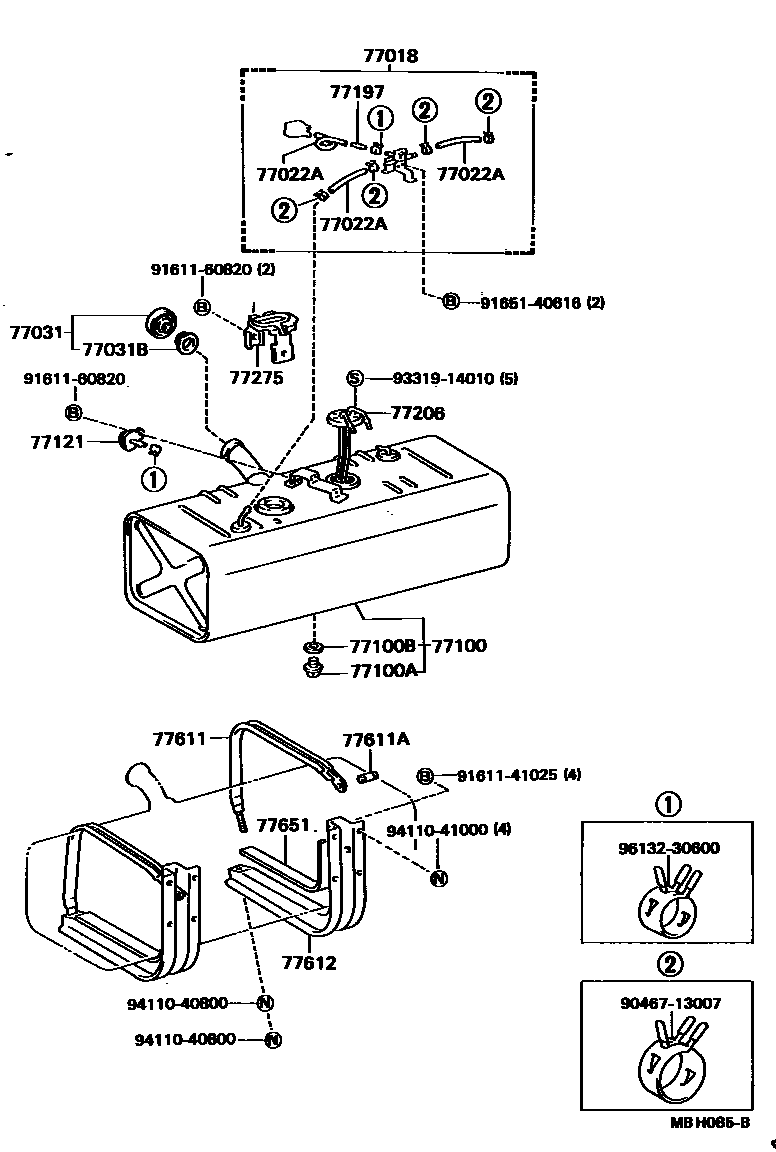

FUEL TANK & TUBE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1 0013 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36061iBU70;BU60..TW1198409-198708

main77018-36071iBU60,61,80..T1,T2198409-198708

main77018-36130iBU80,81,82,85..T3..(GEN,GHD,SA)..(CBU,IV3)198409-198708

SUB TANK

main77018-36160iBU75,85..EUR198409-198708

sub77018-36161

main77018-55010iBU85..ARL198409-198708

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-36010iBU75,85..EUR198409-198708

L=270

sub95332-08028

main95332-06030iBU75,85..EUR198507-198708

L=300(*H,L=260)

sub95333-06030

main95332-06040iBU61,70..ST;BU60,80..T1,T2,TW1198409-198708

L=400(*H,L=340)

sub95333-06040

main95332-06080iBU75,85..EUR198409-198708

L=1000(*H,L=800)

sub95333-06080

main95332-08010iBU85..ARL198409-198708

L=100(*H,L=70)

main95332-08020×2iBU70;BU60..TW1198409-198708

L=200(*H,L=170)

sub95333-08020

main95332-08030×2iBU85..T3..ARL;BU60,61,80..T1,T2198409-198708

L=300(*H,L=220)

sub95333-08030

77031CAP ASSY, FUEL TANK

main77310-55080iBU8#..T3..(GEN,GHD)198409-198502

SUB TANK

sub77310-60100

77031BGASKET (FOR FUEL TANK CAP)

main77316-27010iBU80,81,85..T3..(GEN,GHD,SA)..(CBU,IV3)198508-198708

SUB TANK

77100TANK ASSY, FUEL

main77001-36660iBU85..ARL198409-198708

main77001-36670iBU60,61..T1,T2198409-198502

main77001-36680iBU60..TW1198409-198708

main77001-36700iBU70198409-198708

main77001-36710iBU60,61,75,76,8#..T3..WT198409-198508

main77001-36720iBU80,81,85..T3..(GEN,GHD,SA)..(CBU,IV3)198508-198708

SUB TANK

sub77001-36880

main77001-36730iBU65..CBU198508-198708

main77001-36740iBU80..T2198409-198708

main77001-36830iBU75,85..EUR198508-198708

main77001-36860iBU65..IV3198706-198708

77100APLUG(FOR FUEL TANK)

main90105-12018iBU6#,7#,8#198409-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU6#,7#,8#198409-198708

77121PROTECTOR, FUEL TUBE

main77243-36010iBU80,81,82,85..T3..(GEN,GHD,SA)..(CBU,IV3)198409-198708

SUB TANK

main77258-36010iBU85..ARL198409-198708

77197ORIFICE, FUEL VAPOR

main77198-35010iBU85..ARL198409-198708

main90977-02001iBU61,70..ST;BU60,80..T1,T2,TW1198409-198708

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-36100iBU60,80..T1,T2198409-198708

main77017-36121iBU61..ST198501-198502

main77017-36140iBU60..TW1198409-198708

sub77017-36141

main77017-36160iBU70198409-198708

sub77017-36161

main77017-36191iBU65,86198510-198708

main77017-36200iBU63,75;BU60,80..T3198409-198708

sub77017-36201

77275PROTECTOR, FUEL EVAPORATIVE SEPARATOR

main77197-36010iBU63,65198409-198708

77611BAND, FUEL TANK

main77601-25090×2iBU70;BU60..TW1198409-198708

main77601-36090×2iBU60,61,80..T1,T2198409-198502

main77601-36140×2iBU61..ST198502-198505

W/*TCA=70L

sub77601-37030

main77601-36150×2iBU85..IV1198502-198708

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-25010×4iBU70;BU60..TW1198409-198708

main77629-36010×2iBU8#..T3..(GEN,GHD)198409-198502

SUB TANK

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011×2iBU70;BU60..TW1198409-198708

sub77501-25091

main77501-36080×2iBU75,85..EUR198608-198708

W/LONG STAY

main77633-36090×2iBU60,61,62,75,76,80,81,82,85..T3..(EUR,GEN,GHD,SA)..(CBU,IV3)198502-198708

sub77633-36091

main77633-36111×2iBU60,63,65,85..ARL198409-198708

sub77633-36112

main77633-36120×2iBU60,61,80..T1,T2198409-198502

sub77633-36121

77651PACKING, FUEL TANK BRACKET

main77651-26040×2iBU70;BU60..TW1198409-198708

main77651-36100×2iBU8#..T3..(GEN,GHD)198409-198502

SUB TANK

main77651-36110×2iBU60,61,80..(T1,T2)..(CBU,IV3)198502-198708

W/*TCA=75L

9046713007

main90467-13007

9161141025

main91611-41025

9161160820

main91611-60820

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9613230600

main96132-30600

23 parts on this diagram · 11 diagrams in section
