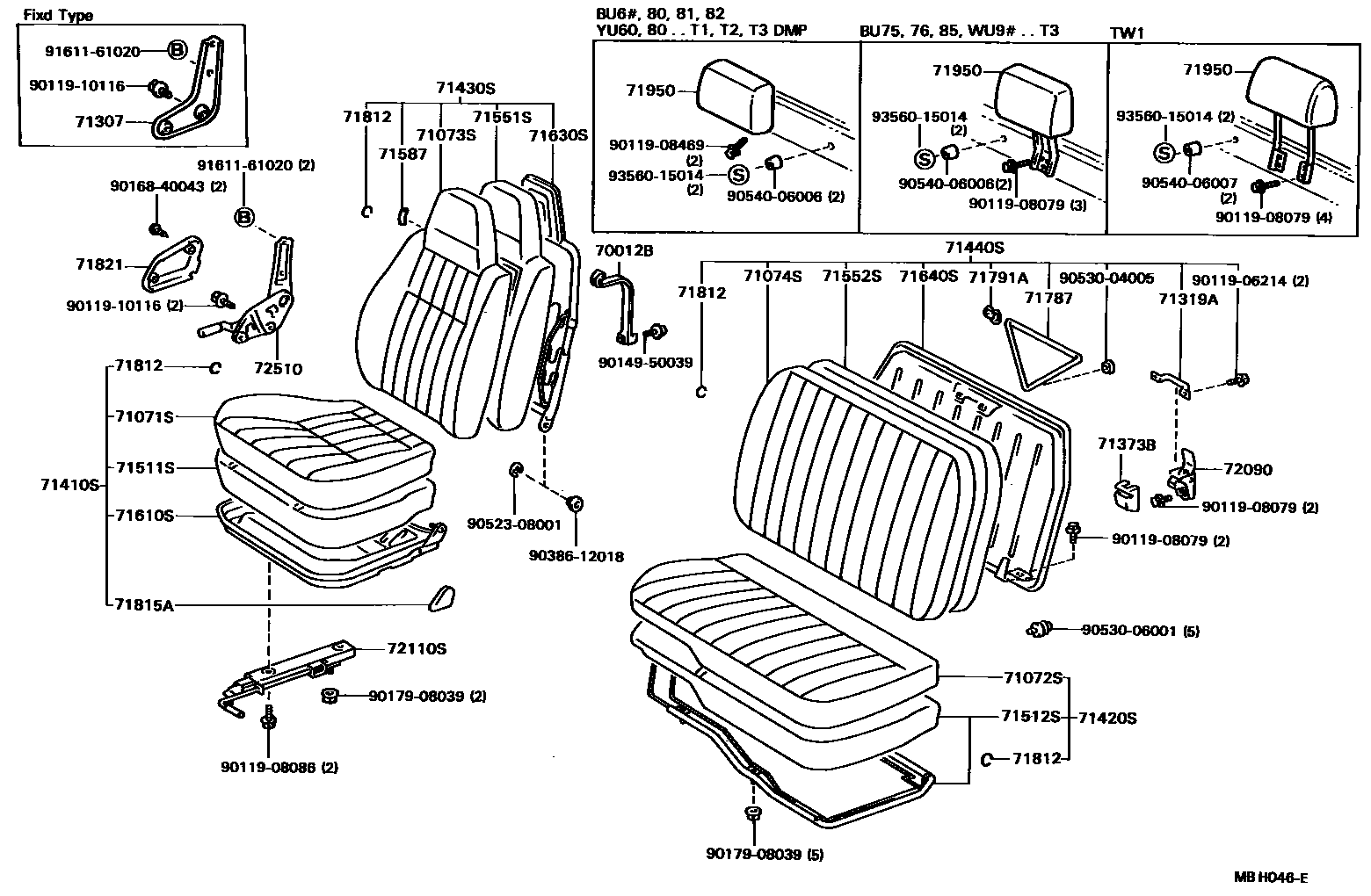

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1W/SUSPENSION SEAT

70012BACK ASSY, NO.1 SEAT

main79140-92600-03iBU70..BUS198409-198508

VL,W/*CS,GRAY,SHADOW GRAY

main79140-92601-03iBU70..BUS198409-198508

VL,GRAY,SHADOW GRAY

main79140-92605-03iBU70..BUS198508-198708

VL,GRAY,SHADOW GRAY

main79140-92606-03iBU70..BUS198508-198708

VL,W/*CS,GRAY,SHADOW GRAY

main79140-92607-04iBU70..BUS198510-198708

FB,BLUE,BLUE

main79140-92608-04iBU70..BUS198510-198708

FB,VL,W/*CS,BLUE,BLUE

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95700-03iBU6#,7#,8#198409-198708

GRAY,SHADOW GRAY

sub58930-95700

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-95441-03iBU60,61,62,70,80,81..LHD198409-198605

VL,GRAY,SHADOW GRAY

sub71071-95441

main71071-95443-03iBU60,61,63,75,76,8#..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

sub71071-95451

main71071-95444-03iBU60,63,85..ARL198409-198508

VL,GRAY,SHADOW GRAY

sub71071-95444

main71071-95446-03iBU75,76,85..LHD..GEN198409-198508

VL,GRAY,SHADOW GRAY

sub71071-95446

main71071-95448-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC,GRAY,SHADOW GRAY

sub71071-95448

main71071-95449-03iBU75,85..EUR198409-198508

VL,GRAY,SHADOW GRAY

sub71071-95448

main71071-95453-03iBU60,61,63,75,76,80,81,82,85..RHD..(GEN,GHD)..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

main71071-95455-03iBU81..SA198604-198708

VL,GRAY,SHADOW GRAY

sub71071-95455

main71071-95457-03iBU60,61,62,70,80,81..LHD198508-198704

VL,GRAY,SHADOW GRAY

sub71071-95457

main71071-95458-03iBU81..LHD..CBU198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

sub71071-95458

main71071-95460-03iBU75,76,85..LHD..GEN198508-198704

VL,GRAY,SHADOW GRAY

main71071-95461-03iBU75,85..EUR198508-198708

VL,GRAY,SHADOW GRAY

main71071-95462-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71071-95462-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71071-95463-04iBU60,61,62,65,85..ARL198508-198708

FB,BLUE,BLUE

sub71071-95463

main71071-95464-04iBU85..ARL198508-198708

FB,W/*SUS,BLUE,BLUE

sub71071-95464

main71071-95465-04iBU60,80..LHD..WT198510-198708

FB,*SAA & *47,BLUE,BLUE

main71071-95467-04iBU75,85..EUR198508-198708

FB,BLUE,BLUE

main71071-95468-04iBU85..LHD..GEN198510-198708

FB,*SAA & *47,BLUE,BLUE

main71071-95468-04iBU85..LHD..GEN198508-198510

FB,OMAN SPEC,BLUE,BLUE

main71071-95469-04iBU75,76,85..LHD..GEN198508-198708

FB,BLUE,BLUE

main71071-95487-03iBU60,61,63,75,76,80,81,82,85..RHD..(GEN,GHD)..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

sub71071-95487

main71071-95489-03iBU60,61,62,65,70,80,81..LHD198704-198708

VL,GRAY,SHADOW GRAY

sub71071-95489

main71071-95A03-04iBU60,61,62,70,80,81..LHD198508-198708

FB,BLUE,BLUE

sub71071-95A03

main71071-95B00-03iBU75,76,85..LHD..GEN198704-198708

VL,GRAY,SHADOW GRAY

sub71071-95B00

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-95443-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

sub71072-95444

main71072-95444-03iBU60,63..ARL198409-198508

VL,GRAY,SHADOW GRAY

sub71072-95444

main71072-95448-03iBU60,61,62,7#,80,81,85..LHD..GEN198409-198605

VL,GRAY,SHADOW GRAY

sub71072-95449

main71072-95449-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC,GRAY,SHADOW GRAY

sub71072-95449

main71072-95451-03iBU75,76,85..RHD..GEN..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

sub71072-95453

main71072-95453-03iBU85..ARL198409-198508

VL,GRAY,SHADOW GRAY

sub71072-95453

main71072-95455-03iBU75,85..EUR198409-198508

VL,GRAY,SHADOW GRAY

sub71072-95455

main71072-95459-03iBU60,61,62,65,7#,80,81,85..LHD..GEN198508-198704

VL,GRAY,SHADOW GRAY

sub71072-95459

main71072-95460-03iBU60,80..LHD..WT198508-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

sub71072-95460

main71072-95460-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC,GRAY,SHADOW GRAY

sub71072-95460

main71072-95462-03iBU75,85..EUR198508-198708

VL,GRAY,SHADOW GRAY

sub71072-95462

main71072-95463-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

sub71072-95465

main71072-95465-03iBU81..SA198604-198708

VL,GRAY,SHADOW GRAY

sub71072-95465

main71072-95466-03iBU75,76,85,86..RHD..GEN..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

sub71072-95468

main71072-95469-04iBU60,61,62,65..ARL198508-198708

FB,BLUE,BLUE

sub71072-95469

main71072-95470-04iBU85..ARL198508-198708

FB,BLUE,BLUE

sub71072-95470

main71072-95471-04iBU60,61,62,7#,80,81,85..LHD..GEN198508-198708

FB,BLUE,BLUE

sub71072-95471

main71072-95472-04iBU75,85..EUR198508-198708

FB,BLUE,BLUE

sub71072-95472

main71072-95B15-03iBU60,61,62,65,7#,80,81,85..LHD..GEN198704-198708

VL,GRAY,SHADOW GRAY

sub71072-95B15

main71072-95B16-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

sub71072-95B16

main71072-95B18-03iBU75,76,85,86..RHD..GEN..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

sub71072-95B18

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-92608-04iBU85..TW1198510-198708

FB,W/*SUS,BLUE,BLUE

main71073-92609-03iBU60..RHD..TW1..GEN198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71073-92610-03iBU60..RHD..TW1..GEN198409-198508

VL,GRAY,SHADOW GRAY

main71073-92611-03iBU60..ARL..CBU198409-198508

VL,GRAY,SHADOW GRAY

main71073-95451-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71073-95452

main71073-95452-03iBU63,85..ARL;BU60..ARL..IV3198409-198508

VL,GRAY,SHADOW GRAY

sub71073-95452

main71073-95453-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

sub71073-95456

main71073-95455-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC,GRAY,SHADOW GRAY

sub71073-95455

main71073-95457-03iBU75,85..EUR198409-198508

VL,GRAY,SHADOW GRAY

sub71073-95455

main71073-95461-03iBU75,76,85..RHD..GEN..(CBU,IV3)198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71073-95462-03iBU81..SA198604-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71073-95A07

main71073-95463-03iBU81..SA198604-198708

VL,GRAY,SHADOW GRAY

main71073-95464-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

sub71073-95463

main71073-95466-03iBU81..LHD..CBU198508-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

sub71073-95466

main71073-95468-03iBU75,85..EUR198508-198708

VL,GRAY,SHADOW GRAY

main71073-95469-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71073-95469-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71073-95470-04iBU61,62,65..ARL;BU60,85..T3..ARL198508-198708

FB,BLUE,BLUE

sub71073-95470

main71073-95471-04iBU85..T3..ARL198508-198708

FB,W/*SUS,BLUE,BLUE

main71073-95472-04iBU60,61,62,70,80,81..LHD198508-198708

FB,BLUE,BLUE

sub71073-95472

main71073-95474-04iBU75,85..EUR198508-198708

FB,BLUE,BLUE

main71073-95475-04iBU75,76,85..LHD..GEN198508-198708

FB,BLUE,BLUE

main71073-95A06-03iBU60,86..RHD..TW1..GEN198508-198704

VL,GRAY,SHADOW GRAY

sub71073-95A06

main71073-95A07-03iBU60,86..RHD..TW1..GEN198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71073-95A07

main71073-95A11-04iBU60,85..TW1..ARL198508-198708

FB,BLUE,BLUE

sub71073-95A11

main71073-95A15-03iBU60,86..RHD..TW1..GEN198704-198708

VL,GRAY,SHADOW GRAY

sub71073-95A15

main71073-95A16-03iBU60,86..RHD..TW1..GEN198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71073-95A16

main71073-95B07-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71073-95B07

main71073-95B08-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

sub71073-95B08

main71074-95459-03iBU60,61,62,70,80,81..LHD198409-198605

VL,GRAY,SHADOW GRAY

sub71074-95459

main71074-95465-03iBU75,76,85..LHD..GEN198409-198508

VL,GRAY,SHADOW GRAY

sub71074-95465

main71074-95B08-03iBU60,61,62,65,70,80,81..LHD198508-198704

VL,GRAY,SHADOW GRAY

sub71074-95B08

main71074-95B11-03iBU75,76,85..LHD..GEN198508-198704

VL,GRAY,SHADOW GRAY

sub71074-95B13

main71074-95B57-03iBU60,61,62,65,70,80,81..LHD198704-198708

VL,GRAY,SHADOW GRAY

sub71074-95B57

main71074-95B59-03iBU75,76,85..LHD..GEN198704-198708

VL,GRAY,SHADOW GRAY

sub71074-95B59

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-92609-03iBU60..LHD..TW1198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71073-92610-03iBU70..BUS;BU60..LHD..TW1198409-198508

VL,GRAY,SHADOW GRAY

main71073-95451-03iBU75,76,85..LHD..GEN198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71073-95452

main71073-95453-03iBU75,76,85..LHD..GEN198409-198508

VL,GRAY,SHADOW GRAY

sub71073-95456

main71073-95461-03iBU75,76,85..LHD..GEN198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71073-95464-03iBU75,76,85..LHD..GEN198508-198704

VL,GRAY,SHADOW GRAY

sub71073-95463

main71073-95A06-03iBU70..BUS;BU60..LHD..TW1198508-198704

VL,GRAY,SHADOW GRAY

sub71073-95A06

main71073-95A07-03iBU70..BUS;BU60..LHD..TW1198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71073-95A07

main71073-95B07-03iBU75,76,85..LHD..GEN198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71073-95B07

main71073-95B08-03iBU75,76,85..LHD..GEN198704-198708

VL,GRAY,SHADOW GRAY

sub71073-95B08

main71074-92607-03iBU70..V198409-198508

VL,GRAY,SHADOW GRAY

sub71074-92609

main71074-92608-03iBU70..V198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71074-92610

main71074-92613-03iBU70..V198508-198704

VL,GRAY,SHADOW GRAY

sub71074-92615

main71074-92614-03iBU70..V198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71074-92616

main71074-92617-04iBU70..V198508-198708

FB,BLUE,BLUE

main71074-92625-03iBU70..V198704-198708

VL,GRAY,SHADOW GRAY

main71074-92626-03iBU70..V198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71074-95459-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

sub71074-95459

main71074-95460-03iBU60,63..ARL198409-198508

VL,GRAY,SHADOW GRAY

sub71074-95459

main71074-95464-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC & W/*HR,GRAY,SHADOW GRAY

sub71074-95464

main71074-95465-03iBU75,76,85..RHD..GEN..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

sub71074-95465

main71074-95467-03iBU85..ARL198409-198508

VL,GRAY,SHADOW GRAY

sub71074-95465

main71074-95469-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC,GRAY,SHADOW GRAY

sub71074-95469

main71074-95470-03iBU75,85..EUR198409-198508

VL,GRAY,SHADOW GRAY

sub71074-95470

main71074-95472-03iBU65..IV3198409-198605

VL,GRAY,SHADOW GRAY

sub71074-95472

main71074-95473-03iBU60,61,62,80,81..LHD..(T1,T3)198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71074-95470

main71074-95A12-04iBU70..BUS;BU60..LHD..TW1198508-198708

FB,BLUE,BLUE

main71074-95A33-03iBU70..BUS;BU60..LHD..TW1198704-198708

VL,GRAY,SHADOW GRAY

sub71074-95A33

main71074-95A34-03iBU70..BUS;BU60..LHD..TW1198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71074-95A34

main71074-95B00-03iBU60..LHD..(T1,T3);BU61,62,65,80,81..LHD198508-198704

VL,GRAY,SHADOW GRAY

main71074-95B01-03iBU60,61,62,80,81..LHD..(T1,T3)198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71074-95B06

main71074-95B02-03iBU81..LHD..CBU198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71074-95B03-03iBU81..LHD..CBU198510-198708

VL,*SAA & *47 & W/*HR,GRAY,SHADOW GRAY

sub71074-95B06

main71074-95B05-03iBU75,85..EUR198508-198708

VL,GRAY,SHADOW GRAY

sub71074-95B06

main71074-95B06-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC & W/*HR,GRAY,SHADOW GRAY

main71074-95B06-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47 & W/*HR,GRAY,SHADOW GRAY

main71074-95B07-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71074-95B07-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71074-95B08-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

sub71074-95B08

main71074-95B10-03iBU81..SA198604-198708

VL,GRAY,SHADOW GRAY

sub71074-95B10

main71074-95B11-03iBU75,76,85,86..RHD..GEN..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

sub71074-95B13

main71074-95B18-04iBU60,61,62,65..ARL198508-198708

FB,BLUE,BLUE

sub71074-95B18

main71074-95B19-04iBU85..ARL198508-198708

FB,BLUE,BLUE

sub71074-95B19

main71074-95B20-04iBU60,61,62,80,81..LHD..(T1,T3)198508-198708

FB,BLUE,BLUE

main71074-95B22-04iBU75,85..EUR198508-198708

FB,BLUE,BLUE

sub71074-95B43

main71074-95B23-04iBU75,76,85..LHD..GEN198508-198708

FB,BLUE,BLUE

main71074-95B56-03iBU60,61,62,80,81..LHD..(T1,T3)198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

sub71074-95B56

main71074-95B59-03iBU75,76,85,86..RHD..GEN..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

sub71074-95B59

main71074-95B68-03iBU60,61,62,80,81..LHD..(T1,T3)198704-198708

VL,GRAY,SHADOW GRAY

sub71074-95B68

71307HINGE SUB-ASSY, DRIVER SEAT, RH

main71183-95402iBU85..RHD..GEN..IV3198409-198708

71319ASTRIKER, FRONT SEATBACK

main71319-92600iBU85..ARL198510-198708

main71319-95400iBU60,61,62,63,70,80,81,82198409-198708

main71319-95401iBU75,76,85..T3..(CBU,IV3)198409-198708

71373BCOVER, FRONT SEATBACK LOCK

main71373-95400-03iBU6#,7#,8#..CBU,IV3198409-198708

GRAY,SHADOW GRAY

sub71373-95400

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-92601-03iBU60..RHD..TW1..GEN198409-198508

VL,GRAY,SHADOW GRAY

main71410-92603-03iBU60..ARL..CBU198409-198508

VL,GRAY,SHADOW GRAY

main71410-95427-03iBU65..IV3198409-198605

VL,GRAY,SHADOW GRAY

main71410-95429-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

main71410-95430-03iBU63,85..ARL;BU60..ARL..IV3198409-198508

VL,GRAY,SHADOW GRAY

main71410-95432-03iBU75,76,85..LHD..GEN198409-198508

VL,GRAY,SHADOW GRAY

main71410-95434-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71410-95435-03iBU75,85..EUR198409-198508

VL,GRAY,SHADOW GRAY

main71410-95439-03iBU60,61,80,81,82..RHD..(T1,T2,T3)..(GEN,GHD)..(CBU,IV3)198508-198708

VL,GRAY,SHADOW GRAY

main71410-95441-03iBU81..SA198504-198708

VL,GRAY,SHADOW GRAY

main71410-95443-03iBU60,61,62,65,70,80,81..LHD198508-198704

VL,GRAY,SHADOW GRAY

main71410-95444-03iBU60,80..LHD..WT198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71410-95446-03iBU75,76,85..LHD..GEN198508-198704

VL,GRAY,SHADOW GRAY

main71410-95447-03iBU75,85..EUR198508-198708

VL,GRAY,SHADOW GRAY

main71410-95448-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71410-95448-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71410-95449-04iBU61,62,65..ARL;BU60,85..T3..ARL198508-198708

FB,BLUE,BLUE

main71410-95450-04iBU85..ARL198508-198708

FB,W/*SUS,BLUE,BLUE

main71410-95451-04iBU81..LHD..CBU198510-198708

FB,BLUE,BLUE

main71410-95453-04iBU75,85..EUR198508-198708

FB,BLUE,BLUE

main71410-95454-04iBU85..LHD..GEN198510-198708

FB,*SAA & *47,BLUE,BLUE

main71410-95454-04iBU85..LHD..GEN198508-198510

FB,OMAN SPEC,BLUE,BLUE

main71410-95455-04iBU75,76,85..LHD..GEN198508-198708

FB,BLUE,BLUE

main71410-95478-03iBU60,61,80,81,82..RHD..(T1,T2,T3)..(GEN,GHD)..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

main71410-95480-03iBU60,61,62,70,80,81..LHD198704-198708

VL,GRAY,SHADOW GRAY

main71410-95481-03iBU75,76,85..LHD..GEN198704-198708

VL,GRAY,SHADOW GRAY

main71410-95A51-03iBU60,86..RHD..TW1..GEN198508-198704

VL,GRAY,SHADOW GRAY

main71410-95A53-04iBU60,85..TW1..ARL198508-198708

FB,BLUE,BLUE

main71410-95A54-04iBU60,61,62,70,80,81..LHD198508-198708

FB,BLUE,BLUE

main71410-95A59-03iBU60,86..RHD..TW1..GEN198704-198708

VL,GRAY,SHADOW GRAY

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-92602-03iBU70;BU60..LHD..TW1198409-198508

VL,GRAY,SHADOW GRAY

main71420-95426-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

main71420-95427-03iBU60,63..ARL198409-198508

VL,GRAY,SHADOW GRAY

main71420-95431-03iBU65..IV3198409-198605

VL,GRAY,SHADOW GRAY

main71420-95432-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71420-95434-03iBU75,76,85..RHD..GEN..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

main71420-95436-03iBU85..ARL198409-198508

VL,GRAY,SHADOW GRAY

main71420-95438-03iBU75,85..EUR198409-198508

VL,GRAY,SHADOW GRAY

main71420-95442-03iBU60..LHD..(T1,T3);BU61,62,65,75,76,80,81,85..LHD..GEN198508-198704

VL,GRAY,SHADOW GRAY

main71420-95443-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71420-95443-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71420-95445-03iBU75,85..EUR198508-198708

VL,GRAY,SHADOW GRAY

main71420-95446-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

main71420-95448-03iBU81..SA198604-198708

VL,GRAY,SHADOW GRAY

main71420-95449-03iBU75,76,85,86..RHD..GEN..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

main71420-95452-04iBU60,61,62,65..ARL198508-198708

FB,BLUE,BLUE

main71420-95453-04iBU85..ARL198508-198708

FB,BLUE,BLUE

main71420-95454-04iBU60,61,62,7#,80,81,85..LHD..GEN198508-198708

FB,BLUE,BLUE

main71420-95455-04iBU75,85..EUR198508-198708

FB,BLUE,BLUE

sub71420-95489

main71420-95A13-03iBU70;BU60..LHD..TW1198508-198704

VL,GRAY,SHADOW GRAY

main71420-95A23-03iBU70;BU60..LHD..TW1198704-198708

VL,GRAY,SHADOW GRAY

main71420-95B04-03iBU60..LHD..(T1,T3);BU61,62,65,75,76,80,81,85..LHD..GEN198704-198708

VL,GRAY,SHADOW GRAY

main71420-95B05-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

main71420-95B08-03iBU75,76,85,86..RHD..GEN..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-92614-03iBU60..RHD..TW1..GEN198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71430-92615-03iBU60..ARL..CBU198409-198508

VL,GRAY,SHADOW GRAY

main71430-92616-03iBU60..RHD..TW1..GEN198409-198508

VL,GRAY,SHADOW GRAY

main71430-92619-04iBU85..TW1198510-198708

FB,W/*SUS,BLUE,BLUE

main71430-95432-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71430-95433-03iBU63,85..ARL;BU60..ARL..IV3198409-198508

VL,GRAY,SHADOW GRAY

main71430-95434-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

main71430-95436-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71430-95438-03iBU75,85..EUR198409-198508

VL,GRAY,SHADOW GRAY

main71430-95443-03iBU60,61,80,81,82..RHD..(T1,T2,T3)..(GEN,GHD)..(CBU,IV3)198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71430-95444-03iBU81..SA198604-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71430-95445-03iBU81..SA198604-198708

VL,GRAY,SHADOW GRAY

main71430-95446-03iBU75,76,85..RHD..GEN..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

main71430-95448-03iBU60,80..LHD..WT198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71430-95450-03iBU75,85..EUR198508-198708

VL,GRAY,SHADOW GRAY

main71430-95451-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71430-95451-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71430-95452-04iBU61,62,65..ARL;BU60,85..T3..ARL198508-198708

FB,BLUE,BLUE

main71430-95453-04iBU85..T3..ARL198508-198708

FB,W/*SUS,BLUE,BLUE

main71430-95454-04iBU60,61,62,70,80,81..LHD198508-198708

FB,BLUE,BLUE

main71430-95456-04iBU75,85..EUR198508-198708

FB,BLUE,BLUE

main71430-95457-04iBU75,76,85..LHD..GEN198508-198708

FB,BLUE,BLUE

main71430-95483-03iBU60,61,80,81,82..RHD..(T1,T2,T3)..(GEN,GHD)..(CBU,IV3)198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71430-95484-03iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

main71430-95A06-03iBU60,86..RHD..TW1..GEN198508-198704

VL,GRAY,SHADOW GRAY

main71430-95A07-03iBU60,86..RHD..TW1..GEN198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71430-95A11-04iBU60,85..TW1..ARL198508-198708

FB,BLUE,BLUE

main71430-95A15-03iBU60,86..RHD..TW1..GEN198704-198708

VL,GRAY,SHADOW GRAY

main71430-95A16-03iBU60,86..RHD..TW1..GEN198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95425-03iBU60,61,62,70,80,81..LHD198409-198605

VL,GRAY,SHADOW GRAY

main71440-95438-03iBU75,76,85..LHD198409-198508

VL,GRAY,SHADOW GRAY

main71440-95474-03iBU60,61,62,65,70,80,81..LHD198508-198704

VL,GRAY,SHADOW GRAY

main71440-95478-03iBU75,76,85..LHD198508-198704

VL,GRAY,SHADOW GRAY

main71440-95B43-03iBU60,61,62,65,70,80,81..LHD198704-198708

VL,GRAY,SHADOW GRAY

main71440-95B46-03iBU75,76,85..LHD198704-198708

VL,GRAY,SHADOW GRAY

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-92616-03iBU70..V198409-198508

VL,GRAY,SHADOW GRAY

main71440-92617-03iBU70..BUS;BU60..LHD..TW1198409-198508

VL,GRAY,SHADOW GRAY

main71440-92619-03iBU70..BUS;BU60..LHD..TW1198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-92623-03iBU70..V198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-92644-03iBU70..V198508-198704

VL,GRAY,SHADOW GRAY

main71440-92645-03iBU70..V198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-92651-03iBU86198510-198704

VL,GRAY,SHADOW GRAY

main71440-92653-04iBU85..TW1198510-198708

FB,BLUE,BLUE

main71440-92654-04iBU70..V198508-198708

FB,BLUE,BLUE

main71440-92664-03iBU70..V198704-198708

VL,GRAY,SHADOW GRAY

main71440-92665-03iBU70..V198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-92668-03iBU86198704-198708

VL,GRAY,SHADOW GRAY

main71440-95425-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

main71440-95426-03iBU60,63..ARL198409-198508

VL,BLUE,SHADOW GRAY

main71440-95429-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95431-03iBU75,76,85..LHD..GEN198409-198508

VL,GRAY,SHADOW GRAY

main71440-95432-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC & W/*HR,GRAY,SHADOW GRAY

main71440-95435-03iBU75,76,85..RHD..GEN..(CBU,IV3)198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95437-03iBU85..ARL198409-198508

VL,GRAY,SHADOW GRAY

main71440-95438-03iBU75,76,85..RHD..GEN..(CBU,IV3)198409-198508

VL,GRAY,SHADOW GRAY

main71440-95439-03iBU75,76,85..LHD..GEN198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95440-03iBU85..LHD..GEN198409-198508

VL,OMAN SPEC,SHADOW GRAY,SHADOW GRAY

main71440-95441-03iBU75,85..EUR198409-198508

VL,GRAY,SHADOW GRAY

main71440-95444-03iBU65..IV3198409-198605

VL,GRAY,SHADOW GRAY

main71440-95445-03iBU60,61,62,80,81..LHD..(T1,T3)198409-198508

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95461-03iBU60..LHD..(T1,T3);BU61,62,65,80,81..LHD198508-198704

VL,GRAY,SHADOW GRAY

main71440-95462-03iBU60,61,62,80,81..LHD..(T1,T3)198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95463-03iBU60,80..LHD..WT198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71440-95464-03iBU60,80..LHD..WT198510-198708

VL,*SAA & *47 & W/*HR,GRAY,SHADOW GRAY

main71440-95466-03iBU75,76,85..LHD..GEN198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95467-03iBU75,76,85..LHD..GEN198508-198704

VL,GRAY,SHADOW GRAY

main71440-95468-03iBU75,85..EUR198508-198708

VL,GRAY,SHADOW GRAY

main71440-95469-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC & W/*HR,GRAY,SHADOW GRAY

main71440-95469-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47 & W/*HR,GRAY,SHADOW GRAY

main71440-95470-03iBU85..LHD..GEN198508-198510

VL,OMAN SPEC,GRAY,SHADOW GRAY

main71440-95470-03iBU85..LHD..GEN198510-198708

VL,*SAA & *47,GRAY,SHADOW GRAY

main71440-95471-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95473-03iBU81..SA198604-198708

VL,GRAY,SHADOW GRAY

main71440-95474-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

main71440-95475-03iBU75,76,85..RHD..GEN..(CBU,IV3)198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95478-03iBU75,76,85..RHD..GEN..(CBU,IV3)198508-198704

VL,GRAY,SHADOW GRAY

main71440-95483-04iBU60,61,62,65..ARL198508-198708

FB,BLUE,BLUE

main71440-95484-04iBU85..T3..ARL198508-198708

FB,BLUE,BLUE

main71440-95485-04iBU60,61,62,80,81..LHD..(T1,T3)198508-198708

FB,BLUE,BLUE

main71440-95487-04iBU75,85..EUR198508-198708

FB,BLUE,BLUE

main71440-95488-04iBU75,76,85..LHD..GEN198508-198708

FB,BLUE,BLUE

main71440-95A22-03iBU70..BUS;BU60..LHD..TW1198508-198704

VL,GRAY,SHADOW GRAY

main71440-95A23-03iBU70..BUS;BU60..LHD..TW1198508-198704

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95A24-04iBU70..BUS;BU60..LHD..TW1198508-198708

FB,BLUE,BLUE

main71440-95A43-03iBU70..BUS;BU60..LHD..TW1198704-198708

VL,GRAY,SHADOW GRAY

main71440-95A44-03iBU70..BUS;BU60..LHD..TW1198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95B38-03iBU60,61,62,80,81..LHD..(T1,T3)198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95B39-03iBU75,76,85..LHD..GEN198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95B40-03iBU75,76,85..LHD..GEN198704-198708

VL,GRAY,SHADOW GRAY

main71440-95B41-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95B43-03iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

main71440-95B44-03iBU75,76,85..RHD..GEN..(CBU,IV3)198704-198708

VL,W/*HR=ASSISTANT,GRAY,SHADOW GRAY

main71440-95B46-03iBU75,76,85..RHD..GEN..(CBU,IV3)198704-198708

VL,GRAY,SHADOW GRAY

main71440-95B51-03iBU60..LHD..(T1,T3);BU61,62,65,80,81..LHD198704-198708

VL,GRAY,SHADOW GRAY

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-95400iBU60,61,62,65,70,80,81..LHD198409-198708

main71501-95401iBU75,76,85..LHD198409-198708

main71511-95400iBU60,61,63,75,76,8#..RHD..(GEN,GHD,SA)..(CBU,IV3)198409-198708

main71511-95402iBU60,62,63,65,85..ARL198409-198708

main71511-95405iBU85..ARL198508-198708

W/*SUS

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-95400iBU60,61,63,80,81,82..RHD..(CBU,IV3)198409-198708

main71502-95402iBU75,76,85,86..RHD..(CBU,IV3)198409-198708

main71511-95400iBU60,61,62,65,7#,80,81,85..LHD..GEN198409-198708

main71511-95402iBU75,85..EUR198409-198708

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-95404iBU60,61,63,65,75,76,8#..RHD..(CBU,IV3)198409-198708

W/*HR=ASSISTANT

main71551-95405iBU60,61,63,75,76,8#..RHD..(GEN,GHD,SA)..(CBU,IV3)198409-198708

main71552-95403iBU60,61,62,65,70,80,81..LHD198409-198708

main71552-95405iBU75,76,85..LHD198409-198708

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-95404iBU60,61,62,7#,80,81,85..LHD198409-198708

W/*HR=ASSISTANT

main71551-95405iBU60,61,62,65,7#,80,81,85..LHD..GEN198409-198708

main71552-95403iBU60,61,63,80,81,82..RHD198409-198708

main71552-95405iBU75,76,85,86..RHD198409-198708

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-95J00iBU85..ARL198508-198708

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71011-95414iBU60,61,63,65,75,76,8#..RHD..(CBU,IV3)198409-198708

main71011-95417iBU85..ARL198508-198708

W/*SUS

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71013-95411iBU85..ARL198508-198708

W/*SUS

sub71013-95412

main71014-95411iBU60,61,62,65,70,80,81..LHD198409-198708

main71014-95415iBU75,76,85..LHD198409-198708

main71150-95J00iBU6#,75,76,8#..RHD..(CBU,IV3)198409-198708

W/*HR=ASSISTANT

main71150-95J02iBU60,61,63,75,76,8#..RHD..(GEN,GHD,SA)..(CBU,IV3)198409-198708

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71014-95411iBU6#,80,81,82..RHD..(CBU,IV3)198409-198708

main71014-95412iBU60,61,62,7#,80,81,85..LHD198409-198708

W/*HR=ASSISTANT

sub71014-95422

main71014-95413iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198509

W/*HR=ASSISTANT

main71014-95414iBU75,76,85..RHD..GEN..(CBU,IV3)198409-198708

W/*HR=ASSISTANT

main71014-95415iBU75,76,85,86..RHD198409-198708

main71014-95416iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198509-198708

W/*HR=ASSISTANT

main71160-95J06iBU60,61,62,65,7#,80,81,85..LHD..GEN198409-198708

71787BAND, FRONT SEATBACK POCKET

main71787-95400iBU60,61,63,80,81,82..RHD..(GEN,GHD,SA)198409-198708

71791ARETAINER, FRONT SEATBACK POCKET

main71791-95400iBU75,76,85..RHD..GEN..(CBU,IV3)198409-198708

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071iBU6#,7#,8#198409-198708

sub90468-18008

71815ACOVER, FRONT SEAT CUSHION HINGE, RH

main71815-95J00-03iBU6#,75,76,8#..RHD..(CBU,IV3)198409-198708

GRAY,SHADOW GRAY

sub71815-95J00

71821SHIELD, FRONT SEAT SIDE, RH

main71811-95J01-03iBU6#,75,76,8#..RHD..(CBU,IV3)198409-198708

GRAY,SHADOW GRAY

sub71811-95J01

71950HEADREST ASSY, FRONT SEAT

main71910-92600-03iBU85..TW1198510-198708

GRAY

main71910-92603-03iBU70;BU60..TW1198409-198708

GRAY,GRAY

main71910-95400-03iBU65..CBU;BU60..T1,T2,T3;BU61,62,63,80,81,82..CBU,IV3198409-198708

GRAY,GRAY

sub71910-37010

main71910-95401-03iBU60,80..LHD..WT198510-198708

*SAA & *47,GRAY,GRAY

sub71910-37010

main71910-95401-03iBU60,80..LHD..WT198409-198510

OMAN SPEC,SHADOW GRAY,GRAY

sub71910-37010

main71910-95402-03iBU75,76,85..(ARL,GEN)..(CBU,IV3)198409-198708

GRAY,GRAY

sub71910-37030

main71910-95403-03iBU75,85..EUR198409-198708

GRAY,GRAY

sub71910-37030

main71910-95403-03iBU85..LHD..GEN198409-198510

OMAN SPEC,SHADOW GRAY,GRAY

sub71910-37030

main71910-95403-03iBU85..LHD..GEN198510-198708

*SAA & *47 GRAY,GRAY

sub71910-37030

72090LOCK ASSY, FRONT SEATBACK

main72090-95400iBU6#,7#,8#..CBU,IV3198409-198508

main72090-95400-03iBU6#,7#,8#..CBU,IV3198508-198708

GRAY,SHADOW GRAY

sub72090-95400

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-95408iBU6#,75,76,8#..RHD..(CBU,IV3)198409-198708

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95J00-03iBU6#,75,76,8#..RHD..(CBU,IV3)198409-198708

GRAY,SHADOW GRAY

sub72510-95J00

9011906214

main90119-06214

9011908079

main90119-08079

9011908086

main90119-08086

9011908469

main90119-08469

9011910116

main90119-10116

9014950039

main90149-50039

9016840043

main90168-40043

9017908039

main90179-08039

9038612018

main90386-12018

9052308001

main90523-08001

9053004005

main90530-04005

9053006001

main90530-06001

9054006006

main90540-06006

9054006007

main90540-06007

9161161020

main91611-61020

9356015014

main93560-15014

46 parts on this diagram · 7 diagrams in section
