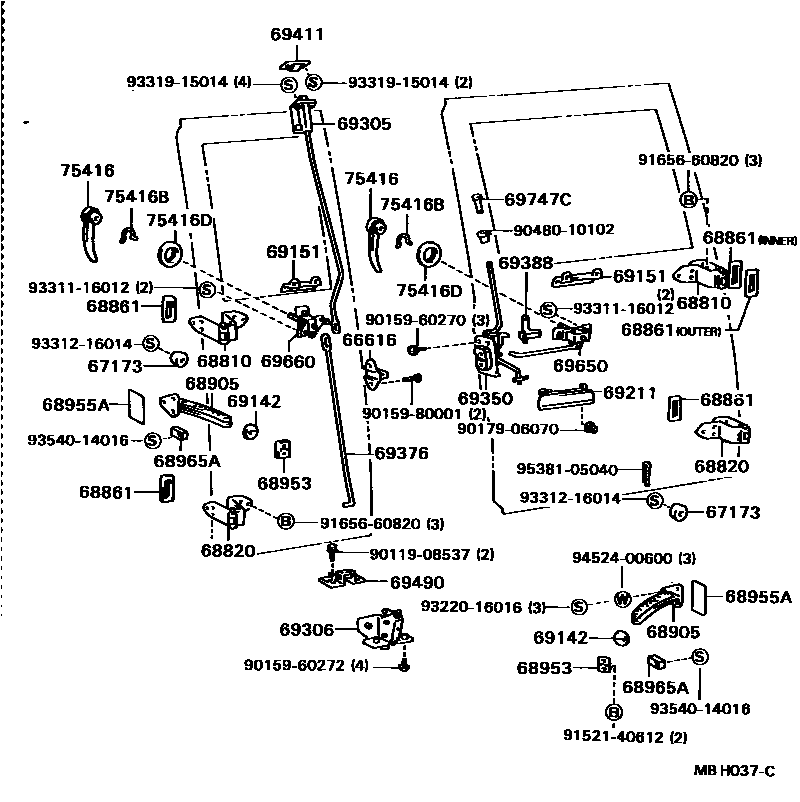

BACK DOOR LOCK & HINGE
66616STRIKER, TAIL GATE LOCK
67173CUSHION, BACK DOOR
68810HINGE ASSY, BACK DOOR, UPPER
68820HINGE ASSY, BACK DOOR, LOWER
68861HOLD, BACK DOOR HINGE
HINGE MALE
HINGE FEMALE
68905STOPPER SUB-ASSY, BACK DOOR OPEN
68953PLATE, BACK DOOR OPEN STOPPER ARM GUIDE
LH
68955ASILENCER, BACK DOOR OPEN STOPPER
68965AGUIDE, BACK DOOR OPEN STOPPER
69142CUSHION, DOOR OPEN STOPPER
69151HANDLE, BACK DOOR INSIDE PULL
BLACK,BLACK
69211HANDLE, BACK DOOR OUTSIDE, RH
69305LOCK SUB-ASSY, BACK DOOR, UPPER
69306LOCK SUB-ASSY, BACK DOOR, LOWER
69350LOCK ASSY, BACK DOOR
69376LINK, BACK DOOR LOCK
69388SNAP, ROD(FOR DOOR LOCK)
69411CHECK, BACK DOOR
69490STRIKER ASSY, BACK DOOR LOCK
69650CONTROL ASSY, BACK DOOR LOCK REMOTE, RH
69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH
69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)
75416HANDLE, TAIL GATE, INSIDE
75416BRING, SNAP (FOR BACK DOOR INSIDE HANDLE)
75416DESCUTCHEON, BACK DOOR INSIDE HANDLE
9011908537
9015960270
9015960272
9015980001
9017906070
9048010102
9152140612
9165660820
9322016016
9331116012
9331216014
9331915014
9354014016
9452400600
9538105040
40 parts on this diagram · 1 diagram in section
