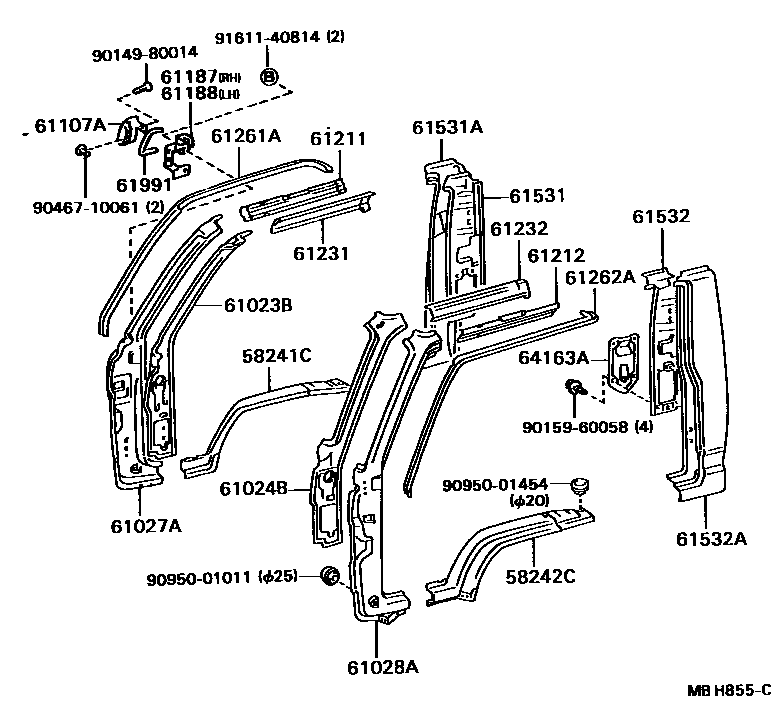

SIDE MEMBER

0001 1 0002 1 0003 1

58241CPANEL, FLOOR SIDE, RH

main58011-95444iBU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81,82..CBU,IV3¥17,200198409-198708

sub58011-37010¥17,200

main58011-95447iBU85..IV1¥17,300198409-198708

INDIA SPEC

sub58011-95444¥17,200

main58241-92603iBU70,86;BU60,85..TW1¥12,200198409-198708

sub58241-37020¥12,100

58242CPANEL, FLOOR SIDE, LH

main58012-95440iBU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81,82..CBU,IV3¥17,200198409-198708

sub58012-37010¥17,200

main58012-95443iBU85..RHD..GEN..IV3¥17,300198409-198708

INDIA SPEC

sub58012-95440¥17,200

main58242-92603iBU70,86;BU60,85..TW1¥12,000198409-198708

sub58242-37030¥12,100

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iBU6#,75,76,8#..RHD..(CBU,IV3)¥22,700198409-198708

main61023-95401iBU60,61,62,65,7#,80,81,85..LHD¥22,700198409-198708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iBU6#,75,76,8#..RHD..(CBU,IV3)¥22,700198409-198708

sub61024-95403¥22,700

main61024-95401iBU60,61,62,65,7#,80,81,85..LHD¥22,700198409-198708

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95400iBU6#,75,76,8#..RHD¥41,400198409-198708

W/RADIO

sub61027-37010¥41,400

main61027-95401iBU6#,7#,8#¥41,400198409-198708

sub61027-37020¥41,300

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95400iBU6#,7#,8#¥41,300198409-198708

sub61028-37030¥41,300

main61028-95401iBU65,7#,80,81,85..LHD¥41,300198409-198708

W/RADIO

sub61028-37040¥41,300

61107ACOVER SUB-ASSY, FRONT PILLAR DOOR HINGE

main61107-95415iBU85..ARL¥1,490198409-198708

RH

main61108-95416iBU85..ARL¥1,490198409-198708

LH

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iBU85..ARL¥1,550198409-198708

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iBU85..ARL¥1,550198409-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iBU6#,75,76,8#..CBU,IV3¥6,700198409-198708

LWR

main61225-92601iBU70¥2,570198409-198708

UPR

sub61225-37020¥2,580

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iBU6#,75,76,8#..CBU,IV3¥6,700198409-198708

LWR

main61226-92601iBU70¥2,570198409-198708

UPR

sub61226-37020¥2,580

61231RAIL, ROOF SIDE, INNER RH

main61231-92600iBU70;BU60..LHD..TW1¥3,120198508-198708

main61231-92601iBU70;BU60..TW1¥1,190198409-198708

main61231-95405iBU60..T1,T2,T3;BU61,62,63,75,76,8#..CBU,IV3¥3,100198409-198708

main61231-95406iBU60..LHD..(T1,T3);BU61,62,65,75,76,80,81,85..LHD¥3,120198508-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-92600iBU60,85,86..RHD..TW1¥1,200198508-198708

sub61232-37030¥3,130

main61232-92601iBU60..LHD..TW1¥1,200198409-198708

main61232-95405iBU60..LHD..(T1,T3);BU61,62,65,7#,80,81,85..LHD¥3,120198409-198708

sub61232-95406¥3,120

main61232-95406iBU60,85..RHD..(T1,T2,T3);BU61,62,63,65,75,76,80,81,82..RHD¥3,120198508-198708

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61261-92600iBU70¥5,000198409-198708

main61261-92601iBU60,85,86..TW1¥5,000198409-198708

main61261-95404iBU60,85..(T1,T2,T3)..(ARL,GEN)..(CBU,IV3);BU61,62,63,65,75,76,80,81,82..(ARL,GEN,GHD,SA)..(CBU,IV3)¥5,000198409-198708

main61261-95406iBU75,85..EUR¥5,000198610-198708

PORTUGAL SPEC

sub61261-95407¥3,040

sub61267-95400¥1,670

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61262-92600iBU70¥5,000198409-198708

main61262-92601iBU60,85,86..TW1¥5,000198409-198708

main61262-95404iBU60,85..(T1,T2,T3)..(ARL,GEN)..(CBU,IV3);BU61,62,63,65,75,76,80,81,82..(ARL,GEN,GHD,SA)..(CBU,IV3)¥5,000198409-198708

main61262-95406iBU75,85..EUR¥5,000198610-198708

PORTUGAL SPEC

sub61262-95407¥3,040

sub61268-95400¥1,670

61531PANEL, BACK CORNER, INNER RH

main64015-95400iBU60..(T1,T2,T3)..GEN;BU61,62,63,65,80,81,82..(GEN,GHD,SA)..(CBU,IV3)¥9,100198409-198708

sub64015-95411¥18,900

main64015-95401iBU60..ARL..IV3;BU61,62,63,65..ARL¥9,100198409-198708

PORTUGL SPEC

sub64015-95411¥18,900

main64015-95402iBU75,76,85..GEN..(CBU,IV3)¥9,100198409-198708

main64015-95403iBU76..RHD..IV3¥9,100198501-198708

NEW ZEALAND SPEC

main64015-95403iBU75,85..T3..(ARL,EUR)¥9,100198409-198708

61531APANEL, BACK CORNER, OUTER RH

main64103-95401iBU60..(T1,T2,T3)..GEN;BU61,62,63,65,75,76,80,81,82,85..(GEN,GHD,SA)..(CBU,IV3)¥22,600198409-198708

sub64103-95403¥22,600

main64103-95403iBU60..ARL..IV3;BU61,62,63,65..ARL¥22,600198409-198708

PORTUGAL SPEC

main64103-95404iBU76..RHD..IV3¥22,600198501-198708

NEW ZEALAND SPEC

main64103-95404iBU75,85..T3..(ARL,EUR)¥22,600198409-198708

main64103-95405iBU85..RHD..GEN..IV3¥22,600198409-198708

INDIA SPEC

61532PANEL, BACK CORNER, INNER LH

main64016-95400iBU60..(T1,T2,T3)..GEN;BU61,62,63,65,80,81,82..(GEN,GHD,SA)..(CBU,IV3)¥9,100198409-198708

sub64016-95404¥9,100

main64016-95401iBU60..ARL..IV3;BU61,62,63,65..ARL¥9,100198409-198708

PORTUGAL SPEC

sub64016-95415¥10,100

main64016-95402iBU75,76,85..GEN..(CBU,IV3)¥9,100198409-198708

main64016-95403iBU76..RHD..IV3¥9,100198501-198708

NEW ZEALAND SPEC

main64016-95403iBU75,85..T3..(ARL,EUR)¥9,100198409-198708

main64016-95404iBU61,81..LHD¥9,100198501-198708

ALGERIA SPEC

sub64016-95415¥10,100

61532APANEL, BACK CORNER, OUTER LH

main64104-95401iBU60..(T1,T2,T3)..GEN;BU61,62,63,65,75,76,80,81,82,85..(GEN,GHD)..(CBU,IV3)¥22,600198409-198708

sub64104-95403¥22,600

main64104-95403iBU80..LHD..IV3¥22,600198409-198708

PORTUGAL SPEC

main64104-95404iBU75,85..T3..(ARL,EUR)¥22,600198409-198708

main64104-95404iBU76..RHD..IV3¥22,600198501-198708

NEW ZEALAND SPEC

main64104-95405iBU85..RHD..GEN..IV3¥22,600198409-198708

INDIA SPEC

main64104-95406iBU60,80,85..LHD..WT..GEN¥22,600198510-198708

*SAA & *47

sub64104-95416¥22,600

61991PROTECTOR, FRONT PILLAR DOOR HINGE

main61991-95400iBU85..ARL¥620198409-198708

RH

sub61991-37010¥620

main61992-95400iBU85..ARL¥620198409-198708

LH

sub61992-37010¥620

64163ACOVER, BACK CORNER, INNER

main64163-87302iBU70,86;BU60..TW1..GEN¥1,080198412-198708

main64163-87303iBU60,85..TW1..ARL¥1,080198412-198708

main64163-95403iBU65..IV3¥1,190198508-198708

RH

main64163-95403iBU60..(T1,T2,T3)..GEN;BU61,62,63,75,76,80,81,82,85..(GEN,GHD,SA)..(CBU,IV3)¥1,190198409-198708

main64163-95404iBU80..LHD..IV3¥1,190198409-198708

W/*ELR

main64163-95404iBU80..LHD..IV3¥1,190198409-198708

PORTUGAL SPEC

main64163-95404iBU76..RHD..IV3¥1,190198501-198708

NEW ZEALAND SPEC

main64163-95405iBU65..IV3198508-198708

LH

sub64163-95900

9014980014

main90149-80014¥210

9015960058

main90159-60058¥160

9046710061

main90467-10061¥120

9095001011

main90950-01011¥170

9095001454

main90950-01454¥110

9161140814

main91611-40814¥130

27 parts on this diagram · 3 diagrams in section
