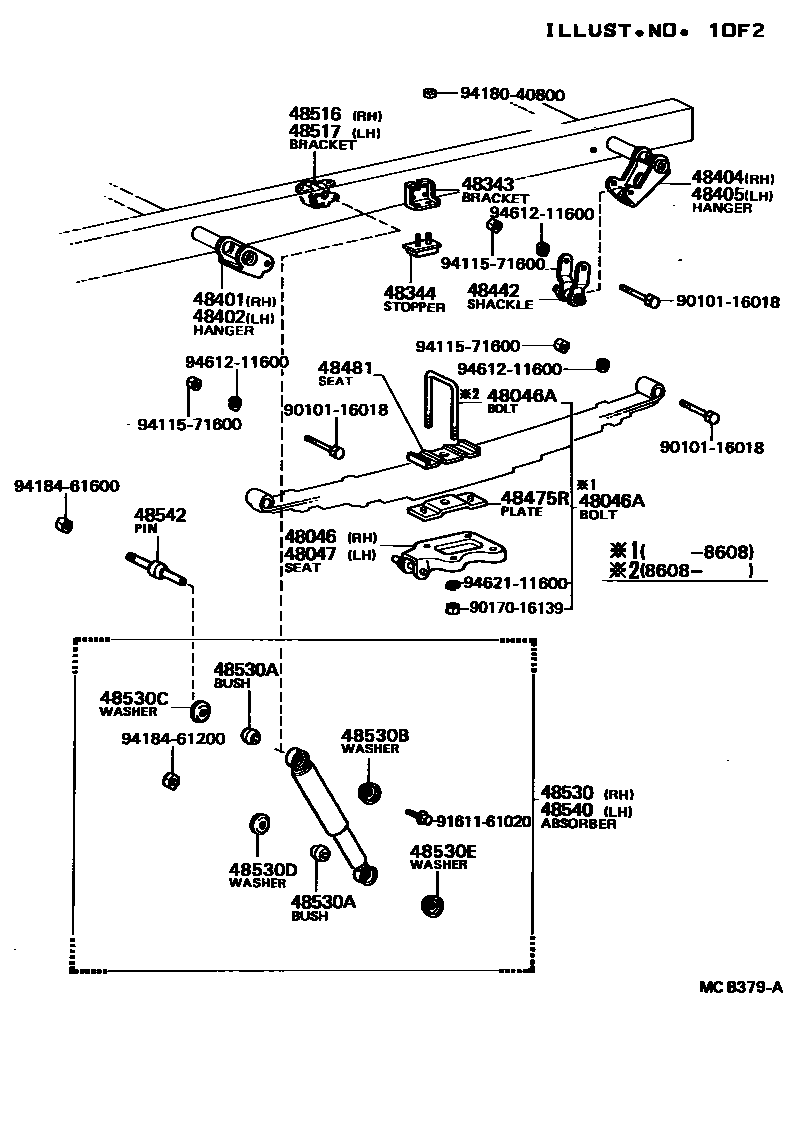

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-36090iBU60,61,62,70..ST198409-198708

main48046-36160iBU60..TB198409-198708

main48046-36190iBU63,65198409-198708

main48473-36100iBU80..T2198409-198708

W/10.5 IN DIFF

main48473-36100iBU62..ARL198510-198708

main48473-36110iBU60,61,62,80,81..T3..WT..GEN198409-198708

W/12 IN DIFF

48046ABOLT, U(FOR REAR SPRING)

main90117-16014iBU60..TB198608-198708

L=225,L=225

main90117-16018iBU65..IV3198608-198708

L=300,L=300

main90117-16022iBU80..T3..GEN;BU63,65,75,76,81,86..ARL,EUR,GEN,SA198608-198708

L=280,L=280

main90117-16025iBU65..IV3198608-198708

L=305,L=305

main90117-16031iBU60..ARL..CBU198608-198708

L=200

main90117-16103iBU63,65..CBU198608-198708

L=275,L=275

sub90117-16022

main90117-16115iBU62..ARL198608-198708

L=265,L=265

main90117-16122iBU61,62,70..ST;BU60..TW1..GEN;BU60..(T1,T3)..ST198608-198708

L=215,L=215

main90117-16142iBU62..ARL198608-198708

L=255,L=225

main90117-16142iBU62..ARL198608-198708

L=255,L=255

main90118-16220iBU61,62,70..ST;BU60..TW1..GEN;BU60..(T1,T3)..ST198409-198608

L=215,L=215

sub90117-16122

main90118-16221iBU60..ARL..CBU198409-198410

sub90117-16062

main90118-16226iBU60,61..TS..WT198409-198608

L=255,L=255

sub90117-16142

main90118-16226iBU62..ARL198510-198608

L=255,L=225

sub90117-16142

main90118-16227iBU80..T2198409-198608

L=265,L=265

sub90117-16115

main90118-16228iBU75,76,80,81..T3..(GEN,SA)198409-198608

L=275,L=275

sub90117-16103

main90118-16231iBU60,61,62..T3..WT..GEN198409-198608

L=280,L=280

sub90117-16022

main90118-16233iBU80,81,82..GHD198409-198708

L=310

sub90117-16024

main90118-16236iBU80,81,85..(T3,TW1)..(ARL,EUR,GEN)198409-198608

L=300,L=300

sub90117-16018

main90118-16238iBU60..TB198409-198608

L=225,L=225

sub90117-16014

main90118-16240iBU80,81,85..(T3,TW1)..(ARL,EUR,GEN)198409-198608

L=305,L=305

sub90117-16025

main90118-16241iBU60..ARL..CBU198410-198608

L=200

sub90117-16031

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-36090iBU60,61,62,70..ST198409-198708

main48047-36160iBU60..TB198409-198708

main48047-36190iBU63,65198409-198708

main48473-36100iBU60,61,75,76,80,81..T3..WT..(ARL,EUR,GEN,SA)198409-198708

W/10.5 IN,DIFF

main48473-36100iBU62..ARL198508-198708

main48473-36110iBU60,61,62,80,81..T3..WT..GEN198409-198708

W/12 IN,DIFF

48343BRACKET, REAR AXLE CUSHION

main48343-36030iBU63,65198409-198708

sub48343-36060

main48343-36040iBU60,61,70..ST198409-198708

48344STOPPER, BUMPER, REAR

main48308-36040iBU60..TB198409-198708

main48344-36090iBU80..T2198409-198708

main48344-36140iBU70198409-198708

main48344-36150iBU60,61,62..ST198409-198708

main48344-36170iBU63,65198409-198609

main48344-36180iBU60,61,62..T3..WT198409-198708

main48344-36190iBU80,81,82..T3198409-198708

main48344-36200iBU85198409-198708

main48344-36200iBU75,76,86198508-198708

W/13-LEAF SPRING

main48344-36220iBU75,76,86198409-198708

main48344-36270iBU63,65198609-198708

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-36160iBU60,61,62,70..ST198409-198708

main48414-36170iBU60..TB198409-198708

main48414-36200iBU63,65198409-198708

main48414-36210iBU85198409-198708

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-36160iBU60,61,62,70..ST198409-198708

main48414-36170iBU60..TB198409-198708

main48414-36200iBU63,65198409-198708

main48414-36210iBU85198409-198708

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-36080iBU60,61,62,70..ST198409-198708

main48416-36170iBU60..TB198409-198708

main48416-36180iBU63,65198409-198708

main48416-36190iBU85198409-198708

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-36080iBU60,61,62,70..ST198409-198708

main48416-36190iBU85198409-198708

main48417-36060iBU60..TB198409-198708

main48417-36070iBU63,65198409-198708

48442SHACKLE, SPRING, NO.2

main48042-36021iBU6#,7#,8#198409-198708

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iBU60..TS;BU61,7#,80,81,86198409-198708

W/10.5IN DIFF

main48475-36090iBU80..T3..GEN;BU63,65,81,85..ARL,EUR,GEN198409-198708

W/12IN DIFF

48481SEAT, REAR SPRING, UPPER

main48481-36040iBU61,70,81..ARL,GEN,SA;BU60,80..(T1,T3,TW1)..(ARL,GEN)198409-198708

main48481-36050iBU62..GEN198409-198708

HEAVY DUTY SPEC

main48481-36050iBU80,81..GHD;BU75,76,82,85198409-198708

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36040iBU85;BU80,81,82..GHD198409-198708

main48505-36050iBU60,61,62,75,76,80,81..WT..(ARL,EUR,GEN,SA)198409-198708

main48516-36050iBU60,61,62,70..ST198409-198708

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-36040iBU85;BU80,81,82..GHD198409-198708

main48505-36050iBU60,61,62,75,76,80,81..WT..(ARL,EUR,GEN,SA)198409-198708

main48516-36050iBU60,61,62,70..ST198409-198708

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39715iBU60,61,62,70..ST198409-198708

sub48531-39716

main48531-39725iBU62,75,76,80,81,86..ARL,EUR,GEN,SA198409-198708

sub48531-39726

main48531-39735iBU60..TB198409-198708

W/13-LEAF SPRING

sub48531-39736

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004iBU6#,7#,8#198409-198708

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU62,75,76,80,81,86..ARL,EUR,GEN,SA198409-198708

main90948-03004iBU60,61,62,70..ST198409-198708

main90948-03007iBU80,81..GHD;BU63,65,82,85198409-198708

W/13-LEAF SPRING

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU6#,75,76,8#..WT198409-198708

main90948-03007iBU60,61,62,70..ST198409-198708

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU85;BU80,81,82..GHD198409-198708

W/13-LEAF SPRING

main90948-03007iBU62,75,76,80,81,86..ARL,EUR,GEN,SA198409-198708

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU6#,7#,8#198409-198708

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39715iBU60,61,62,70..ST198409-198708

sub48531-39716

main48531-39725iBU62,75,76,80,81,86..ARL,EUR,GEN,SA198409-198708

sub48531-39726

main48531-39735iBU60..TB198409-198708

W/13-LEAF SPRING

sub48531-39736

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-36020iBU60,61,62,70..ST198409-198708

sub48542-37030

9010116018

main90101-16018

9017016139

main90170-16139

9161161020

main91611-61020

9411571600

main94115-71600

9418040800

main94180-40800

9418461200

main94184-61200

9418461600

main94184-61600

9461211600

main94612-11600

9462111600

main94621-11600

31 parts on this diagram · 9 diagrams in section
