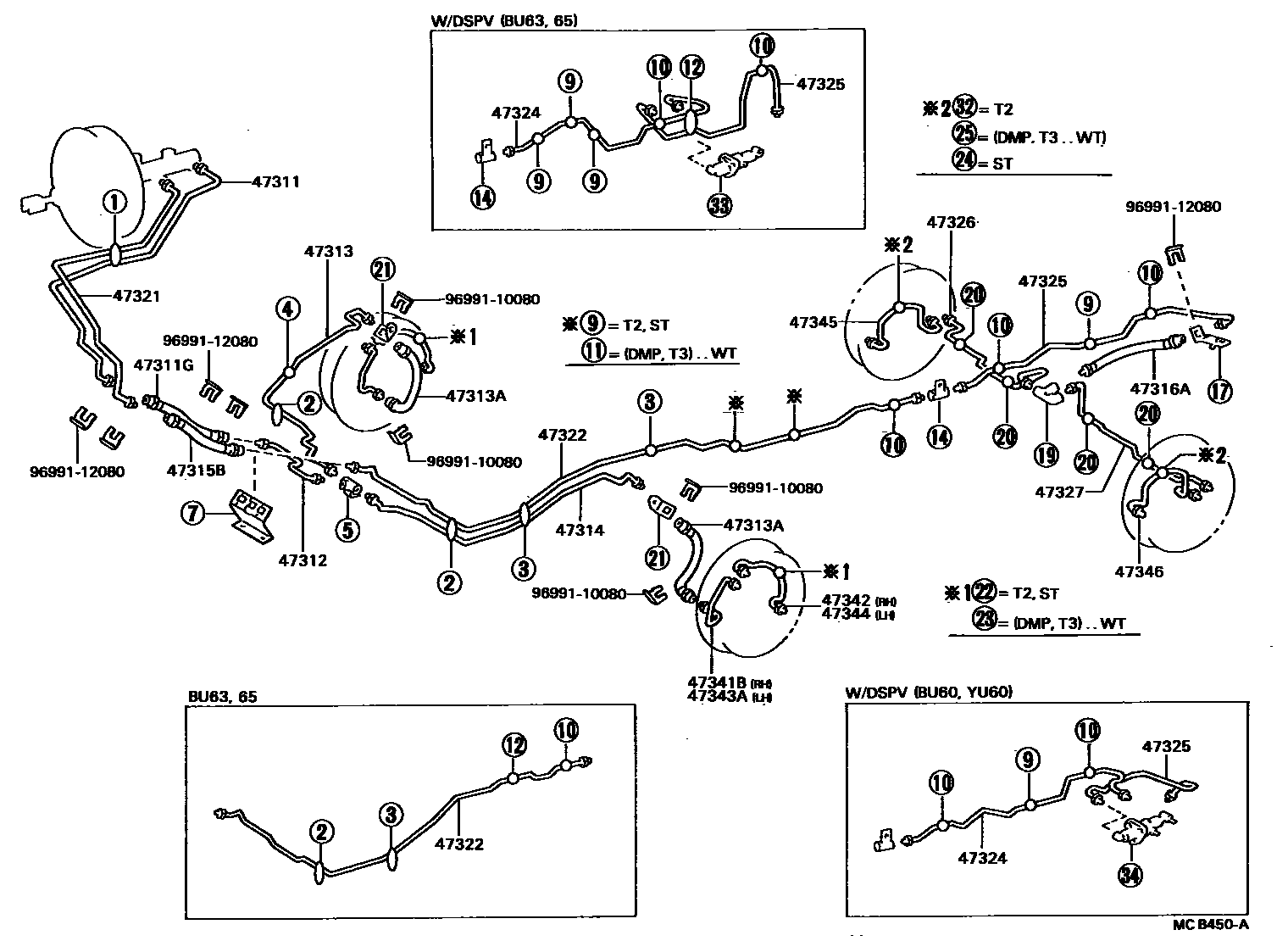

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36280iBU85..RHD..GEN..IV3198508-198603

INDIA SPEC

main47311-36280iBU75,76,86..RHD198409-198708

main47311-36290iBU75,85..LHD198409-198708

main47311-36300iBU85..RHD198409-198708

main47311-36310iBU85..EUR198409-198708

main47311-36320iBU6#,80,81,82..RHD198409-198708

main47311-36330iBU60,61,62,65,70,80,81..LHD198409-198708

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02519iBU85..ARL,EUR198608-198708

main96932-33705iBU6#,70,80,81,82198409-198708

main96932-34305iBU75,76,85,86198409-198708

sub96932-34307

47312TUBE, FRONT BRAKE, NO.2

main47312-36230iBU75,76,85,86..RHD198409-198708

sub47312-36231

main47312-36240iBU75,76,85..LHD198409-198708

main47312-36250iBU6#,70,80,81,82198409-198708

47313TUBE, FRONT BRAKE, NO.3

main47313-36140iBU75,76,85198409-198508

sub47313-36180

main47313-36160iBU60,61,62,70,80,81,82198409-198708

main47313-36170iBU63,65198409-198708

sub47313-36210

main47313-36180iBU75,76,85,86198508-198708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02469iBU60,80..T2;BU60,61,62,70..ST198409-198708

sub90947-02531

main90947-02470iBU60,80..T3..WT;BU61,62,63,65,81,82..WT198409-198708

main90947-02471iBU75,76,85,86198409-198708

main90947-02517iBU85..ARL,EUR198608-198708

FR DISC

main96940-33305iBU60,61..TS..WT198409-198708

FR DISC

main96940-34005iBU75,76,86198409-198708

FR DISC

47314TUBE, FRONT BRAKE, NO.4

main47314-36200iBU75,76,85..ARL,GEN198409-198508

sub47314-36250

main47314-36220iBU75,85..EUR198409-198508

sub47314-36270

main47314-36230iBU60,61,62,70,80,81,82198409-198708

main47314-36240iBU63,65198409-198708

sub47314-36290

main47314-36250iBU75,76,85,86..ARL,GEN198508-198708

main47314-36270iBU75,85..EUR198508-198708

47315TUBE, FRONT BRAKE, NO.5

main47315-36190iBU75,85..EUR198409-198708

47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02519iBU85..ARL,EUR198608-198708

main96932-33705iBU6#,70,80,81,82198409-198708

main96932-34305iBU75,76,85,86198409-198708

sub96932-34307

47316TUBE, FRONT BRAKE, NO.6

main47316-36230iBU75,85..EUR198409-198708

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96912-33605iBU63,65198409-198708

sub96912-33607

main96912-33705iBU60..TB198409-198708

sub96912-33707

main96912-34005iBU60..TS;BU61,62,70,80,81,82198409-198708

main96912-34105iBU75,76,85,86198409-198708

sub96912-34107

47321TUBE, REAR BRAKE, NO.1

main47321-36180iBU75,76,85..RHD..GEN198409-198708

main47321-36180iBU85..IV1198508-198603

INDIA SPEC

main47321-36190iBU75,76..LHD;BU85..LHD..GEN198409-198708

main47321-36200iBU85..RHD198409-198708

main47321-36210iBU85..LHD198409-198708

main47321-36220iBU6#,80,81,82..RHD198409-198708

main47321-36230iBU60,61,62,65,70,80,81..LHD198409-198708

47322TUBE, REAR BRAKE, NO.2

main47322-36180iBU75,76,85..LHD198409-198508

sub47322-36270

main47322-36190iBU75,76,85..RHD198409-198508

sub47322-36280

main47322-36200iBU63,65..CBU198409-198708

sub47322-36201

main47322-36210iBU60,61,62,70,80,81..LHD198409-198708

sub47322-36211

main47322-36240iBU60,61,62,80,81,82..RHD198409-198705

sub47322-36241

main47322-36241iBU60,61,62,80,81,82..RHD198705-198708

main47322-36250iBU65..IV3198508-198708

sub47322-36310

main47322-36270iBU75,76,85..LHD198508-198708

main47322-36280iBU75,76,85,86..RHD198508-198708

47324TUBE, REAR BRAKE, NO.4

main47324-36070iBU75..LHD198409-198708

main47324-36080iBU85..ARL,EUR198409-198708

main47324-36110iBU60..LHD..WT198508-198708

main47324-36120iBU60,61,62,70..ST;BU60,61,62..WT..ARL198409-198708

main47324-36140iBU63..ARL198409-198508

main47324-36150iBU80..LHD198508-198708

main47324-36170iBU65..CBU198508-198708

47325TUBE, REAR BRAKE, NO.5

main47325-36120iBU75,76..GEN198409-198708

main47325-36130iBU85,86..ARL,GEN198409-198708

main47325-36140iBU65..IV3198508-198607

sub47325-36141

main47325-36141iBU65..IV3198607-198706

main47325-36142iBU65..IV3198706-198708

main47325-36150iBU75,85..ARL,EUR198409-198708

W/LSPV

main47325-36170iBU81..SA198604-198708

sub47325-36171

main47325-36170iBU60,80..LHD..WT198508-198708

W/LSPV

sub47325-36171

main47325-36180iBU60,61,62..WT..GEN198409-198708

main47325-36190iBU60,61,62,70..ST;BU60,61,62..WT..ARL198409-198708

main47325-36200iBU63..GEN198409-198508

main47325-36230iBU63..ARL198409-198708

main47325-36240iBU80,81,82198409-198708

main47325-36250iBU63198508-198708

47326TUBE, REAR BRAKE, NO.6

main47326-36070iBU80..T2198409-198708

main47326-36090iBU63,65198409-198708

main47326-36100iBU60..TB198409-198708

main47326-36140iBU62..ST;BU62..ARL198409-198708

main47326-36150iBU60,61,62,80,81..T3..WT..GEN198409-198708

W/12 IN DIFF

main47329-36140iBU60,61,70..ST198409-198708

47327TUBE, REAR BRAKE, NO.7

main47327-36120iBU80..T2198409-198708

main47327-36130iBU60,61,62,70..ST198409-198708

main47327-36140iBU60,61,75,76,80,81,86..(T3,TW1)..WT..(ARL,EUR,GEN,SA)198409-198708

main47327-36160iBU60..TB198409-198708

main47327-36170iBU63,65198409-198708

main47327-36180iBU85;BU80,81,82..GHD198409-198708

W/12 IN DIFF

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36070iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47341-36090iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47342-36030iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36070iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47343-36090iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47342-36030iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36060iBU60,80..T2198409-198708

main47345-36011iBU60,61,62,70..ST198409-198708

main47345-36040iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47346TUBE, WHEEL CYLINDER, REAR LH

main47344-36060iBU60,80..T2198409-198708

main47345-36011iBU60,61,62,70..ST198409-198708

main47345-36040iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

9699110080

main96991-10080

9699112080

main96991-12080

24 parts on this diagram · 9 diagrams in section
