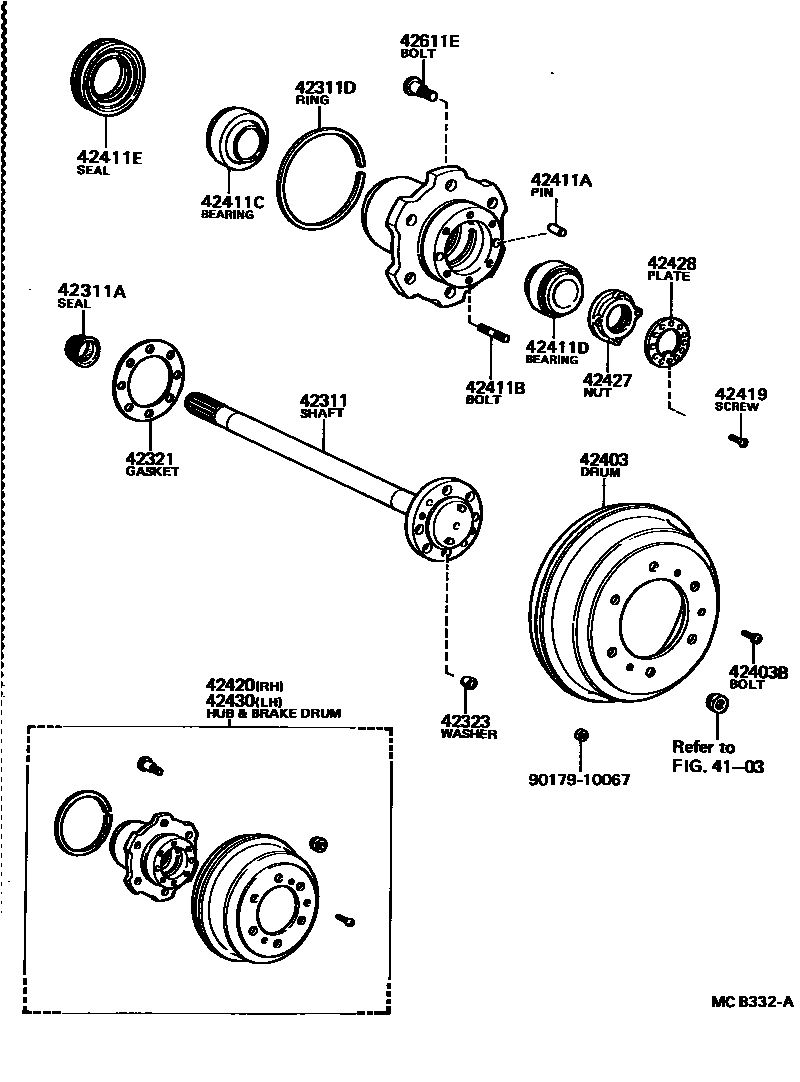

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

4103

42311SHAFT, REAR AXLE

main42311-25050iBU85;BU80,81,82..GHD198409-198708

12 IN DIFF

sub42311-25051

main42311-36050iBU62..ST;BU62..ARL198409-198708

10.5 IN DIFF

sub42311-36051

main42311-36090iBU60..TB198409-198708

sub42311-36091

main42311-36100iBU80..T2198409-198708

sub42311-36101

main42311-36140iBU63,65198409-198708

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-38033iBU60,61,7#,80,81,86..ARL,EUR,GEN,SA198409-198708

10.5 IN DIFF

main90310-40001iBU60,61,62,80,81..T3..WT..GEN198409-198708

12 IN DIFF

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-99065iBU60,61,62,70..ST198409-198708

42321GASKET, REAR AXLE SHAFT

main42321-36030iBU6#,7#,8#198409-198708

sub42321-36040

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010iBU6#,7#,8#198409-198708

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36090iBU60,80..T2198409-198708

main42431-36120iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

main43512-36020iBU60,61,62,70..ST198409-198708

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035iBU60,61,62,70..ST198409-198708

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-10055iBU6#,7#,8#198409-198708

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-10191iBU6#,7#,8#198409-198708

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90368-57010iBU6#,7#,8#198409-198708

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-52043iBU6#,7#,8#198409-198708

42411ESEAL, OIL (FOR REAR AXLE HUB)

main90311-75003iBU6#,7#,8#198409-198708

42419SCREW, REAR AXLE BEARING LOCK NUT

main93311-16012iBU6#,7#,8#198409-198708

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-36050iBU60,61,62,70..ST198409-198708

main42420-36100iBU60,80..T2198409-198708

sub42420-29035

main42420-36130iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT..(CBU,IV3)198409-198708

sub42420-37040

main42420-36140iBU85..RHD..GEN..(IV1,IV3)198409-198708

INDIA SPEC

42427NUT, REAR AXLE BEARING LOCK

main42427-36030iBU6#,7#,8#198409-198708

42428PLATE, REAR AXLE LOCK NUT

main42428-36020iBU6#,7#,8#198409-198708

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-36050iBU60,61,62,70..ST198409-198708

main42430-36100iBU60,80..T2198409-198708

sub42430-29035

main42430-36130iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT..(CBU,IV3)198409-198708

sub42430-37040

main42430-36140iBU85..RHD..GEN..(IV1,IV3)198409-198708

INDIA SPEC

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02024iBU60,61,62,70..ST198409-198708

RH

main90942-02025iBU60,61,62,70..ST198409-198708

LH

main90942-02045iBU61,62,63,65,75,76,81,82..WT;BU60,80,85..T3..WT..(CBU,IV3)198409-198708

RH

main90942-02046iBU61,62,63,65,75,76,81,82..WT;BU60,80,85..T3..WT..(CBU,IV3)198409-198708

LH

main90942-02050iBU60,80..T2198409-198708

RH

main90942-02051iBU60,80..T2198409-198708

LH

main90942-02054iBU85..RHD..GEN..(IV1,IV3)198409-198708

RH,INDIA SPEC

main90942-02055iBU85..RHD..GEN..(IV1,IV3)198409-198708

LH,INDIA SPEC

9017910067

main90179-10067

20 parts on this diagram · 3 diagrams in section
