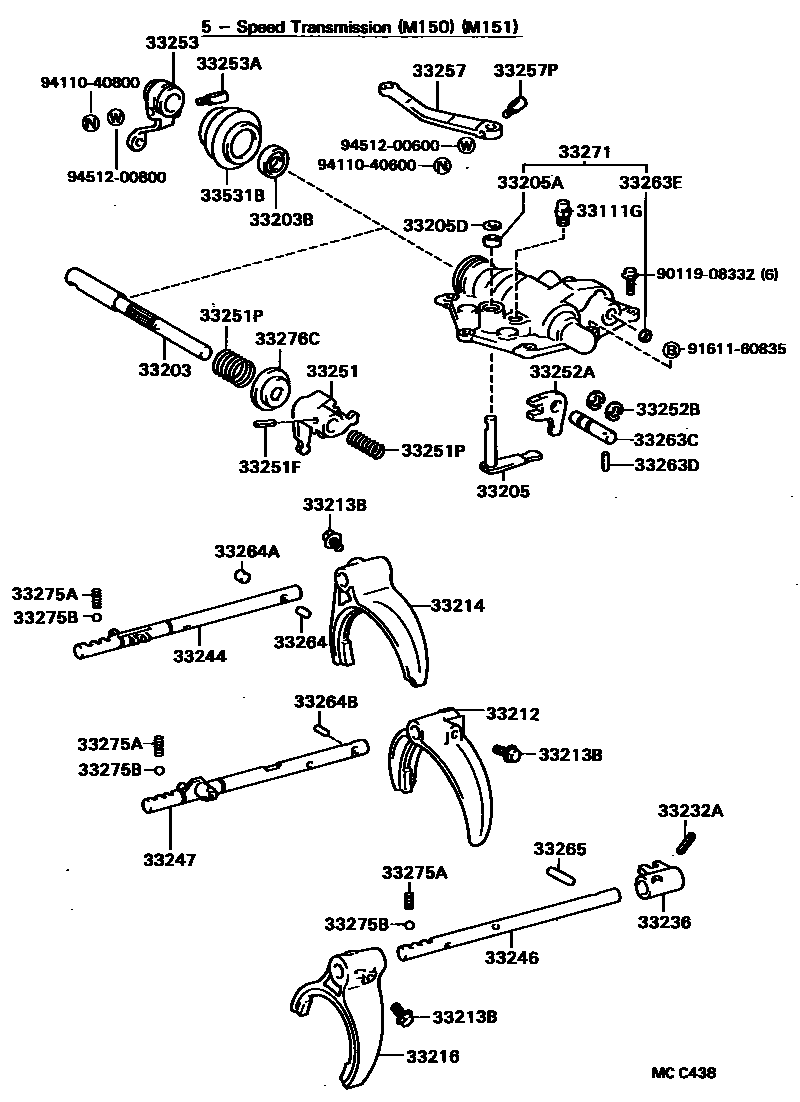

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03090iBU6#,7#,8#..5F198409-198708

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-36040iBU6#,7#,8#198409-198708

main33261-36060iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

main90312-17001iBU6#,7#,8#198409-198708

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-36050iBU6#,7#,8#198409-198708

main33262-36050iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-13001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

main90313-13001iBU6#,7#,8#198409-198708

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iBU6#,7#,8#..5F198409-198708

33212FORK, 1ST & REVERSE SHIFT

main33212-36031iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33213FORK, 1ST & 2ND SHIFT

main33212-36011iBU6#,7#,8#198409-198708

33213BBOLT(FOR SHIFT FORK SET)

main90105-07001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33214FORK, 2ND & 3RD SHIFT

main33213-36041iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33216FORK, 4TH & 5TH SHIFT

main33214-36051iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33232HEAD, 1ST & 2ND SHIFT

main33232-36040iBU6#,7#,8#198409-198708

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05016iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33236HEAD, 4TH & 5TH SHIFT

main33234-36011iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33244SHAFT, 2ND & 3RD SHIFT FORK

main33243-36061iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33246SHAFT, 4TH & 5TH SHIFT FORK

main33244-36041iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33247SHAFT, 1ST & REVERSE SHIFT FORK

main33205-36061iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33205-36062

33251LEVER, SHIFT & SELECT

main33251-36030iBU60..ST..ARL;BU6#,75,76,8#..WT198409-198508

W/EXHAUST BRAKE

main33251-36050iBU6#,7#,8#198409-198708

sub33251-36030

main33251-36090iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iBU6#,7#,8#198409-198708

main90254-05016iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-16090iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

LH

main90501-18059iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

RH

33252ALEVER, SHIFT, INNER NO.2

main33252-36010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33252BRING, E (FOR SHIFT INNER LEVER)

main90523-12001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33253LEVER, SHIFT OUTER, NO.1

main33253-36050iBU65..IV3198409-198708

main33253-36080iBU75,76,85198409-198508

main33253-36100iBU65..CBU;BU60,61,62,63,70,80,81,82..5F198508-198708

main33253-36110iBU75,76,85,86198508-198708

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-36030iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

main33282-57010iBU6#,7#,8#198409-198708

33257LEVER, SELECT OUTER

main33257-36050iBU6#,70,80,81,82198409-198708

main33257-36070iBU75,76,85198409-198508

main33257-36090iBU65..CBU;BU60,61,62,63,70,80,81,82..5F198508-198708

main33257-36100iBU75,76,85,86198508-198708

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBU6#,7#,8#..5F198409-198708

33263CSHAFT, SHIFT LEVER, NO.2

main33263-36010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33263DPIN (FOR SHIFT LEVER SHAFT)

main90250-04060iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33263EPLUG (FOR SHIFT LEVER SHAFT)

main90331-14004iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

L=13.4,OD=9.53

main90361-10008iBU65..IV3198409-198708

33264APLUG, INTERLOCK HOLE

main90250-10015iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

L=7.5,OD=9.67

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90361-05001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

L=13

33265PIN, SHIFT INTERLOCK, NO.2

main90250-10014iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

L=37.4,OD=9.53

main90361-05001iBU65..IV3198409-198708

L=13

33271HOUSING, SHIFT LEVER SHAFT

main33207-36010iBU60,65..ARL;BU60,61,62,63,75,76,8#..5F..WT198508-198708

W/EXHAUST BRAKE

sub33207-36040

main33207-36020iBU85..EUR,GEN198508-198708

sub33207-36030

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90250-10215iBU6#,7#,8#198409-198708

L=9,OD=9

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14237iBU6#,7#,8#198409-198708

L=16.1

main90501-16099iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub90501-16145

33275BBALL, SHAFT DETENT

main90360-10003iBU6#,7#,8#198409-198708

33276CSEAT, SELECT SPRING

main33276-36010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198612

sub33276-36011

main33276-36011iBU65..CBU;BU60,61,62,63,7#,8#..5F198612-198708

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-36060iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

9011908332

main90119-08332

9161160835

main91611-60835

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

45 parts on this diagram · 2 diagrams in section
