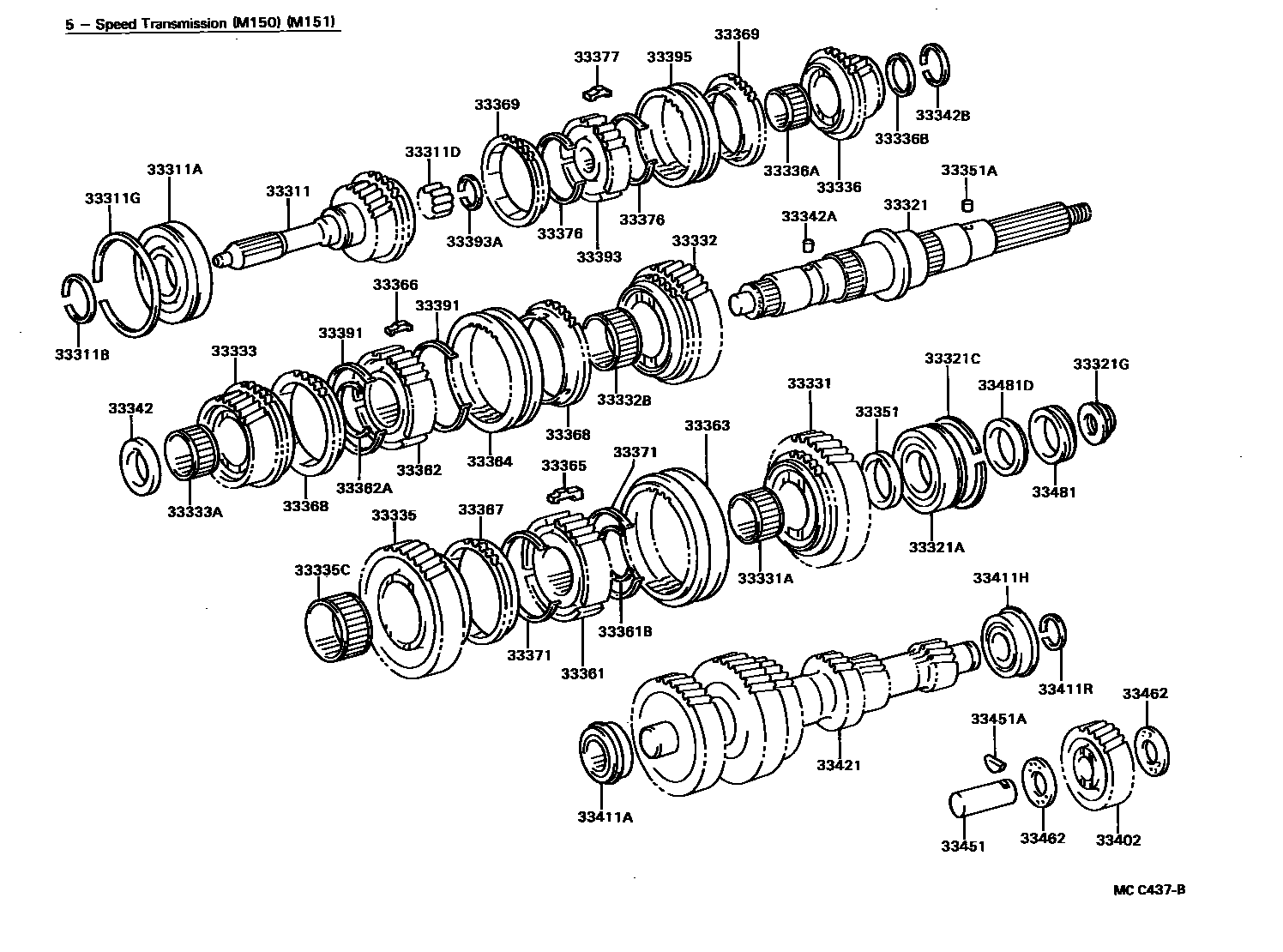

TRANSMISSION GEAR (MTM)

0001 1 0002 1

33311SHAFT, INPUT

main33301-36030iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33301-36070

main33311-36062iBU65..IV3198409-198708

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-45010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

main90365-35001iBU65..IV3198409-198708

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-33107iBU6#,7#,8#198409-198708

T=2.30-2.35,MARK 11,T=2.3

main90520-33108iBU6#,7#,8#198409-198708

T=2.40,MARK 13,T=2.4

main90520-33109iBU65..IV3198409-198708

T=2.50,MARK 15,T=2.5

main90520-33132iBU6#,7#,8#198409-198708

T=2.35-2.40,MARK 12,T=2.35

main90520-33133iBU65..IV3198409-198708

T=2.45,MARK 14,T=2.45

main90520-33134iBU6#,7#,8#198409-198708

T=2.55,MARK 16,T=2.55

main90520-42002iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.50-2.55,MARK 2,T=2.50-2.55

main90520-42003iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.55-2.60,MARK 3,T=2.55-2.60

main90520-42004iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.60-2.65,MARK 4,T=2.60-2.65

main90520-42005iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.65-2.70,MARK 5,T=2.65-2.70

main90520-42006iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.70-2.75,MARK 6,T=2.70-2.75

main90520-42007iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.75-2.80,MARK 7,T=2.75-2.80

33311DBEARING, INPUT SHAFT

main90361-06049iBU6#,7#,8#198409-198708

main90361-08004iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-96001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33321SHAFT, OUTPUT

main33321-36052iBU65..IV3198409-198708

main33321-36070iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33321-36071

sub90520-34010

sub90560-37003

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-32011iBU6#,7#,8#198409-198708

main90363-40034iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-88001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.36-2.46

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-20001iBU6#,7#,8#198409-198508

main90179-22005iBU65..IV3198508-198708

main90179-24002iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33331GEAR, REVERSE

main33031-36010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33031-36020

main33331-36024iBU6#,7#,8#198409-198708

33331ABEARING (FOR REVERSE GEAR)

main90364-47004iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub90364-47007

33332GEAR, 2ND

main33033-36030iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33033-36031

main33332-36020iBU6#,7#,8#198409-198708

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-46003iBU6#,7#,8#198409-198708

main90364-54001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub90364-54003

33333GEAR, 3RD

main33034-36010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33034-36011

main33333-36021iBU6#,7#,8#198409-198708

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-43004iBU6#,7#,8#198409-198708

main90364-47004iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub90364-47007

33335GEAR, 1ST

main33032-36030iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33032-36031

main33335-36070iBU65..IV3198409-198708

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-46003iBU65..IV3198409-198708

main90364-58001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub90364-58005

33336GEAR, 5TH

main33036-36020iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33036-36021

main33336-36031iBU6#,7#,8#198409-198708

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-37008iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub90364-37012

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-37001iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33342WASHER, GEAR THRUST

main33342-36010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)

main90250-04056iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)

main90520-33013iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.90-1.95,T=1.90-1.95

main90520-33014iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.95-2.00,T=1.95-2.00

main90520-33015iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.00-2.05,T=2.00-2.05

main90520-33016iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.05-2.10,T=2.05-2.10

main90520-33017iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.10-2.15,T=2.10-2.15

33351WASHER, REVERSE GEAR THRUST

main33351-36010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33351-36011

33351APIN, STRAIGHT (FOR REVERSE GEAR THRUST WASHER)

main90250-04056iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-36010iBU6#,7#,8#198409-198708

main33361-36020iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33361-36021

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-43002iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.90-1.95,MARK=2,T=1.90

main90520-43003iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.95-2.00,MARK=3,T=1.95

main90520-43004iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.00-2.05,MARK=4,T=2.00

main90520-43005iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.05-2.10,MARK=5,T=2.05

main90520-43006iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.10-2.15,MARK=6,T=2.10

main90520-43007iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.15-2.20,MARK=7,T=2.15

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-36021iBU6#,7#,8#198409-198708

main33362-36030iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33362-36031

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-43002iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.90-1.95,MARK=2,T=1.90

main90520-43003iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.95-2.00,MARK=3,T=1.95

main90520-43004iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.00-2.05,MARK=4,T=2.00

main90520-43005iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.05-2.10,MARK=5,T=2.05

main90520-43006iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.10-2.15,MARK=6,T=2.10

main90520-43007iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.15-2.20,MARK=7,T=2.15

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-36020iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-36051iBU65..IV3198409-198708

sub33364-60010

main33364-36060iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-36010iBU6#,7#,8#198409-198708

main33365-36020iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-36020iBU6#,7#,8#198409-198708

main33366-36030iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33367RING, SYNCHRONIZER, NO.1

main33367-36030iBU6#,7#,8#198409-198708

2ND

main33367-36040iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

main33367-40012iBU65..IV3198409-198708

1ST

33368RING, SYNCHRONIZER, NO.2

main33368-20012iBU65..IV3198409-198708

main33368-36040iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33369RING, SYNCHRONIZER, NO.3

main33367-14010iBU6#,7#,8#198409-198708

main33368-20012iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-36020iBU6#,7#,8#198409-198708

main33371-36030iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)

main33371-14010iBU6#,7#,8#198409-198708

main33391-22020iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

main33366-14010iBU6#,7#,8#198409-198708

main33366-20011iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-20010iBU6#,7#,8#198409-198708

main33391-36020iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-36020iBU6#,7#,8#198409-198708

main33393-36040iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-28054iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.90-1.95,MARK 4,T=1.90-1.95

main90520-28055iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.95-2.00,MARK 5,T=1.95-2.00

main90520-28056iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.00-2.05,MARK 6,T=2.00-2.05

main90520-28057iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.05-2.10,MARK 7,T=2.05-2.10

main90520-28058iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.10-2.15,MARK 8,T=2.10-2.15

main90520-28059iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.15-2.20,MARK 9,T=2.15-2.20

33395SLEEVE, TRANSMISSION HUB, NO.3

main33364-14010iBU6#,7#,8#198409-198708

main33395-36020iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-36030iBU65..IV3198409-198708

main33402-36060iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-30004iBU6#,7#,8#198409-198708

main90365-37002iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-30048iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub90363-30049

main90364-22003iBU65..IV3198409-198708

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90520-26030iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=1.95-2.00,MARK 0,T=1.95-2.00

main90520-26031iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.00-2.05,MARK 1,T=2.00-2.05

main90520-26032iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.05-2.10,MARK 2,T=2.05-2.10

main90520-26033iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.10-2.15,MARK 3,T=2.10-2.15

main90520-26034iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.15-2.20,MARK 4,T=2.15-2.20

main90520-26035iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

T=2.20-2.25,MARK 5,T=2.20-2.25

main90521-38117iBU6#,7#,8#198409-198708

T=1.5

33421GEAR, COUNTER

main33421-36080iBU65..IV3198409-198708

main33421-36130iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33421-36131

33451SHAFT, REVERSE IDLER GEAR

main33451-36030iBU6#,7#,8#198409-198708

main33451-36040iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33451-36050

33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)

main90280-03002iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

33462WASHER, REVERSE IDLER THRUST

main33462-36010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub33462-60020

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-36080iBU60,80..T3..WT;BU61,62,63,76,81,82,85..WT198409-198708

N=4

main33481-36090iBU80..T2;BU75..EUR;BU60,62..TB;BU60,61,70..ST198409-198508

N=5

main33481-36150iBU60,61,62,70..ST198508-198708

N=6,MARK 6X20-22,N=6

main33481-36160iBU60,61,62,7#,80,81,85,86..5F..(ARL,EUR,GEN,SA)198508-198708

N=6,MARK 6X23-25,N=6

main33481-36170iBU85..LHD..GEN;BU85..RHD..CBU198508-198708

N=5,MARK 5X22-24,N=5

main33481-36170iBU63,65..CBU;BU80,81..GHD198508-198708

N=5,MARK 5X22-24,*AXC=Q424,N=5

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main33487-36040iBU6#,7#,8#198409-198708

main33487-36070iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

53 parts on this diagram · 2 diagrams in section
