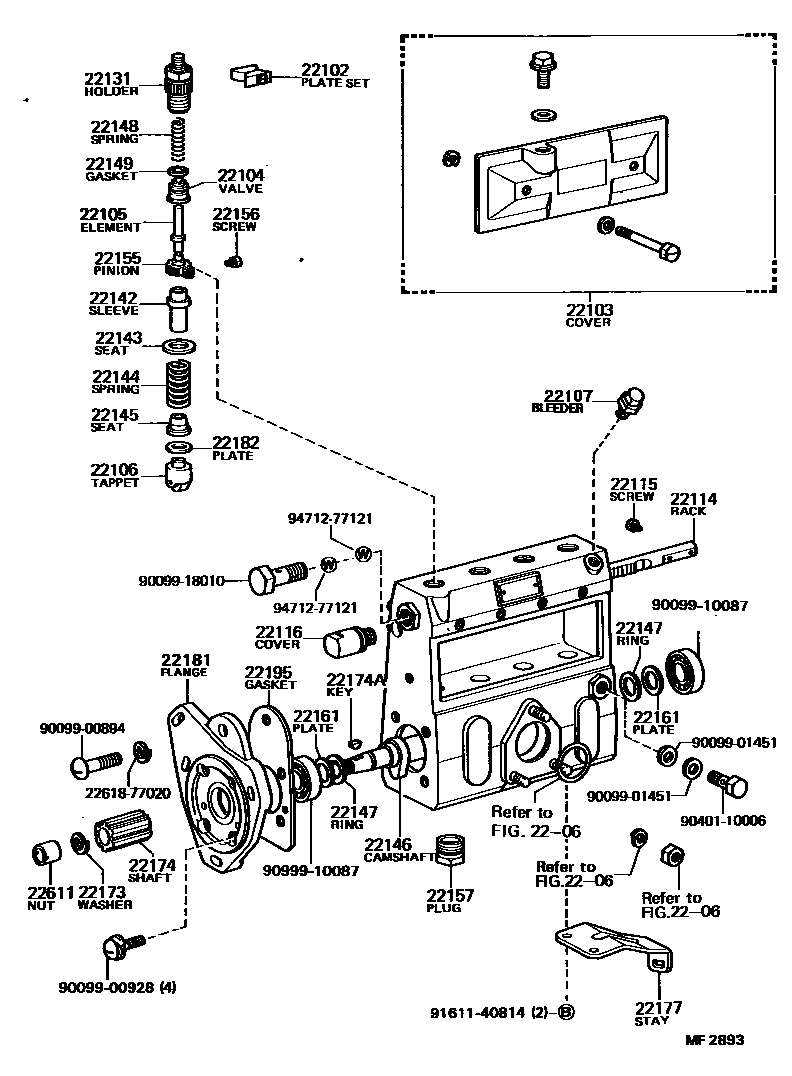

INJECTION PUMP BODY

0001 1 0002 1

2206

22102PLATE SET, VALVE HOLDER LOCK

main22102-58230i11B,13B..BU61,62,65,76,81,82,85,86198510-198708

W/TACHO METER

main22102-67010iB..BU60,63,70,75,80198409-198510

W/TACHO METER

sub22102-77021

main22102-77021iB..BU60,63,70,75,80..GEN,GHD198409-198708

W/O TACHO METER

22103COVER SUB-ASSY, INJECTION PUMP

main22103-48030iB..BU60,63,70,75,80198409-198708

main22103-58230i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-58230i11B,13B..BU61,62,65,76,81,82,85,86..5F198409-198708

main22104-58340i13B..BU62..ARL198510-198708

main22104-77020iB..BU60,63,70,75,80198409-198708

22105ELEMENT SUB-ASSY, INJECTION PUMP

main22105-56040iB..BU60,63,70,75,80198409-198708

main22105-56230i11B..BU61,65,76,81,86198501-198708

main22105-58230i13B..BU62,82,85198409-198708

22106TAPPET SUB-ASSY, INJECTION PUMP

main22106-46010iB,11B,13B..BU6#,7#,8#198409-198708

22107BLEEDER SUB-ASSY, AIR

main22150-67010iB..BU60,63,70,75,80198409-198708

22114RACK, CONTROL

main22114-36010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

main22114-48030iB..BU60,63,70,75,80198409-198708

22115SCREW, RACK GUIDE

main22115-77020iB,11B,13B..BU6#,7#,8#198409-198708

sub22115-78140

22116COVER, CONTROL RACK

main22116-46010iB..BU60,63,70,75,80198409-198708

main22116-56230i11B,13B..BU61,62,65,76,81,82,85,86198501-198708

main22116-78030i13B..BU62,82,85198409-198501

22131HOLDER, DELIVERY VALVE

main22131-77020iB..BU60,63,70,75,80198409-198708

main22131-78030i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22142SLEEVE, PLUNGER CONTROL

main22142-58230i11B,13B..BU61,62,65,76,81,82,85,86198411-198708

main22142-67010i13B..BU62,82,85198409-198411

sub22142-77020

main22142-77020iB..BU60,63,70,75,80198409-198708

sub22142-58230

22143SEAT, SPRING UPPER

main22143-77020iB,11B,13B..BU6#,7#,8#198409-198708

22144SPRING, PUMP PLUNGER

main22144-46010iB,11B,13B..BU6#,7#,8#198409-198708

22145SEAT, SPRING, LOWER

main22145-46010iB..BU60,63,70,75,80198409-198708

main22145-78030i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22146CAMSHAFT, INJECTION PUMP

main22146-56010iB..BU60,63,70,75,80198409-198708

main22146-58230i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22147RING, CAMSHAFT ADJUST

main22147-77020i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

NO.1

main22147-78030i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

NO.2

22148SPRING, DELIVERY VALVE

main22148-46010iB..BU60,63,70,75,80198409-198708

main22148-78030i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22149GASKET, DELIVERY VALVE

main22149-76010iB..BU60,63,70,75,80198409-198708

main22149-78030i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22155PINION, PLUNGER CONTROL

main22155-76010iB,11B,13B..BU6#,7#,8#198409-198708

22156SCREW, PLUNGER CONTROL PINION CLAMP

main22156-76010iB,11B,13B..BU6#,7#,8#198409-198708

22157PLUG, INJECTION PUMP FELT PLATE

main22157-48023iB,11B,13B..BU6#,7#,8#198409-198708

22161PLATE, CAMSHAFT SHIM

main22161-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.10,NO.1,T=0.10

main22161-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.10,T=0.10

main22162-76010iB..BU60,63,70,75,80198409-198708

T=0.12,NO.1,T=0.12

main22162-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.12,T=0.12

main22163-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.14,NO.1,T=0.14

main22163-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.14,T=0.14

main22164-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.16,NO.1,T=0.16

main22164-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.16,T=0.16

main22165-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.18,NO.1,T=0.18

main22165-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.18,T=0.18

main22166-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.50,NO.1,T=0.50

main22166-76010i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.50,T=0.50

main22166-78032i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.10,NO.2,T=0.10

subS2288-51550

main22166-78033i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.15,NO.2,T=0.15

subS2288-51560

main22166-78034i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.30,NO.2,T=0.30

subS2288-51570

main22166-78035i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

T=0.50,NO.2,T=0.50

subS2288-51580

22173WASHER, SPRING

main22173-46010iB..BU60,63,70,75,80198409-198708

main90099-01449i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22174SHAFT, SPLINE

main22174-47010iB..BU60,63,70,75,80198409-198708

main22174-58200i13B..BU62,82,85198409-198501

sub22174-58201

main22174-58201i11B,13B..BU61,62,65,76,81,82,85,86198501-198708

22174AKEY(FOR SPLINE SHAFT)

main90099-13002iB..BU60,63,70,75,80198409-198708

main90099-13023i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22177STAY, INJECTION PUMP BODY

main22177-56042iB..BU60,63,70,75,80198409-198708

22181FLANGE, INJECTION PUMP

main22181-56040iB..BU60,63,70,75,80198409-198708

main22181-58230i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22182PLATE, TAPPET ADJUSTING SHIM

main22182-46010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.10,T=0.10

main22183-46010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.20,T=0.20

main22184-46010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.30,T=0.30

main22185-46010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.40,T=0.40

main22186-46010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.50,T=0.50

main22186-48010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.15,T=0.15

sub22185-48010

main22187-46010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.60,T=0.60

main22188-46010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.70,T=0.70

main22189-46010iB,11B,13B..BU6#,7#,8#198409-198708

T=0.80,T=0.80

main22189-48031iB,11B,13B..BU6#,7#,8#198409-198708

T=0.90,T=0.90

main22189-48032iB,11B,13B..BU6#,7#,8#198409-198708

T=1.00,T=1.00

main22189-48033iB,11B,13B..BU6#,7#,8#198409-198708

T=1.10,T=1.10

main22189-48034iB,11B,13B..BU6#,7#,8#198409-198708

T=1.20,T=1.20

main22189-48035iB,11B,13B..BU6#,7#,8#198409-198708

T=1.30,T=1.30

main22189-48036iB,11B,13B..BU6#,7#,8#198409-198708

T=1.40,T=1.40

22195GASKET, BEARING COVER

main22195-48030iB..BU60,63,70,75,80198409-198708

sub22195-58050

main22195-58230i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22611NUT, TIMER ROUND

main22611-46010iB..BU60,63,70,75,80198409-198708

main22611-58200i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

2261877020GASKET, TIMER SCREW

main22618-77020

9009900894

main90099-00894

9009900928

main90099-00928

9009901451

main90099-01451

9009910087

main90099-10087

9009918010

main90099-18010

9040110006

main90401-10006

9099910087

main90999-10087

9161140814

main91611-40814

9471277121

main94712-77121

41 parts on this diagram · 2 diagrams in section
