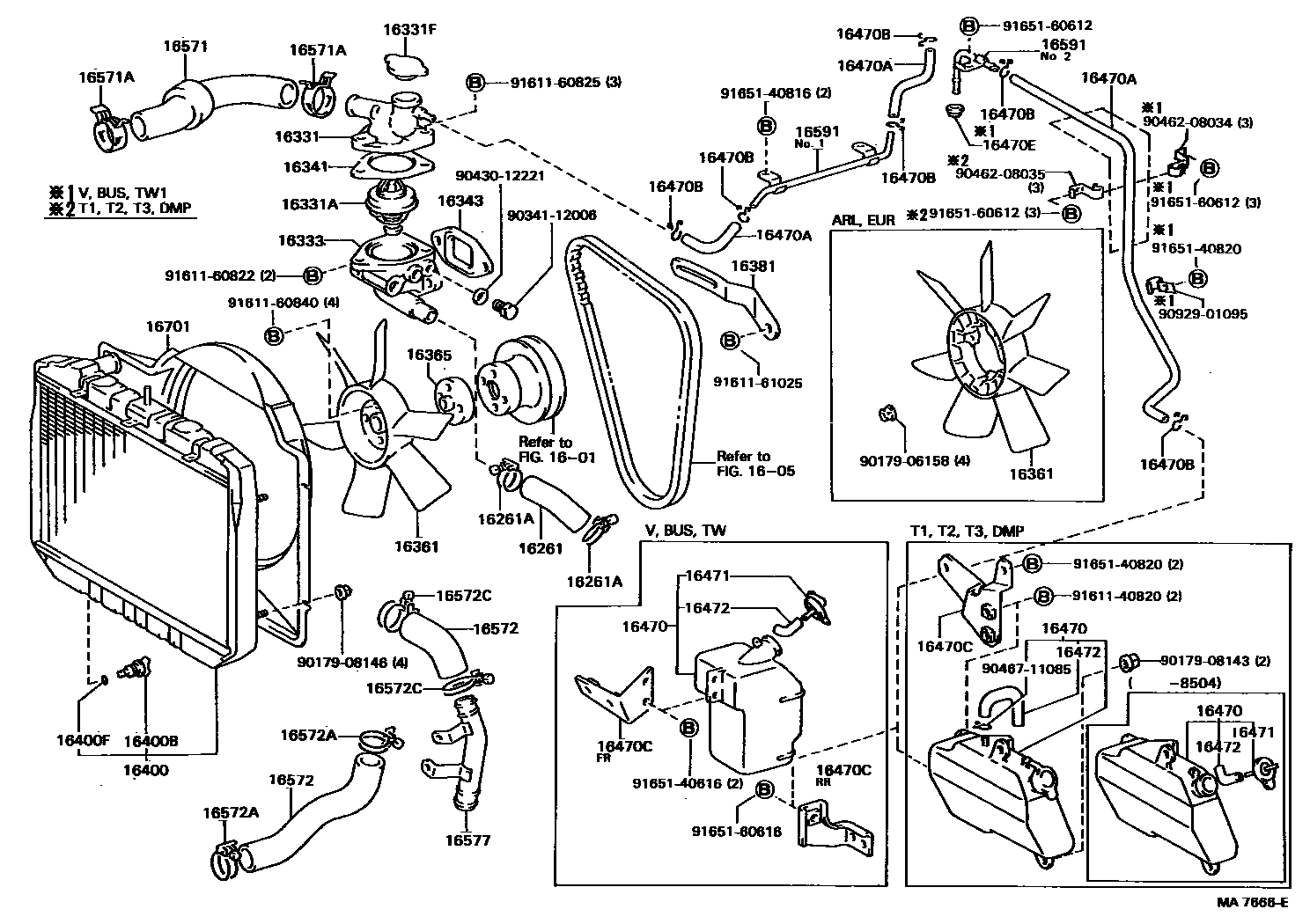

RADIATOR & WATER OUTLET

0001 1 0002 1

1601

1605

16261HOSE, WATER BY-PASS

main16261-56012iB,11B,13B..BU6#,7#,8#198409-198708

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053iB,11B,13B..BU6#,7#,8#198409-198609

main90044-67103iB,11B,13B..BU6#,7#,8#198609-198708

16331OUTLET, WATER

main16331-56020iB,11B,13B..BU75,76,85,86198409-198708

main16331-56040iB,11B,13B..BU6#,70,80,81,82198409-198708

16331ATHERMOSTAT

main90916-03059iB,13B..BU75,85..EUR198409-198708

*WAX 88-100,*WAX 88-100

sub90916-03080

main90916-03066iB,11B,13B..BU6#,7#,8#..ARL,GEN,GHD,SA198409-198708

*WAX 82-95,*WAX 82-95

sub90916-03077

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-71010iB,11B,13B..BU6#,70,80,81,82198409-198708

sub16401-54750

16333HOUSING, WATER OUTLET

main16333-56060iB,11B,13B..BU6#,7#,8#198409-198708

sub16333-58080

sub16341-56030

sub16343-56023

sub90341-12006

sub90430-12221

sub92122-60832

sub94185-60800

16341GASKET, WATER OUTLET

main16341-56020iB,11B,13B..BU6#,7#,8#198409-198708

sub16341-56021

16343GASKET, WATER OUTLET HOUSING

main16343-56020iB,11B,13B..BU6#,7#,8#198409-198708

sub16343-56022

16361FAN

main16361-38010iB,13B..BU75,85..ARL,EUR198409-198708

main16361-56030i11B,13B..BU76,85,86..GEN198409-198708

main16361-56040iB,11B,13B..BU61,62,65,75..GEN198409-198708

main16361-56070i11B..BU61..IV1198602-198708

THAILAND SPEC

main16361-56070i11B,13B..BU61,62,65..ARL198509-198708

16365SPACER, FAN

main16365-56020iB,11B,13B..BU61,62,65,75,85..GEN198409-198704

sub16365-56021

main16365-56021iB,11B,13B..BU61,62,65,75,85..GEN..(CBU,IV3)198704-198708

16381BAR, FAN BELT ADJUSTING

main16381-56030iB,11B,13B..BU6#,7#,8#198409-198708

16400RADIATOR ASSY

main16400-56160iB,11B..BU60,63,65,70,80198409-198511

TROPICAL AREA

main16400-56160i11B..BU61..ARL198509-198511

main16400-56161i11B..BU61..ARL198511-198708

TROPICAL AREA

main16400-56161i11B..BU61..IV1198602-198708

THAILAND SPEC

main16400-58090i11B,13B..BU61,62,81,82..(GEN,GHD,SA)..(CBU,IV3)198409-198708

main16400-58101i13B..BU62..ARL198510-198608

main16400-58102i13B..BU62..ARL198608-198708

main16400-58110i11B,13B..BU76,85,86..ARL,GEN198409-198708

sub16400-58111

main16400-58120iB..BU75198409-198608

main16400-58121iB..BU75198608-198708

sub16400-58122

main16400-58140i13B..BU85..EUR198409-198512

sub16400-58141

main16400-58141i13B..BU85..EUR198512-198608

main16400-58142i13B..BU85..EUR198608-198708

sub16400-58143

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051iB,11B,13B..BU75,76,85,86198409-198708

main16417-58090iB,11B,13B..BU6#,70,80,81,82198409-198708

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051iB,11B,13B..BU6#,7#,8#198409-198708

16470TANK ASSY, RADIATOR RESERVE

main16470-56120iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198409-198704

sub16470-56121

main16470-56121iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198704-198708

main16470-56130iB..BU70;B..BU60..TW1198409-198708

main16470-58020iB,11B,13B..BU75,76,85,86198409-198708

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16575-56010iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198508-198708

PIPE TO PIPE

main16575-56020iB..BU70;B..BU60..TW1198508-198708

PIPE TO PIPE

main90445-12038iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198409-198708

L=900,TANK TO PIPE

main90445-12043iB,11B,13B..BU6#,70,80,81,82198409-198508

L=600(*H,L=360),PIPE TO PIPE

sub90445-12078

main90445-12048iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82198409-198504

L=600(*H,L=200),PIPE TO PIPE

sub90445-12043

main90445-12143iB,11B,13B..BU75,76,85,86198409-198708

L=620

main90445-12147iB..BU70;B..BU60..TW1198409-198708

L=1140,TANK TO PIPE

main90910-05174iB,11B,13B..BU6#,70,80,81,82198409-198708

L=420,WATER OUTLET TO PIPE

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iB,11B,13B..BU6#,7#,8#198409-198708

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-56050iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198409-198708

main16611-56060iB..BU70;B..BU60..TW1198409-198708

FR

main16611-56070iB..BU70;B..BU60..TW1198409-198708

RR

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-13017iB..BU70;B..BU60..TW1198409-198708

16471CAP SUB-ASSY, RESERVE TANK

main16405-56050iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82198409-198504

main16405-56051iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198504-198704

sub16405-56052

main16405-56052iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198704-198708

main16405-56060iB..BU70;B..BU60..TW1198409-198708

main16405-56070iB,11B,13B..BU75,76,85,86198409-198708

16472HOSE, BREATHER

main16472-56110iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82198409-198504

sub85338-74040

main16472-56130iB..BU70;B..BU60..TW1198409-198708

main16472-58010iB,11B,13B..BU75,76,85,86198409-198708

main85338-56110iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198504-198708

16571HOSE, RADIATOR, INLET

main16571-56040iB,11B,13B..BU6#,70,80,81,82198409-198708

main16571-58030iB,11B,13B..BU75,76,85,86198409-198708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-42001iB,11B,13B..BU6#,7#,8#198409-198708

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-56080iB,11B,13B..BU6#,70,80,81,82198409-198602

WATER PUMP SIDE

sub16572-56081

main16572-56081iB,11B,13B..BU6#,70,80,81,82198602-198708

WATER PUMP SIDE

main16572-58030iB,11B,13B..BU75,76,85,86198409-198602

sub16572-58031

main16572-58031iB,11B,13B..BU75,76,85,86198602-198708

main16573-56030iB,11B,13B..BU6#,70,80,81,82198409-198606

RADIATOR SIDE

main16573-56031iB,11B,13B..BU6#,70,80,81,82198606-198708

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10510iB,11B,13B..BU75,76,85,86198409-198708

RADIATOR SIDE

main96111-10560iB,11B,13B..BU75,76,85,86198409-198602

WATER PUMP SIDE

main96111-10570iB,11B,13B..BU75,76,85,86198602-198708

WATER PUMP SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10510iB,11B,13B..BU6#,70,80,81,82198409-198708

PIPE SIDE

main96111-10560iB,11B,13B..BU6#,70,80,81,82198409-198602

WATER PUMP SIDE

main96111-10570iB,11B,13B..BU6#,70,80,81,82198602-198708

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-56030iB,11B,13B..BU6#,70,80,81,82198409-198606

sub16577-56031

sub16573-56031

main16577-56031iB,11B,13B..BU6#,70,80,81,82198606-198708

16591PIPE, RADIATOR

main16591-56010iB,11B,13B..BU6#,70,80,81,82198409-198708

NO.1

main16591-56020iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,80,81,82198409-198508

NO.2

main16591-56030iB..BU70;B..BU60..TW1198409-198508

NO.2

main16591-56040iB..BU60..T1,T2,T3;B,11B,13B..BU61,62,63,65,80,81,82198508-198708

NO.2

main16591-56050iB..BU70;B..BU60..TW1198508-198708

NO.2

16701SHROUD SUB-ASSY, FAN

main16701-56280iB..BU60,63,70,80198409-198511

TROPICAL AREA

sub16701-56281

main16701-56280i11B..BU65..IV3198508-198511

sub16701-56281

main16701-56281iB..BU60,63,70,80198511-198708

TROPICAL AREA

main16701-56281i11B..BU61..ST..CBU;11B,13B..BU61,82..RHD..(GEN,GHD)..IV3198602-198708

THAILAND SPEC

main16701-56290iB..BU75..GEN198409-198708

main16701-56310i11B,13B..BU61,62,81,82..(GEN,GHD,SA)..(CBU,IV3)198409-198708

main16701-56310iB..BU60..LHD..TW1;B..BU60,80..LHD..WT198409-198708

CHINA SPEC W/COOLER

main16701-56320i11B..BU61,65..ARL198508-198511

main16701-56321i11B..BU61,65..ARL198511-198708

main16701-58030i13B..BU62..ARL198510-198708

main16701-58040iB..BU75..EUR;11B,13B..BU76,85,86198409-198708

9017906158

main90179-06158

9017908143

main90179-08143

9017908146

main90179-08146

9034112006

main90341-12006

9043012221

main90430-12221

9046208034

main90462-08034

9046208035

main90462-08035

9046711085

main90467-11085

9092901095

main90929-01095

9161140820

main91611-40820

9161160822

main91611-60822

9161160825

main91611-60825

9161160840

main91611-60840

9161161025

main91611-61025

9165140616

main91651-40616

9165140816

main91651-40816

9165140820

main91651-40820

9165160612

main91651-60612

9165160616

main91651-60616
