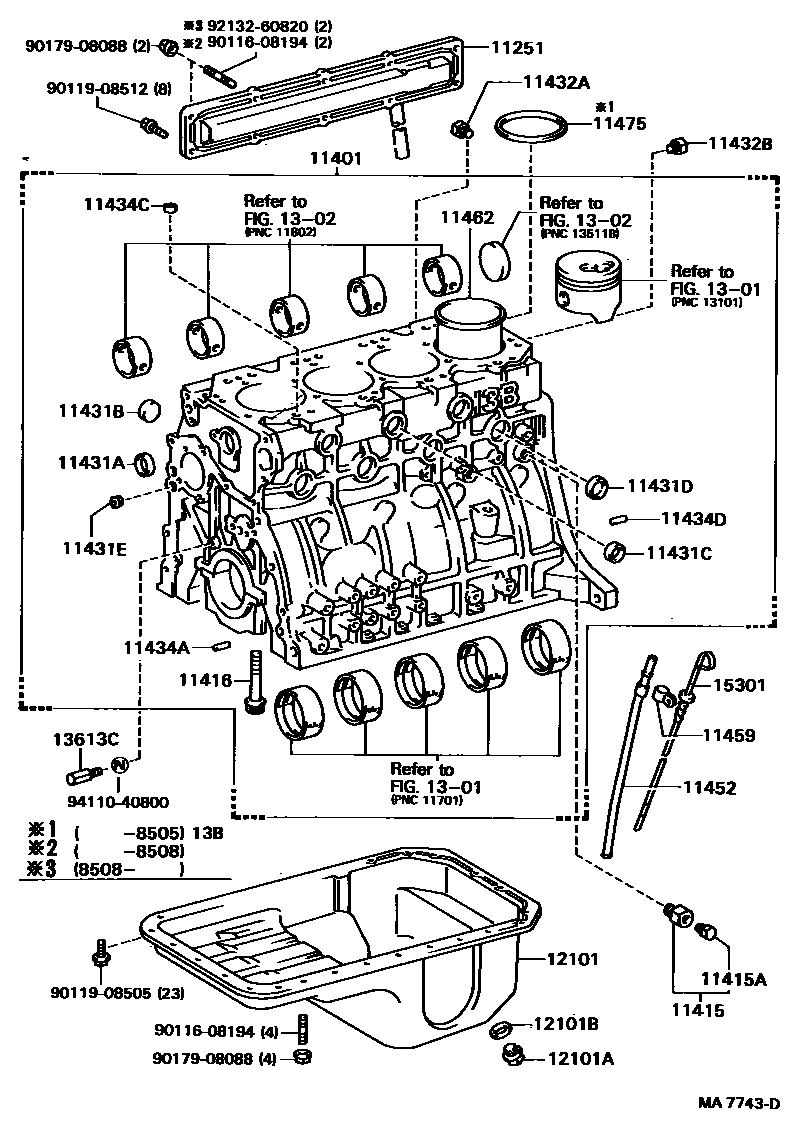

CYLINDER BLOCK

11251COVER, VALVE PUSH ROD

main11203-56040iB..BU60,63,70,75,80198409-198506

sub11203-56041

main11203-56041iB..BU60,63,70,75,80198506-198708

main11203-56050i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

11401BLOCK SUB-ASSY, CYLINDER

main11401-59265iB..BU60,63,70,75,80198409-198708

sub11401-59266

sub15403-56050

sub90401-20009

sub90430-20018

main11401-59275i11B..BU61,65,76,81,86198501-198708

sub11401-59276

sub15403-56050

sub90401-20009

sub90430-20018

main11401-59285i13B..BU62,82,85198409-198708

sub11401-59286

sub15403-56050

sub90401-20009

sub90430-20018

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09070iB,11B,13B..BU6#,7#,8#198409-198504

sub96431-53828

main96431-53828iB,11B,13B..BU6#,7#,8#198504-198708

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09072iB,11B,13B..BU6#,7#,8#198409-198504

sub96432-23814

main96432-23814iB,11B,13B..BU6#,7#,8#198504-198708

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90109-16001iB,11B,13B..BU6#,7#,8#198409-198708

*16-2PX88.5-32

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-51032iB,11B,13B..BU6#,7#,8#198409-198708

OD=51

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-12800iB,11B,13B..BU6#,7#,8#198409-198509

OD=28

sub96411-42800

main96411-42800iB,11B,13B..BU6#,7#,8#198509-198708

OD=28

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-13000iB,11B,13B..BU6#,7#,8#198409-198509

OD=30

sub96411-43000

main96411-43000iB,11B,13B..BU6#,7#,8#198509-198708

OD=30

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-13500iB,11B,13B..BU6#,7#,8#198409-198509

OD=35

sub96411-43500

main96411-43500iB,11B,13B..BU6#,7#,8#198509-198708

OD=35

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-11400iB,11B,13B..BU6#,7#,8#198409-198509

OD=14

sub96411-41400

main96411-41400iB,11B,13B..BU6#,7#,8#198509-198708

OD=14

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90043-45027iB,11B,13B..BU6#,7#,8#198409-198708

sub90345-51007

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53001iB,11B,13B..BU6#,7#,8#198409-198708

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120iB,11B,13B..BU6#,7#,8#198409-198708

L=18,OD=8

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005iB,11B,13B..BU6#,7#,8#198409-198708

L=7,OD=14.5

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-08120iB,11B,13B..BU6#,7#,8#198409-198708

L=18,OD=8

11452GUIDE, OIL LEVEL GAGE

main11452-56050iB,11B,13B..BU6#,7#,8#198409-198708

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-56040iB,11B,13B..BU6#,7#,8#198409-198708

11462LINER, CYLINDER

main11461-56030iB,11B..BU60,61,63,65,7#,80,81,86198409-198708

main11461-58020i13B..BU62,82,85198409-198708

11475SHIM, CYLINDER LINER

main11475-58010i13B..BU62,82,85198409-198505

T=0.05

main11476-58010i13B..BU62,82,85198409-198505

T=0.10

12101PAN SUB-ASSY, OIL

main12101-56060i11B,13B..BU61,62,65,82,85,86..GEN,GHD198409-198708

main12101-56070i11B,13B..BU61,62,65,85..ARL,EUR198409-198708

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089iB,11B,13B..BU6#,7#,8#198409-198708

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244iB,11B,13B..BU6#,7#,8#198409-198708

sub90430-18023

1301

1302

13613CNOZZLE, OIL

main90915-01015iB,11B,13B..BU6#,7#,8#198409-198708

15301GAGE SUB-ASSY, OIL LEVEL

main15301-56040iB,11B,13B..BU6#,7#,8#198409-198708

sub15301-56051

9011608194

main90116-08194

9011908505

main90119-08505

9011908512

main90119-08512

9017908088

main90179-08088

9213260820

main92132-60820

9411040800

main94110-40800

32 parts on this diagram · 1 diagram in section
