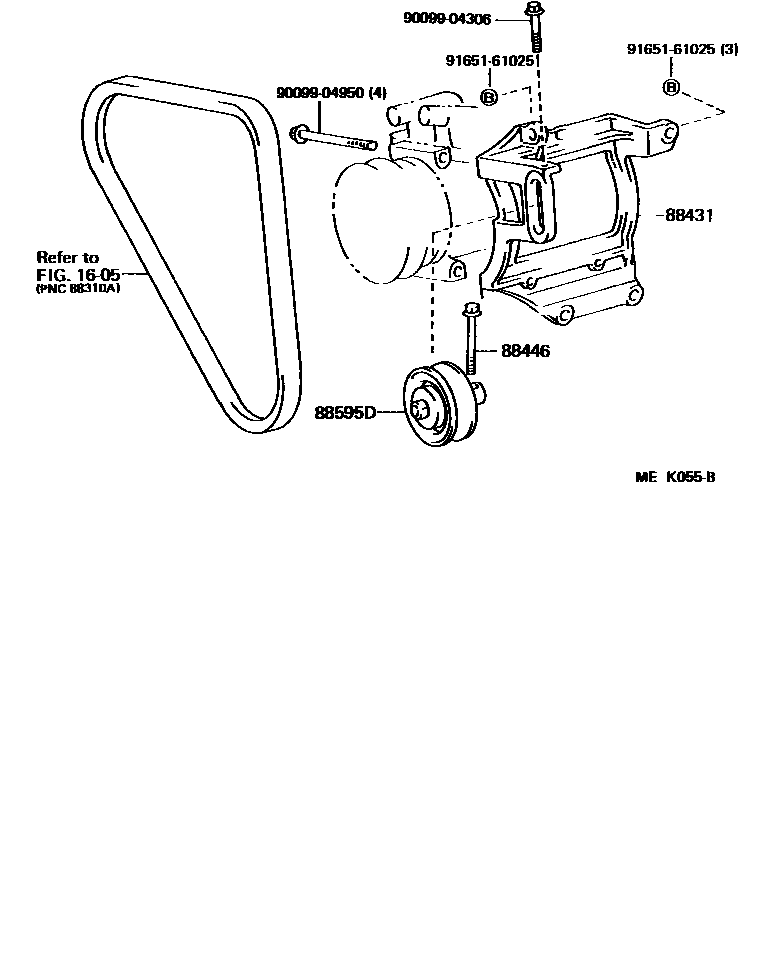

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-28070iYY61..RHD..ST198708-199505

W(BOOST VENTILATOR)

main88431-35100iLY60198708-198808

main88431-35170iLY61..T2,T3;LY61..TW..ST198808-199505

88446BOLT, IDLE PULLEY

main88446-35010iYY52,61..LHD;LY6#..ST..GEN198708-199505

88595DPULLEY ASSY, IDLE

main88440-26070iLY60;LY61..T2,T3;LY61..TW..ST198708-199505

NO.1

main88440-35010iLY60;LY61..T2,T3;LY61..TW..ST198708-199505

NO.2

main88440-35020iYY61..RHD..ST198708-199505

W(BOOST VENTILATOR)

9009904306

main90099-04306

9009904950

main90099-04950

9165161025

main91651-61025

7 parts on this diagram · 5 diagrams in section
