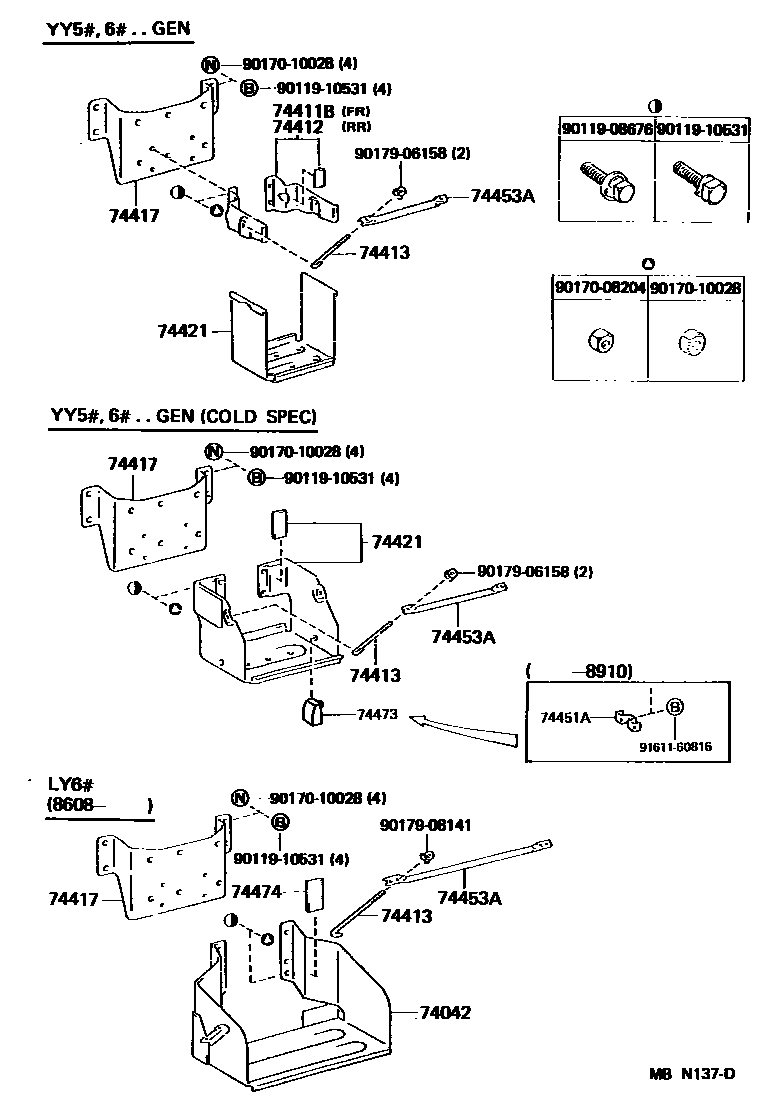

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-25020iLY6#..TW198708-199309

main74042-25021iLY61..TW199309-199505

main74042-25030iLY6#..T3198708-199505

main74042-36020iLY6#..T2198708-199505

74411BBRACKET, BATTERY, FRONT

main74411-25011iYY52,61198708-199505

74412BRACKET, BATTERY, REAR

main74412-25011iYY52,61198708-199505

74413BOLT, BATTERY CLAMP

main74451-25020×2iYY52,61198708-199505

main74451-36070×2iLY6#198708-199505

74417BRACKET, BATTERY CARRIER

main74417-25020iYY61..T2,T3198708-199505

main74417-25030iLY6#..T2,T3198708-199505

74421HANGER, BATTERY

main74421-25020iYY52,61198708-198904

W(BATTERY=50D20R)

main74421-26010iYY52,61198708-199505

main74421-26020iYY52,61198904-199505

W(BATTERY=50D20R)

74451APLATE, BATTERY SET

main74451-25050×2iYY52,61198708-198910

main74451-25070×2iLY6#..T3198708-199505

74453ABAR, BATTERY SET PLATE

main74453-25080iYY52,61198708-199505

main74453-25090iYY52,61198708-199505

W(BATTERY=50D20R)

main74453-25100iLY6#..T2,TW198708-199505

main74453-36050iLY6#..T3198708-199505

sub74453-36060

74473SPACER, BATTERY

main74473-36040×2iYY52,61198910-199505

74474PAD, BATTERY

main74475-36040×2iLY6#198708-199505

9011908676

main90119-08676

9011910531

main90119-10531

9017008204

main90170-08204

9017010028

main90170-10028

9017906158

main90179-06158

9017908141

main90179-08141

9161160816

main91611-60816

17 parts on this diagram · 1 diagram in section
