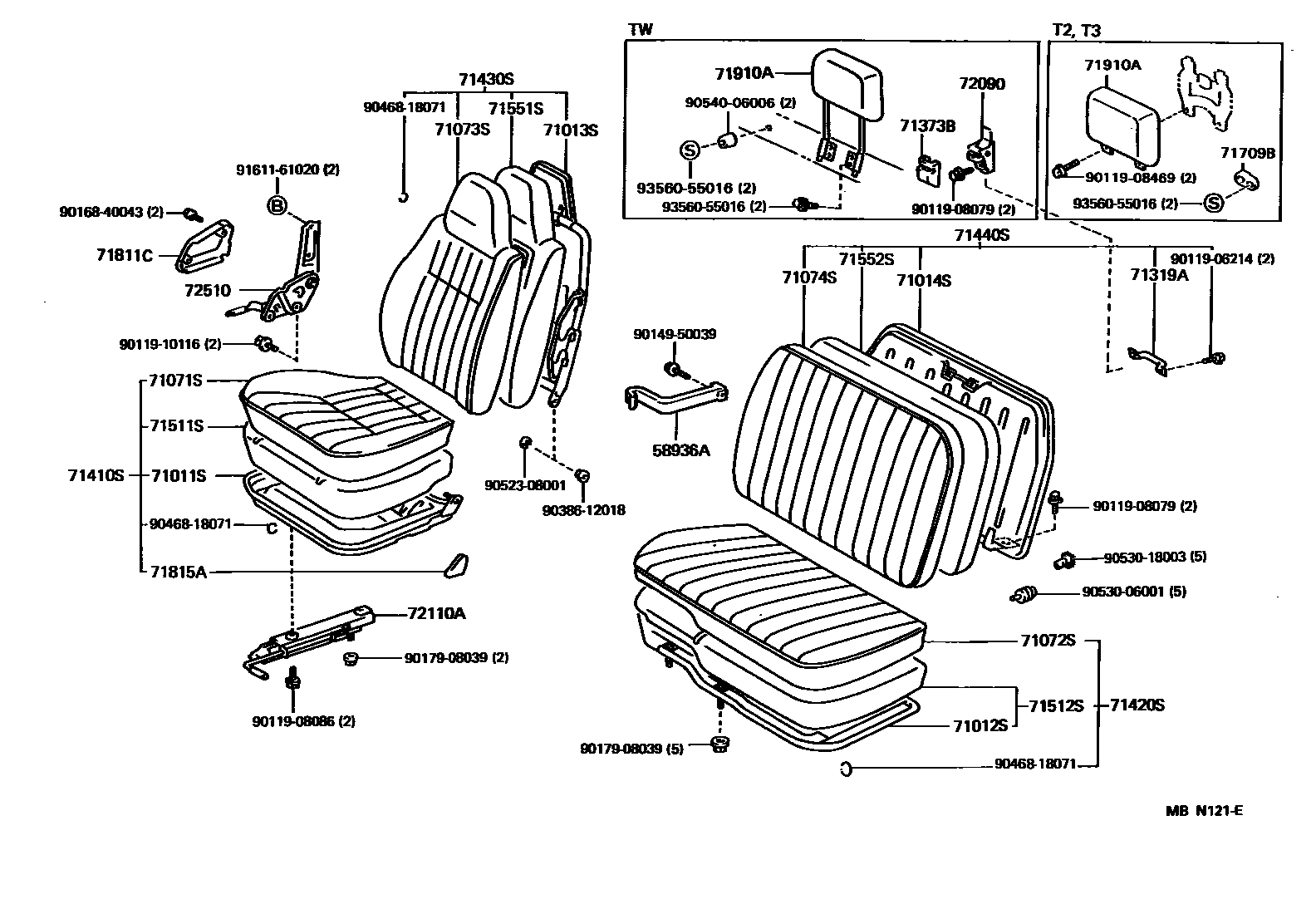

SEAT & SEAT TRACK

0001 1 0002 1 0003 1

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95700-06iLY6#,YY52,61198708-199109

DARK BROWN,TRIM4#

sub58930-95700

main58930-95700-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

sub58930-95700

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-95414iLY6#,YY61..RHD198708-199505

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-95412iLY6#,YY52,61..LHD198708-199505

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-95413iLY61..TW..WT199207-199505

main71013-95413iLY60,YY61..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

W(HEADREST)

main71013-95414iLY60,YY61..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

main71013-95416-01iLY61,YY52,61..LHD199109-199505

BLACK,TRIM1#

main71013-95416-01iLY6#,YY52,61..LHD198708-199109

BLACK,TRIM4#

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-95420-01iLY61,YY61..RHD199109-199505

BLACK,TRIM1#

main71014-95420-01iLY6#,YY61..RHD198708-199109

BLACK,TRIM4#

main71014-95422iLY6#,YY52,61..LHD198708-199505

W(HEADREST)

main71014-95423iLY6#,YY52,61..LHD198708-199505

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37010-B1iLY61,YY61..TW..WT199109-199505

GRAY,TRIM1#

main71071-37030-B2iLY61..ARL..CBU199109-199207

GRAY,TRIM1#

main71071-37040-B1iLY61,YY52,61..LHD199109-199505

GRAY,TRIM1#

main71071-37050-B1iLY61,YY52,61..LHD199109-199505

W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71071-37080-B1iLY61,YY61..RHD..(T2,T3)..GEN199109-199505

GRAY,TRIM1#

main71071-37100-B1iLY61..ARL..IV199109-199505

GRAY,TRIM1#

main71071-95463-06iLY6#..ARL..CBU198708-199109

BROWN,TRIM4#

sub71071-95463

main71071-95473-06iYY61..TW..WT198910-199109

BROWN,TRIM4#

main71071-95477-06iLY60,YY52,61..LHD198708-198801

BROWN,TRIM4#

main71071-95482-06iLY60,YY52,61..LHD198708-198801

W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71071-95B01-06iLY6#,YY61..RHD..(T2,T3)..GEN198708-199109

DARK BROWN,TRIM4#

main71071-95B03-06iLY6#..ARL..IV198708-199109

BROWN,TRIM4#

main71071-95B04-06iLY6#,YY52,61..LHD198801-199109

BROWN,TRIM4#

main71071-95B05-06iLY60,YY61..LHD..T3198801-199109

W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-37030-B1iLY61,YY52,61..TW..ST..GEN199109-199505

GRAY,TRIM1#

main71072-37040-B1iLY61,YY52,61..TW..ST..GEN199109-199505

W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71072-37060-B1iLY61,YY61..RHD..GEN199109-199505

GRAY,TRIM1#

main71072-37080-B1iLY61..ARL199109-199505

GRAY,TRIM1#

main71072-37090-B1iLY61,YY61..LHD..T3199109-199505

GRAY,TRIM1#

main71072-37100-B3iLY61,YY61..LHD..T3199109-199505

W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71072-95485-06iLY60,YY61..RHD..GEN198708-198801

BROWN,TRIM4#

main71072-95B09-06iLY6#,YY52,61..TW..ST..GEN198708-199109

BROWN,TRIM4#

main71072-95B13-06iLY60..ARL198708-198801

BROWN,TRIM4#

main71072-95B20-06iLY6#,YY52,61..TW..ST..GEN198708-199109

W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71072-95B23-06iLY6#,YY61..LHD..T3198708-199109

BROWN,TRIM4#

main71072-95B24-06iLY6#,YY61..LHD..T3198708-199109

W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71072-95B28-06iLY6#,YY61..RHD..GEN198801-199109

BROWN,TRIM4#

main71072-95B40-06iLY6#..ARL198801-199109

BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-26080-B3iLY61..ARL..IV199109-199505

GRAY,TRIM1#

main71073-26090-B1iLY61..ARL..CBU199109-199207

GRAY,TRIM1#

main71073-37010-B1iLY61..TW..WT199207-199505

GRAY,TRIM1#

main71073-37010-B1iYY61..TW..WT199109-199505

W(HEADREST),GRAY,TRIM1#

main71073-37030-B1iLY61..ARL..CBU199109-199110

W(HEADREST),GRAY,TRIM1#

sub71074-37030

main71073-37040-B2iLY61,YY52,61..LHD199109-199505

GRAY,TRIM1#

main71073-37050-B1iLY61,YY52,61..LHD199109-199505

W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71073-37070-B1iLY61,YY61..RHD..(T2,T3)..GEN199109-199505

W(HEADREST),GRAY,TRIM1#

main71073-37100-B2iLY61,YY61..RHD..(T2,T3)..GEN199109-199505

GRAY,TRIM1#

main71073-37110-B1iLY61..ARL..IV199109-199505

W(HEADREST),GRAY,TRIM1#

main71073-95470-06iLY6#..ARL..IV198708-199109

W(HEADREST),BROWN,TRIM4#

sub71073-95470

main71073-95481-06iYY61..TW..WT198910-199109

W(HEADREST),BROWN,TRIM4#

main71073-95483-06iLY6#,YY61..RHD..(T2,T3)..GEN198708-199109

W(HEADREST),BROWN,TRIM4#

sub71073-95482

sub71073-95481

main71073-95486-06iLY6#,YY61..RHD..(T2,T3)..GEN198708-199109

BROWN,TRIM4#

sub71073-95476

main71073-95A09-06iLY6#..ARL..IV198708-199109

BROWN,TRIM4#

sub71073-95A09

main71073-95A10-06iLY6#..ARL..CBU198708-199109

BROWN,TRIM4#

sub71073-95A10

main71073-95A11-06iLY6#..ARL..CBU198708-199109

W(HEADREST),BROWN,TRIM4#

sub71073-95A11

main71073-95B03-06iLY6#,YY52,61..LHD198708-199109

BROWN,TRIM4#

sub71073-95B04

main71073-95B05-06iLY6#,YY52,61..LHD198708-199109

W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71074-37020-B1iYY61..TW..WT199109-199505

GRAY,TRIM1#

main71074-37030-B1iLY61..ARL..CBU199110-199207

W(HEADREST),GRAY,TRIM1#

main71074-95B36-06iYY61..TW..WT198910-199109

BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-37010-B1iLY61,YY52,61..TW..ST..GEN199109-199505

W(HEADREST),GRAY,TRIM1#

main71073-37100-B2iLY61,YY61..LHD..T3199110-199505

GRAY,TRIM1#

main71073-95481-06iLY6#,YY52,61..TW..ST..GEN198708-199109

W(HEADREST),BROWN,TRIM4#

main71074-26070-B1iLY61,YY61..LHD..T3199109-199110

GRAY,TRIM1#

sub71073-37100

main71074-26120-B1iLY61,YY61..LHD..T3199109-199110

W(HEADREST),GRAY,TRIM1#

sub71074-37260

main71074-26130-B1iLY61,YY61..LHD..T3199109-199110

W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

sub71074-37270

main71074-37020-B1iLY61,YY52,61..TW..ST..GEN199109-199505

GRAY,TRIM1#

main71074-37030-B1iLY61,YY52,61..TW..ST..GEN199109-199505

W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71074-37060-B2iLY61,YY61..RHD..GEN199109-199505

GRAY,TRIM1#

main71074-37080-B1iLY61..ARL199109-199505

GRAY,TRIM1#

main71074-37260-B1iLY61,YY61..LHD..T3199110-199505

W(HEADREST),GRAY,TRIM1#

main71074-37270-B1iLY61,YY61..LHD..T3199110-199505

W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71074-95036-06iLY6#,YY61..LHD..T3198708-199109

BROWN,TRIM4#

main71074-95037-06iLY6#,YY61..LHD..T3198708-199109

W(HEADREST),BROWN,TRIM4#

sub71074-95A28

main71074-95039-06iLY6#,YY61..LHD..T3198708-199109

W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71074-95B36-06iLY6#,YY52,61..TW..ST..GEN198708-199109

BROWN,TRIM4#

main71074-95B48-06iLY6#,YY61..RHD..GEN198708-199109

BROWN,TRIM4#

main71074-95B50-06iLY6#..ARL198708-199109

BROWN,TRIM4#

main71074-95B67-06iLY6#,YY52,61..TW..ST..GEN198708-199109

W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

71319ASTRIKER, FRONT SEATBACK

main71319-95404iLY6#,YY52,61198708-199505

71373BCOVER, FRONT SEATBACK LOCK

main71373-95400-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#

sub71373-95400

main71373-95400-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

sub71373-95400

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37030-B0iLY61,YY61..TW..WT199109-199505

***,GRAY,TRIM1#

main71410-37050-B1iLY61..ARL..CBU199109-199207

***,GRAY,TRIM1#

main71410-37060-B0iLY61,YY52,61..LHD199109-199505

***,GRAY,TRIM1#

main71410-37070-B0iLY61,YY52,61..LHD199109-199505

***,W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71410-37100-B0iLY61,YY61..RHD..(T2,T3)..GEN199109-199505

***,GRAY,TRIM1#

main71410-37120-B0iLY61..ARL..IV199109-199505

***,GRAY,TRIM1#

main71410-95449-06iLY6#..ARL..IV198708-199109

***,BROWN,TRIM4#

main71410-95456-06iLY6#,YY61..RHD..(T2,T3)..GEN198708-199109

***,BROWN,TRIM4#

sub71410-95457

main71410-95457-06iYY61..TW..WT198910-199109

***,BROWN,TRIM4#

main71410-95466-06iLY60,YY52,61..LHD198708-198801

***,BROWN,TRIM4#

main71410-95467-06iLY6#,YY52,61..LHD198801-199109

***,BROWN,TRIM4#

main71410-95471-06iLY6#,YY52,61..LHD198801-199109

***,W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71410-95473-06iLY60,YY52,61..LHD198708-198801

***,W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71410-95A53-06iLY6#..ARL..CBU198708-199109

***,BROWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-37030-B1iLY61,YY52,61..TW..ST..GEN199109-199505

***,GRAY,TRIM1#

main71420-37040-B0iLY61,YY52,61..TW..ST..GEN199109-199505

***,W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71420-37060-B0iLY61,YY61..RHD..GEN199109-199505

***,GRAY,TRIM1#

main71420-37080-B0iLY61..ARL199109-199505

***,GRAY,TRIM1#

main71420-37090-B0iLY61,YY61..LHD..T3199109-199505

***,GRAY,TRIM1#

main71420-37100-B0iLY61,YY61..LHD..T3199109-199505

***,W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71420-95470-06iLY60,YY61..RHD..GEN198708-198801

***,BROWN,TRIM4#

main71420-95485-06iLY6#,YY52,61..TW..ST..GEN198708-199109

***,BROWN,TRIM4#

sub71420-95487

main71420-95486-06iLY6#,YY61..LHD..T3198708-199109

***,BROWN,TRIM4#

main71420-95B02-06iLY60..ARL198708-198801

***,BROWN,TRIM4#

main71420-95B10-06iLY6#,YY52,61..TW..ST..GEN198708-199109

***,W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71420-95B12-06iLY6#,YY61..LHD..T3198708-199109

***,W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71420-95B14-06iYY61..TW..WT198910-199109

***,BROWN,TRIM4#

main71420-95B26-06iLY6#..ARL198801-199109

***,BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-25020-B0iYY61..TW..WT199109-199505

***,GRAY,TRIM1#

main71430-26030-B0iLY61..ARL..IV199109-199505

***,GRAY,TRIM1#

main71430-26040-B1iLY61..ARL..CBU199109-199207

***,GRAY,TRIM1#

main71430-37010-B0iYY61..TW..WT199109-199505

***,W(HEADREST),GRAY,TRIM1#

main71430-37010-B0iLY61..TW..WT199207-199505

***,GRAY,TRIM1#

main71430-37030-B0iLY61..ARL..CBU199109-199207

***,W(HEADREST),GRAY,TRIM1#

main71430-37040-B1iLY61,YY52,61..LHD199109-199505

***,GRAY,TRIM1#

main71430-37050-B0iLY61,YY52,61..LHD199109-199505

***,W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71430-37070-B0iLY61,YY61..RHD..(T2,T3)..GEN199109-199505

***,W(HEADREST),GRAY,TRIM1#

main71430-37100-B0iLY61,YY61..RHD..(T2,T3)..GEN199109-199505

***,GRAY,TRIM1#

main71430-37110-B0iLY61..ARL..IV199109-199505

***,W(HEADREST),GRAY,TRIM1#

main71430-95038-06iLY6#..ARL..CBU198708-199109

***,BROWN,TRIM4#

main71430-95039-06iLY6#..ARL..IV198708-199109

***,BROWN,TRIM4#

main71430-95041-06iYY61..TW..WT198910-199109

***,BROWN,TRIM4#

main71430-95464-06iYY61..TW..WT198910-199109

***,W(HEADREST),BROWN,TRIM4#

main71430-95466-06iLY6#..ARL..CBU198708-199109

***,W(HEADREST),BROWN,TRIM4#

main71430-95467-06iLY6#,YY61..RHD..(T2,T3)..GEN198708-199109

***,W(HEADREST),BROWN,TRIM4#

main71430-95471-06iLY6#..ARL..IV198708-199109

***,W(HEADREST),BROWN,TRIM4#

main71430-95472-06iLY6#,YY61..RHD..(T2,T3)..GEN198708-199109

***,BROWN,TRIM4#

main71430-95474-06iLY6#,YY52,61..LHD198708-199109

***,BROWN,TRIM4#

main71430-95476-06iLY6#,YY52,61..LHD198708-199109

***,W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-25010-B0iLY61,YY61..TW..WT199109-199505

***,GRAY,TRIM1#

main71440-26040-B0iLY61,YY61..LHD..T3199109-199505

***,GRAY,TRIM1#

main71440-26050-B0iLY61,YY61..LHD..T3199109-199505

***,W(HEADREST),GRAY,TRIM1#

main71440-26060-B0iLY61,YY61..LHD..T3199109-199505

***,W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71440-26130-B0iLY61,YY52,61..TW..ST..GEN199109-199505

***,GRAY,TRIM1#

main71440-26140-B0iLY61,YY52,61..TW..ST..GEN199109-199505

***,W(HEADREST),GRAY,TRIM1#

main71440-26150-B0iLY61,YY52,61..TW..ST..GEN199109-199505

***,W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#

main71440-37090-B0iLY61..ARL199109-199505

***,GRAY,TRIM1#

main71440-37210-B0iLY61,YY61..RHD..(T2,T3)..GEN199109-199505

***,GRAY,TRIM1#

main71440-95024-06iLY6#,YY61..LHD..T3198708-199109

***,BROWN,TRIM4#

main71440-95027-06iLY6#,YY61..LHD..T3198708-199109

***,W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71440-95028-06iLY6#,YY61..LHD..T3198708-199109

***,W(HEADREST),BROWN,TRIM4#

main71440-95030-06iYY61..TW..WT198910-199109

***,BROWN,TRIM4#

main71440-95B14-06iLY6#,YY61..RHD..(T2,T3)..GEN198708-199109

***,BROWN,TRIM4#

sub71440-95B16

main71440-95B15-06iLY6#..ARL198708-199109

***,BROWN,TRIM4#

main71440-95B28-06iLY6#,YY52,61..TW..ST..GEN198708-199109

***,W(HEADREST),BROWN,TRIM4#

main71440-95B30-06iLY6#,YY52,61..TW..ST..GEN198708-199109

***,W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

main71440-95B31-06iLY6#,YY52,61..TW..ST..GEN198708-199109

***,BROWN,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-95400iLY6#,YY52,61..LHD198708-199505

main71511-95400iLY6#,YY61..RHD..GEN198708-199505

main71511-95402iLY6#..ARL198708-199505

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-95400iLY6#..ARL198708-199109

main71502-95A05iLY61,YY61..RHD198708-199505

main71511-95400iLY6#,YY52,61..LHD198708-199505

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-95404iLY60,YY61..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

W(HEADREST)

main71551-95404iLY61..TW..WT199207-199505

main71551-95405iLY60,YY61..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

main71552-95403iLY6#,YY52,61..LHD198708-199505

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-95404iLY6#,YY52,61..LHD198708-199505

W(HEADREST)

main71551-95405iLY6#,YY52,61..LHD198708-199505

main71552-95403iLY6#,YY61..RHD198708-199505

71709BCUSHION SUB-ASSY, SEAT SUPPORT

main71709-95400iLY6#,YY61..RHD..(T2,T3)198708-199310

71811CCOVER, RECLINING ADJUSTER, RH

main71811-95J01-06iLY6#,YY61..RHD198708-199109

BROWN,TRIM4#

sub71811-95J01

main71811-95J01-B0iLY61,YY61..RHD199109-199505

GRAY,TRIM1#

sub71811-95J01

71815ACOVER, FRONT SEAT CUSHION HINGE, RH

main71815-95J00-06iYY61..TW..WT198910-199109

BROWN,TRIM4#

sub71815-95J00

main71815-95J00-16iLY6#..RHD;YY61..RHD..(T2,T3)198708-199109

BROWN,TRIM4#

sub71815-95J00

main71815-95J00-B0iLY61,YY61..RHD199109-199505

GRAY,TRIM1#

sub71815-95J00

71910AHEADREST ASSY, FRONT SEAT

main71910-37010-B0iLY61,YY61..T2,T3199109-199205

GRAY,TRIM1#

sub71910-37010

main71910-37010-B1iLY61,YY61..T2,T3199205-199505

GRAY,TRIM1#

sub71910-37010

main71910-92603-06iLY6#,YY52,61..TW198708-199109

BROWN,TRIM4#

main71910-92603-B0iLY61,YY52,61..TW199109-199505

GRAY,TRIM1#

main71910-95400-06iLY60,YY61..RHD..(T2,T3)198708-198801

W(HEADREST),BROWN,TRIM4#

sub71910-37010

main71910-95400-06iLY60,YY61..LHD..T3198708-198801

BROWN,TRIM4#

sub71910-37010

main71910-95401-06iLY60,YY61..LHD..T3198708-198801

W(FLAME RESISTING & HEADREST),BROWN,TRIM4#

sub71910-37010

main71910-95401-06iLY6#,YY61..T2,T3198801-199109

BROWN,TRIM4#

sub71910-37010

72090LOCK ASSY, FRONT SEATBACK

main72090-95400-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#

sub72090-95400

main72090-95400-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

sub72090-95400

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-95408iLY6#,YY61..RHD198708-199505

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95J00-06iLY6#,YY61..RHD198708-199109

BROWN,TRIM4#

sub72510-95J00

main72510-95J00-11iLY61,YY61..RHD199109-199505

GRAY,TRIM1#

sub72510-95J00

9011906214

main90119-06214

9011908079

main90119-08079

9011908086

main90119-08086

9011908469

main90119-08469

9011910116

main90119-10116

9014950039

main90149-50039

9016840043

main90168-40043

9017908039

main90179-08039

9038612018

main90386-12018

9046818071

main90468-18071

9052308001

main90523-08001

9053006001

main90530-06001

9053018003

main90530-18003

9054006006

main90540-06006

9161161020

main91611-61020

9356055016

main93560-55016

42 parts on this diagram · 3 diagrams in section
