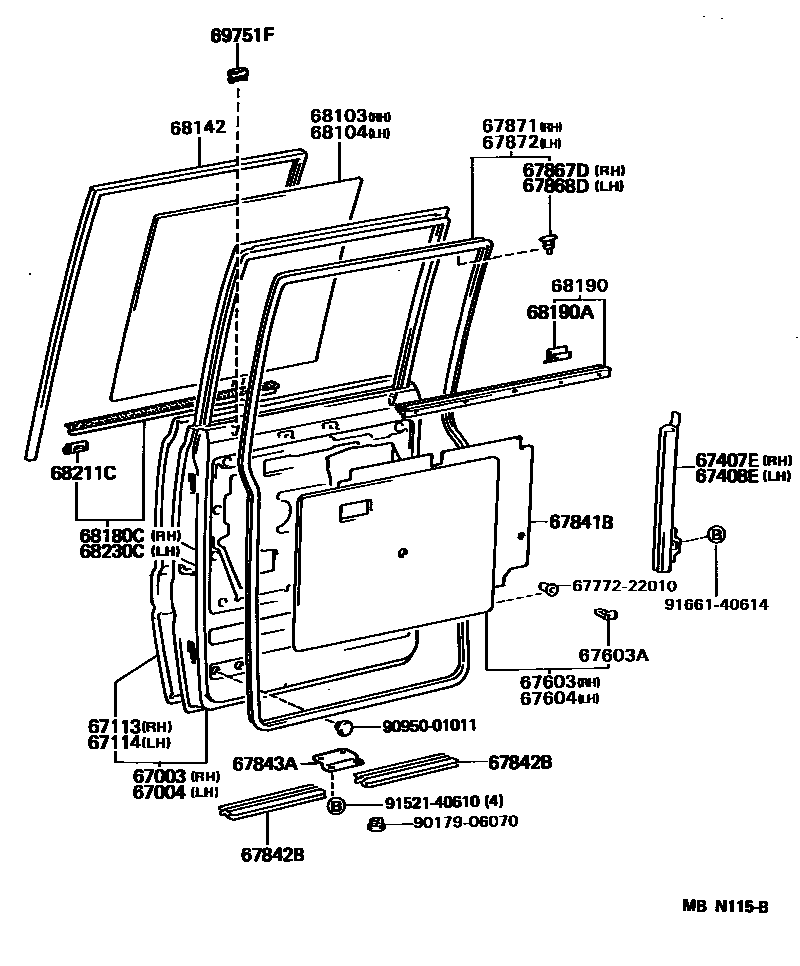

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
67841BCOVER, REAR DOOR SERVICE HOLE
67842BCOVER, REAR DOOR SERVICE HOLE, LOWER
67843ACOVER, REAR DOOR SERVICE HOLE, NO.2
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142RUN, REAR DOOR GLASS
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH
LH
68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
69751FHOLDER, REAR DOOR LOCK CONTROL KNOB
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9017906070
main90179-06070
9095001011
main90950-01011
9152140610
main91521-40610
9166140614
main91661-40614
30 parts on this diagram · 1 diagram in section
