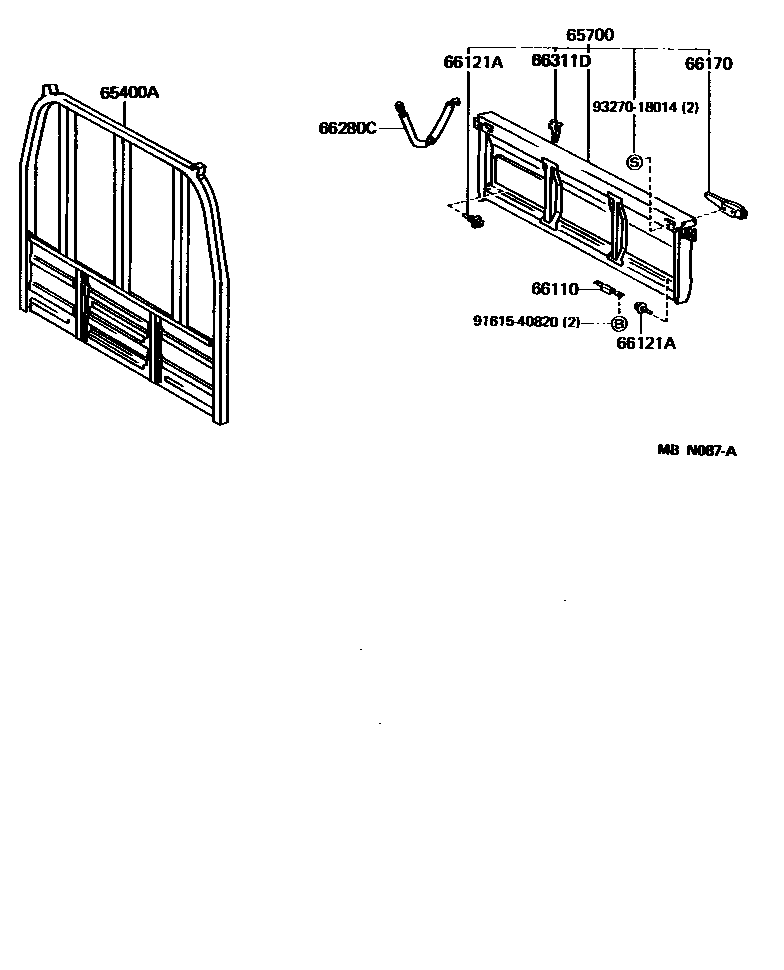

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65400AGUARD ASSY, REAR BODY

main65400-25010iLY61,YY61..T3..CBU199008-199505

main65400-25020iYY61..T2199208-199505

main65400-25060iLY61..T2199008-199505

main65400-25140iYY52199210-199505

main65400-25150iLY61,YY61..TW..ST199210-199505

main65400-92225iLY61,YY61..TW..WT198910-199505

main65400-95059iLY6#,YY61..T3..CBU198708-199008

sub65400-25010

main65400-95060iLY6#,YY61..T2198708-199008

sub65400-25060

main65400-95063iYY52198708-199210

sub65400-25140

main65400-95064iLY6#,YY61..TW..ST198708-199210

sub65400-25150

65700GATE ASSY, REAR BODY TAIL

main65700-25010iLY61,YY52,61..TW..ST199210-199505

main65700-26010iLY61,YY61..(T2,T3)..CBU199109-199505

main65700-92208iLY61,YY61..TW..WT199206-199305

sub65700-92721

main65700-92209iYY61..TW..WT198910-199206

sub65700-92208

main65700-92721iLY61,YY61..TW..WT199305-199505

main65700-95031iLY6#,YY61..(T2,T3)..CBU198708-199008

sub65700-95032

main65700-95032iLY61,YY61..(T2,T3)..CBU199008-199109

main65700-95415iLY6#,YY52,61..TW..ST198708-199210

sub65700-25010

sub75995-37020

66110HINGE ASSY, TAIL GATE

main66110-26010iLY61,YY61..(T2,T3)..CBU199109-199505

main66110-92702iLY61,YY61..TW..WT198910-199505

main66110-95014iLY6#,YY52,61..TW..ST198708-199505

main66110-95020iLY6#,YY61..(T2,T3)..CBU198708-199109

66121ABOLT, TAIL GATE MALE

main66121-95012iLY6#,YY52,61..TW..ST198708-199505

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iLY6#,YY52,61..TW..ST198708-199505

66280CCHAIN ASSY, TAIL GATE

main66280-25010iLY61,YY61..(T2,T3)..CBU198910-199505

main66280-37010iLY61,YY52,61..TW..ST198910-199505

main66280-92702iLY61,YY61..TW..WT198910-199505

main66280-95016iLY6#,YY61..(T2,T3)..CBU198708-198910

sub66280-25010

main66280-95403iLY6#,YY52,61..TW198708-198910

sub66280-37010

66311DHOOK, ROPE

main66311-90K00iLY61,YY52,61..TW..ST199210-199505

main66311-92701iLY61,YY61..TW..WT198910-199505

main66311-95010iLY6#,YY52,61..TW..ST198708-199210

sub66311-90K00

main66312-95A01iLY6#,YY61..(T2,T3)..CBU198708-199505

9161540820

main91615-40820

9327018014

main93270-18014

9 parts on this diagram · 3 diagrams in section
