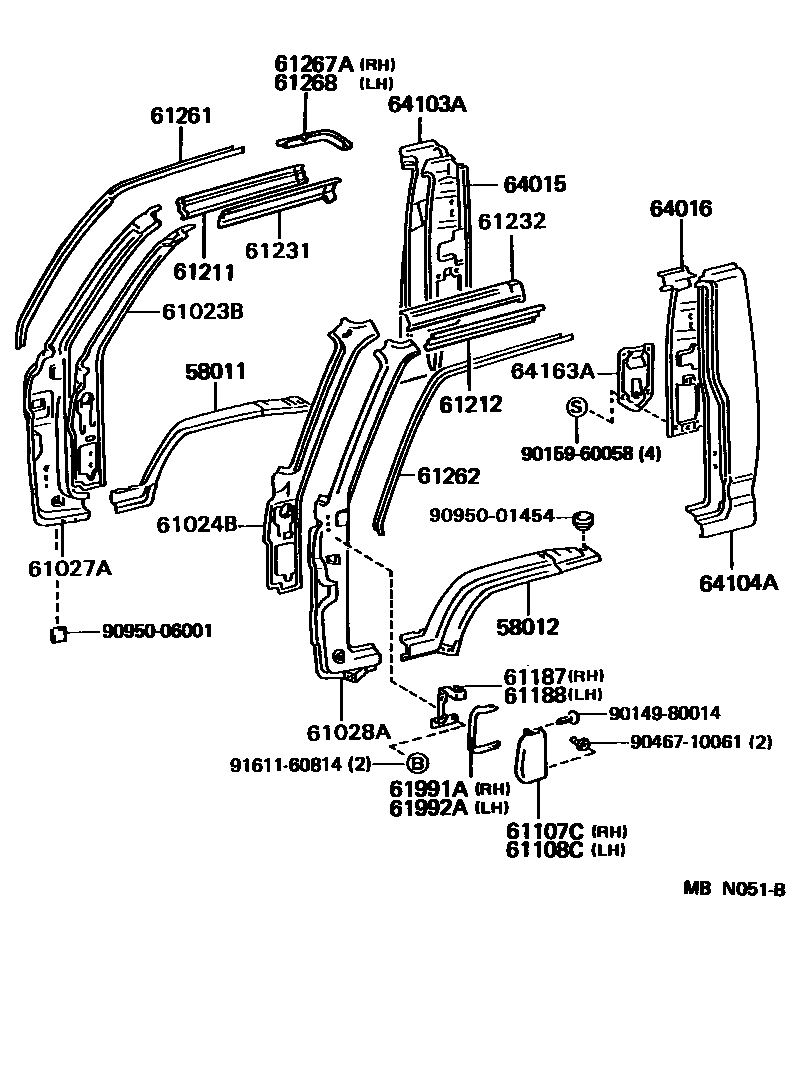

SIDE MEMBER

0001 1 0002 1

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95011iLY6#,YY61..T2,T3198708-199505

sub58011-25010

main58011-95448iLY6#,YY52,61..TW198708-199505

sub58011-37030

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95012iLY6#,YY61..T2,T3198708-199505

main58012-95445iLY6#,YY52,61..TW198708-199505

sub58012-37040

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iLY6#,YY61..RHD198708-199505

main61023-95401iLY6#,YY52,61..LHD198708-199505

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iLY6#,YY61..RHD198708-199505

sub61024-95403

main61024-95401iLY6#,YY52,61..LHD198708-199505

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37010iLY61..ARL198911-199109

W(RADIO)

main61027-37020iLY61,YY52,61198911-199505

main61027-37030iLY61,YY61..RHD..ST..GEN199109-199505

W(RADIO)

main61027-95400iLY6#..ARL198708-198911

W(RADIO)

sub61027-37010

main61027-95401iLY6#,YY52,61198708-198911

sub61027-37020

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37030iLY61,YY52,61199301-199505

main61028-37040iLY61..LHD199301-199505

W(RADIO)

main61028-95400iLY6#,YY52,61198708-199301

sub61028-37030

main61028-95401iLY61..LHD198708-199301

W(RADIO)

sub61028-37040

61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH

main61107-95415iLY6#,YY61..RHD198708-199505

61108CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH

main61108-95416iLY6#..ARL..IV;LY6#,YY52,61..LHD198708-199505

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iLY61,YY61..RHD198708-199505

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iLY6#..ARL..IV;LY6#,YY52,61..LHD198708-199505

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLY6#,YY61..T2,T3198708-199505

main61211-95404iLY6#,YY52,61..TW198708-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLY6#,YY61..T2,T3198708-199505

main61212-95404iLY6#,YY52,61..TW198708-199505

61231RAIL, ROOF SIDE, INNER RH

main61203-95400iLY6#,YY52,61..TW..ST..GEN198708-199505

main61203-95401iLY6#,YY61..RHD..TW198708-199505

main61231-95405iLY6#,YY61..RHD..(T2,T3)198708-199505

main61231-95406iLY6#,YY61..LHD..T3198708-199505

61232RAIL, ROOF SIDE, INNER LH

main61204-95401iLY6#,YY52,61..TW..ST..GEN198708-199505

main61204-95402iLY6#,YY61..RHD..TW198708-199505

main61232-95405iLY6#,YY61..LHD..T3198708-199505

sub61232-95406

main61232-95406iLY6#,YY61..RHD..(T2,T3)198708-199505

61261CHANNEL, ROOF DRIP, RH

main61261-95406iLY60,YY61..T2,T3198708-198808

sub61261-95407

sub61267-95400

main61261-95407iLY6#,YY52,61198708-199505

61262CHANNEL, ROOF DRIP, LH

main61262-95406iLY60,YY61..T2,T3198708-198808

sub61262-95407

sub61268-95400

main61262-95407iLY6#,YY52,61198708-199505

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-95400iLY61,YY61..T2,T3198808-199505

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iLY61,YY61..T2,T3198808-199505

61991APROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH

main61991-37010iLY61,YY61..RHD199203-199505

main61991-95400iLY6#,YY61..RHD198708-199203

sub61991-37010

61992APROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH

main61992-37010iLY61..ARL..IV;LY61,YY52,61..LHD199203-199505

main61992-95400iLY6#..ARL..IV;LY6#,YY52,61..LHD198708-199203

sub61992-37010

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-95400iLY6#,YY61..(T2,T3)..GEN198708-199505

sub64015-95411

main64015-95401iLY60..LHD..IV198708-198808

PORTUGAL SPEC

sub64015-95411

main64015-95401iLY6#..RHD..GEN..IV198708-199309

NEW ZEALAND SPEC

sub64015-95411

main64015-95401iLY6#..ARL..IV198708-199505

sub64015-95411

main64015-95413iLY6#..ARL..CBU198708-199207

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-95400iLY6#,YY61..(T2,T3)..GEN198708-199505

sub64016-95404

main64016-95401iLY6#..RHD..GEN..IV198708-199309

NEW ZEALAND SPEC

sub64016-95415

main64016-95401iLY60..LHD..IV198708-198808

PORTUGAL SPEC

sub64016-95415

main64016-95401iLY6#..ARL..IV198708-199505

sub64016-95415

main64016-95417iLY6#..ARL..CBU198708-199207

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-37030iLY61,YY52,61..TW199309-199505

sub64103-37031

main64103-95401iLY61,YY61..(T2,T3)..GEN198808-199505

sub64103-95403

main64103-95403iLY61..GEN..IV198808-199309

NEW ZEALAND SPEC

main64103-95403iLY61..ARL..IV198808-199505

main64103-95406iLY60,YY61..(T2,T3)..GEN198708-198808

sub64103-95401

sub61267-95400

main64103-95408iLY60..LHD..IV198708-198808

PORTUGAL SPEC

sub64103-95403

sub61267-95400

main64103-95411iLY6#..ARL..CBU198708-199207

sub64103-37090

main64103-95412iLY6#,YY52,61..TW..GEN198708-199309

sub64103-37080

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-37010iYY61..TW..WT199309-199505

W(ROOF VENTILATOR)

sub64104-37011

main64104-37030iLY61,YY52,61..TW199309-199505

sub64104-37031

main64104-95401iLY61,YY61..(T2,T3)..GEN198808-199505

sub64104-95403

main64104-95403iLY61..ARL..IV198808-199505

main64104-95403iLY61..GEN..IV198808-199309

NEW ZEALAND SPEC

main64104-95407iLY60,YY61..(T2,T3)..GEN198708-198808

sub64104-95401

sub61268-95400

main64104-95410iLY60..LHD..IV198708-198808

PORTUGAL SPEC

sub64104-95403

sub61268-95400

main64104-95413iLY6#..ARL..CBU198708-199207

sub64104-37090

main64104-95414iLY6#,YY52,61..TW..GEN198708-199309

sub64104-37080

64163ACOVER, BACK CORNER, INNER

main64163-95403iLY60,YY52,61..GEN198708-198808

main64163-95404iLY60..LHD..IV198708-198808

PORTUGAL SPEC

main64163-95410-06iLY61..GEN..IV198808-199109

BROWN,TRIM4#

sub64163-95901

sub64163-95410

main64163-95410-13iLY61..GEN..IV199109-199309

NEW ZEALAND SPEC,GRAY,TRIM1#

sub64163-95901

sub64163-95410

main64163-95410-13iLY61..ARL199109-199505

GRAY,TRIM1#

sub64163-95901

sub64163-95410

main64163-95411-06iLY61,YY52,61..GEN198808-199109

BROWN,TRIM4#

sub64163-95902

main64163-95411-B0iLY61,YY52,61..GEN199109-199505

GRAY,TRIM1#

sub64163-95902

9014980014

main90149-80014

9015960058

main90159-60058

9046710061

main90467-10061

9095001454

main90950-01454

9095006001

main90950-06001

9161160814

main91611-60814

31 parts on this diagram · 2 diagrams in section
