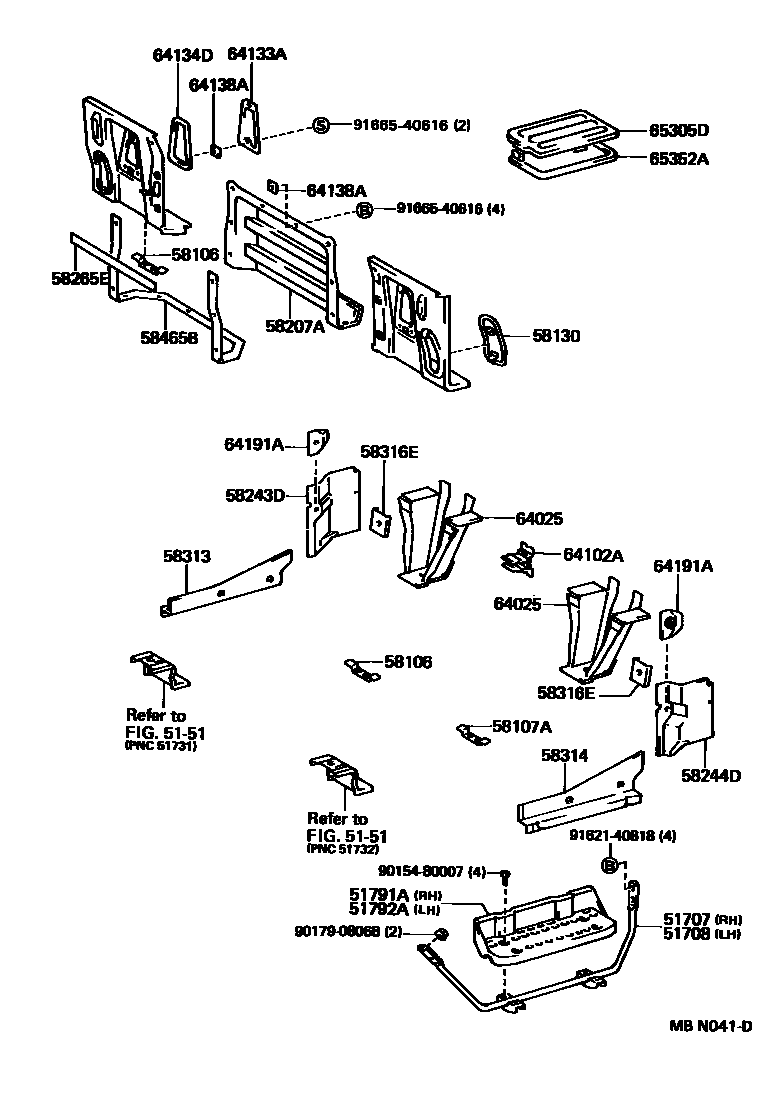

REAR FLOOR PANEL & REAR FLOOR MEMBER
5151
51707STEP SUB-ASSY, RH
51708STEP SUB-ASSY, LH
51791APANEL, STEP, REAR RH
51792APANEL, STEP, REAR LH
58106BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2
W(ROOF VENTILATOR)
58107ABRACKET SUB-ASSY, CLAMP SET, NO.1
58130COVER ASSY, RESERVE TANK SERVICE HOLE
58207ACOVER SUB-ASSY, PARKING BRAKE CABLE
sub58207-37020
58243DPANEL, FLOOR SIDE, REAR RH
58244DPANEL, FLOOR SIDE, REAR LH
58265EPACKING, TRANSMISSION COVER, C
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316ERETAINER, REAR SEAT SET
58465BPACKING, TRANSMISSION SERVICE HOLE COVER
64025BRACKET SUB-ASSY, REAR MOUNTING, RH
64102ABRACKET SUB-ASSY, JACK HANDLE SUPPORT
64133ACOVER, HEADER PANEL
64134DPACKING, HEADER PANEL COVER
64138ASEAL, HEADER PANEL COVER
64191ABRACKET, REAR SEAT BELT ANCHORAGE, RH
65305DCOVER SUB-ASSY, BATTERY HOLE
65352APACKING, BATTERY HOLE COVER, NO.2
9015480007
main90154-80007
9017908068
main90179-08068
9162140818
main91621-40818
9166540616
main91665-40616
28 parts on this diagram · 1 diagram in section
