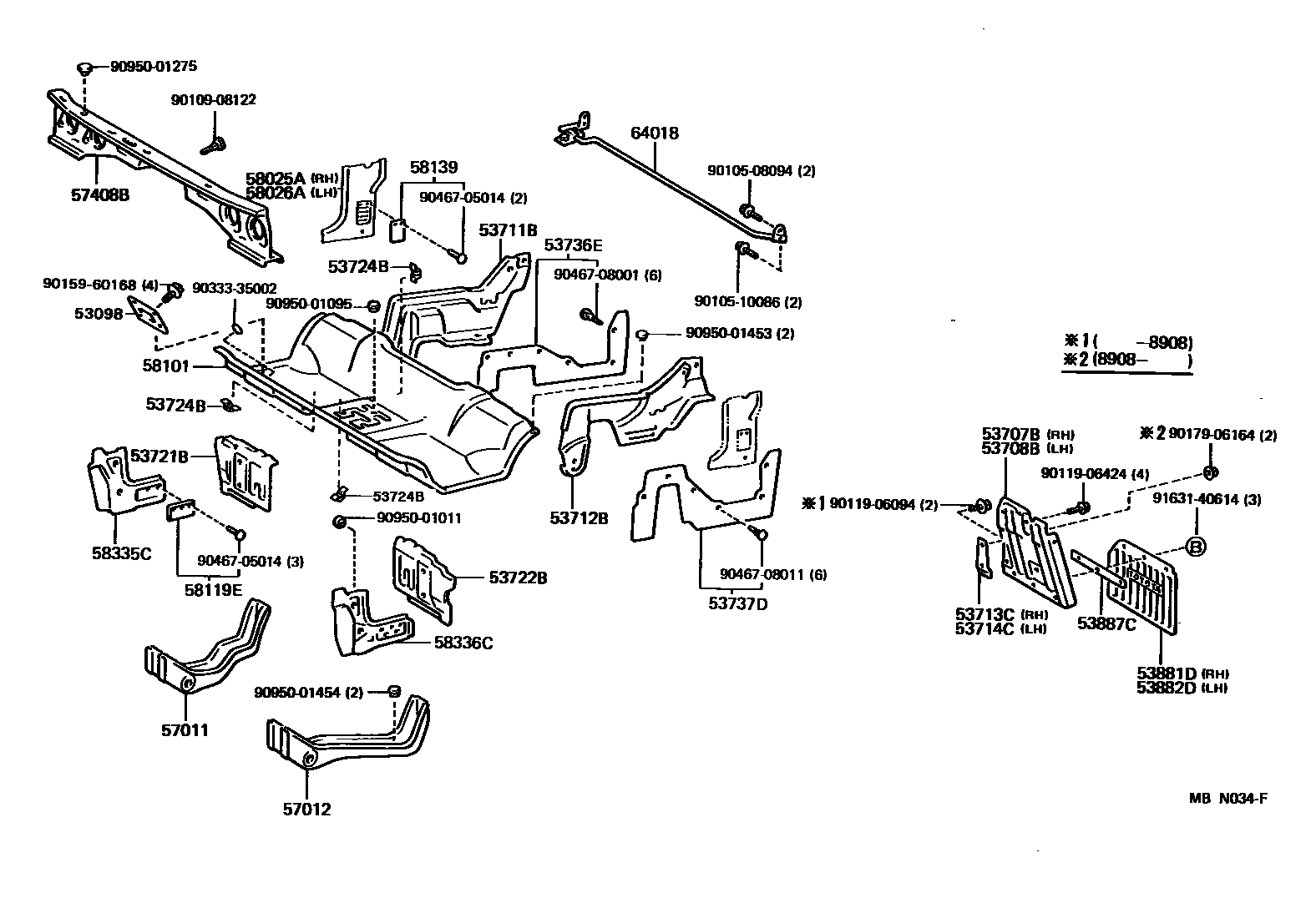

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

53098COVER SUB-ASSY, AIR CLEANER INLET HOLE

main53098-95402iLY6#,YY52,61..LHD198708-199505

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53715-95405iLY6#,YY52,61..TW198708-199505

main53715-95A01iLY6#,YY61..T2,T3198708-199505

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53716-95404iLY6#,YY52,61..TW198708-199505

sub53716-25010

sub90950-01029

main53716-95A02iLY6#,YY61..T2,T3198708-199505

53711BAPRON, FRONT FENDER, FRONT RH

main53707-95011iYY52,61198708-199505

sub53707-95012

main53707-95012iLY6#198708-199505

53712BAPRON, FRONT FENDER, FRONT LH

main53708-95011iLY60,YY52,61198708-198808

main53708-95012iLY61,YY52,61198808-199505

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53747-95010iLY6#,YY61..T2,T3198708-198908

sub53747-95011

sub90179-06164

main53747-95011iLY61,YY61..T2,T3198908-199505

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53748-95010iLY6#,YY61..T2,T3198708-198908

sub53748-95011

sub90179-06164

main53748-95011iLY61,YY61..T2,T3198908-199505

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-95402iLY6#,YY61..RHD198708-199505

sub53721-37010

main53721-95403iLY6#,YY52,61..LHD198708-199505

sub53721-37030

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-95403iLY6#,YY61..RHD198708-199505

sub53722-37020

main53722-95404iLY6#,YY52,61..LHD198708-199505

sub53722-37010

53724BBRACKET, CLAMP(FOR FLOOR PANEL)

main53724-95010iLY61,YY52,61198708-199505

53736ESEAL, FRONT FENDER APRON, RH

main53736-95010iLY6#,YY52,61198708-199505

53737DSEAL, FRONT FENDER APRON, LH

main53737-95010iLY60,YY52,61198708-198808

main53737-95011iLY61,YY52,61198808-199505

53881DMUDGUARD, FRONT RH

main53881-95401iLY6#,YY52,61..TW198708-199505

main53881-95A03iLY6#,YY61..T2,T3198708-199505

53882DMUDGUARD, FRONT LH

main53881-95401iLY6#,YY52,61..TW198708-199505

main53881-95A03iLY6#,YY61..T2,T3198708-199505

53887CPLATE, FRONT MUDGUARD

main53887-95010iLY6#,YY61..T2,T3198708-199505

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-95010iLY6#,YY52,61198708-199505

57012MENBER SUB-ASSY

main57012-95010iLY6#,YY52,61198708-199505

main57012-95011iLY61,YY61..RHD198904-199505

sub57012-95010

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-25010iLY61..ARL199201-199505

sub57408-25020

sub90333-40001

main57408-95014iLY60,YY61..RHD..GEN198708-198808

main57408-95016iLY60,YY52,61..LHD198708-198808

main57408-95022iLY60..ARL198708-198808

sub57408-95023

main57408-95023iLY61..ARL198808-199201

sub57408-25010

sub90950-01275

main57408-95024iLY61,YY61..RHD..GEN198808-199505

main57408-95026iLY61,YY52,61..LHD198808-199505

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-25010iLY61,YY52,61..TW199309-199505

main58025-95012iLY6#,YY52,61..TW198708-199309

sub58025-25010

sub90950-01029

main58271-37010iLY61,YY61..T2,T3199309-199505

sub58271-37011

sub90333-20001

main58271-95400iLY60,YY61..T2,T3198708-198808

main58271-95401iLY61,YY61..T2,T3198808-199309

sub58271-37010

sub90950-01029

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95401iLY6#,YY52,61..TW198708-199505

main58272-95400iLY60,YY61..T2,T3198708-198808

main58272-95403iLY61,YY61..T2,T3198808-199505

sub58272-37010

sub90333-20001

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95055iLY6#,YY61..RHD198708-199505

sub58101-95057

sub90333-20001

main58101-95056iLY6#,YY52,61..LHD198708-199505

sub58101-95058

sub90333-20001

sub90333-35002

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400iLY6#,YY52,61198708-199505

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iLY60,YY61..T2,T3198708-198808

LH

main58139-95401iLY60,YY61..T2,T3198708-198808

RH

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95401iLY60,YY52,61198708-199505

main58335-95402iLY61,YY52,61198808-199011

sub58335-95401

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95401iLY60,YY52,61198708-199505

main58336-95402iLY61,YY52,61198808-199011

sub58336-95401

64018BAR SUB-ASSY, BODY

main64018-95412iLY6#..RHD..GEN..IV198708-199505

9010508094

main90105-08094

9010510086

main90105-10086

9010908122

main90109-08122

9011906094

main90119-06094

9011906424

main90119-06424

9015960168

main90159-60168

9017906164

main90179-06164

9033335002

main90333-35002

9046705014

main90467-05014

9046708001

main90467-08001

9046708011

main90467-08011

9095001011

main90950-01011

9095001095

main90950-01095

9095001275

main90950-01275

9095001453

main90950-01453

9095001454

main90950-01454

9163140614

main91631-40614

43 parts on this diagram · 3 diagrams in section
