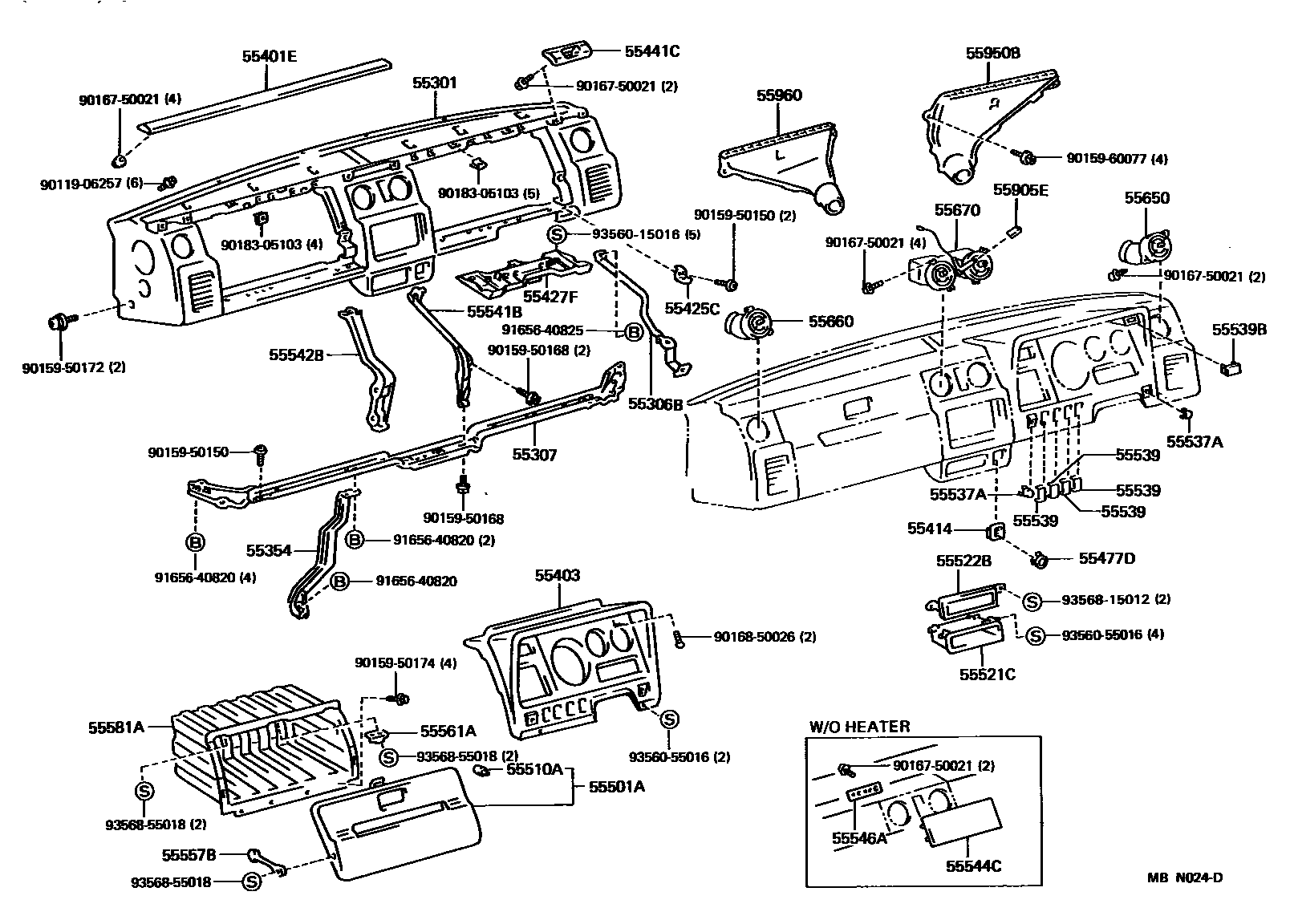

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95425-06iLY6#,YY61..RHD198708-199109

BROWN,TRIM4#

main55311-95425-B0iLY61,YY61..RHD199109-199505

GRAY,TRIM1#

main55311-95426-06iLY6#,YY52,61..LHD198708-199109

BROWN,TRIM4#

main55311-95426-B0iLY61,YY52,61..LHD199109-199505

GRAY,TRIM1#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-95016iLY6#,YY61..RHD198708-199505

main55306-95404iLY6#,YY52,61..LHD198708-199505

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95403iLY6#,YY61..RHD198708-199505

main55307-95404iLY6#,YY52,61..LHD198708-199505

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-95400iLY6#,YY52,61198708-199505

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-95412-06iLY6#,YY61..RHD198708-198812

BROWN,TRIM4#

sub55401-95412

main55401-95413-06iLY6#,YY52,61..LHD198708-199109

BROWN,TRIM4#

sub55401-95413

main55401-95413-B0iLY61,YY52,61..LHD199109-199505

GRAY,TRIM1#

sub55401-95413

main55431-95012-06iLY61,YY61..RHD198812-199109

BROWN,TRIM4#

main55431-95012-B0iLY61,YY61..RHD199109-199505

GRAY,TRIM1#

55403HOOD SUB-ASSY, METER

main55403-95B21-06iLY6#..ARL198708-199109

W(FRONT HEATER) OR W(FOOT VENTILATOR),BROWN,TRIM4#

main55403-95B21-06iLY6#..ARL198708-199109

BROWN,TRIM4#

main55403-95B21-B0iYY61..RHD;LY61..RHD..(T2,T3)..GEN199309-199505

W(FRONT HEATER),GRAY,TRIM1#

main55403-95B21-B0iYY61..RHD;LY61..RHD..(T2,T3)..GEN199109-199309

W(FRONT HEATER) OR W(FOOT VENTILATOR),GRAY,TRIM1#

main55403-95B21-B0iLY61..ARL199109-199505

GRAY,TRIM1#

main55403-95B22-06iLY6#,YY61..RHD..GEN198708-199109

W(CLOCK),BROWN,TRIM4#

sub55403-95B21

main55403-95B22-06iLY6#..ARL198708-199109

W(CLOCK & FRONT HEATER) OR W(CLOCK & FOOT VENTILATOR),BROWN,TRIM4#

sub55403-95B21

main55403-95B22-B0iLY61..ARL199109-199505

W(CLOCK),GRAY,TRIM1#

sub55403-95B21

main55403-95B22-B0iYY61..RHD;LY61..RHD..(T2,T3)..GEN199309-199505

W(CLOCK & FRONT HEATER),GRAY,TRIM1#

sub55403-95B21

main55403-95B22-B0iYY61..RHD;LY61..RHD..(T2,T3)..GEN199109-199309

W(CLOCK & FRONT HEATER) OR W(CLOCK & FOOT VENTILATOR),GRAY,TRIM1#

sub55403-95B21

main55403-95B24-06iLY6#,YY52,61..LHD198708-199109

W(FRONT HEATER) OR W(FOOT VENTILATOR),BROWN,TRIM4#

main55403-95B24-B0iLY61,YY52,61..LHD199109-199309

W(FRONT HEATER) OR W(FOOT VENTILATOR),GRAY,TRIM1#

main55403-95B24-B0iLY61,YY52,61..LHD199309-199505

W(FRONT HEATER),GRAY,TRIM1#

main55403-95B25-06iLY6#,YY52,61..LHD198708-199109

BROWN,TRIM4#

main55403-95B25-B0iLY61,YY52,61..LHD199109-199505

GRAY,TRIM1#

main55403-95B26-06iLY6#,YY61..RHD..GEN198708-199109

BROWN,TRIM4#

main55403-95B26-B0iYY61..RHD;LY61..RHD..(T2,T3)..GEN199109-199505

GRAY,TRIM1#

main55403-95B27-06iLY6#,YY61..RHD..GEN198708-199109

W(CLOCK),BROWN,TRIM4#

sub55403-95B26

main55403-95B27-B0iYY61..RHD;LY61..RHD..(T2,T3)..GEN199109-199505

W(CLOCK),GRAY,TRIM1#

sub55403-95B26

main55403-95B27-B0iLY61..TW..WT199207-199505

GRAY,TRIM1#

sub55403-95B26

main55403-95B29-06iLY6#,YY52,61..LHD198708-199109

W(CLOCK & FRONT HEATER) OR W(CLOCK & FOOT VENTILATOR),BROWN,TRIM4#

main55403-95B29-B0iLY61,YY52,61..LHD199109-199309

W(CLOCK & FRONT HEATER) OR W(CLOCK & FOOT VENTILATOR),GRAY,TRIM1#

main55403-95B29-B0iLY61,YY52,61..LHD199309-199505

W(CLOCK & FRONT HEATER),GRAY,TRIM1#

main55403-95B30-06iLY6#,YY52,61..LHD198708-199109

W(CLOCK),BROWN,TRIM4#

main55403-95B30-B0iLY61,YY52,61..LHD199109-199505

W(CLOCK),GRAY,TRIM1#

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iLY6#,YY52,61198708-199505

55425CBRACKET, METER HOOD SET, NO.1

main55425-95404iLY6#,YY52,61198708-199505

55427FBRACKET, METER HOOD SET, NO.3

main55427-95402iLY6#,YY52,61198708-199505

55441CBOX, INSTRUMENT PANEL COIN

main55441-95417-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#

sub55441-95417

main55441-95417-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

sub55441-95417

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-95010-01iYY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN199109-199309

BLACK,TRIM1#

sub55477-10010

sub55477-95010

main55477-95010-01iLY6#,YY52,61..GEN198708-199109

BLACK,TRIM4#

sub55477-10010

sub55477-95010

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-95412-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#

sub55501-95412

sub55501-95921

main55501-95412-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

sub55501-95412

sub55501-95921

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iLY6#,YY52,61198708-199505

OD=7

main90541-05080iLY6#,YY52,61198708-199505

OD=10

55521CCOVER, STEREO OPENING

main55521-14050-01iLY6#,YY52,61198708-199109

BLACK,TRIM4#

sub55521-14050

main55521-14050-01iLY61,YY52,61199109-199505

BLACK,TRIM1#

sub55521-14050

55522BCOVER, RADIO TUNER OPENING

main55522-20040iLY6#,YY52,61198708-199505

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#

sub55537-95010

main55537-95010-B0iYY61..RHD..ST199208-199505

SINGAPORE SPEC,GRAY,TRIM1#

sub55537-95010

main55537-95010-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

sub55537-95010

55539COVER, SPARE SWITCH HOLE

main55539-95J00-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#,42.6 X 24.6

sub55539-95J00

main55539-95J00-B0iLY61,YY52,61199109-199207

GRAY,TRIM1#,42.6 X 24.6

sub55539-95J00

main55539-95J00-B0iLY61,YY52,61199207-199505

GRAY,TRIM1#

sub55539-95J00

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-95400-06iLY6#,YY52,61198708-199109

BROWN,TRIM4#

main55539-95400-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-95407iLY6#,YY52,61198708-199505

55542BRETAINER, RADIO TUNER OPENING, NO.2

main55542-95407iLY6#,YY52,61198708-199505

55544CCOVER, CENTER REGISTER OPENING

main55544-95410-06iLY6#,YY52,61..GEN198708-199109

BROWN,TRIM4#

sub55544-95410

main55544-95410-B0iLY61,YY52,61..GEN199109-199505

GRAY,TRIM1#

sub55544-95410

55546APLATE, CENTER REGISTER COVER

main55546-95400iLY6#,YY52,61..GEN198708-199505

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95400-01iLY6#,YY52,61198708-199109

BLACK,TRIM4#

main55557-95400-01iLY61,YY52,61199109-199505

BLACK,TRIM1#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95401-01iLY6#,YY52,61198708-199109

BLACK,TRIM4#

main55561-95401-01iLY61,YY52,61199109-199505

BLACK,TRIM1#

55581ACOMPARTMENT, GLOVE

main55581-95400-01iLY6#,YY52,61198708-199109

BLACK,TRIM4#

main55581-95400-01iLY61,YY52,61199109-199505

BLACK,TRIM1#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-26010-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

main55650-95400-01iLY6#,YY52,61198708-199109

BLACK,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-26010-B0iLY61,YY52,61199109-199505

GRAY,TRIM1#

main55650-95400-01iLY6#,YY52,61198708-199109

BLACK,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-26010-B0iYY52,61;LY61..T2,T3;LY61..TW..ST199109-199505

GRAY,TRIM1#

main55670-95400-01iLY6#,YY52,61198708-199109

BLACK,TRIM4#

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iLY6#,YY52,61198708-199109

BLACK,TRIM4#

sub55905-12050

sub55905-20230

sub55905-35090

main55905-37010-B0iYY52,61;LY61..T2,T3;LY61..TW..ST199109-199505

GRAY,TRIM1#

55950BNOZZLE ASSY, DEFROSTER, RH

main55950-95010iLY61..T2,T3;LY60,YY52,61;LY61..TW..ST198708-199505

55960NOZZLE ASSY, DEFLOSTER, LH

main55960-95010iLY61..T2,T3;LY60,YY52,61;LY61..TW..ST198708-199505

9011906257

main90119-06257

9015950150

main90159-50150

9015950168

main90159-50168

9015950172

main90159-50172

9015950174

main90159-50174

9015960077

main90159-60077

9016750021

main90167-50021

9016850026

main90168-50026

9018305103

main90183-05103

9165640820

main91656-40820

9165640825

main91656-40825

9356015016

main93560-15016

9356055016

main93560-55016

9356815012

main93568-15012

9356855018

main93568-55018

46 parts on this diagram · 2 diagrams in section
