FRAME

0001 1 0002 1

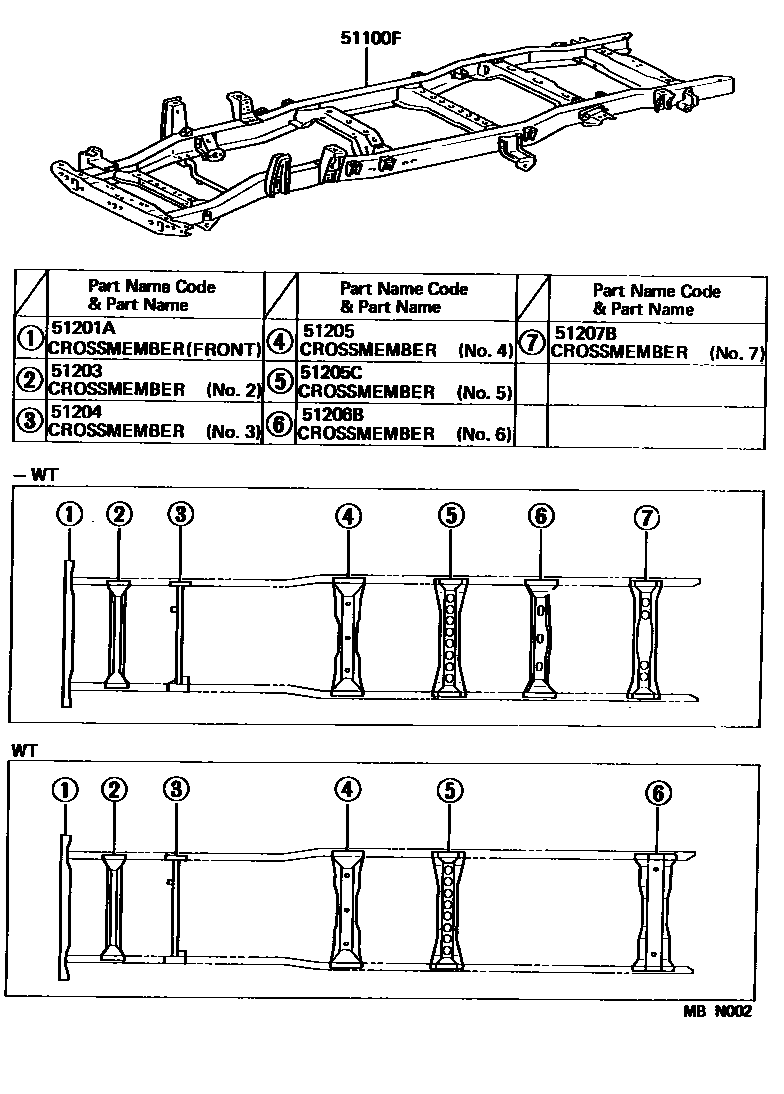

51100FFRAME SUB-ASSY

main51002-25670iYY52198708-199109

main51002-25671iYY52199109-199505

main51002-25710iLY6#,YY61..RHD..T3198708-199109

main51002-25711iLY61,YY61..RHD..T3199109-199505

main51002-25720iLY6#,YY61..LHD..T3198708-199109

main51002-25721iLY61,YY61..LHD..T3199109-199505

main51002-25740iLY6#..ARL..CBU198708-199109

main51002-25741iLY61..ARL..CBU199109-199207

main51002-25750iLY6#,YY61..TW..ST..GEN198708-199109

main51002-25751iLY61,YY61..TW..ST..GEN199109-199505

main51002-25760iLY6#,YY61..T2198708-199109

main51002-25761iLY61,YY61..T2199109-199505

main51002-25780iYY61..TW..WT198910-199109

main51002-25781iLY61,YY61..TW..WT199109-199505

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-25090iLY6#,YY52,61198708-199505

sub51211-25091

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-25130iLY6#,YY52,61198708-199505

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-25110iLY60,YY52,61198708-198808

sub51203-25111

main51203-25111iLY61,YY52,61198808-199505

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-25060iLY6#,YY52,61198708-199008

sub51204-25061

main51204-25061iLY61,YY52,61199008-199505

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-25050iLY6#,YY52,61198708-199008

sub51205-25051

main51205-25051iLY61,YY52,61199008-199505

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-25100iLY6#,YY52,61..ST198708-199008

sub51206-25101

main51206-25101iLY61,YY52,61..ST199008-199505

sub51206-25111

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51206-25090iLY6#,YY61..WT198708-199505

main51207-25050iLY6#,YY52,61..ST198708-199505

8 parts on this diagram · 2 diagrams in section
