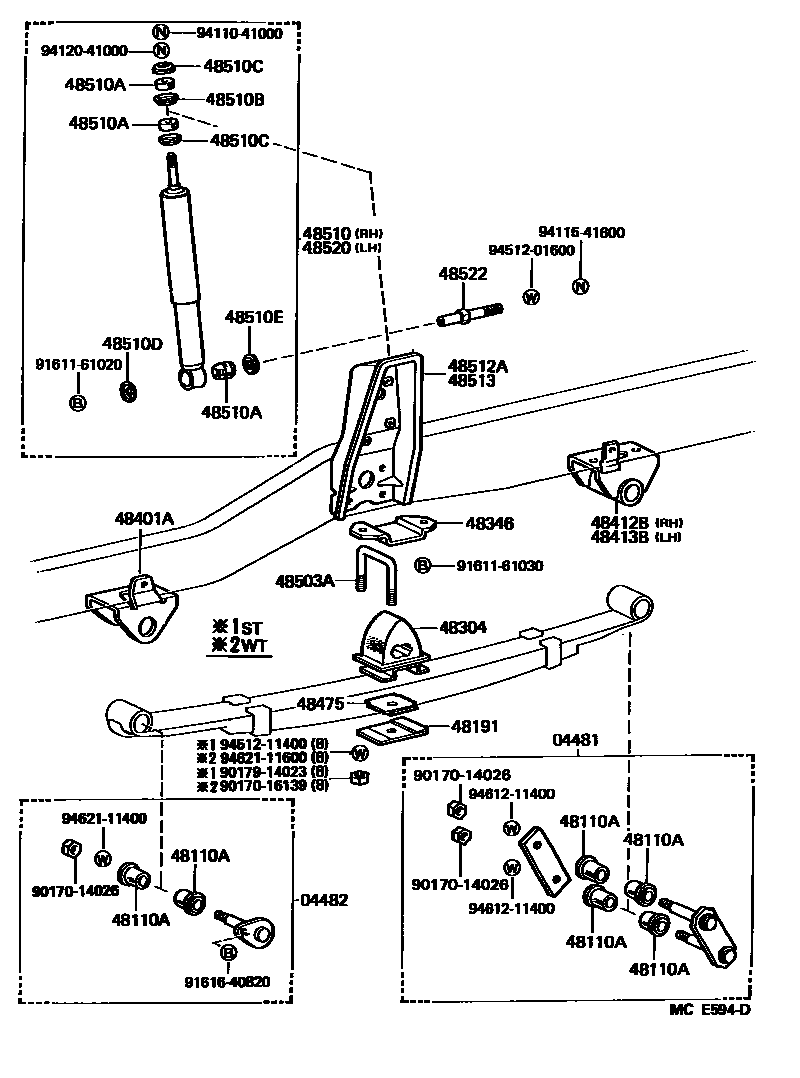

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

04481SHACKLE KIT, FRONT SPRING

main04481-25031iLY6#,YY52,61198708-199505

sub04481-25050

04482PIN KIT, FRONT SPRING

main04482-25011iLY6#,YY52,61198708-199505

sub04482-25020

48110SPRING ASSY, FRONT, RH

main48110-25510iYY52,61..LHD198708-199505

5-LEAF

main48110-25520iYY61..RHD..(T2,T3)198708-199505

5-LEAF

sub48110-2E020

main48110-25530iLY6#..LHD..T3198708-199505

5-LEAF

main48110-25540iLY61,YY61..TW..WT;LY6#..RHD..(T2,T3)198708-199505

5-LEAF

sub48110-2E020

main48110-25550iLY6#..TW..ST..GEN198708-199505

5-LEAF

main48110-25560iLY6#..ARL..CBU198708-199207

5-LEAF

sub48110-2E020

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18005iLY6#,YY52,61198708-199505

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-35020iLY6#,YY52,61198708-199505

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36021iLY6#,YY52,61198708-199505

48346STOPPER, BUMPER, FRONT

main48346-25090iLY61..TW..WT;YY52,61..TW..ST;LY6#,YY61..T2,T3198708-199505

sub48346-25091

main48346-25160iLY6#..TW..ST;YY61..TW..WT198708-199505

sub48346-25161

48401ABRACKET SUB-ASSY, SPRING, NO.1

main48411-25051iLY6#,YY52,61198708-199505

48412BBRACKET, SPRING, NO.2 RH

main48433-25060iLY6#,YY52,61198708-199505

sub48403-25010

48413BBRACKET, SPRING, NO.2 LH

main48434-25050iLY6#,YY52,61198708-199505

sub48043-25010

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iLY6#,YY52,61198708-199505

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-14045iLY6#,YY52,61198708-199505

L=95

main90117-14047iLY6#,YY52,61198708-199505

L=90

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29125iLY6#,YY52,61198708-199103

MARK 48511-25110

sub48511-29126

main48511-29126iLY61,YY52,61199103-199505

MARK 48511-25110

sub48511-29127

48510ACUSHION, FRONT SHOCK ABSORBER

main90385-16004iLY6#,YY52,61198708-199505

LWR

main90948-01003iLY6#,YY52,61198708-199505

UPR

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iLY6#,YY52,61198708-199505

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLY6#,YY52,61198708-199505

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03007iLY6#,YY52,61198708-199505

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLY6#,YY52,61198708-199505

48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48512-25080iLY6#,YY52,61198708-199505

48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48512-25080iLY6#,YY52,61198708-199505

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29125iLY6#,YY52,61198708-199103

MARK 48511-25110

sub48511-29126

main48511-29126iLY61,YY52,61199103-199505

MARK 48511-25110

sub48511-29127

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iLY6#,YY52,61198708-199505

9017014026

main90170-14026

9017016139

main90170-16139

9017914023

main90179-14023

9161161020

main91611-61020

9161161030

main91611-61030

9161640820

main91616-40820

9411041000

main94110-41000

9411541600

main94115-41600

9412041000

main94120-41000

9451201600

main94512-01600

9451211400

main94512-11400

9461211400

main94612-11400

9462111400

main94621-11400

9462111600

main94621-11600

36 parts on this diagram · 2 diagrams in section
