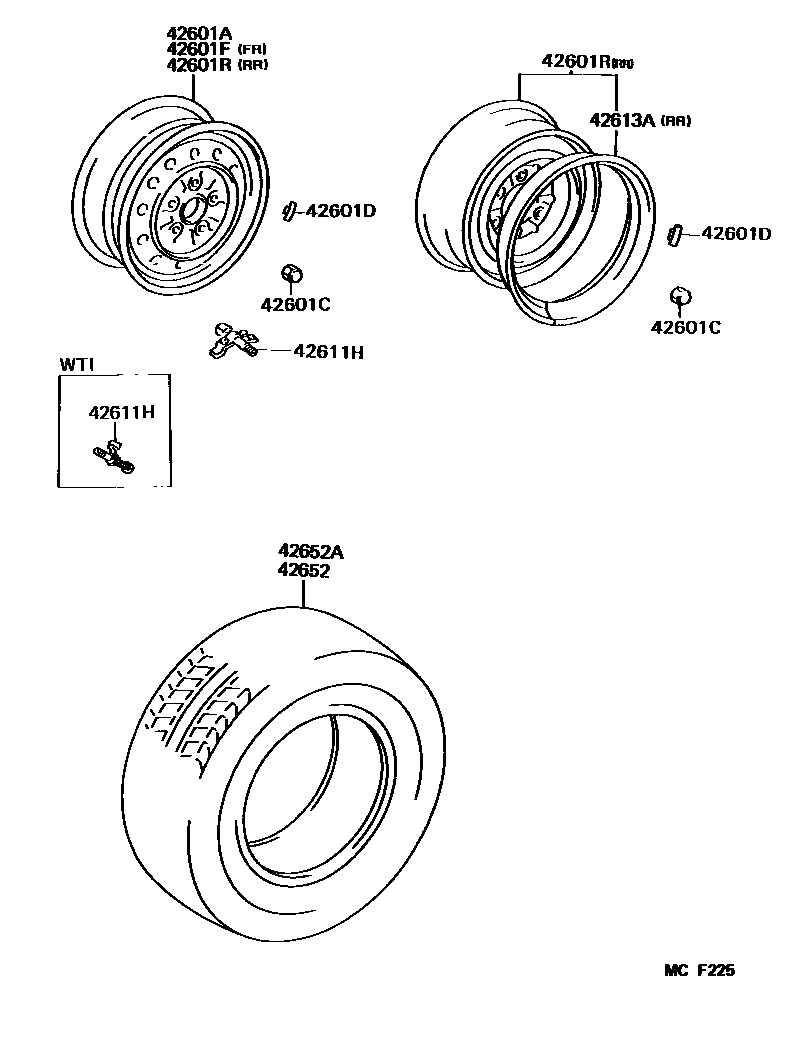

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
15X5.5K, #,GRAY
42601CNUT, HUB (FOR AXLE)
RR,RH
RR,LH
FR
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
42601FWHEEL, DISC (FOR FRONT)
15X4.5K, #,GRAY
42601RWHEEL, DISC (FOR REAR)
15X4.5K, #,GRAY
15X5.5K, #,GRAY
42611HEXTENSION, VALVE
42613ARING, DISC WHEEL SIDE
42652TIRE
6.00-15-8,W(TUBE)
7.00-15-8,W(TUBE)
6.00R15-8,*D/L
155R12-8,W(TUBE)
7.00R15-8,*D/L,*(B)
7.00R15-10,*B/S
7.00R15-8,*O/T,OTSU TAIYA
7.00-15 8PR
175R14 LT 8PR,*(B)
175R14 8PR,OTSU TIRE
155R12 LT 8PR,*(B)
155R12 8PR
155R12
175R14-8,RIB
7.00-15-10,W(TUBE)
7.00-15-10,W(TUBE),W/TUBE
6.00-15-6,W(TUBE)
42652ATIRE (FOR SPARE)
6.00-15-8,W(TUBE)
7.00-15-8,W(TUBE)
155R12-8,W(TUBE)
7.00R15-8,*D/L,*(B)
7.00R15-10,*B/S
7.00R15-8,*O/T,OTSU TAIYA
175R14 LT 8PR,*(B)
175R14 8PR,OTSU TIRE
155R12 LT 8PR,*(B)
155R12 8PR
155R12
175R14-8,RIB
7.00-15-10,W(TUBE),W/TUBE
7.00-15-10,W(TUBE)
6.00-15-6,W(TUBE)
9 parts on this diagram · 1 diagram in section
