REAR AXLE HOUSING & DIFFERENTIAL

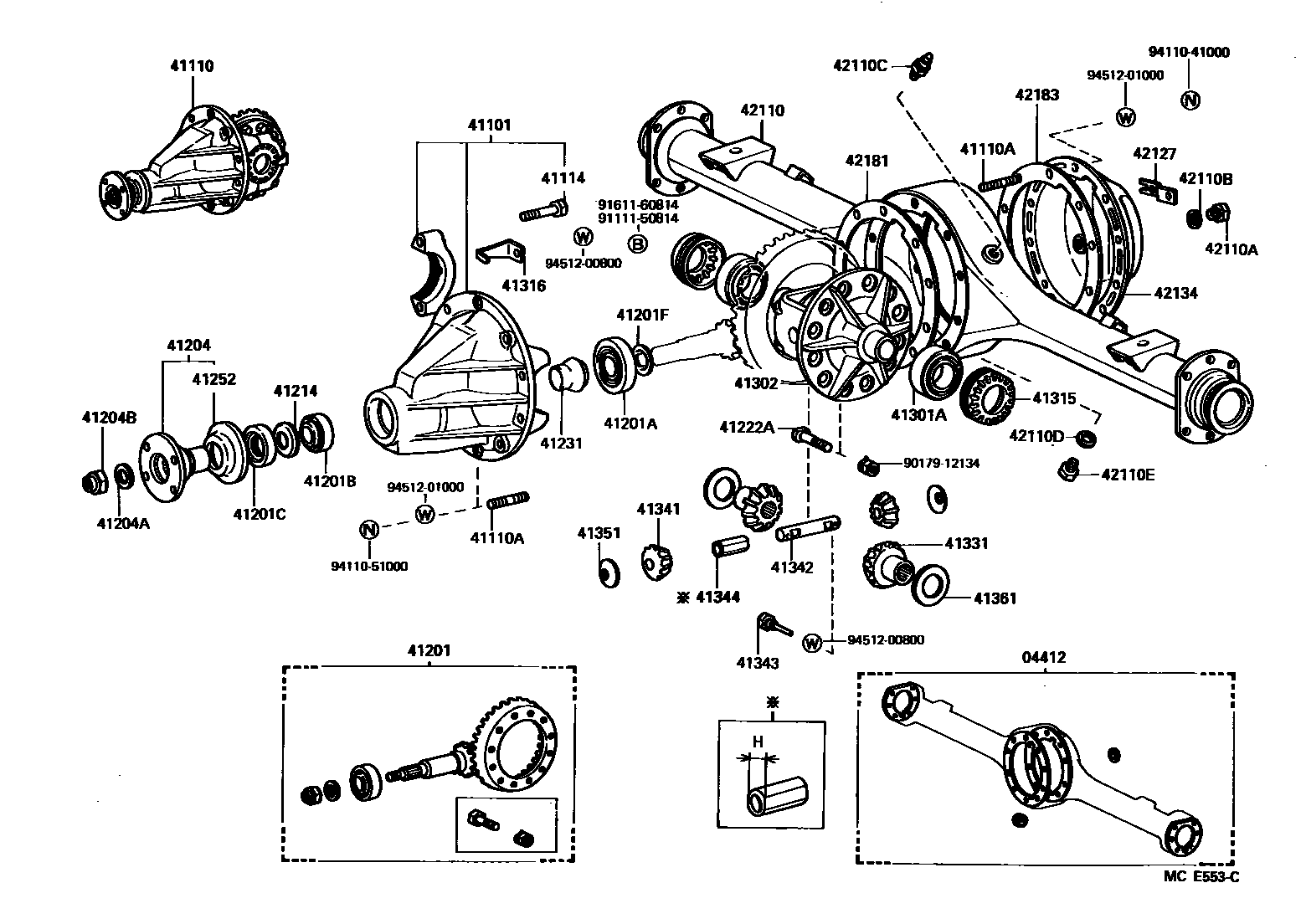

Parts diagram
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
main04412-35040i198708-199505
main04412-35060i198708-199505
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
main41101-35012i198708-198911
CHINA SPEC
sub41101-35013
main41101-35013i198911-199505
CHINA SPEC
main41101-35030i198708-198905
sub41101-35031
sub90116-08329
main41101-35031i198905-199505
main41101-35070i198808-198905
sub41101-35071
sub90116-08329
sub90116-08334
main41101-35071i198905-199505
sub41101-35170
main41101-60070i198708-198911
sub41101-60071
main41101-60071i198911-199005
main41101-60130i199005-199505
sub41101-25020
41110CARRIER ASSY, DIFFERENTIAL, REAR
main41110-25082i198708-198905
*FGR=39:10=3.900
sub41110-25083
sub90116-08329
sub90116-08334
main41110-25083i198905-199505
*FGR=39:10=3.900
sub41110-35411
main41110-25102i198708-199505
*FGR=37:7=5.286
sub41110-25103
main41110-25160i198808-199505
*FGR=39:8=4.875
sub41110-25161
main41110-25170i198708-199505
*FGR=41:7=5.857,CHINA SPEC
main41110-25170i198708-199505
*FGR=41:7=5.857
main41110-25190i198808-198905
*FGR=41:11=3.727
sub41110-25191
sub90116-08329
sub90116-08334
main41110-25191i198905-199505
*FGR=41:11=3.727
sub41110-35870
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
main90116-08179i198708-198808
L=36
main90116-08180i198708-198908
L=44
main90116-08285i198808-198908
L=38
main90116-08329i198908-199505
S=17 & 12,L=37
main90116-08334i198908-199505
S=12 & 14,L=44
main90116-10074i198708-199505
S=16 & 12.5,L=40.5
main90116-10075i198708-199505
S=18 & 12.5,L=53.5
main90116-10076i198708-199505
S=15 & 12.5,L=35.5
41114BOLT, REAR DIFFERENTIAL BEARING CAP
main90105-12053i198708-199505
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
main41201-29557i198708-199505
*FGR=37:7=5.286
sub41201-29558
sub41204-35040
sub41214-26011
main41201-29675i198808-199505
*FGR=41:11=3.727
sub41201-29655
main41201-29686i198808-199505
*FGR=39:8=4.875
sub41201-29687
sub41204-35081
sub41214-26011
main41201-29705i198708-199505
*FGR=41:7=5.587
sub41201-29706
sub41204-35040
sub41214-26011
main41201-29705i198708-199505
*FGR=41:7=5.587,CHINA SPEC
sub41201-29706
sub41204-35040
sub41214-26011
main41201-29775i198708-199505
*FGR=39:10=3.900
sub41201-29517
sub41204-35081
sub41214-26011
41201ABEARING (FOR REAR DRIVE PINION REAR)
main90366-35028i198808-199505
sub90366-35087
main90366-35044i198708-199505
main90366-40004i198708-198911
sub90366-40059
main90366-40059i198911-199505
41201BBEARING (FOR REAR DRIVE PINION FRONT)
main90366-30011i198708-198911
main90366-30022i198708-199505
sub90366-30078
main90366-30025i198808-199505
sub90366-30067
main90366-30038i198911-199505
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
main90311-38035i198911-199505
sub90311-38047
main90311-38133i198708-199505
sub90311-38047
main90311-38134i198708-198911
sub90311-38047
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
main90201-35497i198708-199505
OD=47,T=1.70
main90201-35498i198708-199505
OD=47,T=1.73
main90201-35499i198708-199505
OD=47,T=1.76
main90201-35500i198708-199505
OD=47,T=1.79
main90201-35501i198708-199505
OD=47,T=1.82
main90201-35502i198708-199505
OD=47,T=1.85
main90201-35503i198708-199505
OD=47,T=1.88
main90201-35504i198708-199505
OD=47,T=1.91
main90201-35505i198708-199505
OD=47,T=1.94
main90201-35506i198708-199505
OD=47,T=1.97
main90201-35507i198708-199505
OD=47,T=2.00
main90201-35508i198708-199505
OD=47,T=2.03
main90201-35509i198708-199505
OD=47,T=2.06
main90201-35510i198708-199505
OD=47,T=2.09
main90201-35511i198708-199505
OD=47,T=2.12
main90201-35512i198708-199505
OD=47,T=2.15
main90201-35513i198708-199505
OD=47,T=2.18
main90201-35514i198708-199505
OD=47,T=2.21
main90201-35515i198708-199505
OD=47,T=2.24,MARK 01
main90201-35516i198708-199505
OD=47,T=2.27,MARK 02
main90201-35517i198708-199505
OD=47,T=2.30,MARK 03
main90201-35518i198708-199505
OD=47,T=2.33,MARK 04
main90201-40551i198708-199505
T=1.05
sub90564-40004
main90201-40552i198708-199505
T=1.10
sub90564-40007
main90201-40553i198708-199505
T=1.15
sub90564-40009
main90201-40554i198708-199505
T=1.20
sub90564-40011
main90201-40555i198708-199505
T=1.25
sub90564-40013
main90201-40556i198708-199505
T=1.30
sub90564-40015
main90201-40557i198708-199505
T=1.35
sub90564-40017
main90201-40558i198708-199505
T=1.40
sub90564-40019
main90201-40559i198708-199505
T=1.45
sub90564-40021
main90201-40560i198708-199505
T=1.50
sub90564-40023
main90201-40561i198708-199505
T=1.55
sub90564-40025
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
main41204-35040i198708-199505
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
main90201-20005i198708-199308
main90201-22007i198708-199505
41204BNUT (FOR REAR DRIVE PINION)
main90179-20001i198708-199308
main90179-20018i199308-199505
OD=37
main90179-22011i198708-199505
sub90179-22016
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
main41214-26010i198708-199505
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
main41222-35020i198708-199505
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
main41226-35010i198708-199505
main90101-11353i198708-199505
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-24010i198808-199505
main41231-40011i198708-199505
main41231-60020i198708-198911
main41231-60030i198911-199505
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
main41252-35010i198708-199303
sub41252-35020
main41252-35020i199303-199505
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
main90366-50007i198808-199505
main90368-45066i198708-199505
main90368-50024i198911-199505
41302CASE SUB-ASSY, REAR DIFFERENTIAL
main41302-35020i198808-199505
sub41302-26010
main41311-36010i198708-198911
sub41311-60070
sub41343-60030
sub90368-50024
main41311-40020i198708-199505
sub41311-40021
sub90105-11063
main41311-60070i198911-199505
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
main41315-30010i198708-199505
main41315-35010i198708-199505
main41315-35020i198808-199505
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
main41316-30010i198708-199505
main41316-35010i198808-199505
41331GEAR, REAR DIFFERENTIAL SIDE
main41331-25010i198808-199505
main41331-35011i198708-199505
main41331-35020i198708-198808
main41331-35040i198808-199505
sub41039-34060
sub41039-34080
41341PINION, REAR DIFFERENTIAL
main41341-25010i198808-199505
main41341-30020i199408-199505
sub41341-30050
main41341-35010i198808-199408
sub41341-14041
main41341-35020i198708-199505
main41341-55012i198708-198808
sub41341-55013
41342SHAFT, REAR DIFFERENTIAL PINION
main41342-39610i198708-199505
main41342-55010i198708-199505
41343PIN, REAR DIFFERENTIAL PINION SHAFT
main41343-55010i198708-198911
main41343-60030i198911-199505
main90250-06085i198708-199505
41344SPACER, DIFFERENTIAL PINION SHAFT
main41344-35010i198708-199505
main41345-35010i198708-199505
main41346-35010i198708-199505
main41347-35010i198708-199505
main41348-35010i198708-199505
41351WASHER, REAR DIFFERENTIAL PINION THRUST
main41351-25010i198808-199505
main41351-30052i198708-199505
main41351-30060i198808-199505
main41351-35011i198708-198808
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-24010i198808-199505
T=0.90
sub41361-60E10
main41361-24020i198808-199505
T=1.00
sub41361-60E50
main41361-24030i198808-199505
T=1.10
sub41361-60E90
main41361-24040i198808-199505
T=1.20
sub41361-60F30
main41361-24050i198808-199505
T=1.30
sub41361-60F70
main41361-40021i198708-199505
T=1.6
main41361-60010i198708-199505
T=1.60
sub41361-60011
main41361-60020i198708-199505
T=1.75
sub41361-60021
main41361-60030i198708-199505
T=1.90
sub41361-60031
main41361-60040i198708-199505
T=2.05
sub41361-60041
main41362-40021i198708-199505
T=1.7
main41363-40021i198708-199505
T=1.8
42110HOUSING ASSY, REAR AXLE
main42110-25250i198708-199505
main42110-25260i198708-199505
42110APLUG (FOR REAR AXLE HOUSING FILLER)
main90341-18006i198708-199505
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
main12157-10010i198708-199505
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
main90930-03031i198708-199505
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
main12157-10010i198708-199505
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
main90341-18040i199110-199505
main90341-18057i198708-199505
42127ATTACHMENT, BRAKE TUBE CLAMP, NO.1
main42127-25010i198708-199505
42134COVER, REAR AXLE HOUSING
main42109-60020i198708-199505
42181GASKET, REAR DIFFERENTIAL CARRIER
main42181-36010i198708-199010
sub42181-60060
main42181-60020i198708-199505
main42181-60060i199010-199505
42183GASKET, REAR AXLE HOUSING COVER
main42183-35010i198708-199505
9017912134
main90179-12134
9111150814
main91111-50814
9161160814
main91611-60814
9411041000
main94110-41000
9411051000
main94110-51000
9451200800
main94512-00800
9451201000
main94512-01000

46 parts on this diagram · 3 diagrams in section
