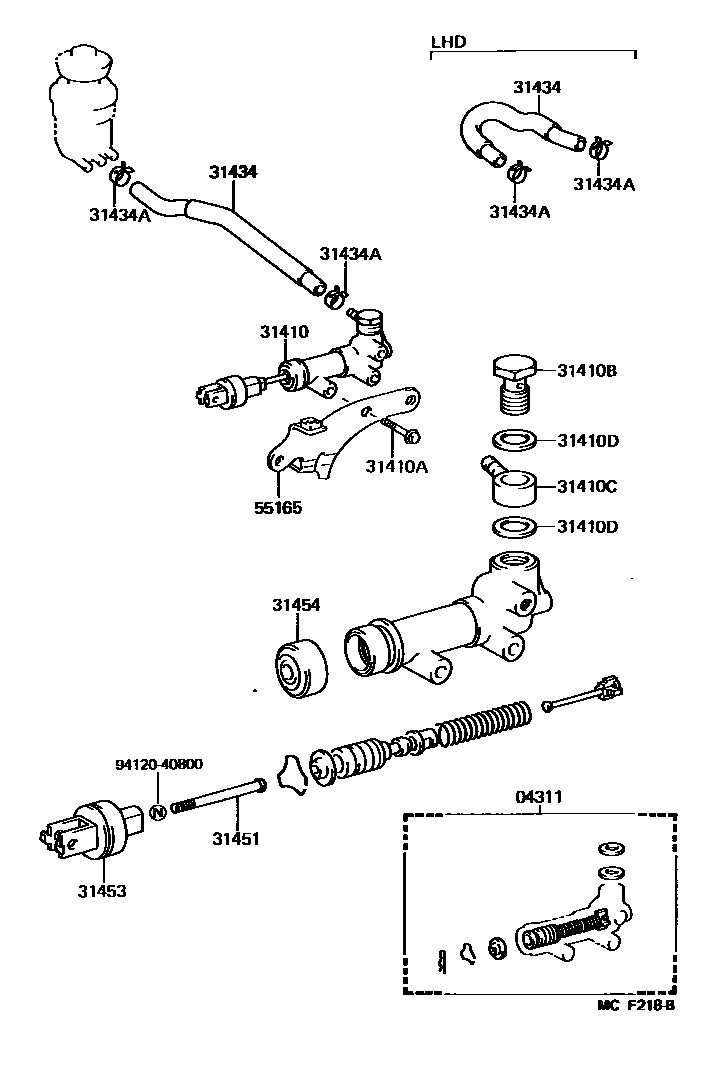

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-26033iLY60,YY52,61198708-198802

sub04311-26035

main04311-26035iLY60,YY52,61198802-198808

main04311-35051iLY61,YY52,61198808-199108

sub04311-35052

main04311-35052iLY61,YY52,61199108-199505

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26141iLY60,YY52,61198708-198710

sub31420-26142

main31420-26142iLY60,YY52,61198710-198808

main31420-26160iLY61,YY52,61198808-199505

sub31420-37040

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865iLY60,YY52,61198708-198808

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-16078iLY60,YY52,61198708-198808

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10125iLY60,YY52,61198708-198808

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-16242iLY60,YY52,61198708-198808

31434TUBE, CLUTCH RESERVOIR

main31434-36090iLY60,YY61..RHD198708-198808

main31434-36100iLY60,YY52,61..LHD198708-198808

main31434-36190iLY61,YY61..RHD198808-199505

main31434-36200iLY61,YY52,61..LHD198808-199505

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iLY6#,YY52,61198708-199505

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iLY60,YY52,61198708-198808

main31451-36040iLY61,YY52,61198808-199505

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLY60,YY52,61198708-198808

sub31404-28012

main31404-35020iLY61,YY52,61198808-198904

sub31404-35021

main31404-35021iLY61,YY52,61198904-199505

sub31404-35030

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLY6#,YY52,61198708-199505

55165SUPPORT, CLUTCH MASTER CYLINDER

main55165-95401iLY6#,YY52,61198708-199505

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
