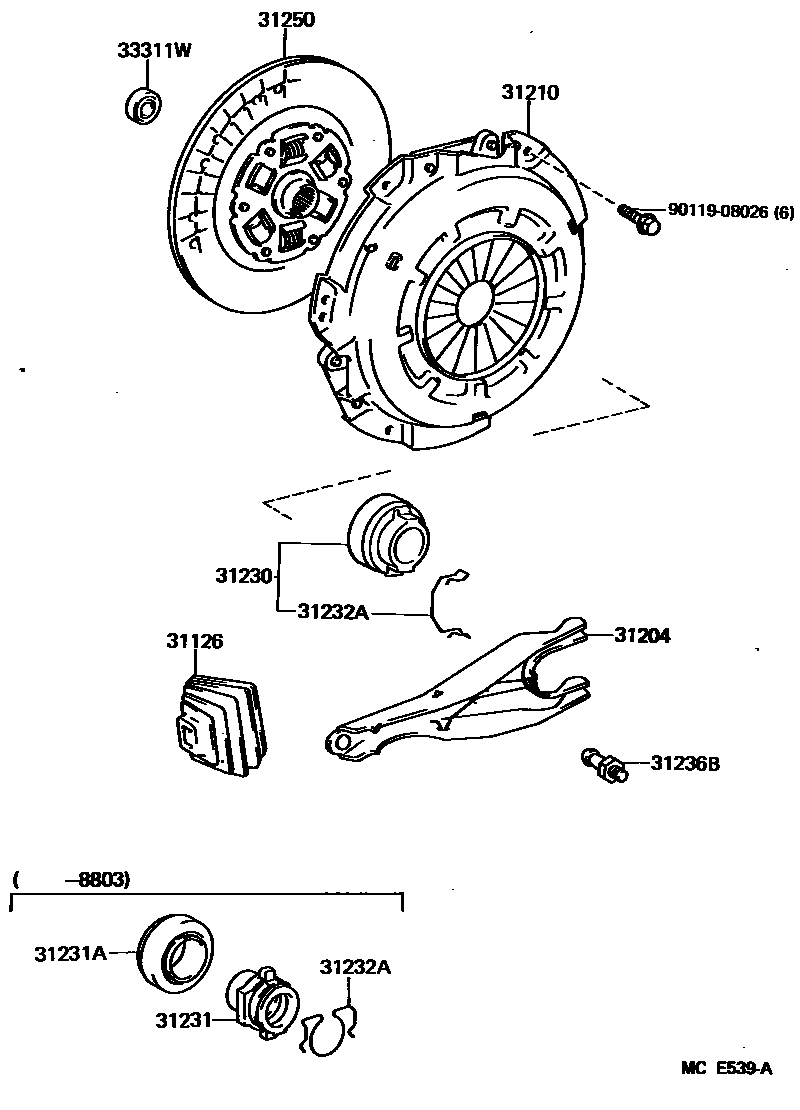

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLY6#,YY52,61198708-199409

main31126-34010iLY61,YY52,61199409-199505

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35030iLY60,YY52,61198708-198806

sub31204-35031

main31204-35031iLY6#,YY52,61198806-199505

31210COVER ASSY, CLUTCH

main31210-14130iLY60,YY52,61198708-198808

sub31210-35090

main31210-35090iYY52,61198808-199505

sub31210-22100

main31210-35100iLY61198808-199505

sub31210-35101

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLY6#,YY52,61198803-199505

sub31230-35071

31231HUB, CLUTCH RELEASE BEARING

main31231-35030iLY60,YY52,61198708-198803

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLY60,YY52,61198708-198803

31232ACLIP, RELEASE BEARING HUB

main31232-35010iLY60,YY52,61198708-198803

main31232-35020iLY60,YY52,61198803-198807

main31232-35020iLY6#,YY52,61198807-199505

NSK BEARING

main31232-35030iLY6#,YY52,61198807-199505

NACHI BEARING

31236BSUPPORT, RELEASE FORK

main31236-35030iLY6#,YY52,61198708-199505

31250DISC ASSY, CLUTCH

main31250-25111iLY60198708-198808

sub31250-26052

main31250-25122iYY52,61198708-199505

sub31250-20240

main31250-35220iLY61198808-199505

sub31250-35221

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLY6#,YY52,61198708-199505

sub90363-12024

9011908026

main90119-08026

11 parts on this diagram · 1 diagram in section
