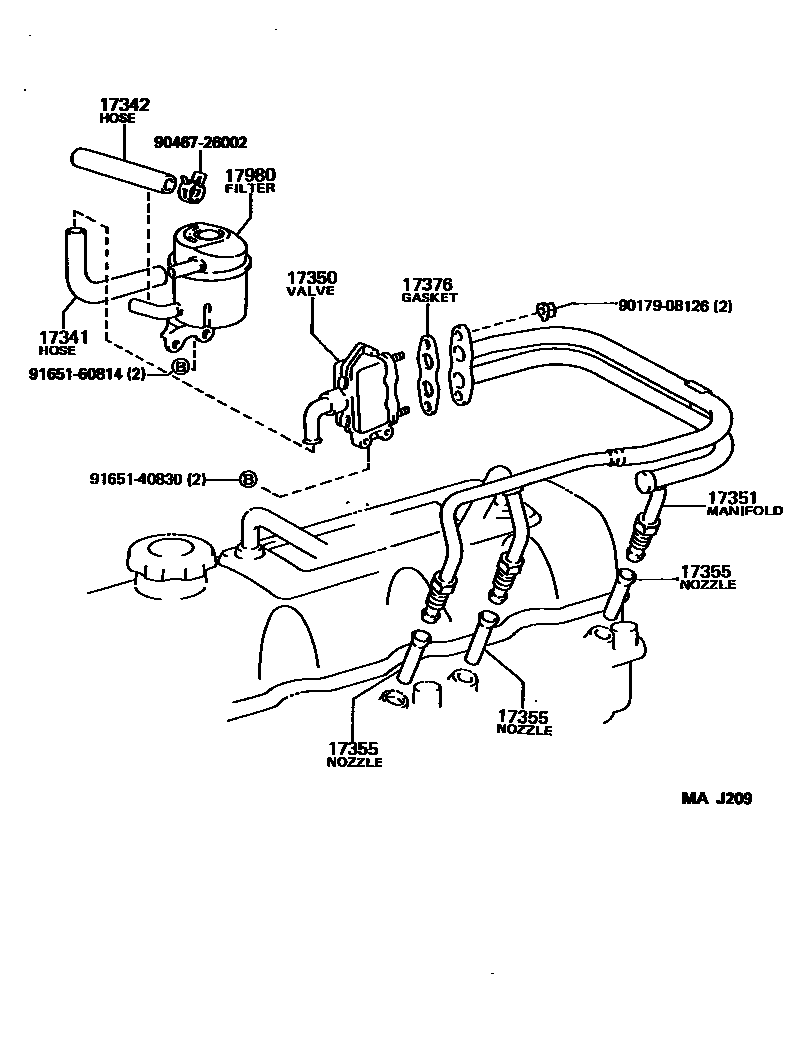

MANIFOLD AIR INJECTION SYSTEM

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-71010i3Y..YY61..RHD..ST199208-199505

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-72011i3Y..YY61..RHD..ST199208-199505

17350VALVE ASSY, REED

main17350-72040i3Y..YY61..RHD..ST199208-199505

17351MANIFOLD, AIR INJECTION

main17306-73011i3Y..YY61..RHD..ST199208-199505

17355NOZZLE, AIR INJECTION

main17355-71010i3Y..YY61..RHD..ST199208-199505

17376GASKET, AIR TUBE, NO.1

main17376-71011i3Y..YY61..RHD..ST199208-199505

17980FILTER ASSY, AIR SUCTION

main17980-71012i3Y..YY61..RHD..ST199208-199505

9017908126

main90179-08126

9046726002

main90467-26002

9165140830

main91651-40830

9165160814

main91651-60814

11 parts on this diagram · 1 diagram in section
