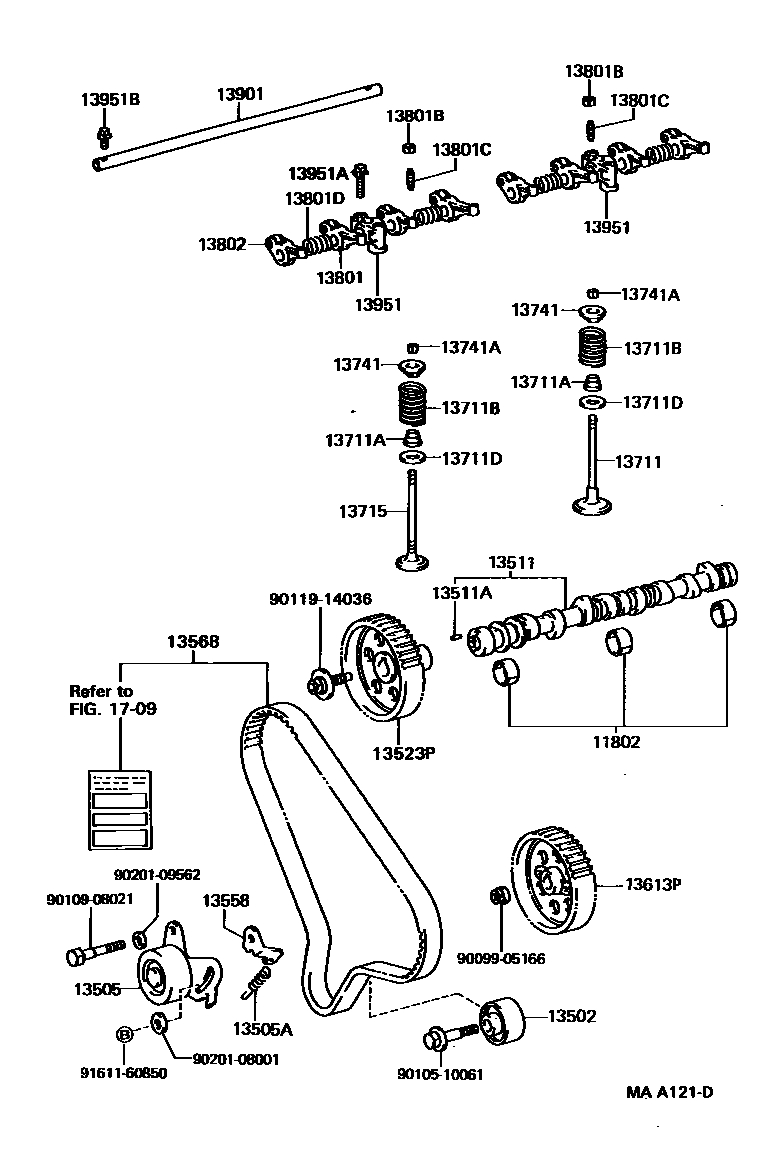

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
U/S 0.125
U/S 0.25
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505ASPRING, TENSION(FOR IDLER)
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523PPULLEY, CAMSHAFT TIMING
13558BRACKET, SPRING(FOR IDLER)
13613PPULLEY, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
sub90913-02110
sub90913-02059
sub90913-02080
sub90913-02098
sub90913-02094
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
EXHAUST,EXHAUST
EXHAUST
SINGAPORE SPEC
INTAKE,INTAKE
INTAKE
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
1709
9009905166
main90099-05166
9010510061
main90105-10061
9010908021
main90109-08021
9011914036
main90119-14036
9020108001
main90201-08001
9020109562
main90201-09562
9161160850
main91611-60850
35 parts on this diagram · 3 diagrams in section
