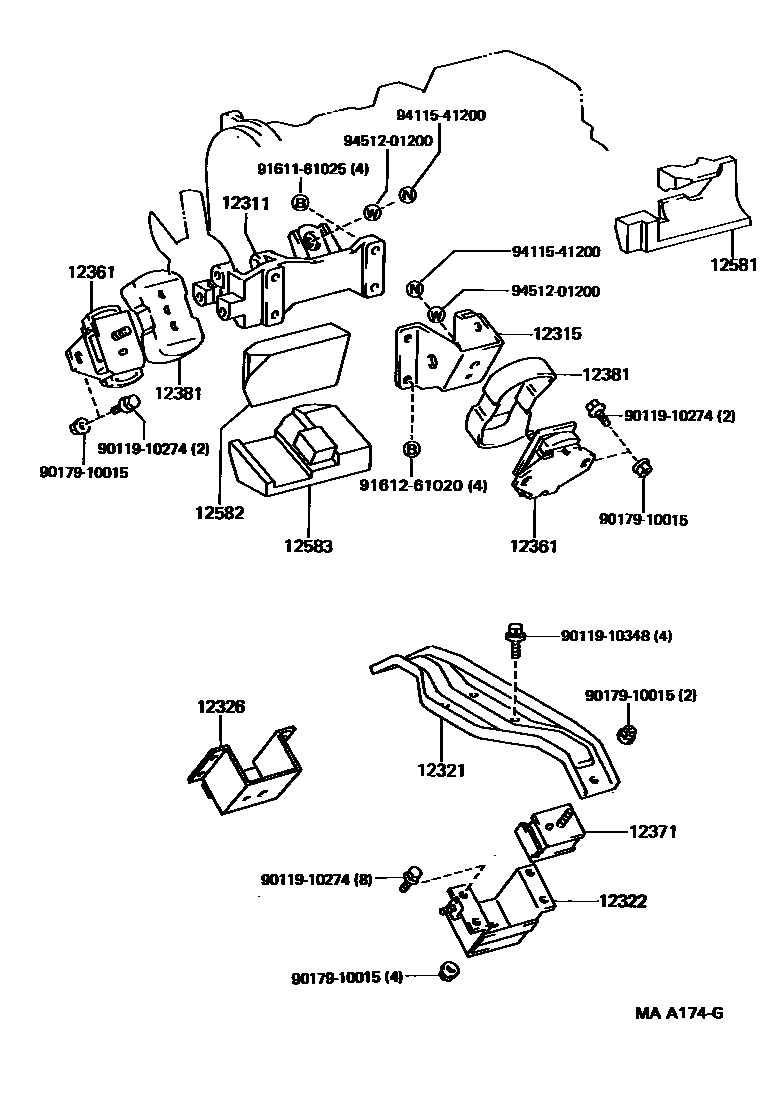

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54090i2L,3L..LY6#198708-199505

sub12311-54091

main12311-71010i3Y..YY52,61198708-199505

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54021i3L..LY61..GEN;2L..LY60..ST..GEN198708-199505

main12315-71010i3Y..YY52,61198708-199505

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-73010i2L,3L..LY6#198708-199505

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-71070i2L,3L..LY6#198708-199505

12326BRACKET, ENGINE MOUNTING STAY

main12326-71010i2L,3L..LY6#198708-199505

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54120i2L,3L..LY6#198708-199001

sub12361-54121

main12361-54121i3L..LY61199001-199505

main12361-71020i3Y..YY52,61198708-199505

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-54070i2L,3L..LY6#198708-199505

12381STABILIZER, ENGINE MOUNTING

main12381-54040i2L,3L..LY6#198708-199505

main12381-71030i3Y..YY52,61198708-199505

12581INSULATOR, CYLINDER BLOCK, NO.1

main12581-54010i3L..LY61..ARL199210-199505

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-54010i3L..LY61..GEN..IV198808-198910

IRELAND SPEC

sub12582-54011

main12582-54011i3L..LY61..ARL199210-199401

sub12582-54020

main12582-54020i3L..LY61..ARL199401-199505

sub12582-54021

12583INSULATOR, CYLINDER BLOCK, NO.3

main12583-54010i3L..LY61..GEN..IV198808-198910

IRELAND SPEC

sub12583-54030

main12583-54010i3L..LY61..ARL199210-199401

sub12583-54030

main12583-54030i3L..LY61..ARL199401-199505

9011910274

main90119-10274

9011910348

main90119-10348

9017910015

main90179-10015

9161161025

main91611-61025

9161261020

main91612-61020

9411541200

main94115-41200

9451201200

main94512-01200

18 parts on this diagram · 2 diagrams in section
