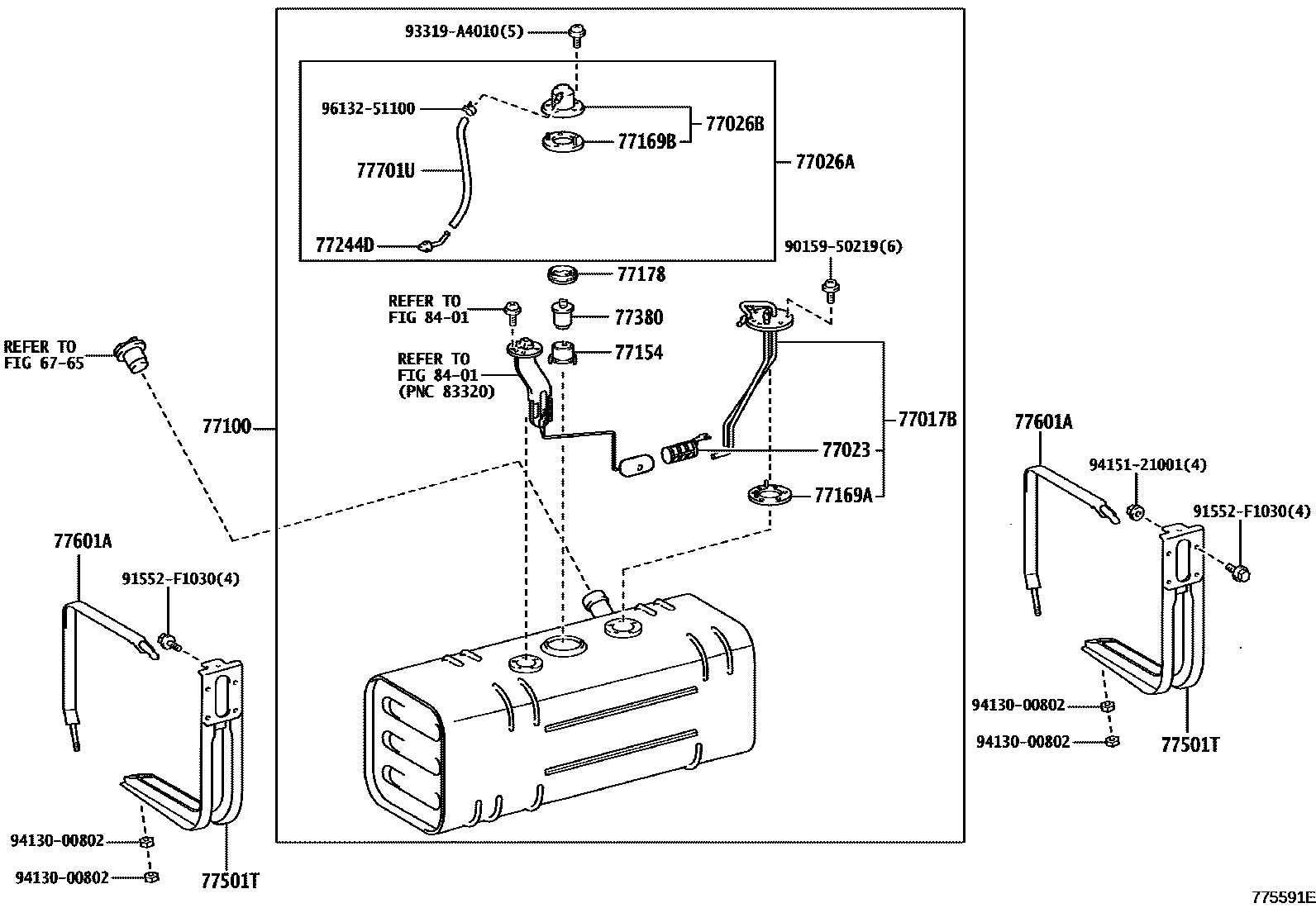

FUEL TANK & TUBE

0001 1FUEL TANK & FUEL TANK STAY 0002 1FUEL TANK(80L) & FUEL TANK ST0003 1FUEL TUBE 0004 1FUEL TUBE

6765

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-25120iLY230¥2,860202202-202503

main77017-25200iGDY231..IV3¥2,800202108-202405

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-26020iLY230¥550202202-202503

main77023-36010iGDY231..CBU¥540202108-202405

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-25010iGDY231..IV3¥2,220202108-202503

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-37010iGDY231..CBU¥1,250202108-202503

77100TANK ASSY, FUEL

main77100-25500iGDY231..CBU¥35,000202108-202405

main77100-25520iLY230202202-202503

77154PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT

main77154-25010iGDY231..CBU¥310202108-202503

77169AGASKET, FUEL SUCTION TUBE SET

main77169-32010iGDY231..CBU¥400202108-202503

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-14020iGDY231..CBU¥330202108-202503

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-44010iGDY231..CBU¥70202108-202503

77244DTUBE, FUEL EVAPORATION BREATHER, NO.1

main77244-25030iGDY231..CBU¥620202108-202503

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iGDY231..CBU¥780202108-202503

77501TBRACKET SUB-ASSY, FUEL TANK

main77501-25190iGDY231..CBU¥8,500202108-202503

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-25140iGDY231..CBU¥1,350202108-202503

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06030iGDY231..CBU¥580202108-202503

*H,L=260

sub95338-06030¥580

8401

9015950219

main90159-50219¥70

91552F1030

main91552-F1030¥100

93319A4010

main93319-A4010¥60

9413000802

main94130-00802¥90

9415121001

main94151-21001¥100

9613251100

main96132-51100¥120

22 parts on this diagram · 4 diagrams in section
