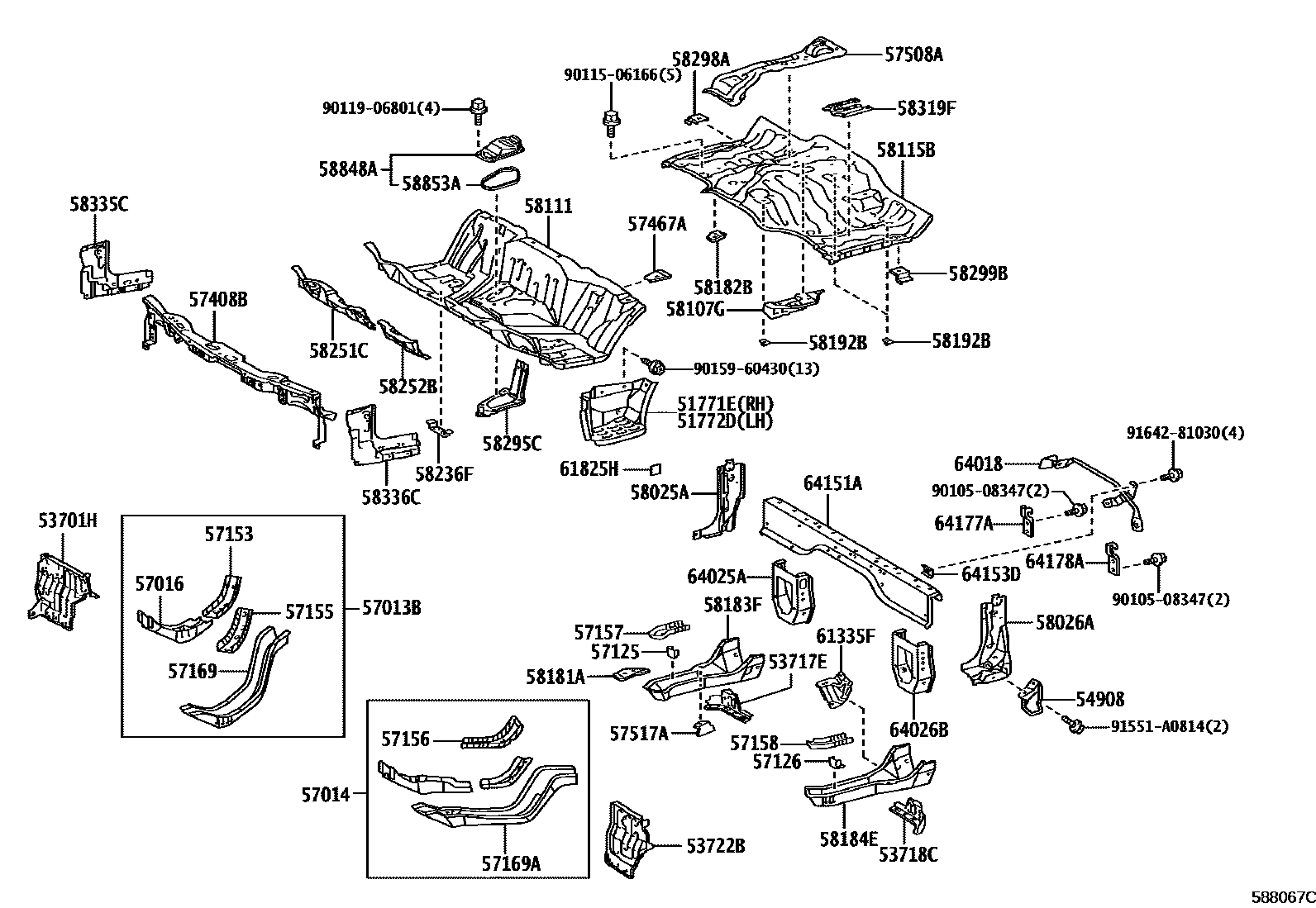

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PAN & FRAME BACK 0002 1FLOOR PAN & FRAME BACK 0003 1FLOOR PAN & FRAME BACK 0004 1MUDGUARD & FENDER APRON

51771EPLATE, STEP, RH

main51771-25021iLY230202108-202503

51772DPLATE, STEP, LH

main51772-25021iLY230..LHD202302-202503

main51772-37131iLY230..LHD202108-202302

53701HAPRON SUB-ASSY, FRONT FENDER, RH

main53701-37032iLY230..LHD202202-202503

main53701-37090iGDY231..CBU202108-202305

53717EAPRON, FRONT FENDER, NO.2 RH

main53717-25050iGDY231..CBU202108-202305

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37110iGDY231..CBU202108-202305

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37032iGDY231..CBU202108-202305

54908BRACKET SUB-ASSY, TILT CAB GRIP

main54908-37010iGDY231..IV3202108-202405

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-37240iGDY231..CBU202108-202305

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-37070iGDY231..CBU202108-202305

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-37030iGDY231..CBU202108-202305

57125BRACKET, FRONT SIDE MEMBER, RH

main57125-37010iGDY231..CBU202108-202305

57126BRACKET, FRONT SIDE MEMBER, LH

main57126-37020iGDY231..CBU202108-202305

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-37010iGDY231..CBU202108-202305

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-37020iGDY231..CBU202108-202305

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-37021iGDY231..CBU202108-202305

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-37030iGDY231..IV3202108-202405

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-37030iGDY231..CBU202108-202305

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-37082iGDY231..CBU202108-202305

57169AMEMBER, FRONT FLOOR, FRONT LH

main57179-37071iGDY231..CBU202108-202305

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-25470iGDY231..CBU202108-202305

main57408-25480iLY230..LHD202202-202503

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-37011iGDY231..IV3202108-202405

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-25010iGDY231..IV3202108-202405

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-37011iGDY231..CBU202108-202305

main57517-37021iLY230..LHD202202-202503

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58043-25020iGDY231,LY230202108-202203

main58043-25030iGDY231..CBU202203-202305

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58044-37090iLY230202108-202503

58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE

main58107-25030iGDY231..CBU202108-202305

58111PAN, FRONT FLOOR

main58111-25430iGDY231..CBU202108-202305

main58111-25450iLY230..RHD202202-202503

main58111-37268iLY230..LHD202202-202503

58115BPANEL, FRONT FLOOR, REAR

main58115-25050iGDY231..CBU202108-202305

58181ARETAINER, SEAT RAIL, FRONT

main58181-37030iLY230..RHD202108-202505

main58181-37050iLY230..LHD202202-202503

58182BRETAINER, SEAT RAIL, FRONT LH

main58182-37010iGDY231..CBU202108-202305

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-37063iGDY231..IV3202108-202405

main58183-37072iLY230..LHD202202-202503

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-25061iLY230..LHD202202-202503

main58184-37075iGDY231..CBU202108-202305

58192BPLATE, FRONT FLOOR, REAR

main58192-37020×3iGDY231..CBU202108-202305

58236FBRACKET, CLUTCH TUBE

main58236-95J01iGDY231..CBU202108-202305

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-37032iGDY231..CBU202108-202305

main58251-37051iLY230..LHD202202-202503

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37061iLY230..LHD202202-202503

main58252-37081iGDY231..IV3202108-202405

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-25030iGDY231..CBU202108-202305

main58295-37140iLY230..LHD202202-202503

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37010iGDY231..CBU202108-202305

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58298-37010iGDY231..CBU202108-202305

58319FBRACKET, REAR FLOOR SIDE PANEL

main58319-37110iGDY231..CBU202108-202305

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37080iLY230202108-202503

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37032iGDY231..CBU202108-202305

58848ACOVER, SHIFT LEVER HOLE

main58840-37010iGDY231..CBU202108-202305

main58840-37020iLY230..LHD202202-202503

58853APACKING, SHIFT LEVER HOLE

main58853-37020iGDY231..CBU202108-202305

61335FRETAINER, SEAT BELT ANCHOR

main61335-25020iGDY231..CBU202108-202305

61825HPAD, NOISE SHUTTER, NO.2

main61825-34010iGDY231..CBU202203-202305

64018BAR SUB-ASSY, BODY

main64018-25040iLY230..LHD202202-202503

main64018-25060iGDY231..IV3202108-202405

main64018-25070iLY230..RHD202202-202503

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-37100iLY230..LHD202202-202503

main64171-37013iGDY231..CBU202108-202305

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64026-37130iLY230..LHD202202-202503

main64172-37023iGDY231..CBU202108-202305

64151AFRAME, BACK

main64151-25123iLY230..RHD202202-202505

main64151-25150iGDY231..CBU202108-202305

main64151-37422iLY230..LHD202202-202503

64153DREINFORCEMENT, BACK FRAME

main52123-32040iGDY231..CBU202108-202305

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-25010iGDY231..CBU202108-202305

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-25010iGDY231..CBU202108-202305

9010508347

main90105-08347

9011506166

main90115-06166

9011906801

main90119-06801

9015960430

main90159-60430

91551A0814

main91551-A0814

9164281030

main91642-81030

59 parts on this diagram · 4 diagrams in section
