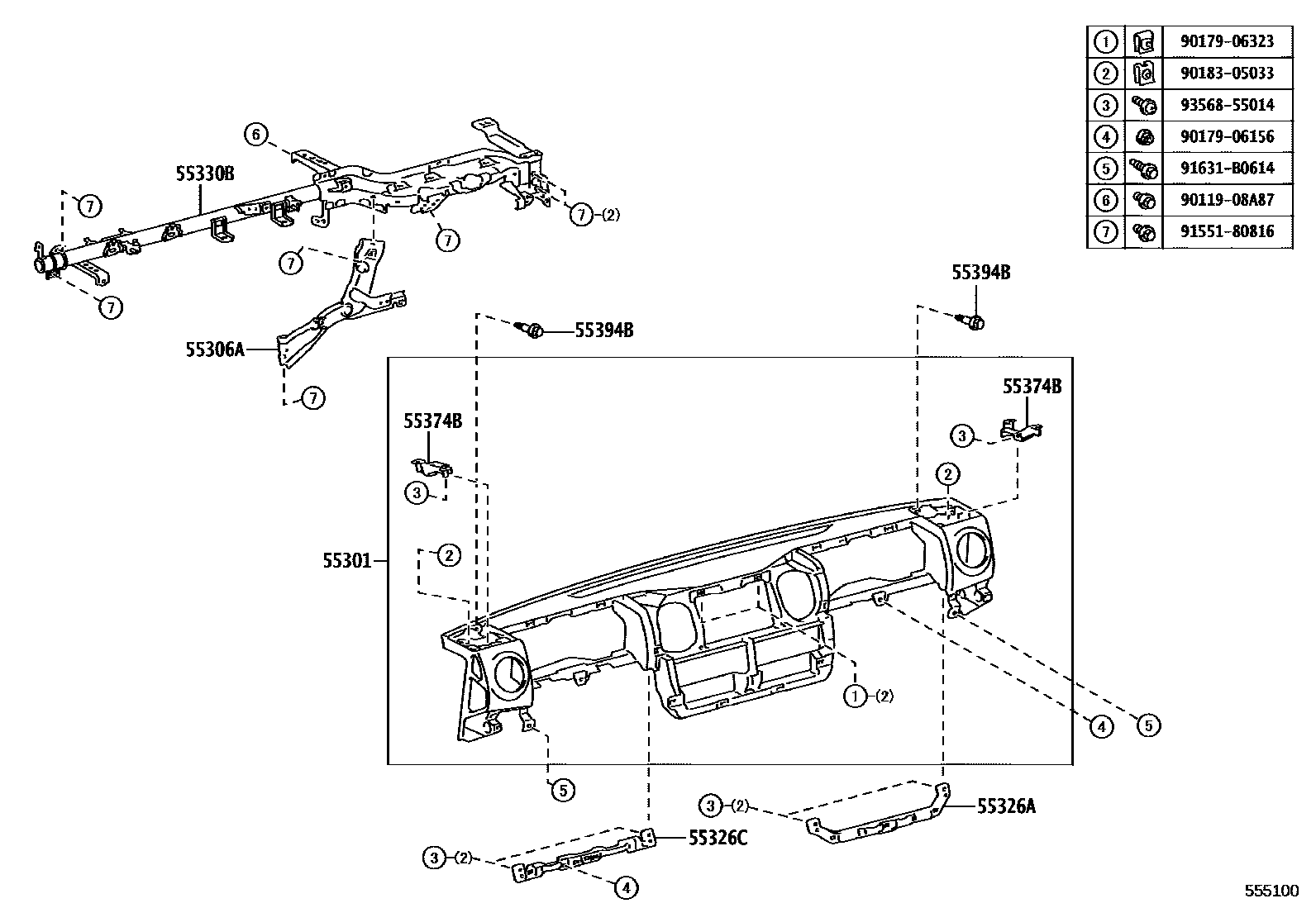

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-37090-C0iLY230202108-202503

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-37073iGDY231..CBU202108-202305

main55306-37074iLY230..RHD202410-202503

main55306-37091iLY230..LHD202202-202503

55326ASTAY, INSTRUMENT PANEL, NO.1

main55429-37010iGDY231..CBU202108-202305

55326CSTAY, INSTRUMENT PANEL, NO.2

main55429-37020iGDY231..CBU202108-202305

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-37210iGDY231..CBU202108-202305

main55330-37220iLY230..RHD202202-202503

main55330-37231iLY230..LHD202202-202503

55374BBRACKET, INSTRUMENT PANEL

main55353-37010×2iGDY231..IV3202108-202405

55394BBOLT, INSTRUMENT PANEL

main55394-37010×2iGDY231..IV3202108-202405

9011908A87

main90119-08A87

9017906156

main90179-06156

9017906323

main90179-06323

9018305033

main90183-05033

9155180816

main91551-80816

91631B0614

main91631-B0614

9356855014

main93568-55014

14 parts on this diagram · 8 diagrams in section
