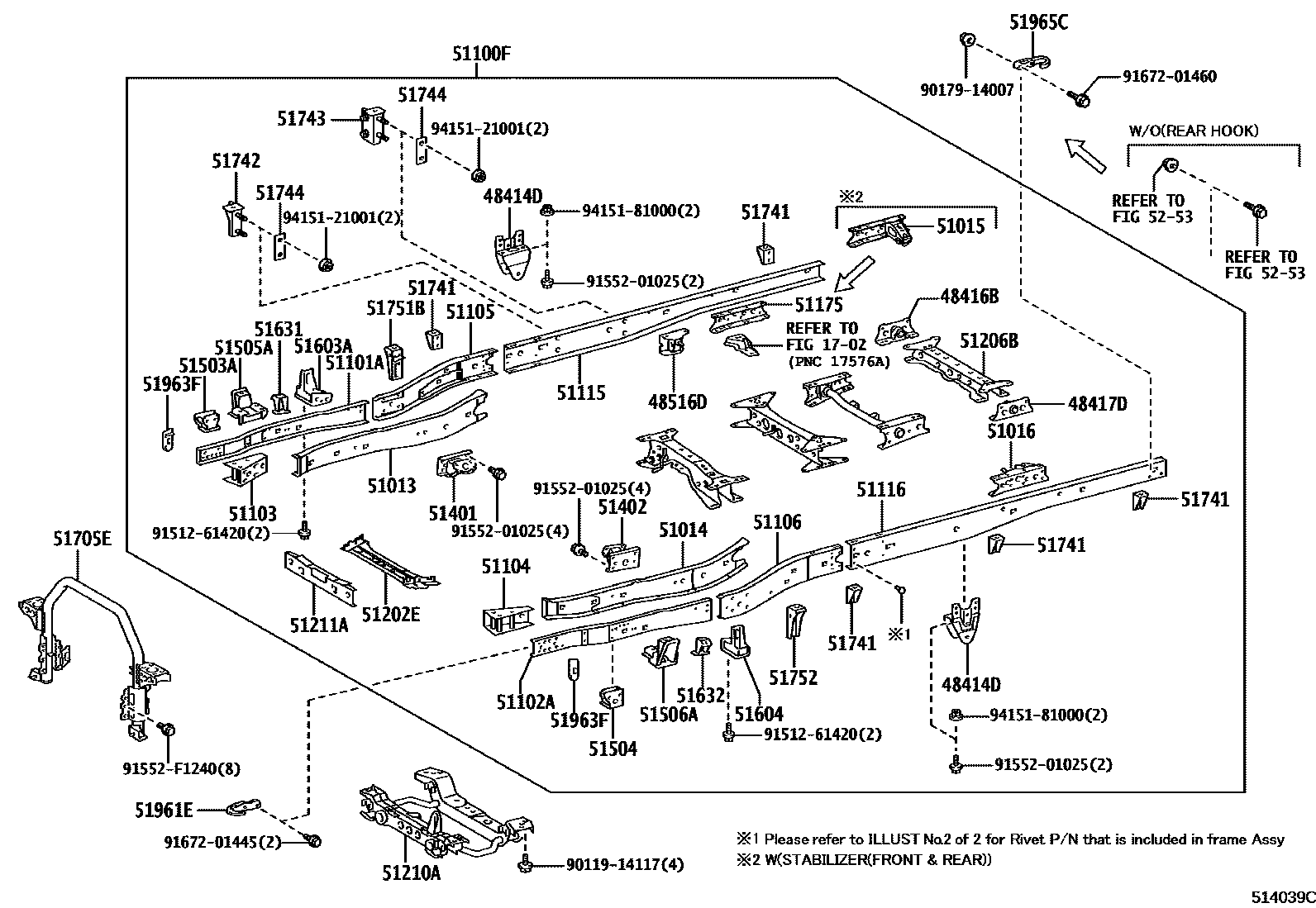

FRAME
1702
48414DBRACKET, SPRING, NO.3
48416BBRACKET, SPRING, NO.4 RH
48417DBRACKET, SPRING, NO.4 LH
48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
51013CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51014CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51015CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR RH, NO.1
STABILIZER-WITH(FRONT & REAR)
51016CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR LH, NO.1
STABILIZER-WITH(FRONT & REAR)
51100FFRAME SUB-ASSY
STABILIZER-WITH(FRONT & REAR)
STABILIZER-WITH(FRONT & REAR)
51101ARAIL SUB-ASSY, FRONT FRAME SIDE, RH
51102ARAIL SUB-ASSY, FRONT FRAME SIDE, LH
51103REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT RH
51104REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT LH
51105RAIL SUB-ASSY, CENTER FRAME, RH
51106RAIL SUB-ASSY, CENTER FRAME, LH
51115RAIL, FRAME SIDE, REAR RH
51116RAIL, FRAME SIDE, REAR LH
51175REINFORCEMENT, SIDE RAIL, NO.3 RH
51202ECROSSMEMBER SUB-ASSY, FRAME, NO.2
51210AMEMBER ASSY, FRONT SUSPENSION
51211ACROSSMEMBER, FRAME, FRONT
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51505ASUPPORT SUB-ASSY, UPPER CONTROL ARM
51506ASUPPORT SUB-ASSY, UPPER CONTROL ARM, LH
51603ABRACKET SUB-ASSY, FRONT BOUND STOPPER, RH
51604BRACKET SUB-ASSY, FRONT BOUND STOPPER, LH
51631STOPPER, FRONT SUSPENSION REBOUND, RH
51632STOPPER, FRONT SUSPENSION REBOUND, LH
51705EBRACKET SUB-ASSY, CAB REAR MOUNTING
51741BRACKET, REAR BODY MOUNTING, NO.1
51742BRACKET, BODY MOUNTING, NO.2
51743BRACKET, BODY MOUNTING, NO.3
51744BRACKET, BODY MOUNTING, NO.4
51751BBRACKET, BODY SUPPORT, NO.1 RH
51752BRACKET, BODY SUPPORT, NO.1 LH
51961EHOOK, FRONT
51963FHOOK, TRANSPORT
51965CHOOK, REAR
TOWING HOOK-FRONT ONLY(WITH TRANSPORT HOOK)
5253
9011914117
main90119-14117
9017914007
main90179-14007
9151261420
main91512-61420
9155201025
main91552-01025
91552F1240
main91552-F1240
9167201445
main91672-01445
9167201460
main91672-01460
9415121001
main94151-21001
9415181000
main94151-81000
53 parts on this diagram · 4 diagrams in section
