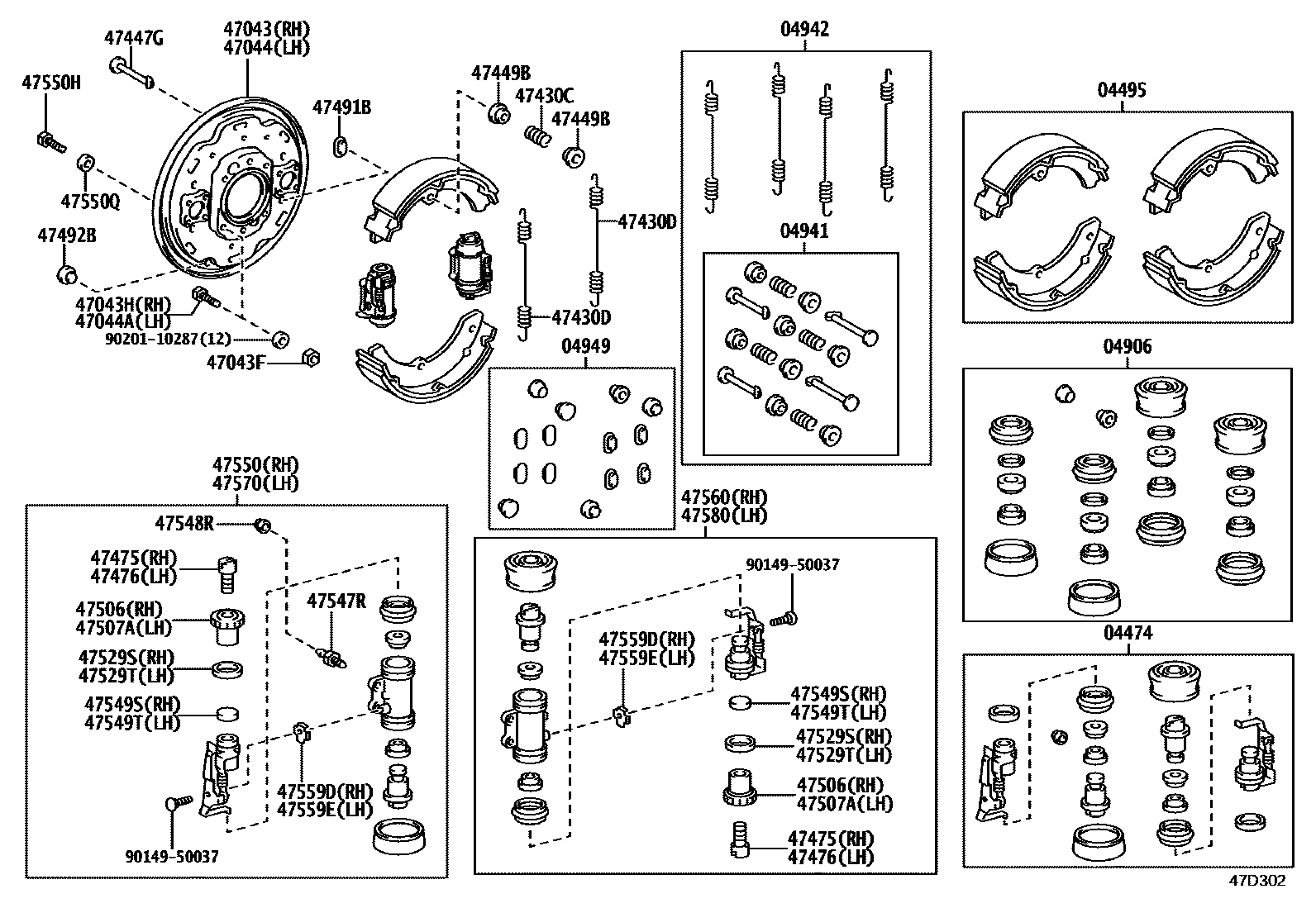

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
LH
LH
RH
RH
04495SHOE KIT, REAR BRAKE
MARK AK LA514
MARK NBK LN508
04906CUP KIT, REAR WHEEL CYLINDER
04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04942SPRING KIT, REAR BRAKE
04949PLUG KIT, REAR BRAKE
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47491BPLUG, HOLE(FOR REAR BRAKE)
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47529SSEAL, REAR BRAKE ADJUST NUT DUST, RH
47529TSEAL, REAR BRAKE ADJUST NUT DUST, LH
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH
47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550HBOLT(FOR REAR WHEEL CYLINDER)
47550QWASHER(FOR REAR WHEEL CYLINDER)
47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH
47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH
47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
9014950037
main90149-50037
9020110287
main90201-10287
37 parts on this diagram · 2 diagrams in section
