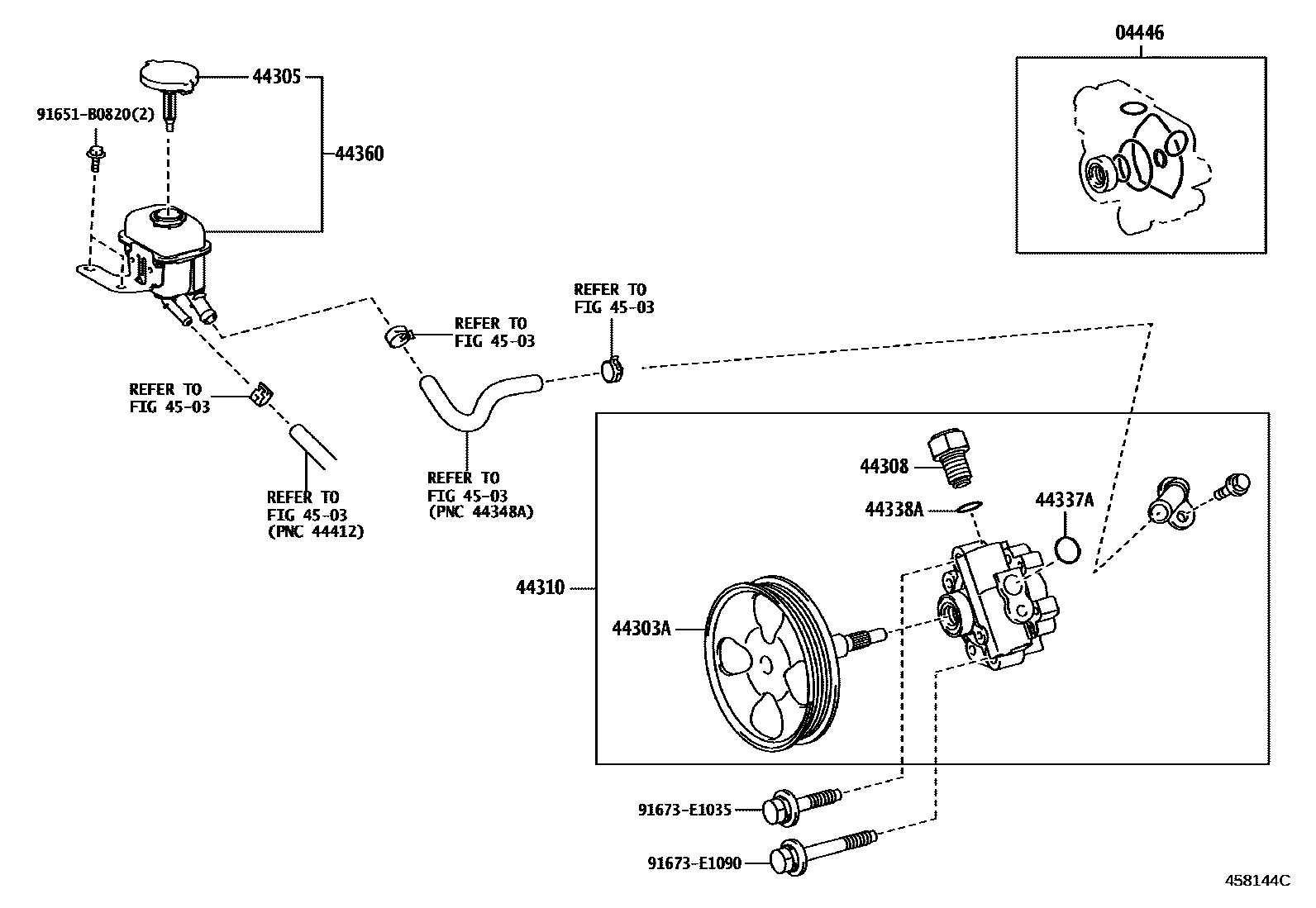

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iGDY231..CBU202108-202405

main04446-53030iLY230202202-202503

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iGDY231..CBU202108-202405

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-25010iGDY231..CBU202108-202405

main44305-28061iLY230202202-202503

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26120iGDY231..CBU202108-202405

44310PUMP ASSY, VANE

main44310-25160iGDY231..CBU202108-202405

44337UNION, POWER STEERING SUCTION PORT

main44337-35070iLY230202202-202503

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iLY230202202-202503

main90301-11020iGDY231..CBU202108-202405

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iGDY231..IV3202108-202405

OD=22,ID=18.6

main90301-19018iLY230202202-202503

ID=19.2,OD=22.3

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-25060iLY230202202-202503

main44360-25070iGDY231..CBU202108-202405

4503

91651B0820

main91651-B0820

91673E1035

main91673-E1035

91673E1090

main91673-E1090

13 parts on this diagram · 2 diagrams in section
