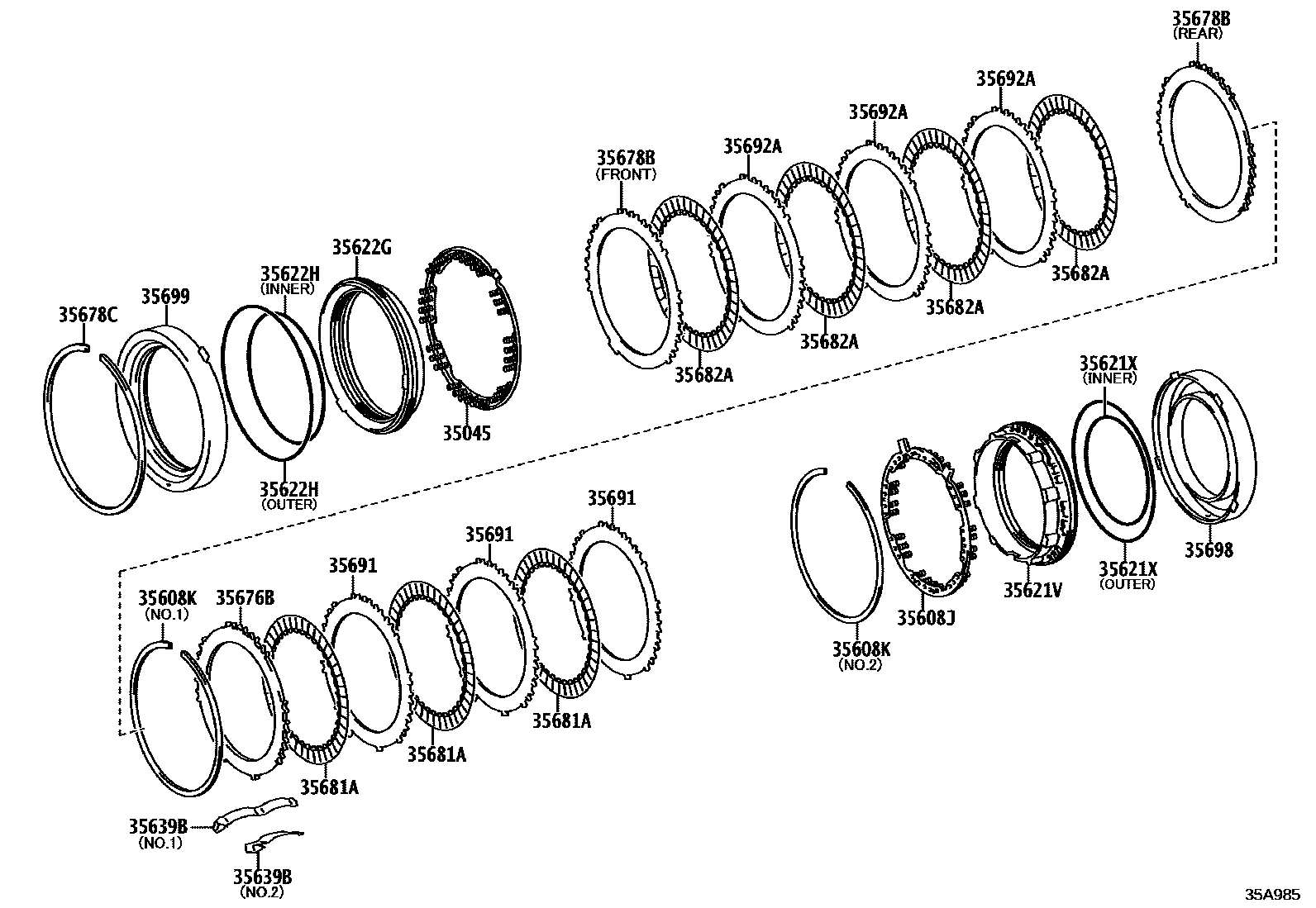

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35621VPISTON, BRAKE, NO.1
35621XRING, O (FOR BRAKE PISTON NO.1)
OUTER
INNER
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
INNER
OUTER
35639BSPRING, BRAKE PLATE STOPPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35676BFLANGE, BRAKE, NO.1
T=4.9
T=5.0
T=5.1
T=5.2
T=5.3
T=5.4
T=5.5
T=5.6
T=5.7
T=5.8
35678BFLANGE, BRAKE, NO.2
T=3.8,REAR
T=2.0,FRONT
T=2.1,FRONT
T=2.2,FRONT
T=2.3,FRONT
T=2.4,FRONT
T=2.5,FRONT
T=2.6,FRONT
T=2.7,FRONT
T=2.8,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
17 parts on this diagram · 1 diagram in section
