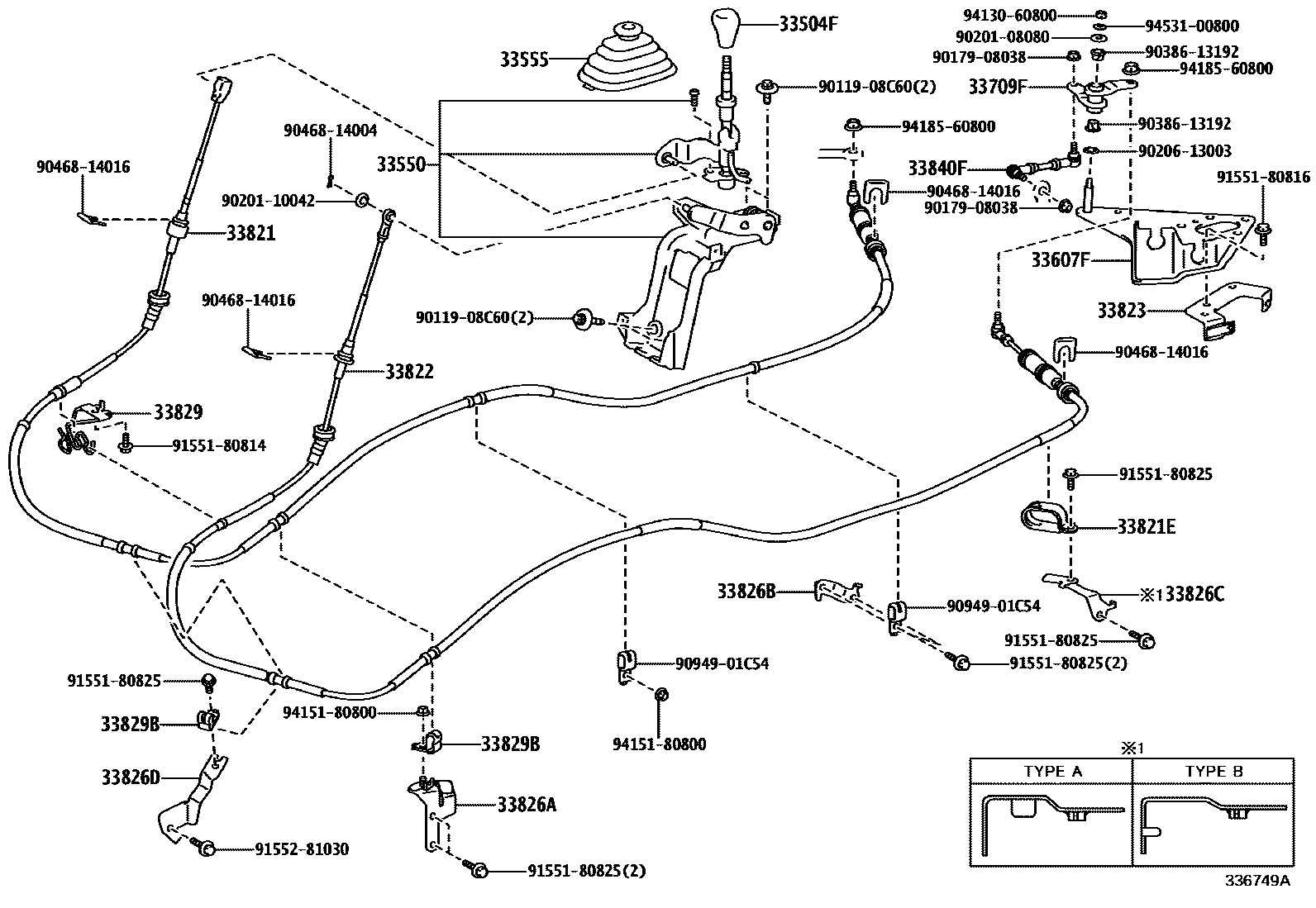

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35030-C1iLY230202108-202503

BLACK,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-37130-C0iGDY231..6FC202108-202305

BLACK,TRIM1#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-25150-C0iGDY231..6FC202108-202305

BLACK,TRIM1#

sub33550-25151

main33550-37290iLY230..LHD202202-202503

main33550-37390-C0iGDY231..IV3202108-202503

BLACK,TRIM1#

33555BOOT, SHIFT LEVER

main58808-37021-C0iLY230..LHD202202-202503

BLACK,TRIM1#

main58808-37030-C0iGDY231..5F..CBU202108-202503

BLACK,TRIM1#

33607FSUPPORT SUB-ASSY, CONTROL ROD (FOR FLOOR SHIFT)

main33607-25131iGDY231..IV3202108-202503

33709FSHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)

main33709-25190iGDY231..5F..CBU202108-202503

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-25100iGDY231..5F202108-202205

sub33821-25101

main33821-25101iGDY231..5F..CBU202206-202405

main33821-25110iLY230..RHD202202-202205

main33821-25111iLY230..RHD202206-202503

main33821-25120iLY230..LHD202202-202205

main33821-25121iLY230..LHD202206-202503

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33829-25050iGDY231..5F..CBU202108-202503

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-25100iGDY231..5F202108-202205

sub33822-25101

main33822-25101iGDY231..IV3202206-202405

main33822-25110iLY230..RHD202202-202205

main33822-25111iLY230..RHD202206-202503

main33822-25120iLY230..LHD202202-202205

main33822-25121iLY230..LHD202206-202503

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33804-25050iGDY231..5F..CBU202108-202503

main33823-25110iGDY231..6FC202108-202305

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-25082iLY230..LHD202202-202503

main33826-25090iGDY231..CBU202108-202503

33826BBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33826-25100iGDY231..5F..CBU202108-202503

33826CBRACKET, TRANSMISSION CONTROL CABLE, NO.4

main33827-25100iGDY231..5F202108-202110

TYPE A:REFER ILLUST.

main33827-25101iLY230..RHD202110-202503

TYPE B:REFER ILLUST.

main33827-25101iLY230..LHD202202-202503

main33828-25040iGDY231..6FC202108-202305

33826DBRACKET, TRANSMISSION CONTROL CABLE, NO.5

main33827-25110iLY230..LHD202202-202503

main33827-25120iLY230..RHD202108-202503

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-25101iLY230..LHD202202-202503

main33829-25120iGDY231..CBU202108-202503

33829BCLAMP, TRANSMISSION CONTROL CABLE

main33829-25080iGDY231..5F..CBU202108-202503

33840FROD ASSY, GEAR SHIFTING, NO.3

main33840-25130iGDY231..5F..CBU202108-202503

9011908C60

main90119-08C60

9017908038

main90179-08038

9020108080

main90201-08080

9020110042

main90201-10042

9020613003

main90206-13003

9038613192

main90386-13192

9046814004

main90468-14004

9046814016

main90468-14016

9094901C54

main90949-01C54

9155180814

main91551-80814

9155180816

main91551-80816

9155180825

main91551-80825

9155281030

main91552-81030

9413060800

main94130-60800

9415180800

main94151-80800

9418560800

main94185-60800

9453100800

main94531-00800

33 parts on this diagram · 4 diagrams in section
