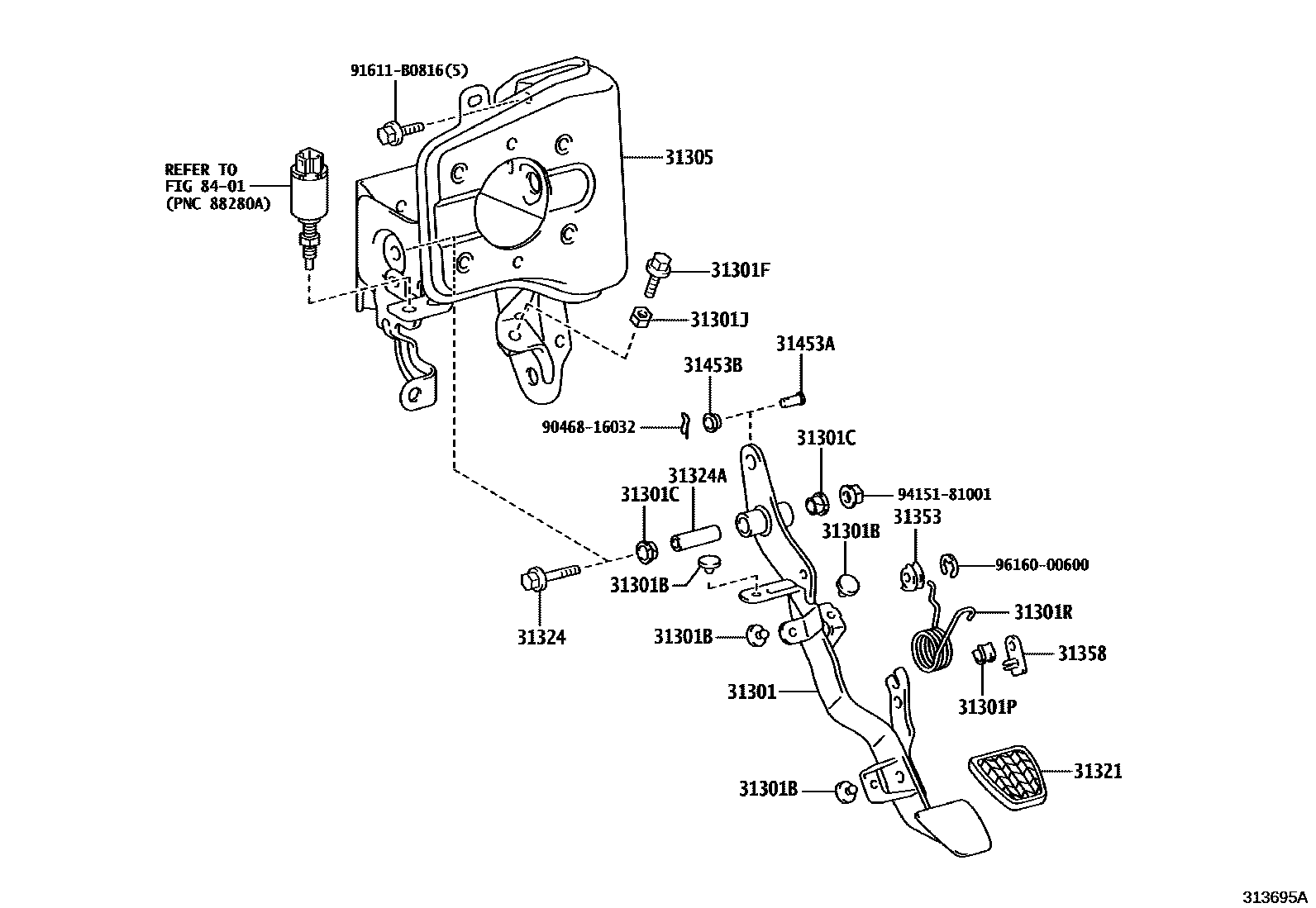

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-25090iGDY231..IV3¥1,900202108-202503

main31301-25100iLY230..LHD¥1,900202202-202503

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iGDY231..5F..CBU¥110202108-202503

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGDY231..5F..CBU¥120202108-202503

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91551-80825iGDY231..5F..CBU¥80202108-202503

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-60800iGDY231..5F..CBU¥60202108-202503

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGDY231..5F..CBU¥100202108-202503

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main31316-25020iGDY231..5F..CBU¥860202108-202405

main31316-25030iLY230¥620202202-202503

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main31305-25010iGDY231..5F..CBU¥3,890202108-202503

31321PAD, CLUTCH PEDAL

main31321-52020iGDY231..5F..CBU¥200202108-202503

31324SHAFT, CLUTCH PEDAL

main91552-81060iGDY231..5F..CBU¥160202108-202503

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGDY231..5F..CBU¥370202108-202503

31353HOLDER, CLUTCH PEDAL SPRING

main31353-37010iGDY231..5F..CBU¥510202108-202503

31358CAP, OVER CENTER SPRING

main31358-42010iGDY231..5F..CBU¥430202108-202503

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLY230¥160202108-202503

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGDY231..IV3¥240202108-202503

8401

9046816032

main90468-16032¥80

91611B0816

main91611-B0816¥140

9415181001

main94151-81001¥110

9616000600

main96160-00600¥80

20 parts on this diagram · 3 diagrams in section
