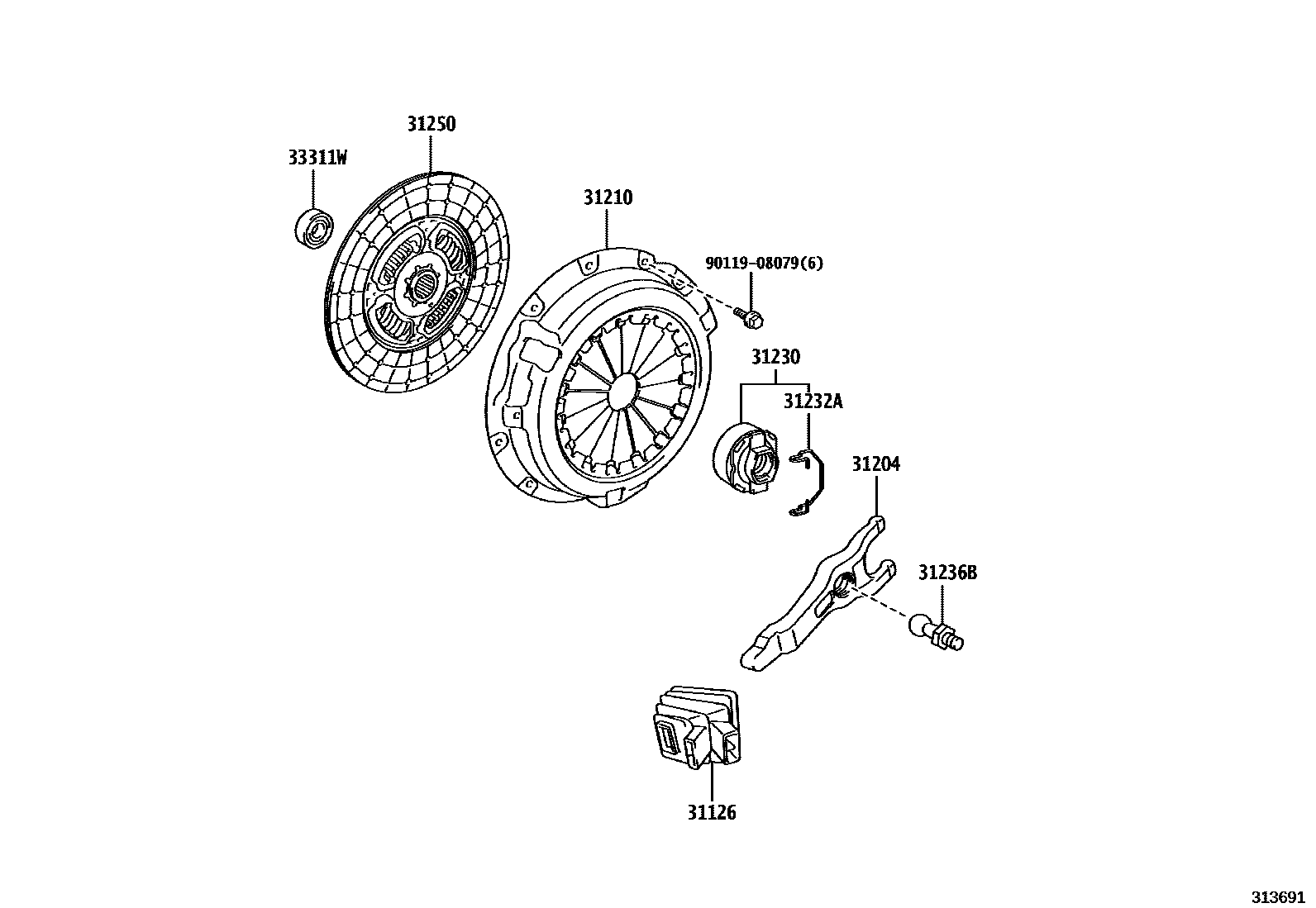

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-34010iLY230¥630202202-202503

main31126-60081iGDY231..IV3¥770202108-202405

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iLY230¥1,440202202-202503

main31204-60090iGDY231..5F..CBU¥3,810202108-202405

31210COVER ASSY, CLUTCH

main31210-26164iLY230¥13,300202202-202503

main31210-36350iGDY231..IV3¥17,700202108-202405

31230BEARING ASSY, CLUTCH RELEASE

main31230-35061iLY230¥3,300202202-202503

main31230-60221iGDY231..5F..CBU¥5,800202108-202405

31232ACLIP, RELEASE BEARING HUB

main31232-35030iLY230¥190202202-202503

main31232-60030iGDY231..5F..CBU¥200202108-202405

31236BSUPPORT, RELEASE FORK

main31236-35030iLY230¥330202202-202503

main31236-60060iGDY231..5F..CBU¥580202108-202405

31250DISC ASSY, CLUTCH

main31250-26182iLY230¥18,300202202-202503

main31250-26253iGDY231..IV3¥16,300202108-202405

33311WBEARING (FOR INPUT SHAFT)

main90363-12024iGDY231..5F..CBU¥520202108-202503

9011908079

main90119-08079¥120

9 parts on this diagram · 2 diagrams in section
