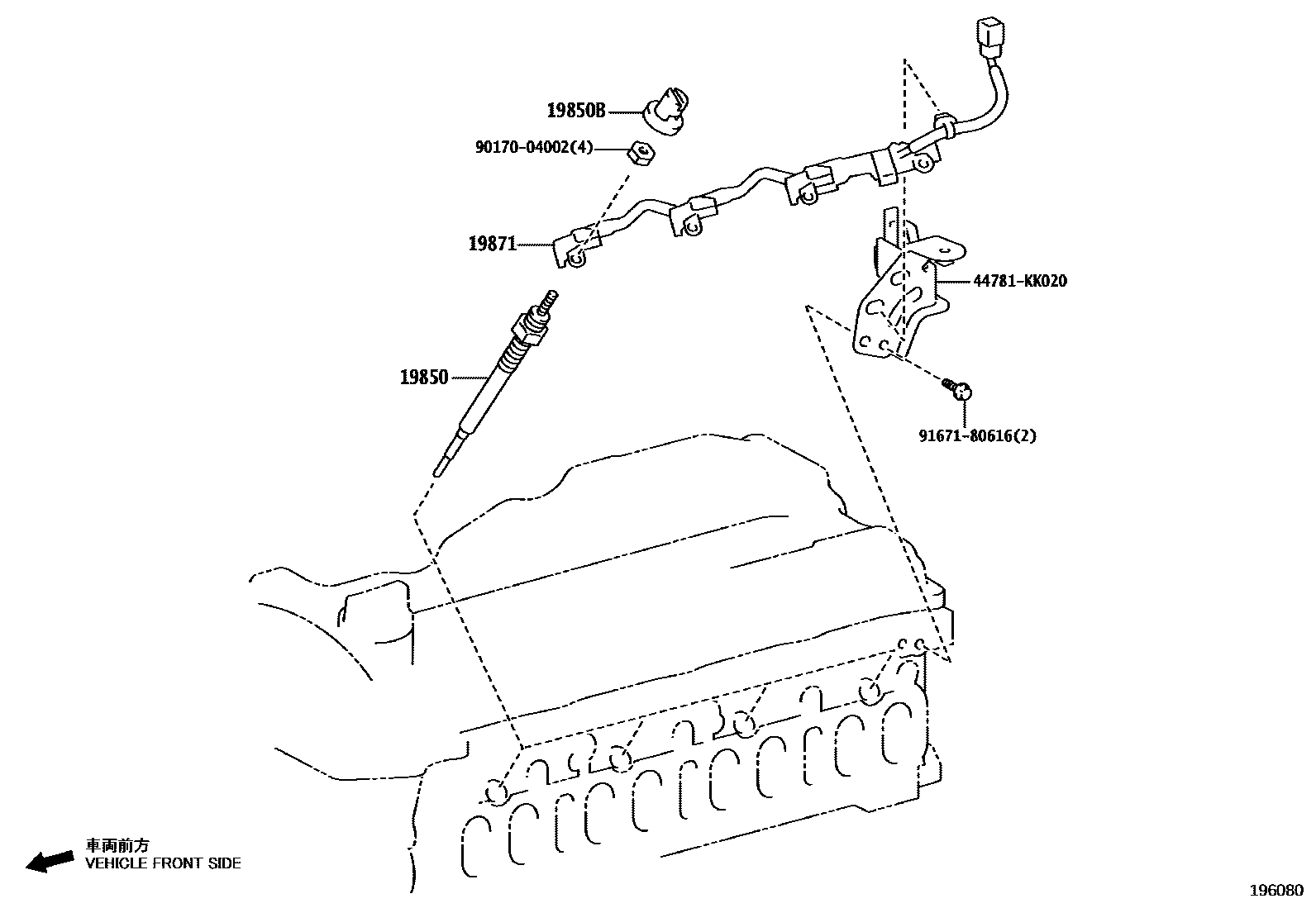

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19850PLUG ASSY, GLOW

main19850-11040i1GDFTV..GDY231..CBU202108-202405

*BV-GV=12V-7V

main19850-54140i5L..LY230202202-202503

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1GDFTV..GDY231..CBU202108-202405

19871CONNECTOR, GLOW PLUG NO.1

main19871-11010i1GDFTV..GDY231..CBU202108-202405

main19871-54020i5L..LY230202202-202503

44781KK020BRACKET, HOSE

main44781-KK020

9017004002

main90170-04002

9167180616

main91671-80616

6 parts on this diagram · 2 diagrams in section
