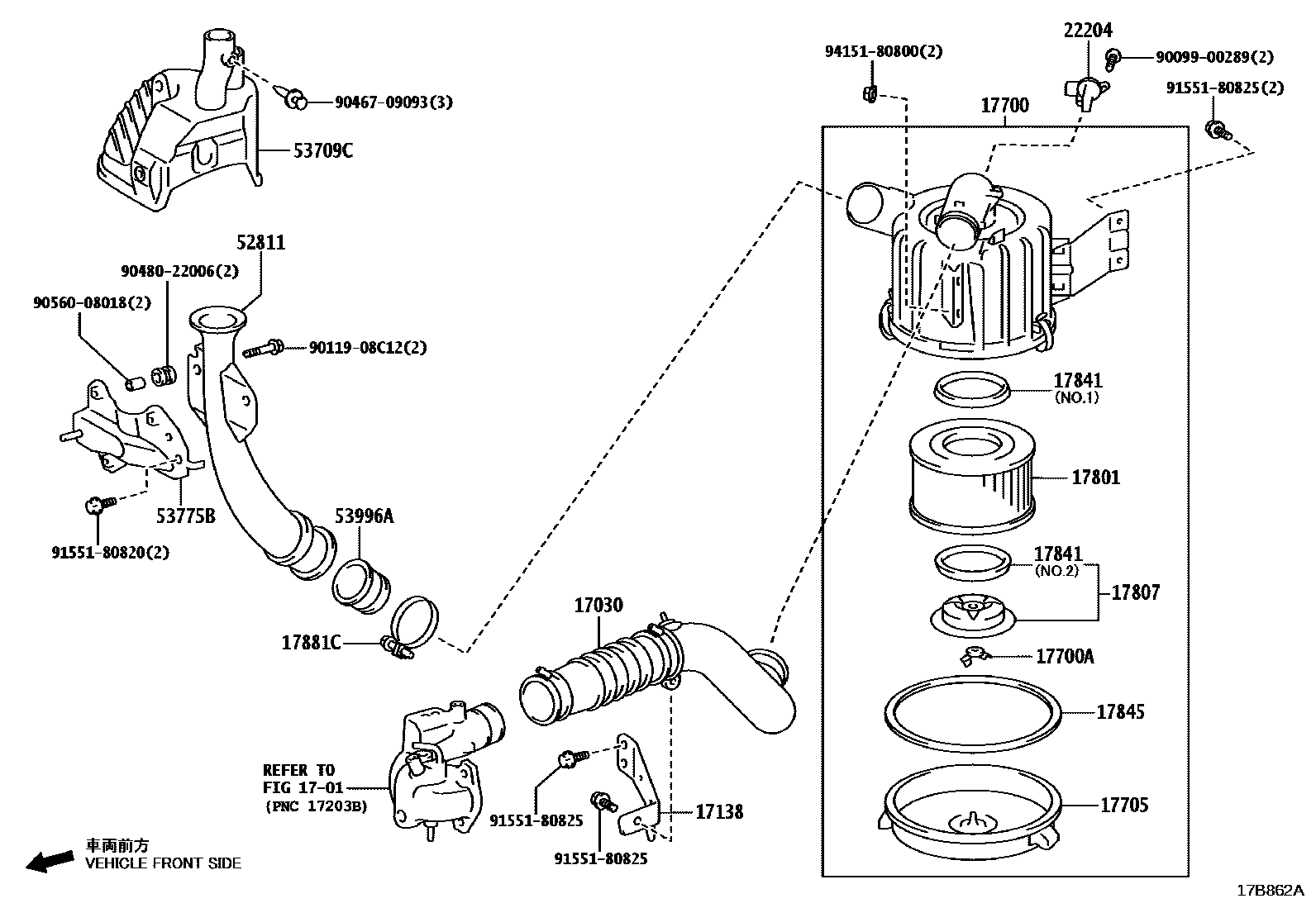

AIR CLEANER
1701
17030HOSE ASSY, AIR
17700CLEANER ASSY, AIR
17700ANUT, WING(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17807PLATE SUB-ASSY, AIR CLEANER FILTER SET
17841GASKET, FILTER ELEMENT
NO.1
NO.2
17845GASKET, AIR CLEANER CAP
17881HOSE, AIR CLEANER, NO.1
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
22204METER SUB-ASSY, INTAKE AIR FLOW
52811DUCT, COOL AIR INTAKE, NO.1
53709CCOVER SUB-ASSY, AIR CLEANER INLET
53775BBRACKET, COOL AIR INTAKE DUCT MOUNTING
53996APACKING, AIR CLEANER INLET PIPE
9009900289
main90099-00289
9011908C12
main90119-08C12
9046709093
main90467-09093
9048022006
main90480-22006
9056008018
main90560-08018
9155180820
main91551-80820
9155180825
main91551-80825
9415180800
main94151-80800
25 parts on this diagram · 5 diagrams in section
