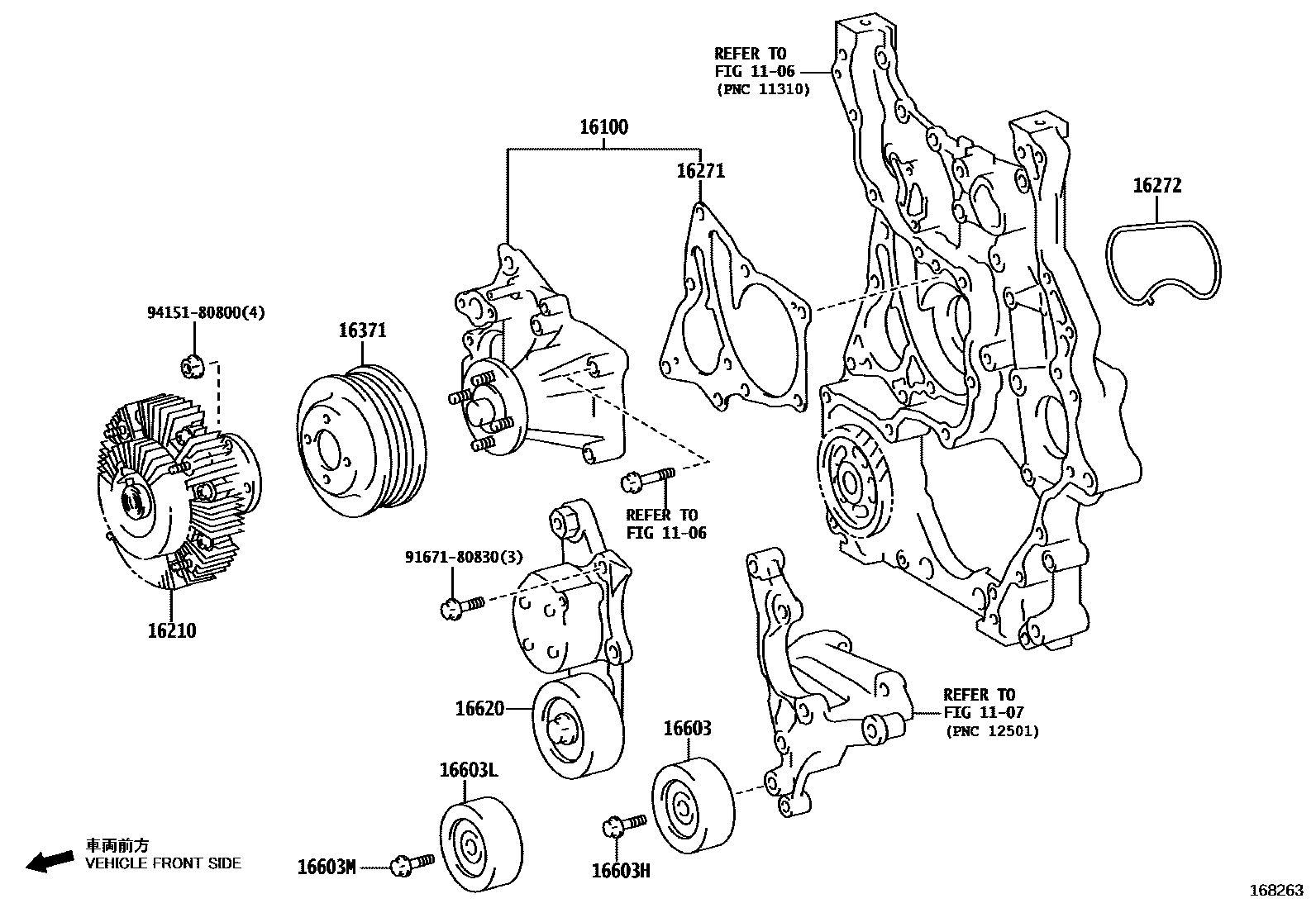

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
16210COUPLING ASSY, FLUID
16271GASKET, WATER PUMP
16272GASKET, WATER PUMP, NO.2
16371PULLEY, FAN
(L)
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
16603HBOLT(FOR IDLER PULLEY)
16603LPULLEY SUB-ASSY, IDLER, NO.1
16603MBOLT(FOR IDLER PULLEY)
16620TENSIONER ASSY, V-RIBBED BELT
9167180830
main91671-80830
9415180800
main94151-80800
14 parts on this diagram · 2 diagrams in section
